Rigging

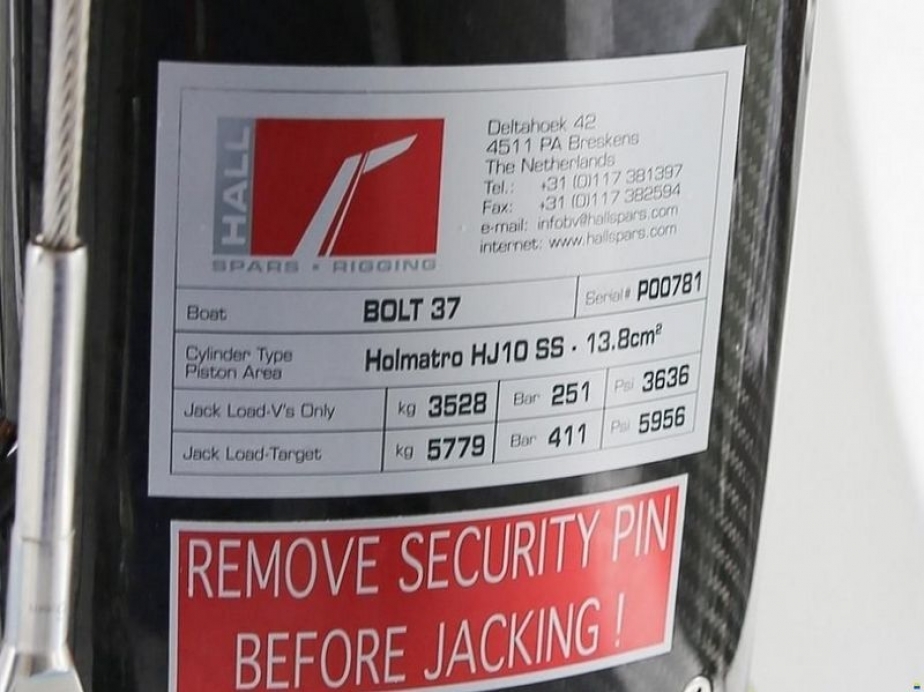

• Mast Hallspar High Modulus carbon mast with internal mast jack.

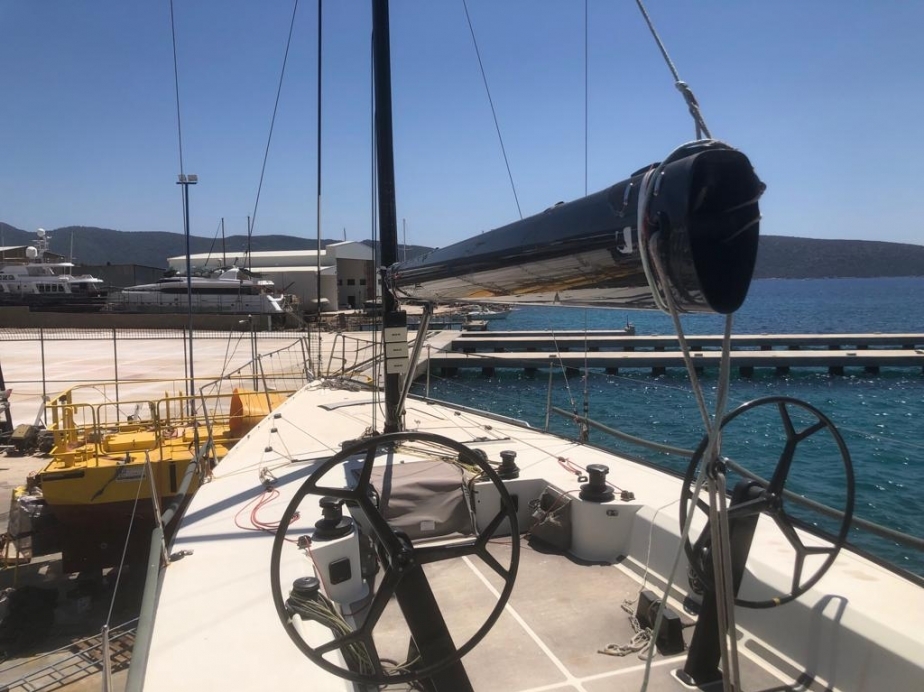

• Boom Hallspar Deep carbon race boom
• Rigging Nitronic 50 rod standing rigging
• Gemini Harken Carbo
• Backstay Twin aramid backstay
• Solid vang with tail lead below deck 32:1 cascade purchase exiting cockpit sole close to main traveler
• New tuffluff 2022

Running rigging

• Equipped for 2:1 mainsail halyard, 1 fractional headsail halyard, 1 fractional halyard and 2 masthead spinnaker halyards
• Mast deck collar with custom moulded resin wedge, adjustable mast step
• 2 Dyneema spinnaker sheets with Tylaska snapshackels or equivalent
• 4 Dyneema jib sheets with soft shackles
• 2 Dyneema spinnaker tack line with Tylaska snapshackels or equivalent
• 1 Dyneema mainsheet
• Mainsail traveller lines, Genoa traveller lines
• Outhaul lines
• Cuningham lines

Sails

Mainsails

• Quantum (2019)
• Onesails  (2018)

Jibs

• Quantum No 2  (2019)
• Onesails  No 1 – 2 & Naked (2018)
• Storm jib

Gennakers

• Onesails A2 (2021)
• Quantum A1,5 – A3 – A5 (2018)
• UK Sails A0,5 (2018)
• Onesails Staysail (2019)

Comment on the sails by the sailmaker:

• Onesails sails of the boat are in general “good” condition. A2 was done last year, raced only a few times.
• Quantum sails of the boat are in “medium to good” condition.
• All sails have been maintained well and washed/dried when needed.

Accommodations

Designed to meet ORC, IMS, IRC regulations and construction to be lightweight
appropriated for racing yachts.

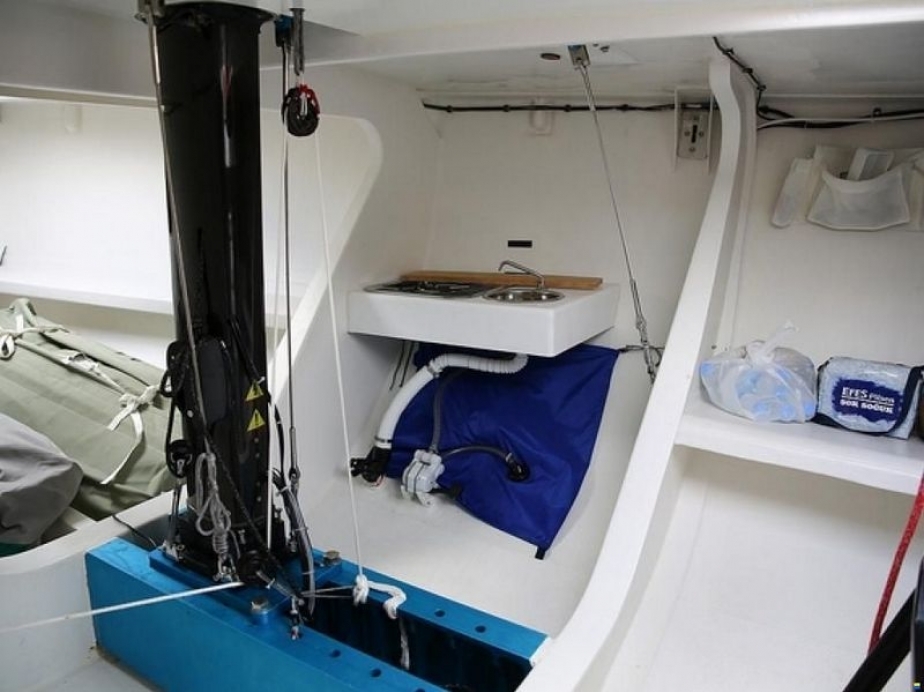

• Basic galley with plumbed sink, manual water pump and location for moulding a single burners stove with disposable gas bottles connected to the burner.

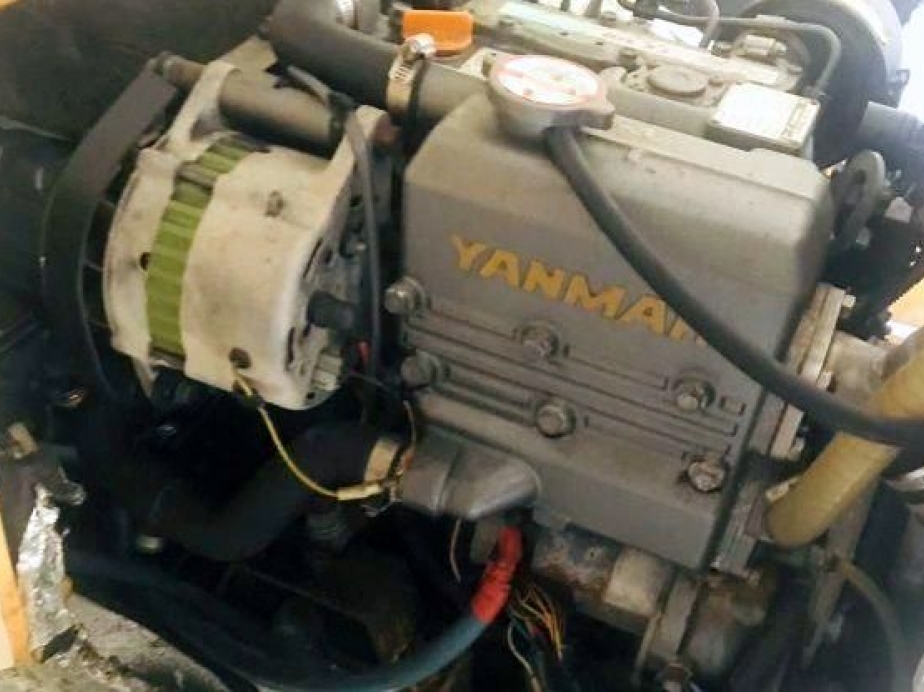

• Engine box with removable portion to allow access to service engine and incorporating nav area.
• Manual tap at galley sink, cold water only

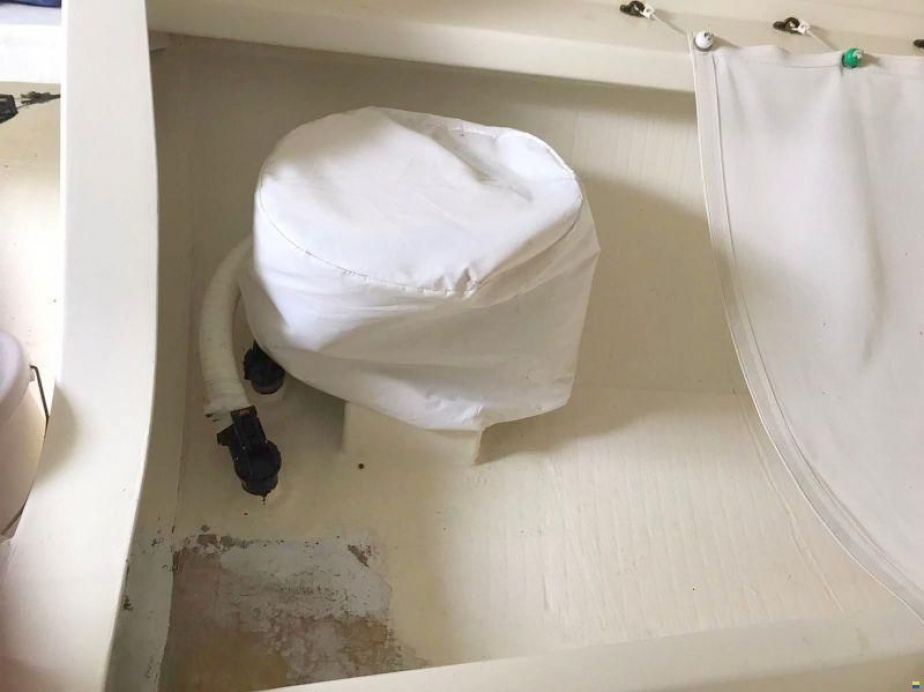

• Plumbed in seawater Marine WC, with flush seacocks type
• 2 x Manual bilge pump one operable from below deck one from the cockpit
• Flexible water tank
• 5 X Rule LP900S LoPro Auto Bilge pump

Deck and Cockpit

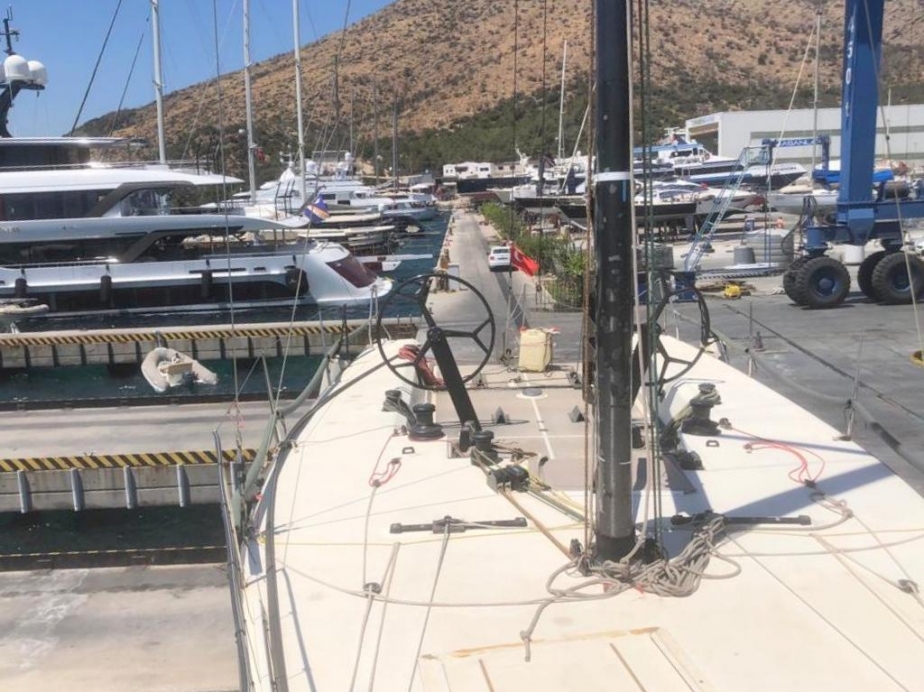

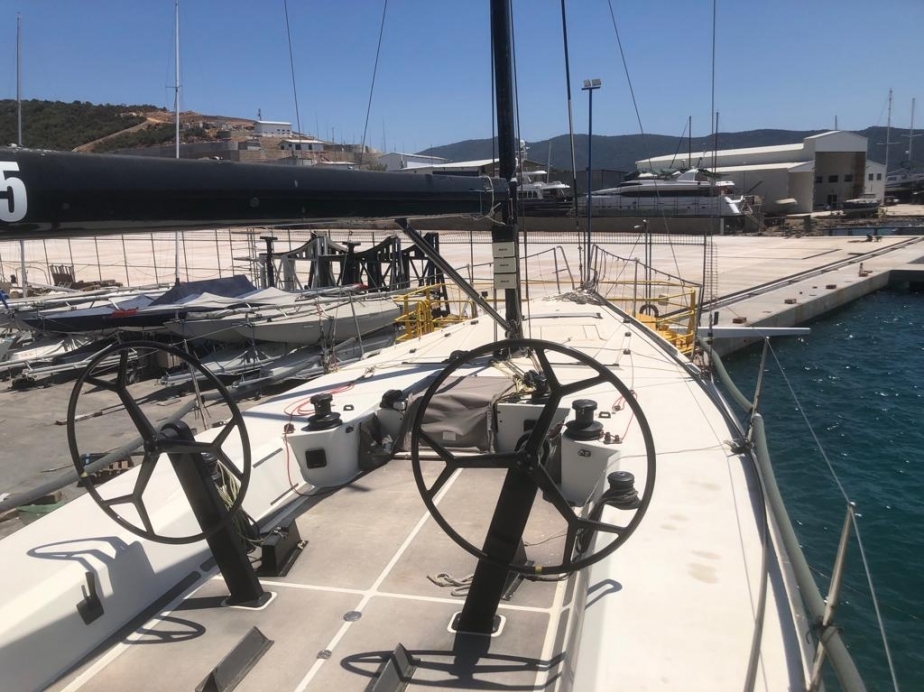

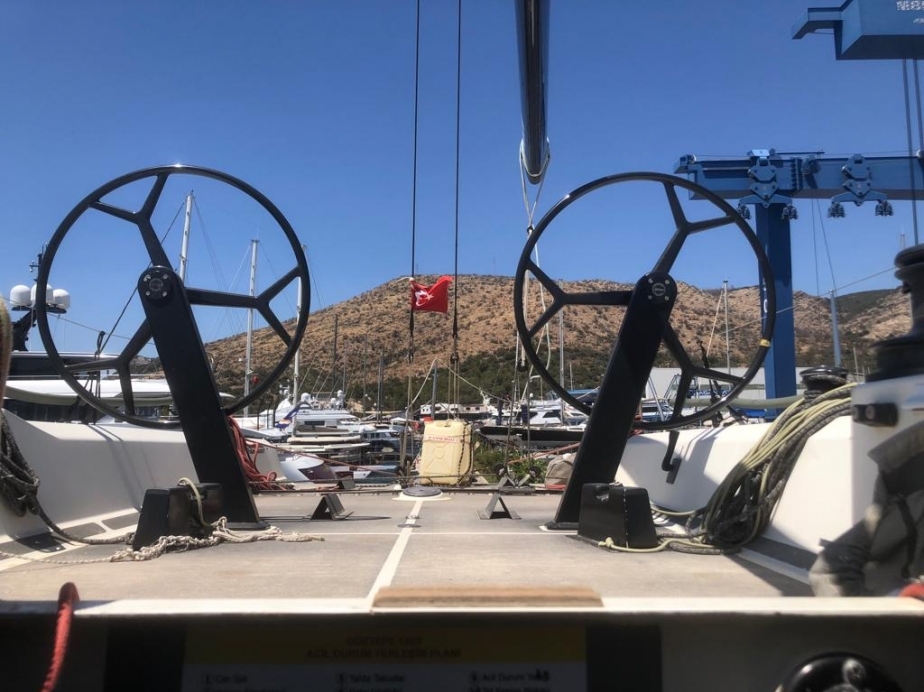

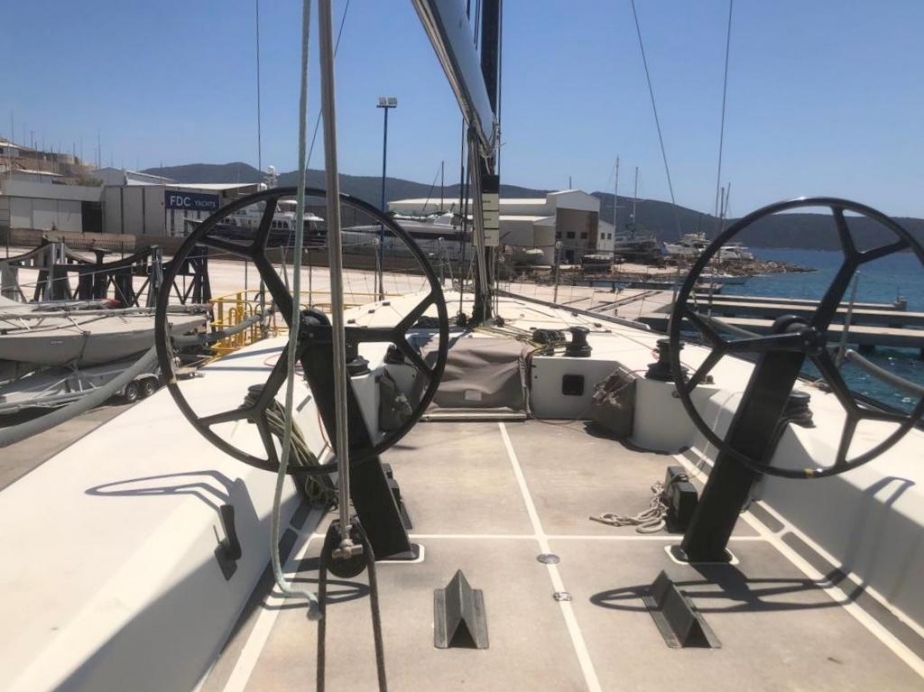

• Jefa wp710, racıng pedestals and carbon wheels
• ORC conforming toerail included in in the deck mould to the foredeck
• Two (2) Harken Performa # 46 Quatro primary winches.
• One (1) Harken # 35.2STA winch in the pit
• Two (2) Harken # 40.2PTA mainsheet winches
• Two (2) Harken # 35.2PTA runner winches
• 5 Harken lock-in winch handles
• 2:1 Mainsheet system on Harken blocks, lead direct from the end of the track to mainsheetwinches.
• Harken adjustable mainsheet traveller with a 6:1 cascade purchase below deck and leadtrimmers foot rest
• Twin transverse tracks (27mm mid-range track with #2705B.HL cars), with ball-bearingcar system
• In-hauler system, 6:1 lead to cockpit
• Up/Down system, 4:1 cascade with a 6:1 tail purchase (24:1 total) and fitted with a
  floating ring #C8694
• 2 Harken override fairleads #C8541
• Harken spinnaker sheet blocks #3195 mounted on fwd leg of pushpit
• Harken spinnaker sheet diverter blocks #3195 mounted on side decks
• 5 Harken Halyard Blocks
• 7 Spinlock Jammers (1 x main halyard, 2 x masthead spi, 1 x fractional spi, 1 x jib,
  2 x tack lines )

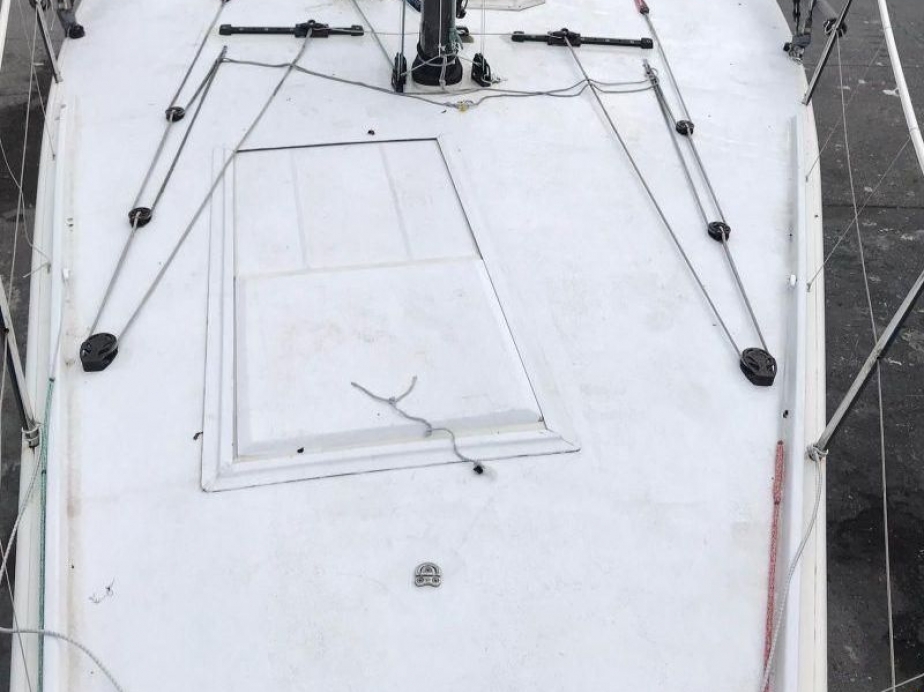

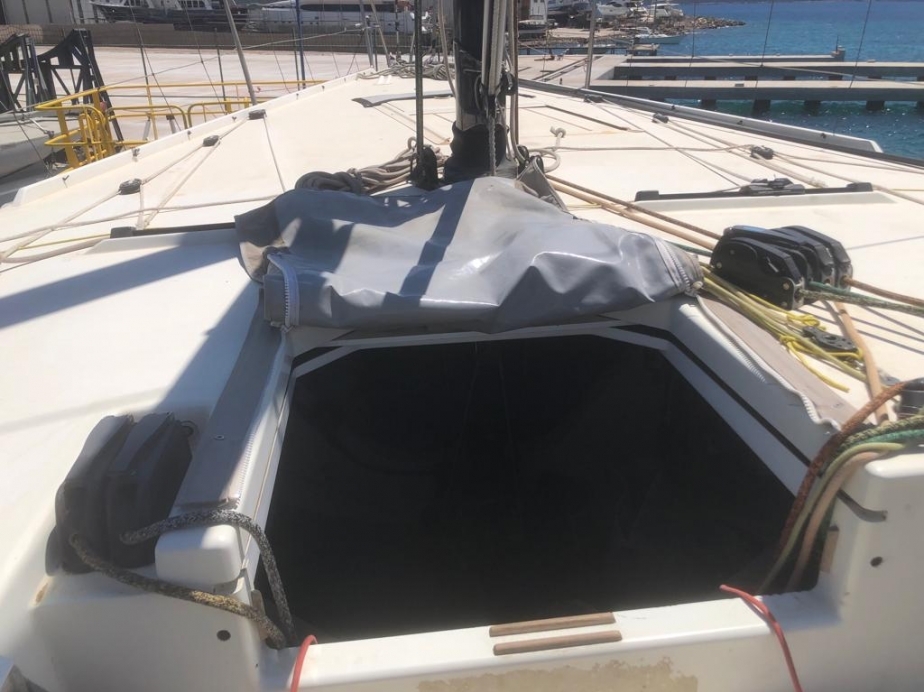

• 1 foredeck slide opening hatch with round edges
  Double s/s rail pulpit and pushpit, 8 stanchion, 316 Stainless Steel tubing, tapered towards the top.
• Stainless Steel Lifelines
• Foot chocks for helmsman, main trimmer & runner
• A lightweight companionway wash board

Electrics

• Cabin lighting under coach roof, galley and nav areas.
• 12 volt DC switch panel and battery indicator mounted on the engine box.
• Battery isolator/selection switch mounted on the engine box.
• Gel type batteries for engine start and service
• 12 V electrical panel for Engine, rev counter and start stop switches on the engine box.
• Navigation LED lights at masthead

Safety

• 6 person soft case life raft
• Fortress anchor FX23
• Fire extinguisher
• flares
• lifeline

Electronics and Navigational Gear

• B&G Zeus Touch T7 chartplotter

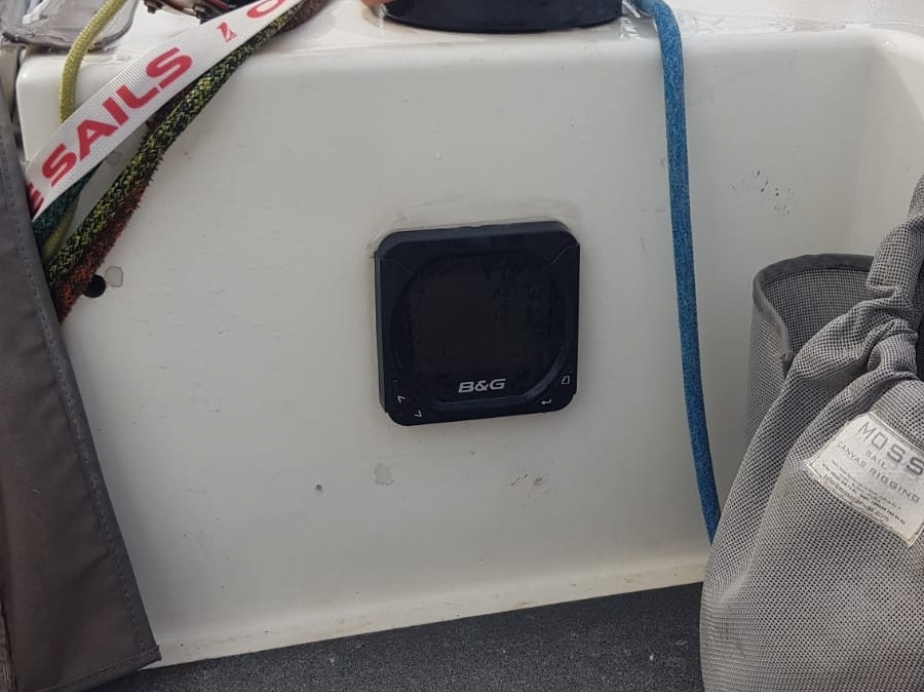

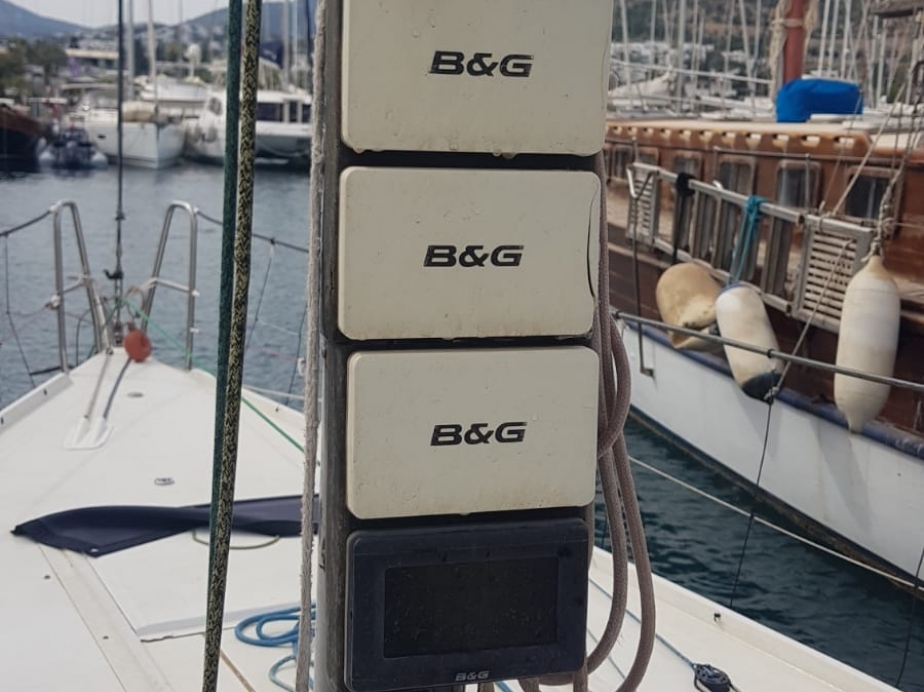

• B&G 4 X 20/20HV mast display

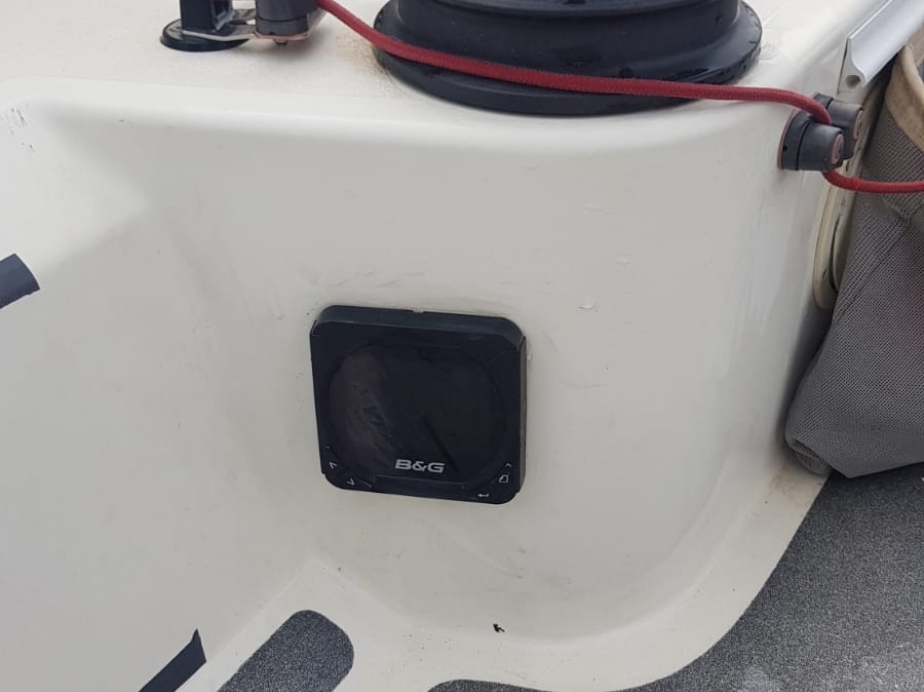

• B&G 2 X Triton T41

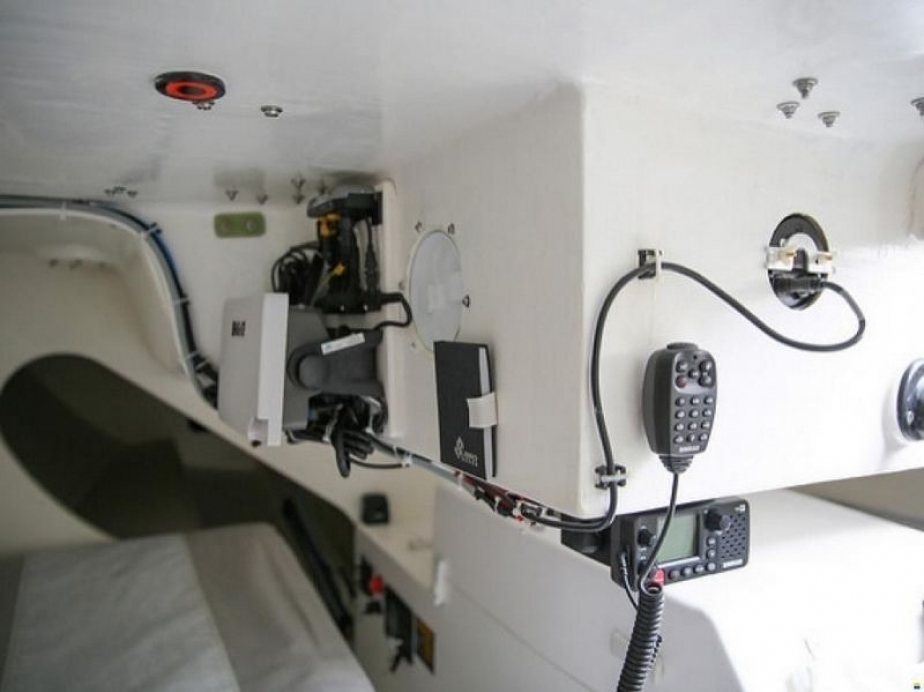

• Simrad RS12 VHF

Additional

• Cradle
• Fenders and mooring lines
