General

• Designer: Carkeek Design Partners
• Builder: Premier Composite Technologies
• ISO Structural: Cat A
• ISAF OS: Cat 1

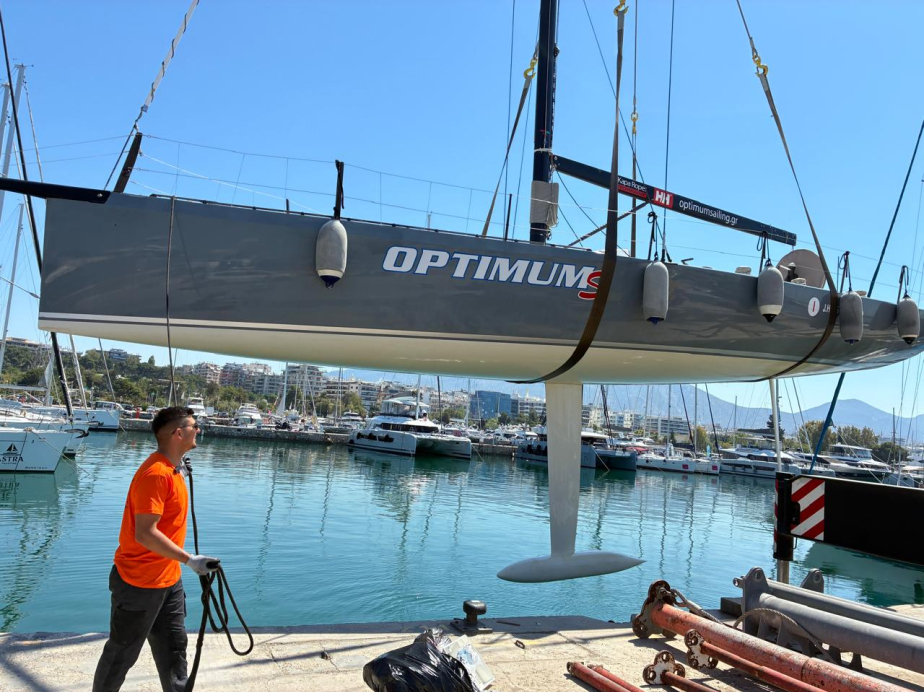

Keel, Fin & Bulb

• CFD optimized fin and bulb configuration and shapes
• Keel design and structural attachment is in accordance to ISO structural regulations to Class A with plan approval by Germanischer Lloyd
• CNC milled high strength SG Iron Grade 80-55-06 (ASTM A536-84) cast keel
• CNC milled lead T-bulb
• S.S. bolts, backing plates, washers and nuts
• Pocket for trim and weight adjustment

Steering System

• Female moulded infused carbon fibre rudder blade with autoclaved carbon fibre stock.
• Jefa Upper and Lower self-aligning rudder bearings
• Twin Carbon wheels and quadrant

Coats & Paintworks

• Interior finished in semi-gloss satin white paint
• Awl Grip paint finish to top sides and deck gloss areas
• Cockpit floor: SeaDek closed cell EVA non-skid
• Below water-line Awlgrip epoxy professionally faired

Rigging

• Rig (Southern Spars)
• High modulus carbon mast – 2 pieces
• Three sets swept aft carbon spreaders
• Standard Modulus GP box style boom with outhaul purchase
• EC6 carbon rigging
• EC6 running backstays
• Adjustable internal hydraulic mast jack & Enerpac pumpStainless steel mast fittings
• Carbon gas Vang
• Main halyard lock- cassette x 1
• Jib halyard lock- cassette x 1
• Code 0 halyard lock – cassette x 1
• Floating mainsail tack
• Added on (screwed on built-in mast groove) Harken Mainsail track with 17 roller bearing tracks

Furlers

• Facnor 4500 + Furler MH0
• Karver 4.5 Furler FR0
• Ronstan Furler J0

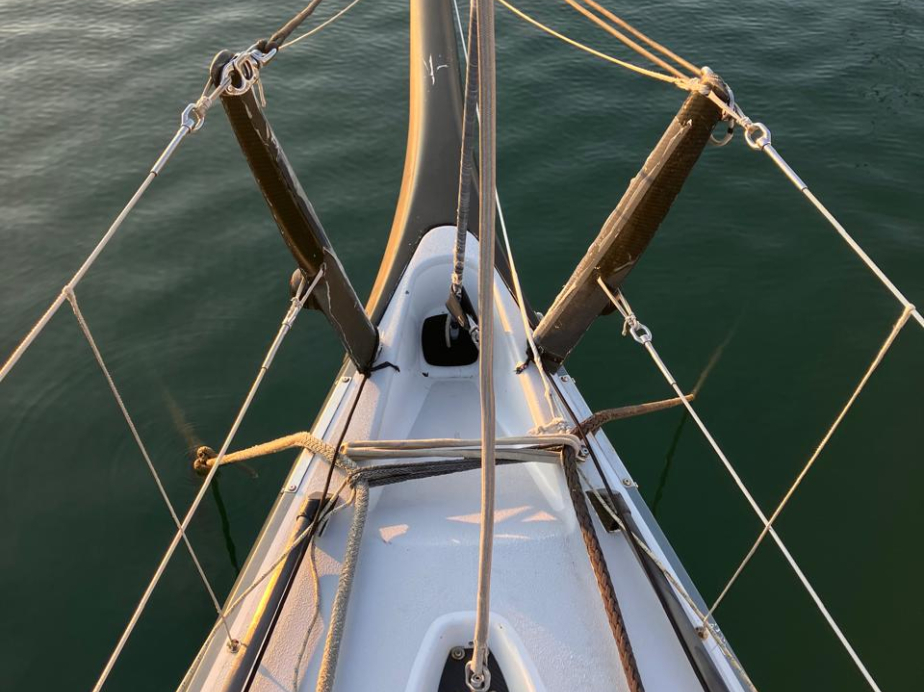

Bowsprit

• Custom autoclaved removable carbon bowsprit
• Removable stainless steel bobstay



Running Rigging

• 1 x Main halyard (lock)1 x Fractional jib halyard (lock)
• 1 x Fractional spinnaker/jib halyard
• 2 x Masthead spinnaker halyards (lock x 1)
• 1 x Staysail halyard
• 1 x Mainsheet
• 2 x Spinnaker sheets
• 2 x Code 0 sheets
• 2 x Jib sheets
• 2 x Spinnaker tack lines

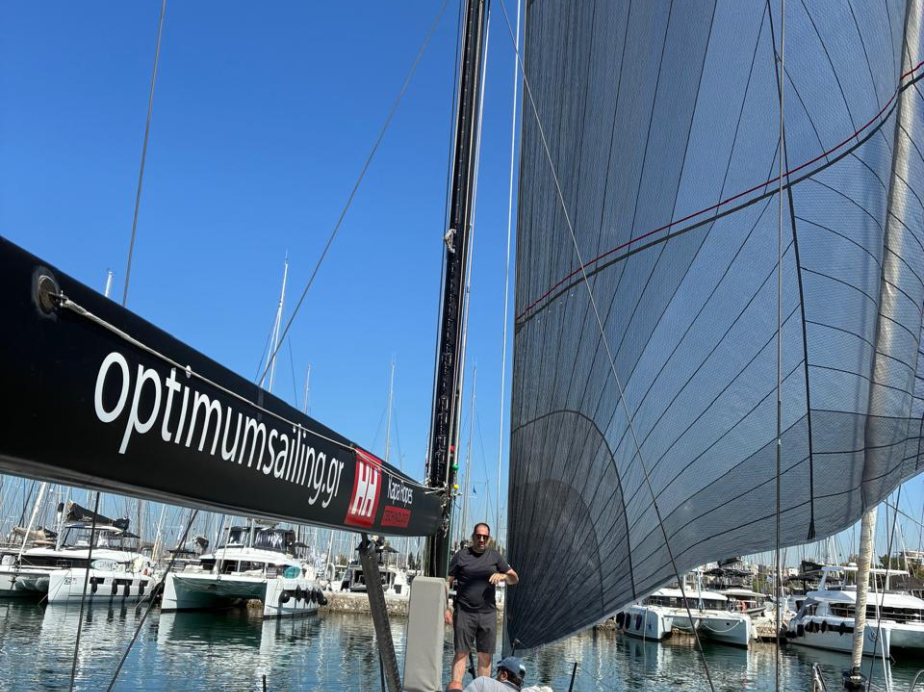

Sails

New sails 2023-2025
2023
- Main Offshore – Quantum Carbon Velum 2023 – 2 Reefs
- J4 – Quantum Carbon Tri Radial 2023

2024
- A1.5 – Quantum 2024 (only used in 1 race)
- A2.5 – Quantum 2024 (only used in 2 races)
- Jib Staysail – Quantum Tri Radial 2024 (only used in 1 race)

2025
- A4 – Quantum 2025 (Brand new)
- J1.5 – Quantum Carbon Fusion M7 2025 (Brand new)

Other sails

 J1 North 3DL 2014

J2 North 3DI 2014
A1.5 North 2014
A2 North 2014
Storm Jib North Dacron 2014
Storm Trysail North Dacron 2014
Offshore Main OneSails 4T 2014 - 2 Reef
Offshore Main OneSails 4T 2017 - 3 Reef
J1.5 OneSails 4T 2014
J2.5 OneSails 4T 2014
J4 OneSails 4T 2014
J1.5 OneSails 4T 2016
J2.5 OneSails 4T 2016
J4 OneSails 4T 2016
J1.5 OneSails 4T 2017 -18
J2.5 OneSails 4T 2017 – 18
J1.5 OneSails 4T 2021 NEW
J2.5 OneSails 4T 2021 NEW
A2B OneSails 2014
A2C OneSails 2016
A4 OneSails 2019
A5 OneSails 2015 Laminate
A6 OneSails 2019
MHO OneSails 2019
FR0 OneSails IFS 2020
Spin Staysail OneSails 2018
J0 OneSails 2019
J5 Storm Jib OneSails Radial 2016

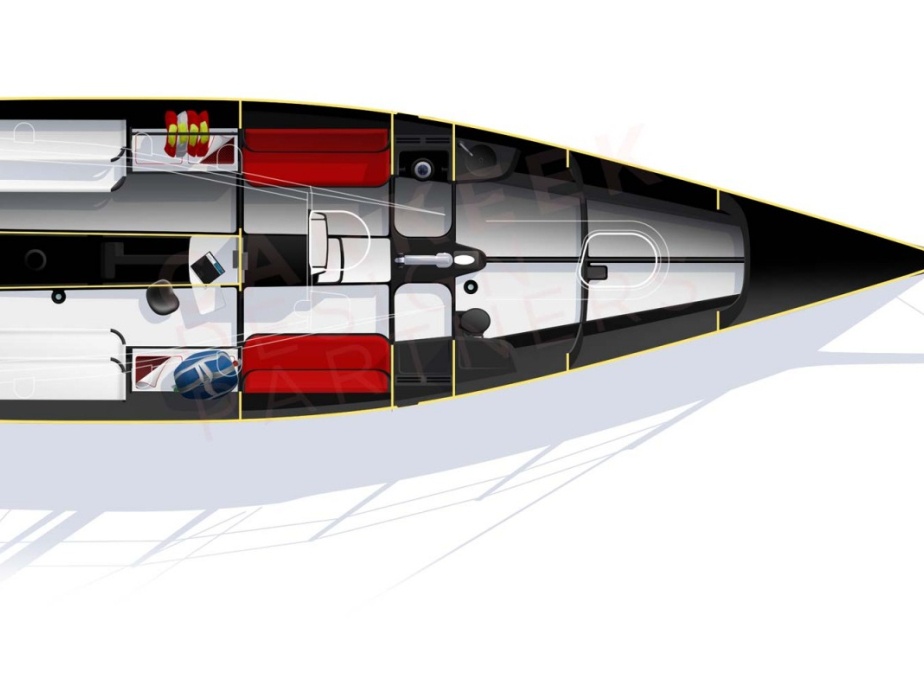

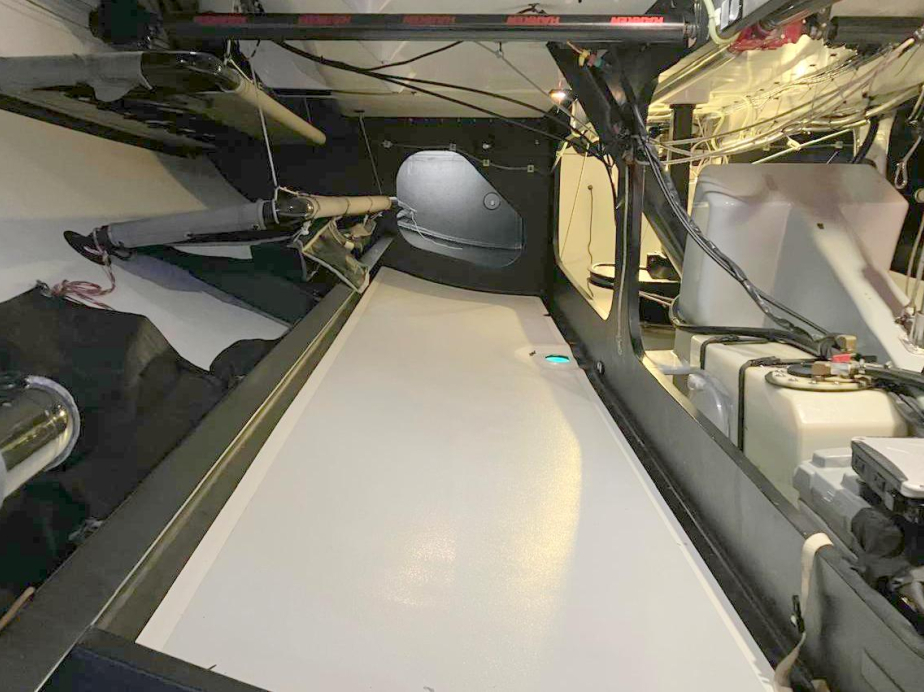

Accommodations

• Nav station built from infused carbon/epoxy/foam
• Head located forward next to the mast

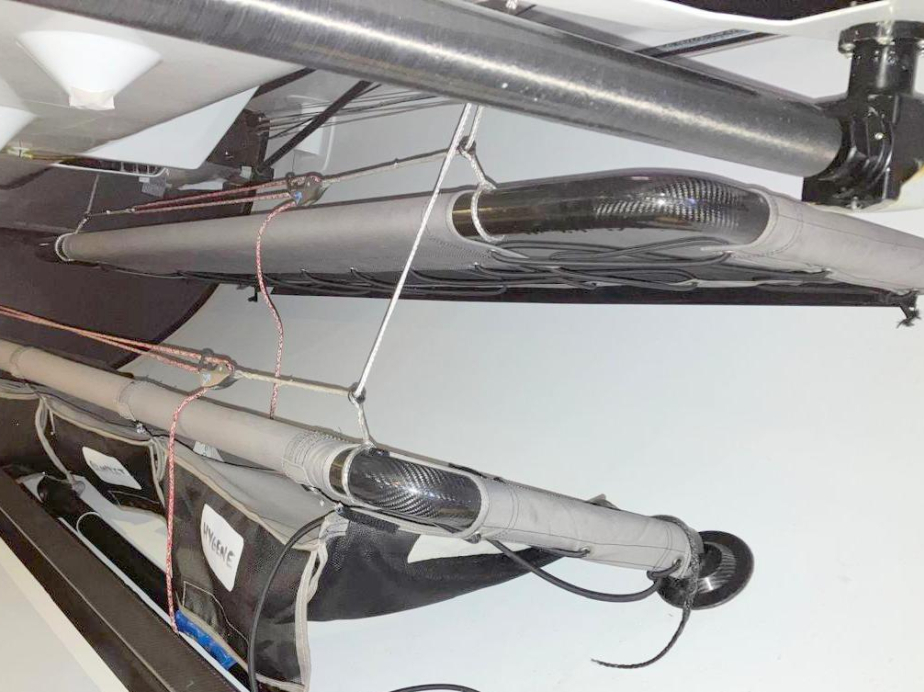

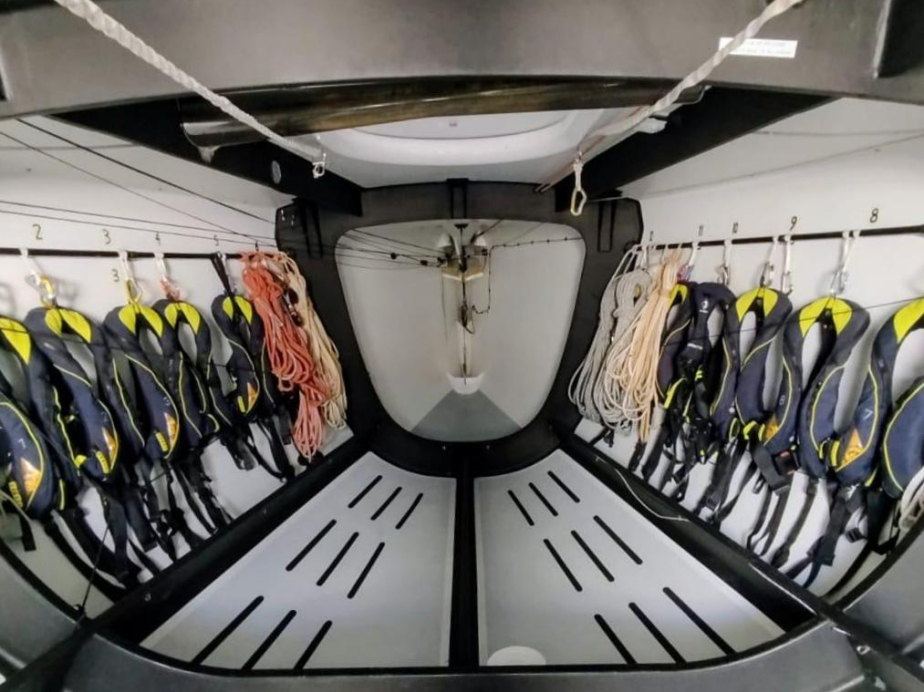

• 8 x Carbon pipe cots with adjusting tackle
• Engine box with integrated steps in infused carbon/epoxy/foam
• Carbon sink in galley unit
• Custom fabricated lightweight gimballed burner propane stove

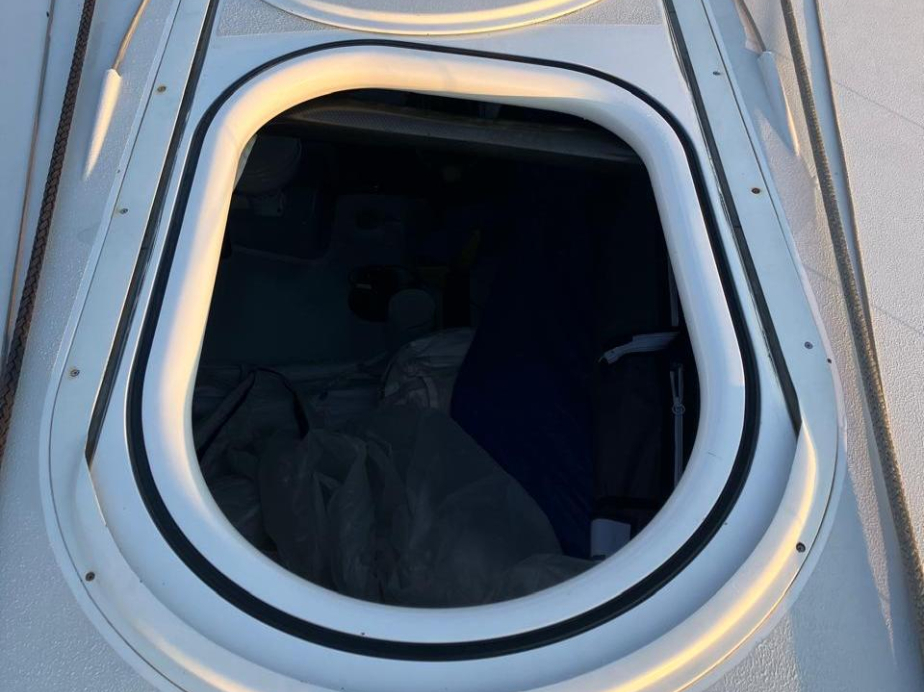

Hatches & Portlights

• Custom companionway sliding hatch and hatch garage
• Custom composite sliding foredeck hatch
• Custom composite Offshore hatch
• 2 x Portlights in cockpit

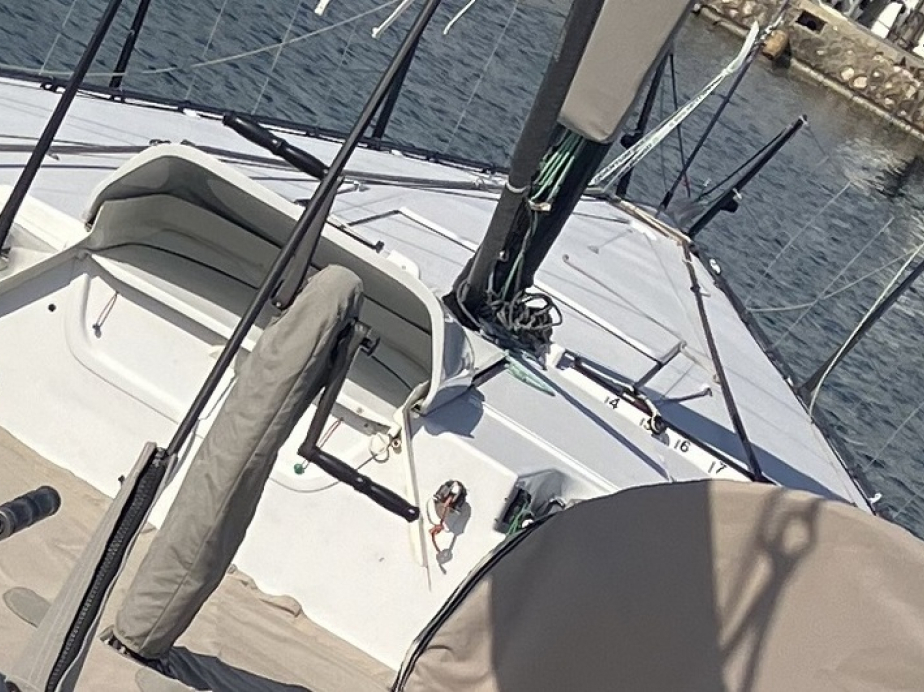

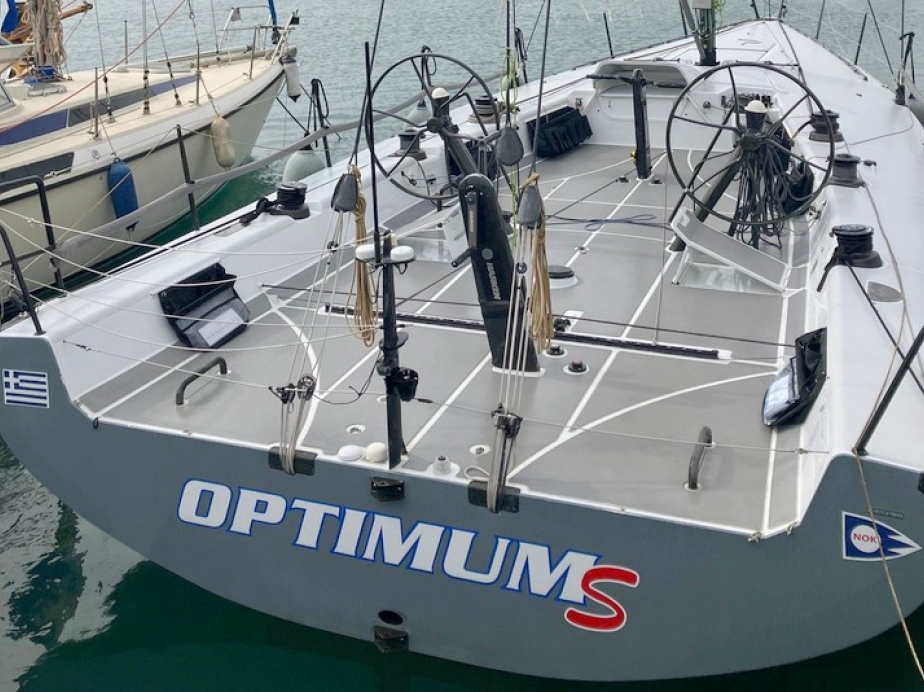

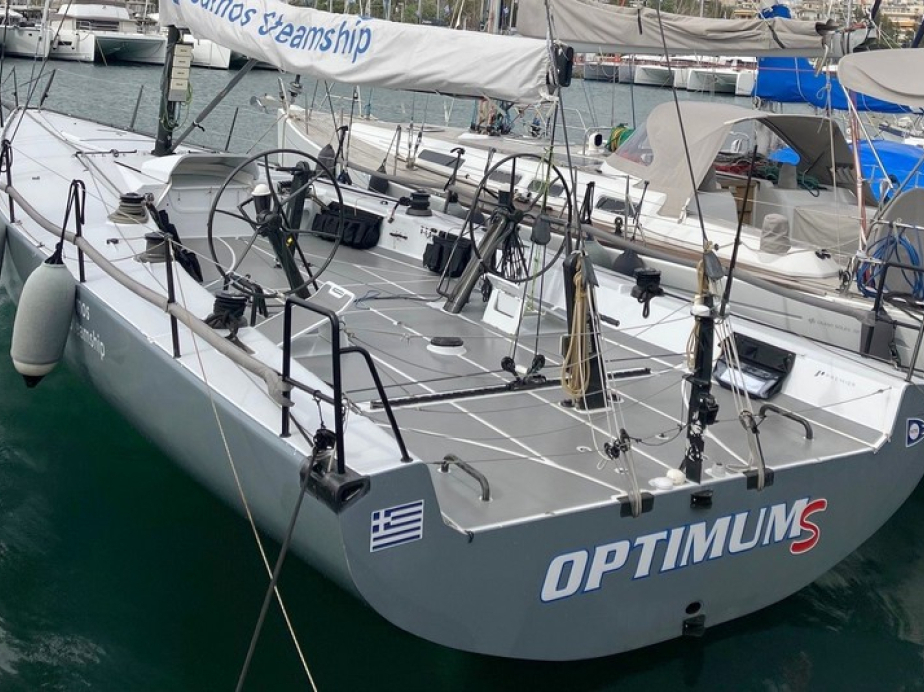

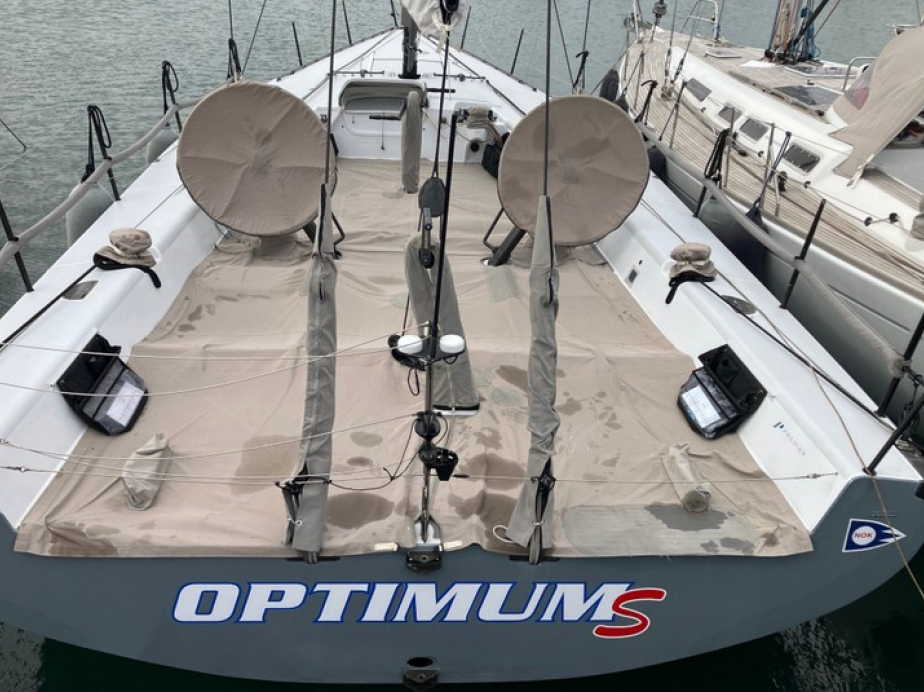

Deck and Cockpit

Winches

• 1 x HARKEN B65.3 STR UD primary portside (F84455800)
• 1 x HARKEN B65.3 STR UD LH primary starboard (F84455800L)
• 1 x HARKEN B65.3 STR UD mainsheet portside (F84455800)
• 1 x HARKEN B65.3 STR UD LH mainsheet starboard (F84455800L)
• 2 x HARKEN B65.2 STR UD runner winches
• 1 x HARKEN B50.2 STR FD utility winch

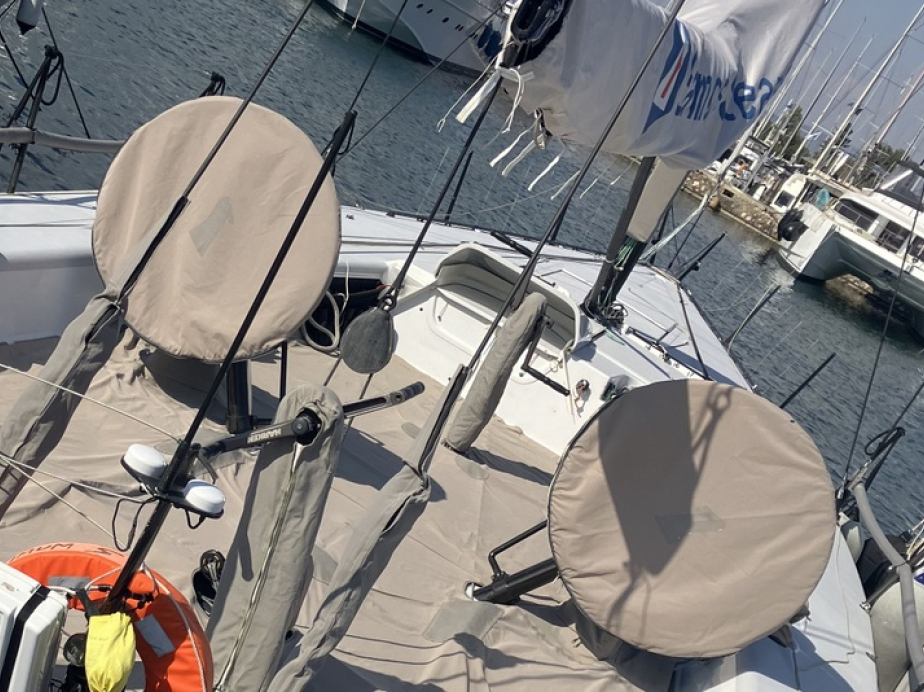

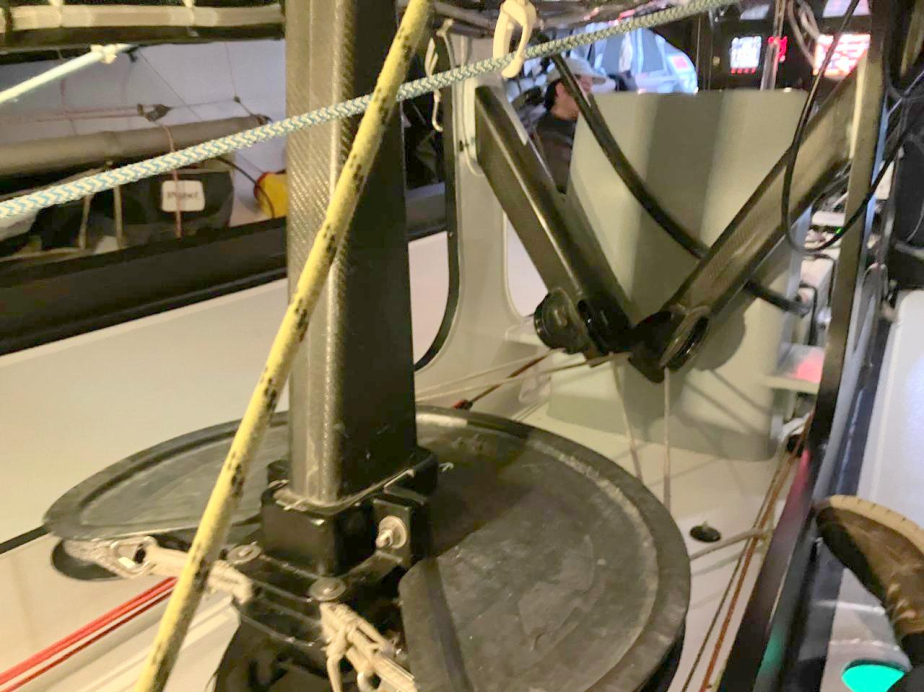

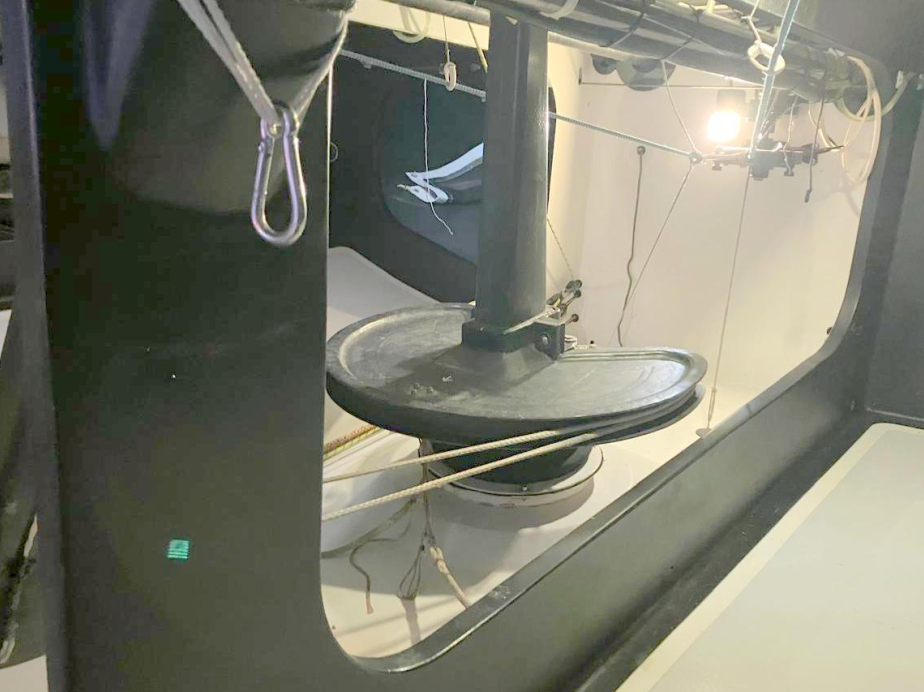

HARKEN MX Pedestrals

• 2 x Carbon fiber pedestal tube description as per drawing 42050 with flange (PEDxxxByyyCzz)
• 2 x Pedestal upper mechanics for MX dual chain pedestal (A94771000)
• 2 x Pedestal lower sprocket for MX2.8 dual chain pedestal Z13 Z35 (A94835600)
• 1 x Pedestal lower group 1dsc output Ø30 (A94899000)
• 1 x Pedestal lower assy 1 output Ø30 (A94899100)
• 2 x Chain 1/2'' 1/8'' Z=178 (S484040008)
• 2 x Chain 1/2'' 1/8'' Z=188 (S484030008)
• 4 x Aluminium pedestal double handle (F84265000)

Bevel Boxes & T Boxes

• 3 x Bevel Gear Box - LH (F86512300)
• 1 x Tbox 605 (F83950800)
• 1 x Gbox L&T 606 disconnect predisposition (F86512300)
• 1 x Xbox 606 direct disconnect predisposition (F86512200)
• 3 x Kit front disconnect gbox 606 (Ø25) fork RH (A96511300)
• 1 x Kit Lbox 606 (Ø25) fork RH 1 disconnect (A96514500)
• 1 x String Drop Hub (F86556200 )

Foot Buttons – String disconnects

• 5 x Ball remote button

Shafts

• 9.4m x Carbon drive shaft

Underdeck Systems

• Vang purchase system led aft under-deck to control box
• Outhaul led aft under-deck to control box
• Main cunningham led aft under-deck to control box
• Mainsheet led forward under-deck to main winches
• Main traveler led forward under-deck to control box
• Spinnaker tack line led aft under-deck to pit winch
• Spinnaker sheets led forward under-deck to primary winches
• Halyards led aft under-deck to pit winch

Other Hardware

• 11 x Spinlock rope clutches for Halyards, spinnaker sheets and fore guys
• Custom organizer
• Spinnaker string drop system

Engine

• Fuel Cap.: 72.6 lt. in 2 x 36.3L (19.18 gall.) rigid plastic fuel tanks
• 40hp Volvo desel engine
• Retractable Propulsion Solution (stainless steel shaft with aluminum & bronze propeller)
• Spinlock flush throttle control
• Carbon fiber exhaust to transom
• Teleflex throttle control mechanism

Safety

• 1 x Radar Reflector
• 1 x Whistle
• 12 x Life Jackets+ Crotch Straps
• 1 x Lifebouy with self-igniting light
• 4 x Red Parachute Flares
• 4 x Red Hand Flares
• 2 x Orange bouyant smoke flares
• 2 x CO2 2kg Fire Extingusher
• 1 x Manual Bilge Pumps
• 2 x Bucket + Lanyard 9lt
• 2 x Anchor with Rope or Chain
• 2 x Cockpit Knife
• 1 x Inflatable Liferaft Plastimo Transocean

Electronics and Navigational Gear

• 1 x H3000 CPU Hercules Performance (2024 / A&T Tested)
• 1 x H3000 CPU USB Cable
• 2 x H3000 GFD Pack
• 4 x H3000 20/20 HV Display Pack
• 1 x B&G Ploter
• 1 x SIMRAD MX610 Navigation System / GPS
• 1 x NAIS – 400
• 1 x Garmin Display
• 1 x B&G 10/10HV Display
• 1 x H3000 Depth Sensor (Flanged)
• 2 x AirMar High-Performance Speed/Temprature Sensor ST950 (installed 2024)
• 1 x A&T Vertical Masthead unit 500 series (installed 2022)
• 1 x Halcyon 2000
• 1 x Diverse Mast Cable: Wind, windex light, LMR 240, connectors, braid
• 1 x Heliflex Stubby VHF Antenna 20M
• 3 x Fastnet Cable 10m (replaced 2024)
• 1 x 2-Core Screened (3M)
• 1 x 6-Core Wind Cable (9M)
• 1 x Terminator
• 2 x A&T Junction Box (installed 2024)
• 5 x Junction Box (7 Terminal)
• 1 x H3000 Instrument Handbook
• 1 x Custom Loadpin
• 1 x Diverse Hybrid Loadcell Amplifier
• 1 x Garmin 19X HVS
• 1 x C-MAP Plotter Chart
• 1 x LevelOne Wireless Access Point with Antenna and PoE injector

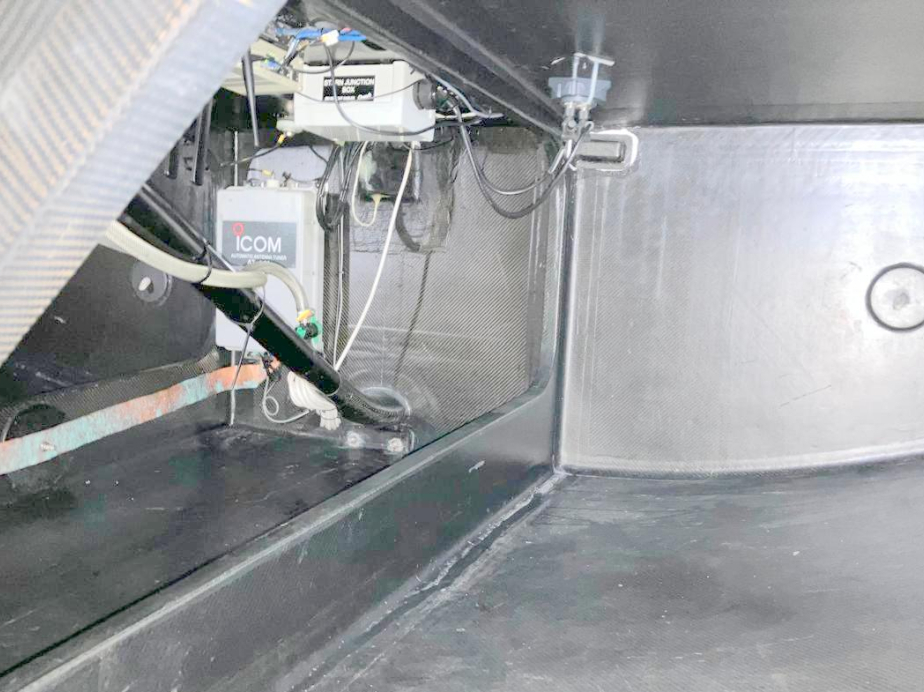

• 1 x ICOM VHF

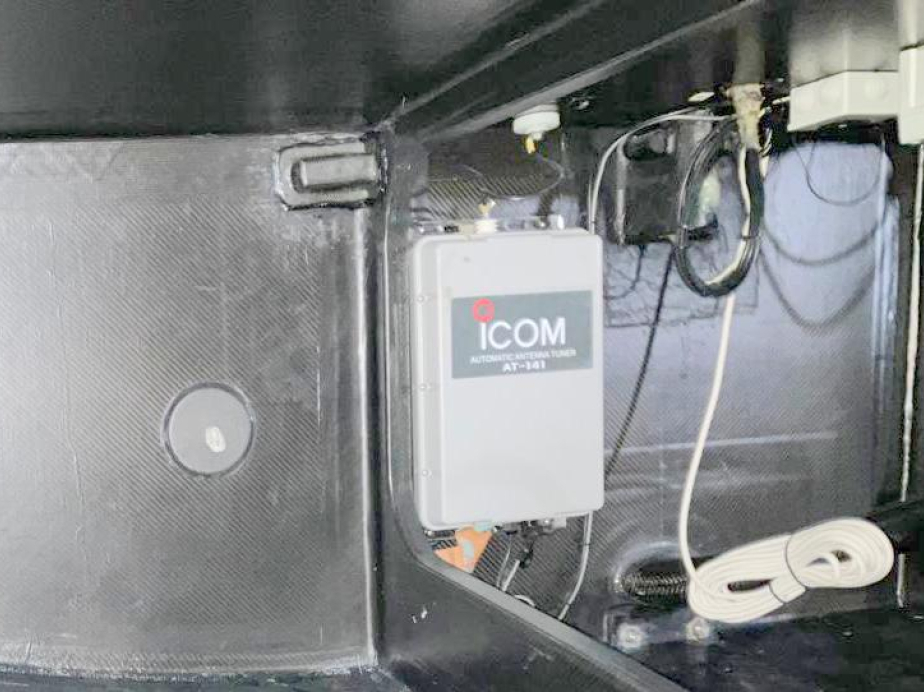

• 1 x iCom HF
• 1 x Battery Status Display
• 1 x MOXA Nport 5410 Serial to Ethernet
• 1 x Laptop Panasonic Touchbook Upgrade RAM & SSD Disk
• 1 x Teltonica RUTX50 IoT 5G Router Teltonica RUTX50
• 1 x Linksys PoE Switch
• 1 x CEL – FL 3G, 4G Repeater
• 1 X Satellite Kit Sailor 150 Fleet Broadband Thrane & Thrane

Additional

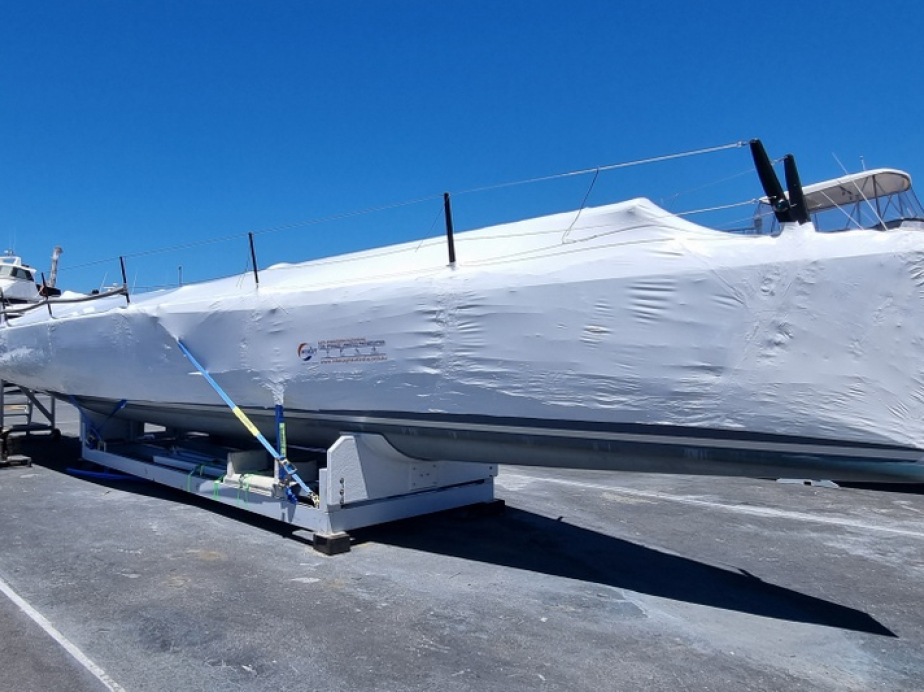

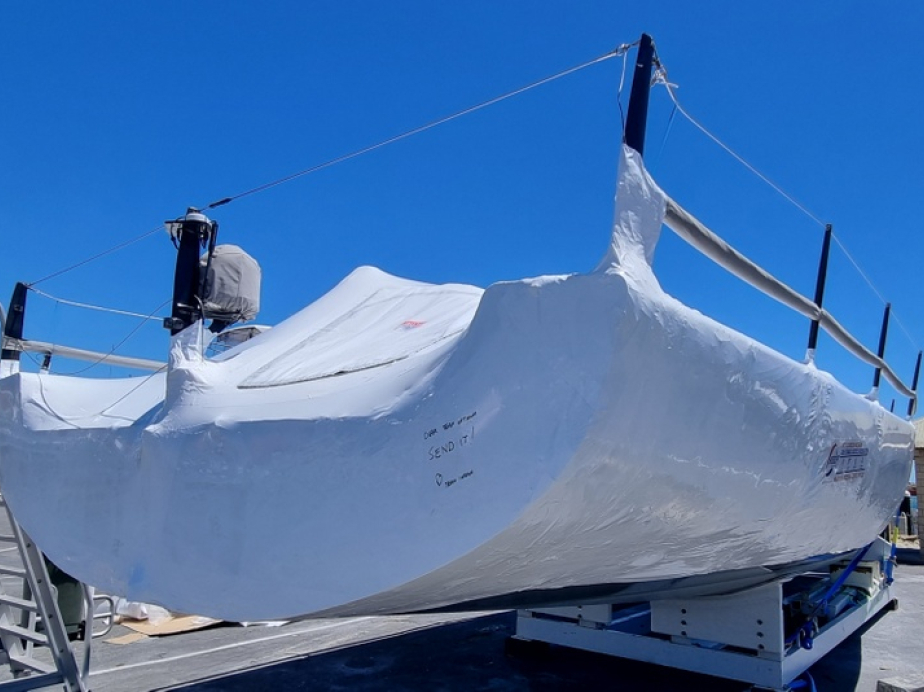

• Shipping cradle with two positions
• Katadyn 30 l/hr lightweight removable watermaker
• Removable dock battery charger
• Transom spare / emergency rudder (for Cat 1)
• Lifting keel dryfit
