Carkeek 60


VAT excluded

  • Reference ID 691
  • Builder Carkeek
  • Model 60
  • Carkeek
  • Year 2013
  • Location Netherlands
  • Engine type Single
  • L.O.A. (mtr) 18.50
  • Beam (mtr) 5.00
  • Draft (mtr) 4.45
  • Displacement (Kg) 11522
  • Material Carbon
  • Engine Yanmar 75Hp
  • Berths 12

Yacht description

The Carkeek 60 is built by Neil Cox, Premier Composites.

She effectively combines speed with strength in a relatively simple hull form.

Owners comments:
She is a beautiful yacht to sail. Perfect for a smaller crew due to hydraulic winch systems.

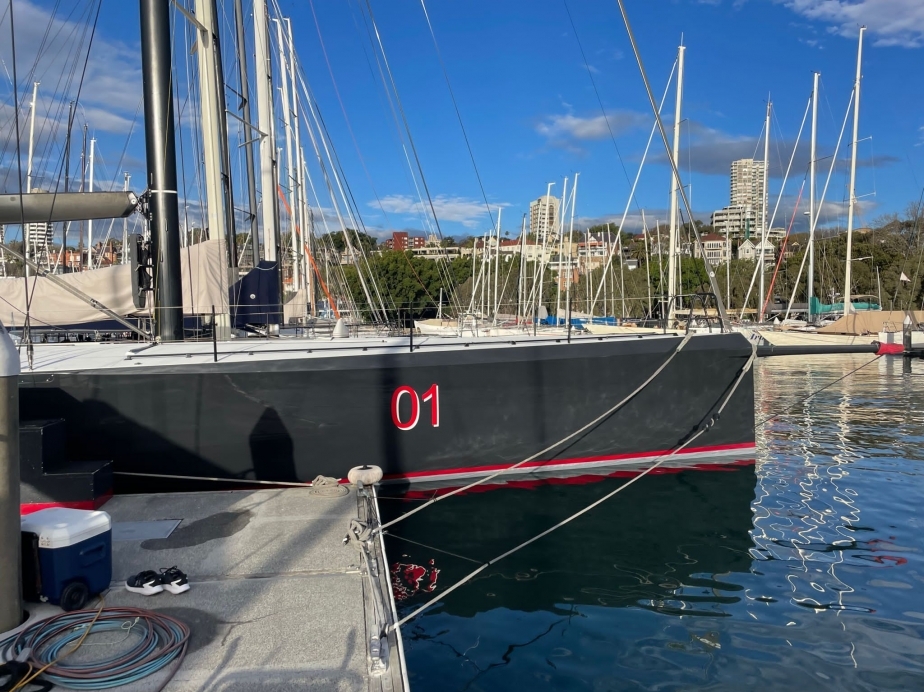

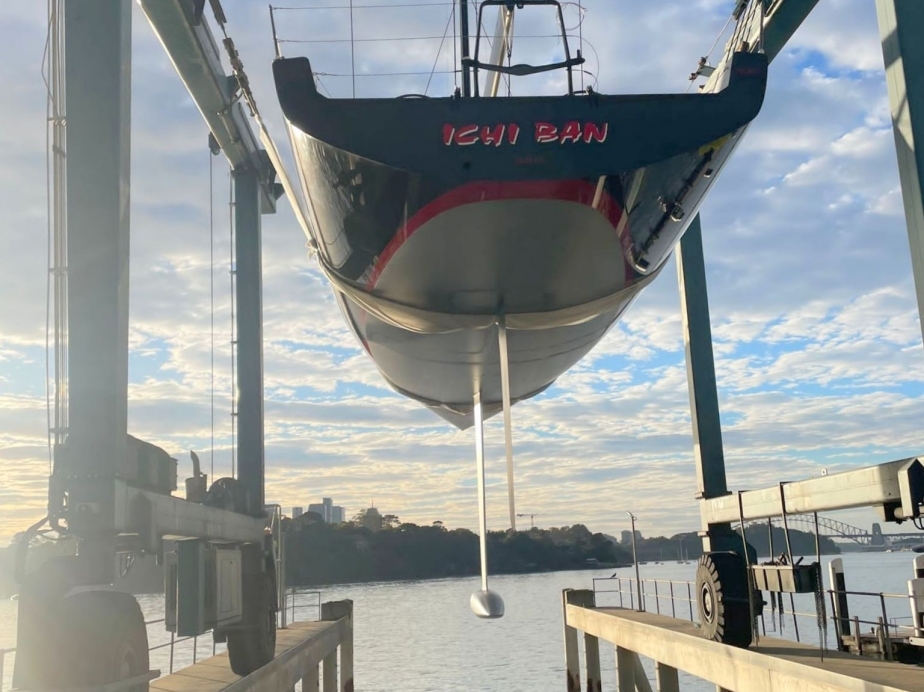

The boat has a rounded hull shape derived from the TP52's like Hooligan and Team New Zealand, so this C60 looks like it comes from the same family but the extra length should allow it to sail away from the TP52s. With tall and very upright topsides the Carkeek 60 has plenty volume inside her lightweight 10.9 ton carbon hull, right through to the full bows. Underwater, a slim and high aspect (nearly 15 foot deep) fixed bulb keel is used, along with an equally slim single spade rudder.

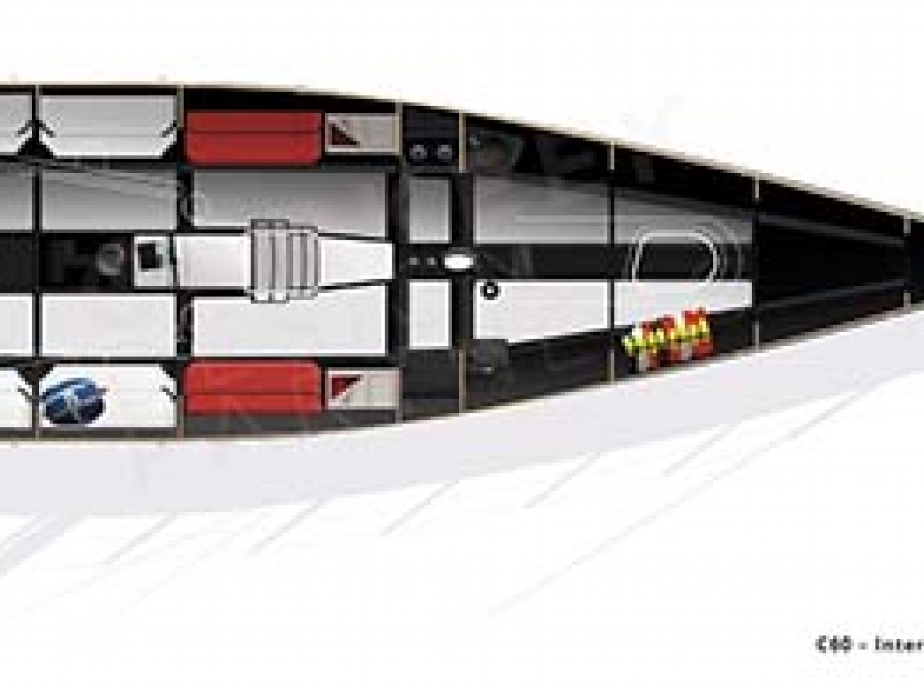

Inside the yacht

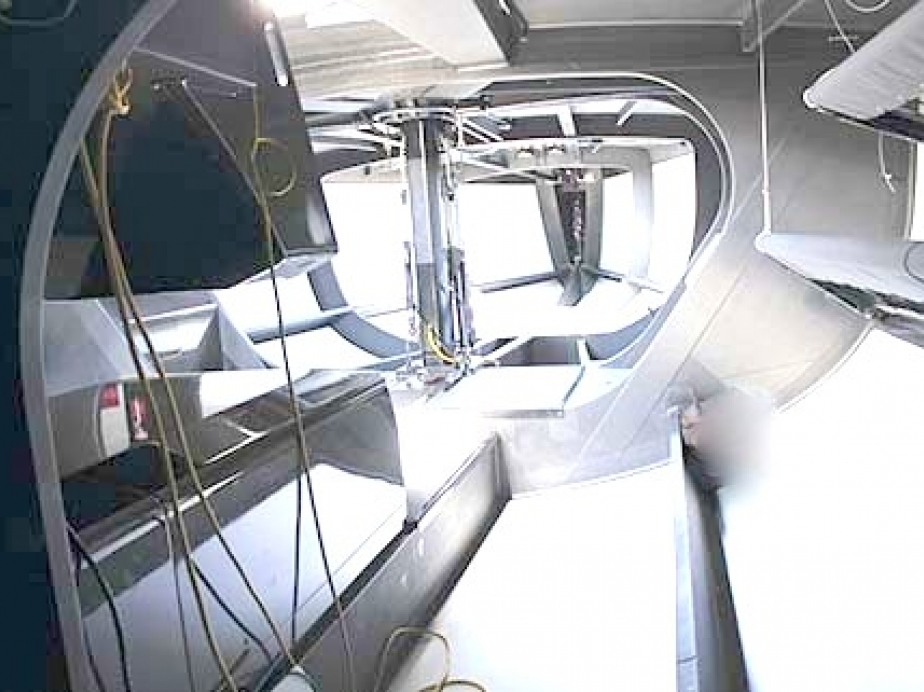

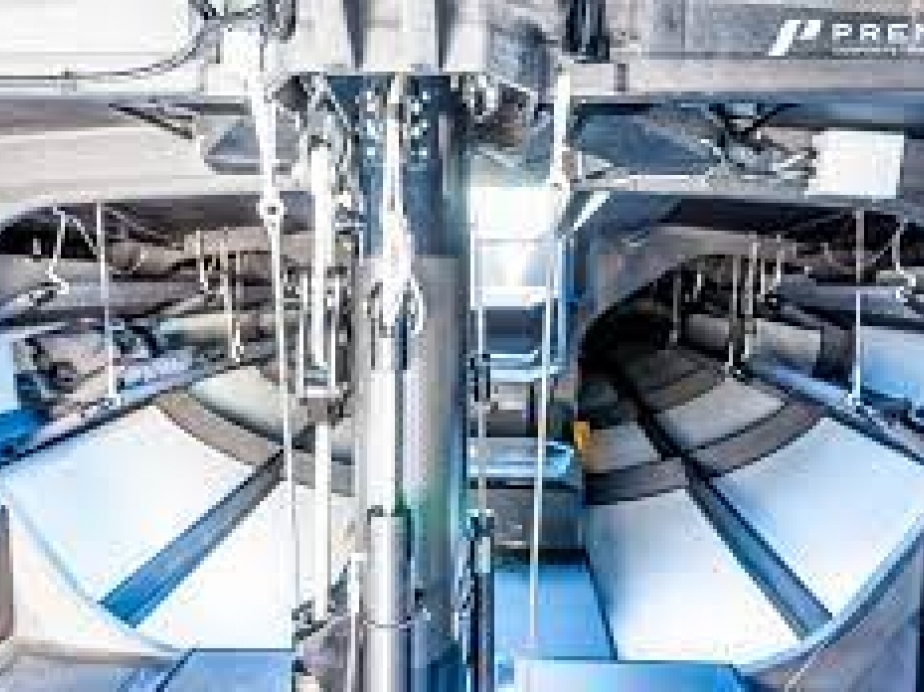

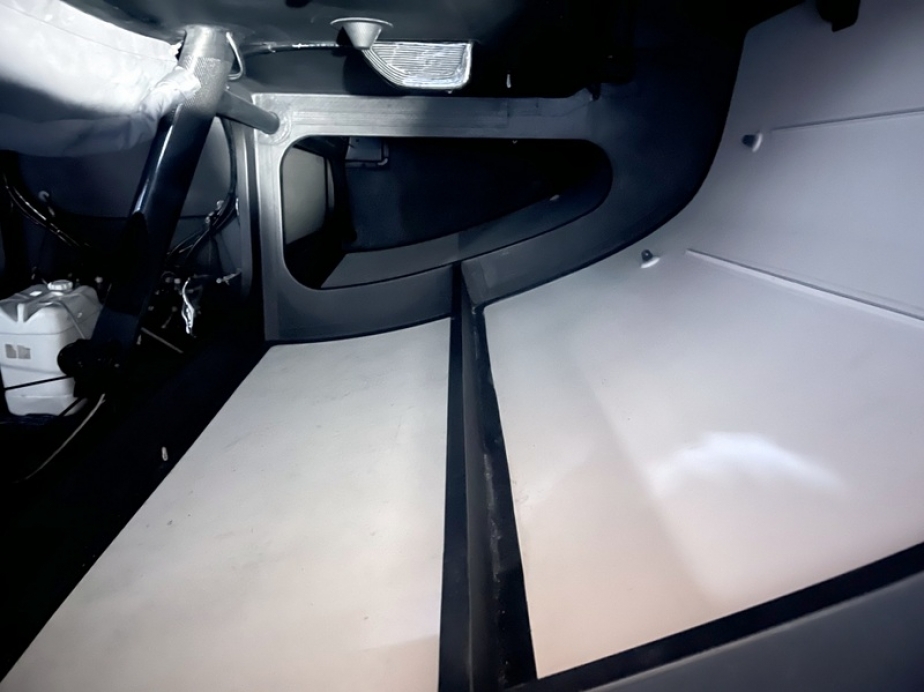

Below decks is a spartan place on the C60 with not even a protruding bulkhead forward while foot- deep longitudinal stringers run the full length for rigidity. Supporting the area around the keel- stepped Southern Spars rig is a small bulkhead-grid area that contains the toilet on starboard and galley opposite containing a two burner stove with sink.

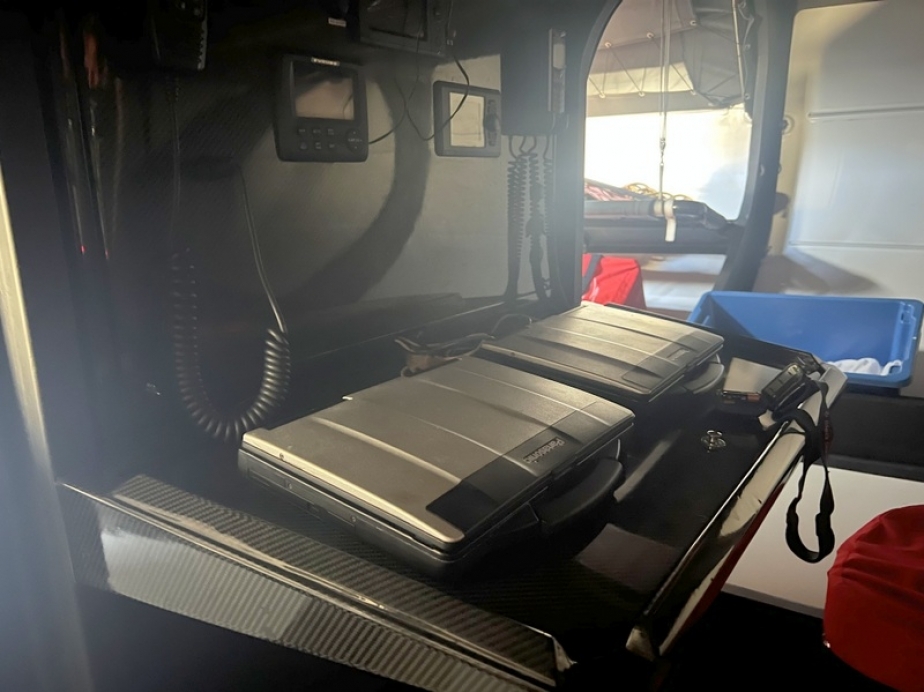

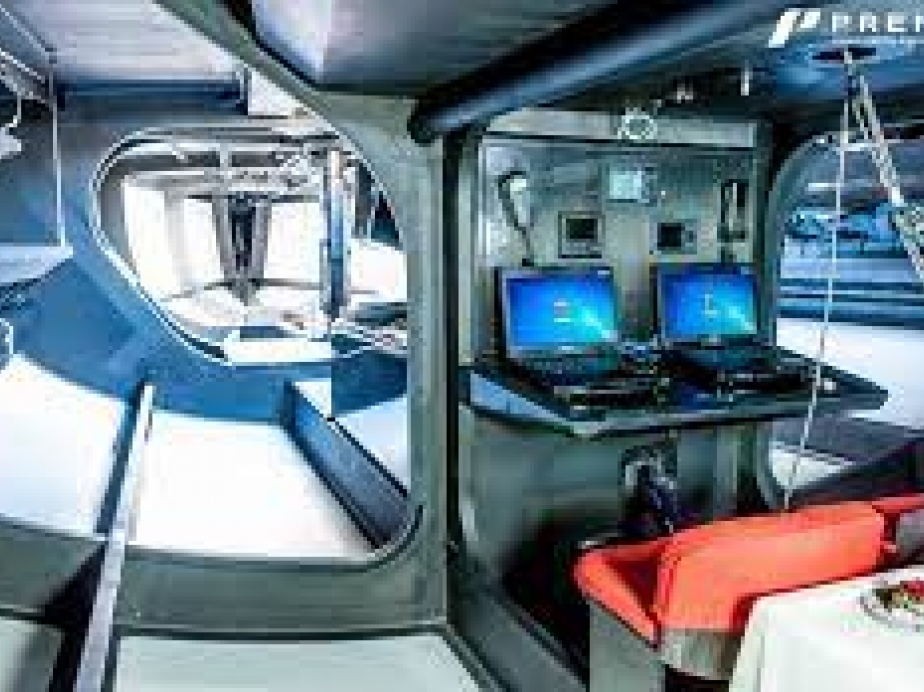

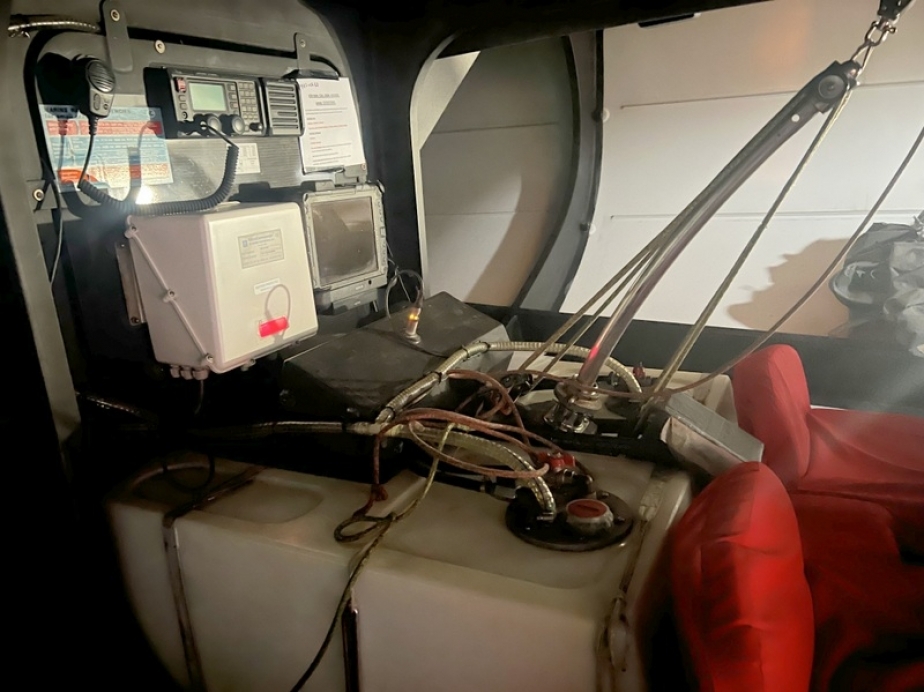

For the off-watch there's four pipecots in the saloon section and eight aft; so a total of 12 berths. Aft, behind the engine box containing the 75HP motor is the navigation station with two seats but it shares this space with tankage and the propeller lifting mechanism strut so does impinge on navigator.


  • Structural engineering: Guirt engineering UK
  • 2 x Carbon steering wheels, plus one spare.
  • JP3 rudder bearings
  • 1 x Carbon Rudder


  • Southern spars Carbon 3 spender mast with EC6 Rigging
  • EC6 Mast Standard Rigging Service June 2019
  • Mast Re-painted June 2019
  • Southern Spars carbon boom internal 3 lock reef system
  • Sydney Rigging standard and running rigging
  • All sailing ram function are press panels
  • 2 x 6T KZ furlers with head swivels
  • Loadcells: Headstay and Bobstay
  • Carbon Bobstay


North sails/ Doyle sail inventory.
Ask for the full list.


  • 12 x Carbon Bunks
  • 1 x offshore hatch
  • 1 x inshore hatch
  • 1 x plumb plastic/carbon toilet
  • frugal two burner stove and galley


  • 2 x 90L Flexible fresh water tanks and 1 x 50L flexible fresh water tank
  • 2 x 120L plastic fuel tanks
  • Fresh and salt water taps in galley with carbon sink

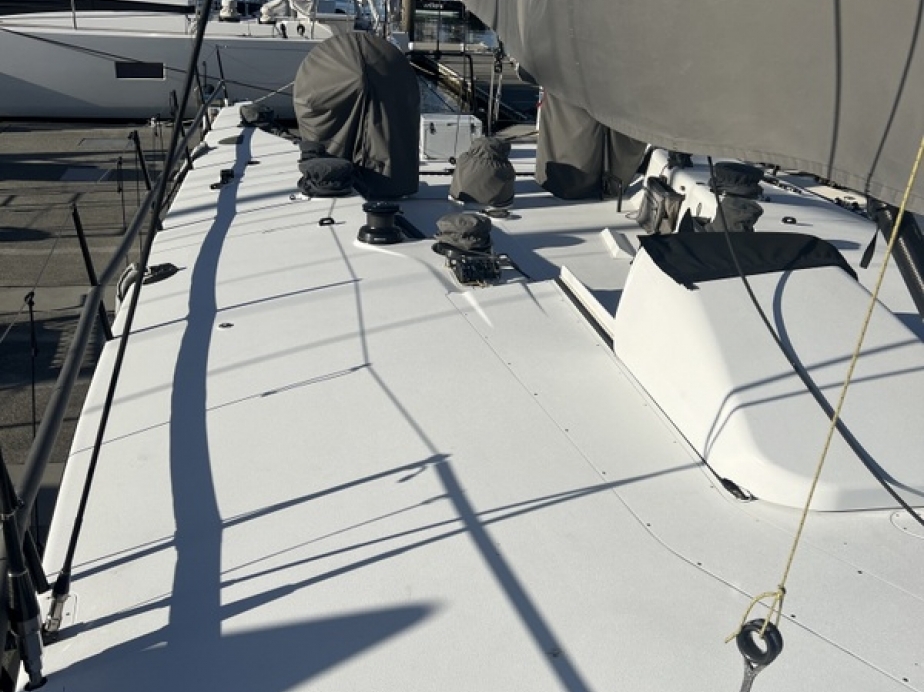

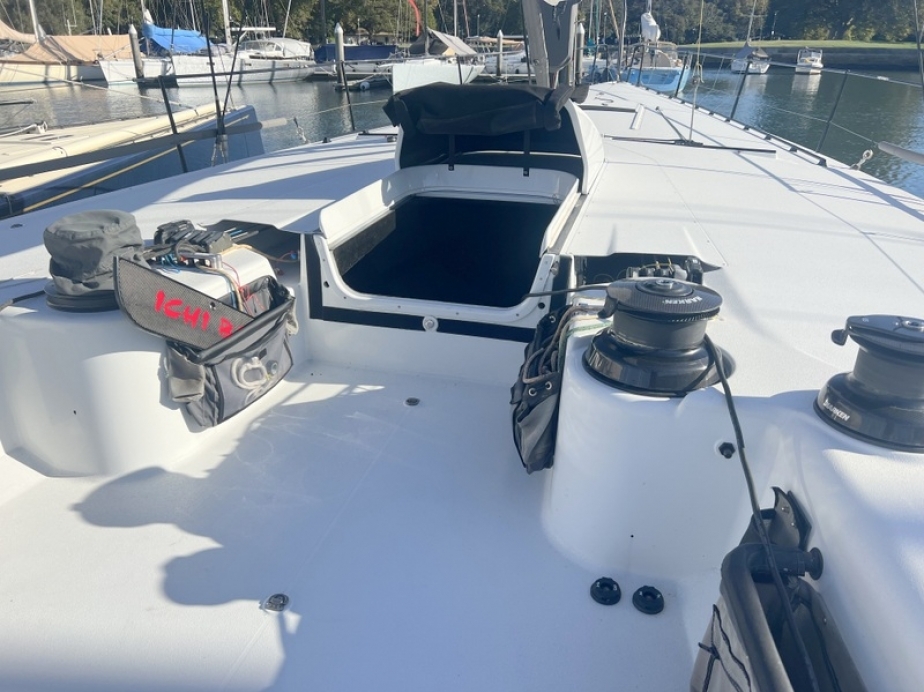

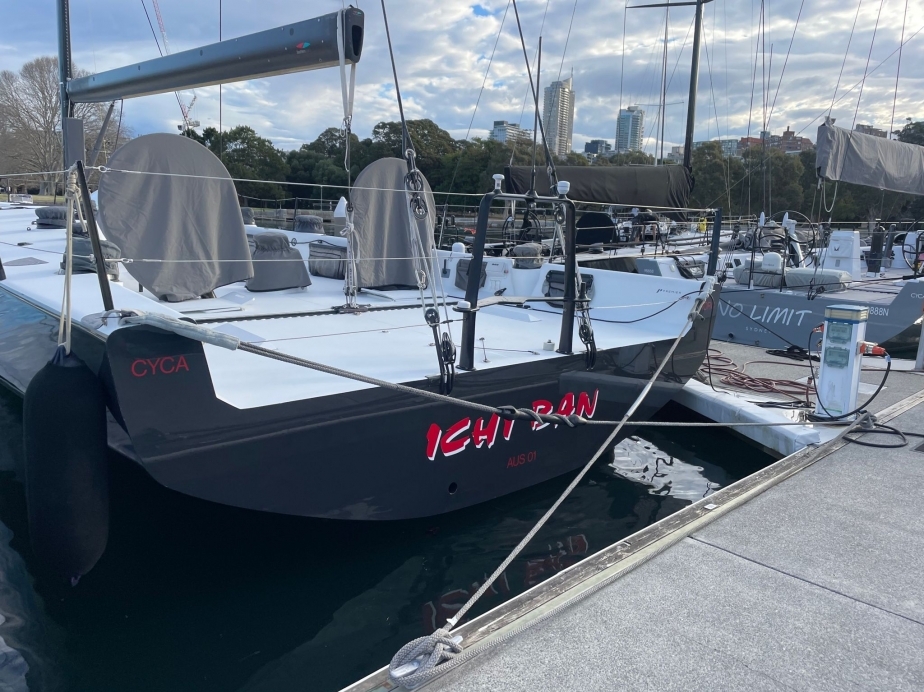

Deck and Cockpit

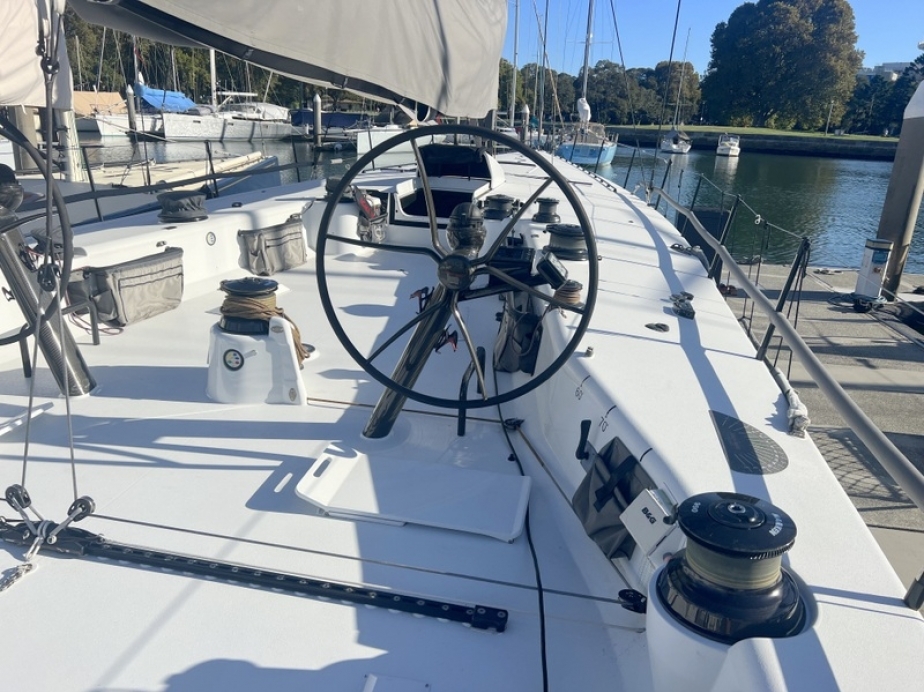

  • Hydraulic Harken winches: Runners, Main, Primary’s, one starboard pit winch
  • Harken manual winches, Traveler, Port and Starboard pit winches
  • Hydraulic sailing rams, Headstay, Jib tack, Jib up/down, Jib in/out, Topmast, Main Cunningham, Main outhaul, Vang with release button at steering wheel
  • 2 x Carbon steering wheels, plus one spare.


  • Electrical system by Olectric system.
  • C-Zone electrical boat system
  • PLC system by Olectic system
  • 1 x House battery replace 2022
  • 1 x Engine battery replace 2021


  • 75HP Yanmar engine with PTO to drive Hydraulic winches/sailing rams
  • Engine hours 2100hrs

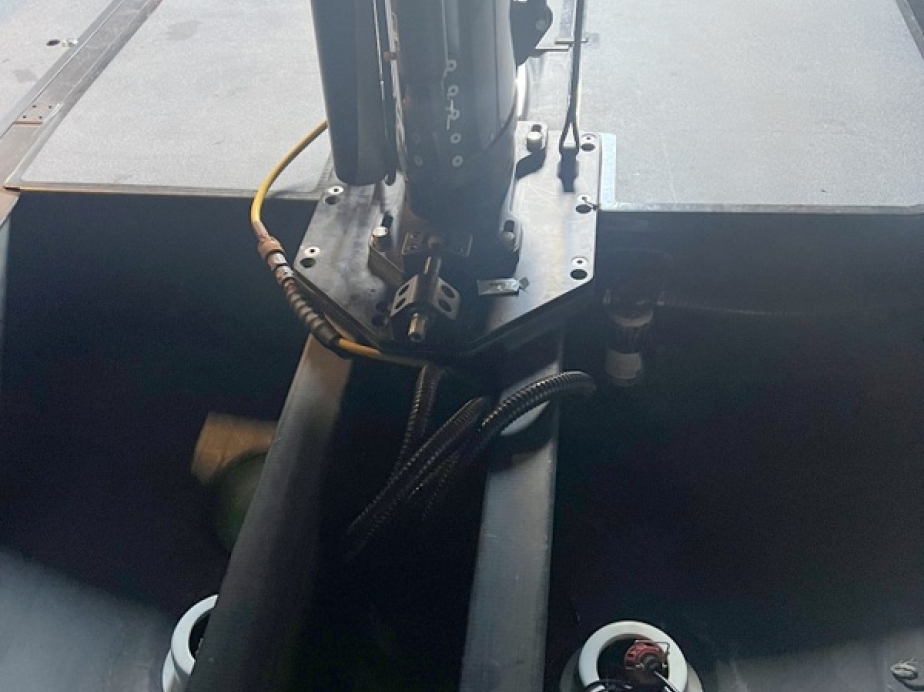

  • Retractable drive unit with 4 blade prop


  • 1 x carbon emergency tiller
  • Box with safety equipment

Electronics and Navigational Gear

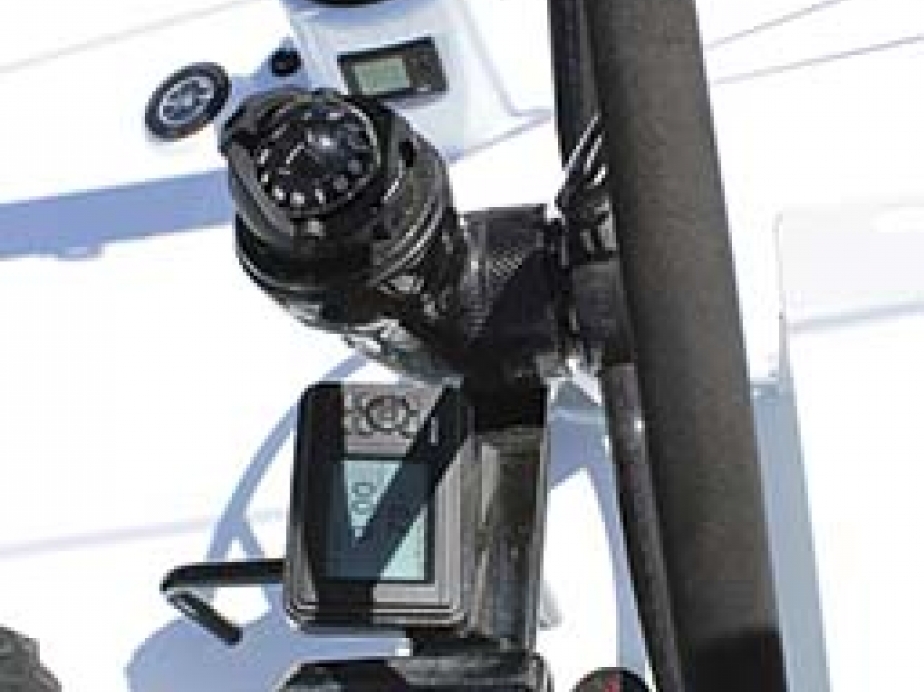

  • B&G displays and processor
  • 2 x B&G Mast head wands
  • 1 x inmarsat sat dome and handset
  • 1 x icom HF radio and external antenna
  • 1 x icom VHF radio and AIS
  • 2 x laptops
  • 1 x Toughbook deck screen
  • 1 x Gartect deck screen


  • 4 x Boxes Running Ropes
  • 1 x Box Plumbing hoses
  • 2 x Boxes Hardware
  • 1 x Box Safety and galley gear
  • 1 x Box Deck covers
  • 1 x box Engine spares
  • 1 x Box Hydraulic hoses and winch motors
  • 1 x Box Hydraulic rams seal kits
  • 1 x Box center point lifting sling and pin

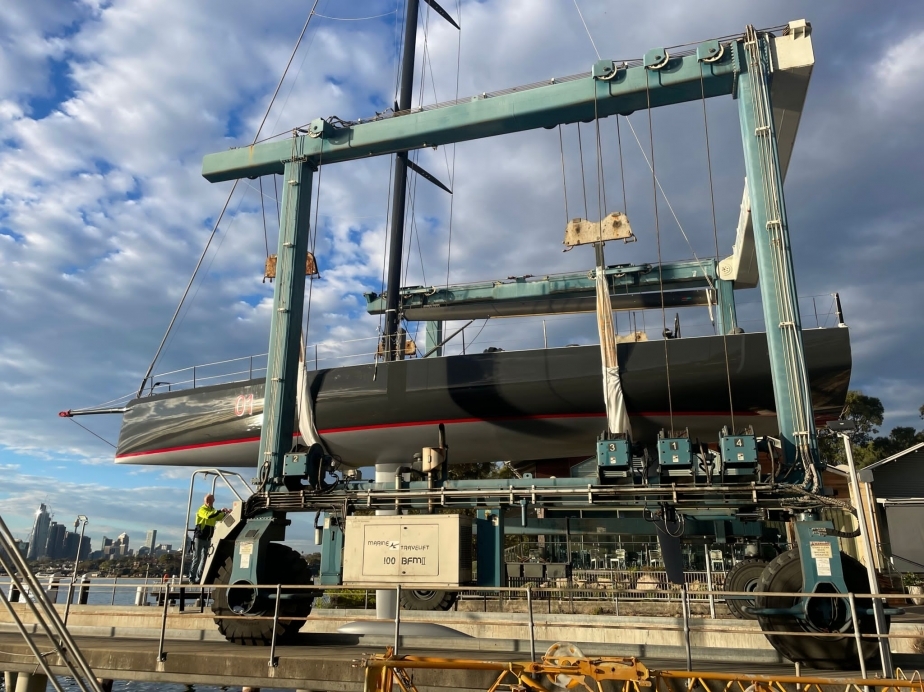

  • 1 x Box 2 x customs travel lift slings
  • 4 x 20L hydraulic oil drums
  • 2 x Boxes of slings and trucking straps
  • 6 x 20L Plastic fuel drums
  • 1 x box galley gear
  • Plenty of spare battens
  • 3 x boxes topsides and decks paint’s
  • 1 x Mast head halyard take up drum for inshore racing
  • 1 x Box Spare stanchions and push pit/ pulpit
  • 1 x Harken jib/ main traveler track
  • 2 x Dock stairs
  • 1 x Spare Carbon rudder
  • 1 x Racing spares bag
  • 1 x Racing rigging bag
  • 1 x Racing sail repair bag
  • Steel boat cradle high/low mode


The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
