General

Construction

• Hull Carbon fiber and epoxy with wet pre-preg layup, post cured low density "super light" balsa in high load areas.
• Corecell foam in various densities throughout the remaining areas. ·

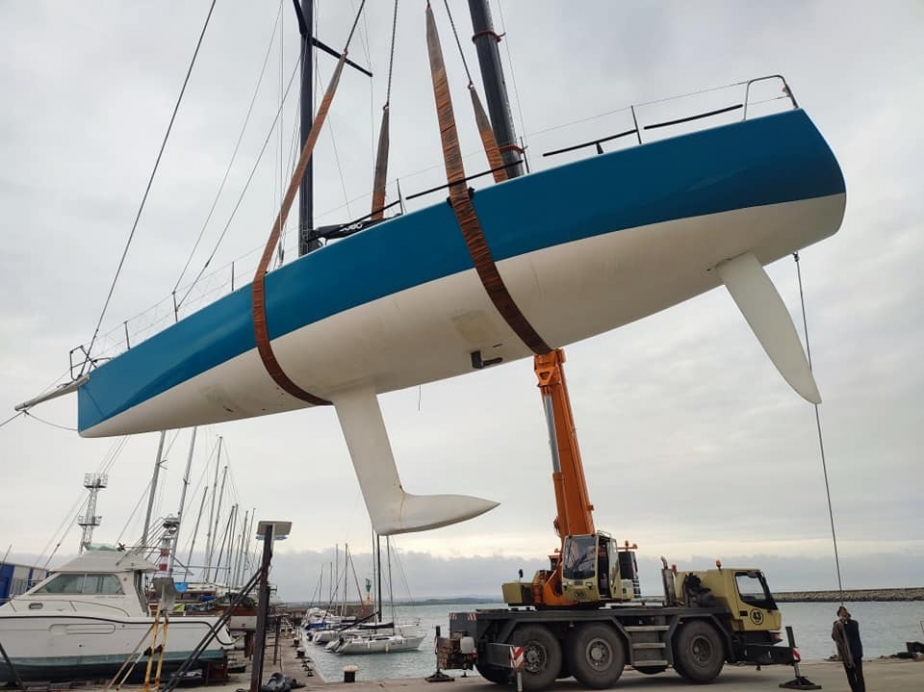

• Composite keel SG iron and lead with an epoxy coating and faired to a race finish.·
• Internal Aluminum structural frame for rig/keel loads·
• Bottom faired and primed in barrier coat epoxy.

Rigging

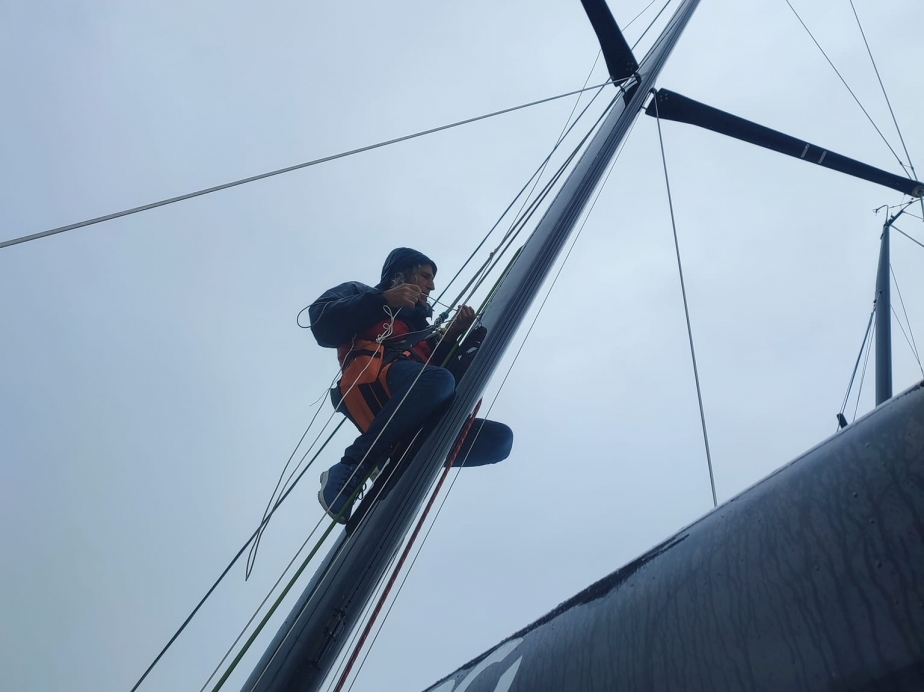

• Custom Hall Spars Carbon fractional mast with 2 sets of carbon fibre spreaders and adjustable sweep angles.
• Custom adjustable maststep with hydraulic mast jack integrally mounted in mast butt powered by portable quick disconnect Enerpac pump
• Carbon fibre boom and oversized carbon spinnaker pole and aluminumjockey pole. Repainted of the boom, serviced and maintained all boom systems and applied a carbon protection plate to guard the boom from spinnaker sheet chafe, 2020.
• Rod rigging Navtec series 500
• New 2014 black HARKEN  Gemini headstay.
• Multi functional hydraulic panel W/ 2-speed pump at main trimmer
• Vang: hydraulic cylinder
• Outhaul: hydraulic cylinder (in boom)
• New 2013 custom carbon bowsprit L=2.05m. with 2 internal downhauls exiting the deck either side of the foredeck hatch.
• Glued-on aluminum custom Hall/Antal dual  luff track for cars and/or bolt rope mainsails
• Twin backstays replaced to new ones from NAVTEC France, 2020.

Running rigging
New halyards, sheets and running rig, 2020.

• 2 x Masthead Spinnaker halyards
• 2:1 Main halyard system
• 3 x Fractional Jib/Spi halyards
• 1 x Top lift halyard
• Full running rigging package supplied with numerous spares.
• All running rigging new 2018 Before MMSR 2018
• New runners 2018 before MMSR

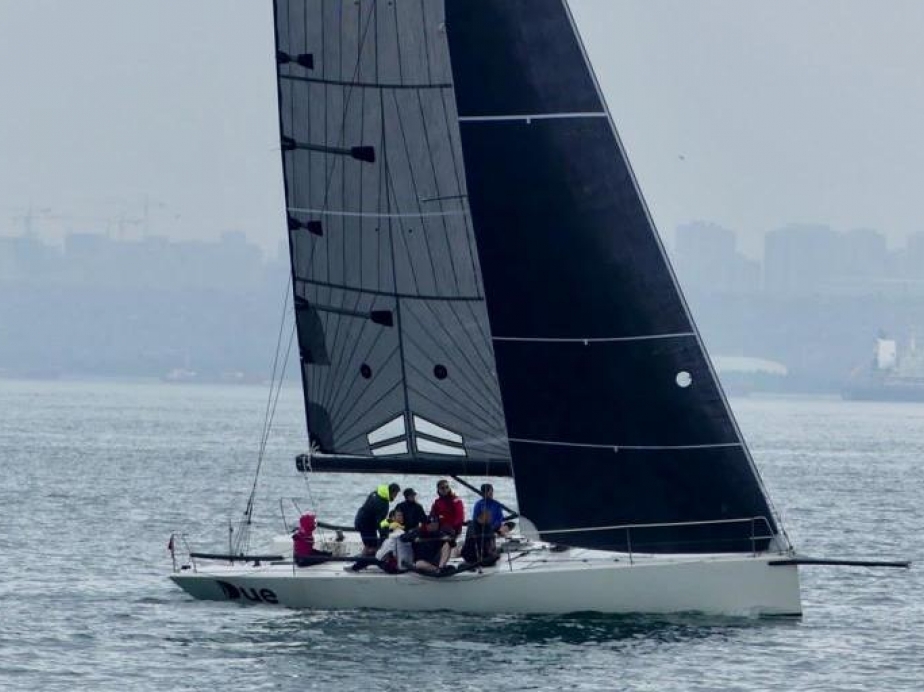

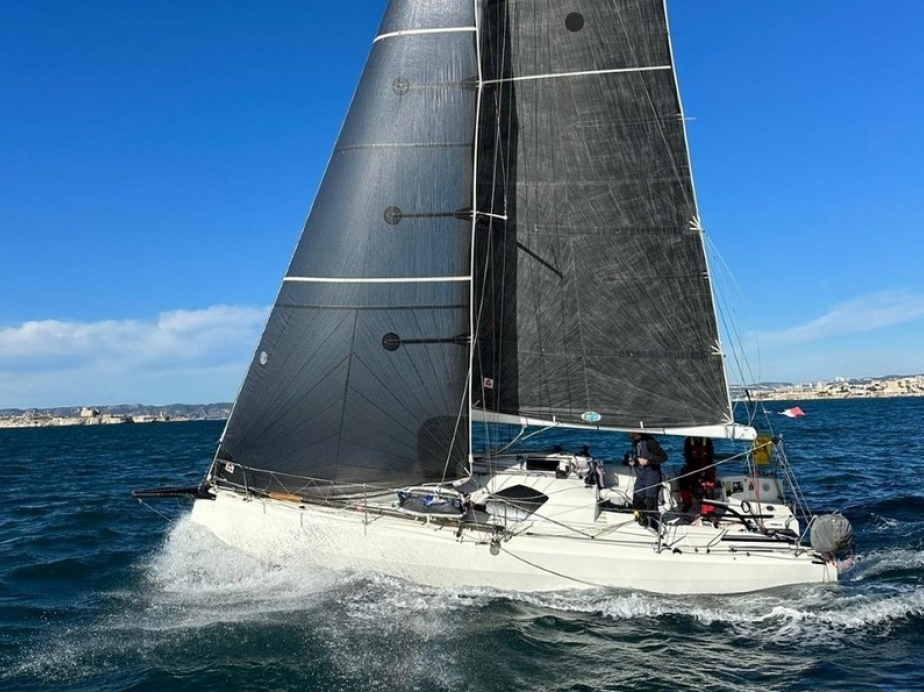

Sails

Sails 2023

• Top Sails Aramid/Dynema J2
• Aramid/Dynema J3
• A5 New Triliam fabric 2023 by Top Sails
• CODE 2 – 2023 – TOP SAILS Aramid/Dyneema
• CODE 3 – 2023 – Top Sails – Aramid /Dyneema

Sails 2022

• North Sails Code 0
• A1 Quantum 2022 – Masthead for bowsprit
• Top Sails (New) JibTop
• jib stay sail
• NS Spinnaker stay sail
• Storm Jib and Trisail mint condition by Northsails.

Sails new 2020

• Quantum Carbon Velum Square Top Offshore mainsail with Antal cars system and 2 reefs.
• Quantum Carbon Velum Jib No1
• Quantum A2 spinnaker
• Quantum A3 spinnaker

Other sails

MAINSAILS:

• MAIN-1 REEF-05/2016 QUANTUM FIUSON CARBON SQUARE TOP
• MAIN DELIVERY QUANTUM (small about 65sqm) – Present ( Like new )
• MAIN BANKS FLAT TOP Full Size  – Present

GENOAS:

• CODE 4 07/2014 QUANTUM – CARBON
• CODE 1 2005 BANKS  – CARBON - Training
• CODE 4 2004 BANKS – CARBON - - Training
• CODE 5 2004 BANKS – KEVLAR - - Training
• JIB TOP 2004 BANKS – CARBON - - Training
• CODE 1 (light) 06/2012 QUANTUM FUSION-M CARBON – is being cut now

SPINNAKERS:

• Á1 VMG 06/2013 QUANTUM – MASTHEAD for bowsprit - Training
• A2 RUNNER 06/2013 QUANTUM – MASTHEAD  for bowsprit - Training
• A5 REACHER 2000 NORTH - FRACTIONAL (enlarged) for bowsprit - Training

 SPINNAKERS ASYMMETRIC:

• A2 Quantum 2013 - Masthead for bowsprit
• A5 Quantum 2018
• Á1 VMG 2006 BANKS – MASTHEAD for spi pole - - Training
• Á1 VMG 2003 NORTH – MASTHEAD for spi pole - Training
• A1 VMG 2004 NORTH – MASTHEAD for spi pole - Training
• Á2 RUNNER 2002 NORTH – MASTHEAD for spi pole - Training
• Á2 RUNNER 2003 NORTH – MASTHEAD for spi pole - Training
• Á3 A.P. 2003 BANKS – MASTHEAD for spi pole - Training
• Á3 A.P. 2004 BANKS – MASTHEAD for spi pole - Training
• S4 RUNNER 2003 NORTH – MASTHEAD for spi pole  - Training
• A5 QUANTUM 2018 – Present
• CODE 0 2000 NORTH MASTHEAD. - Training

STORM SAILS:

• STORM JIB 2000 NORTH – ( Immaculate condition)
• TRYSAIL 2000 NORTH. ELECTRONICS INVENTORYOCKAM – ( Immaculate condition)

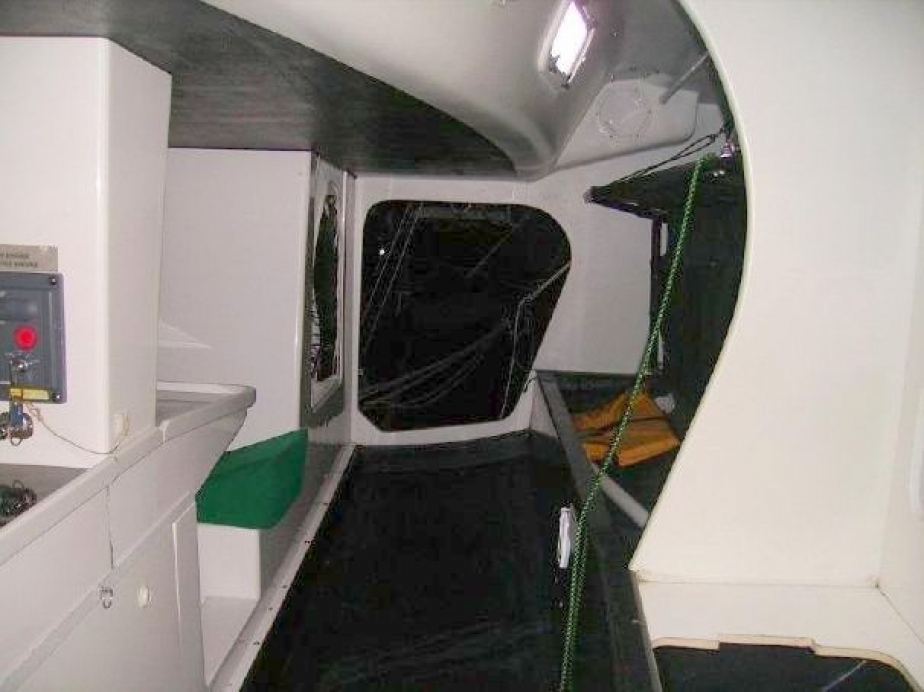

Accommodations

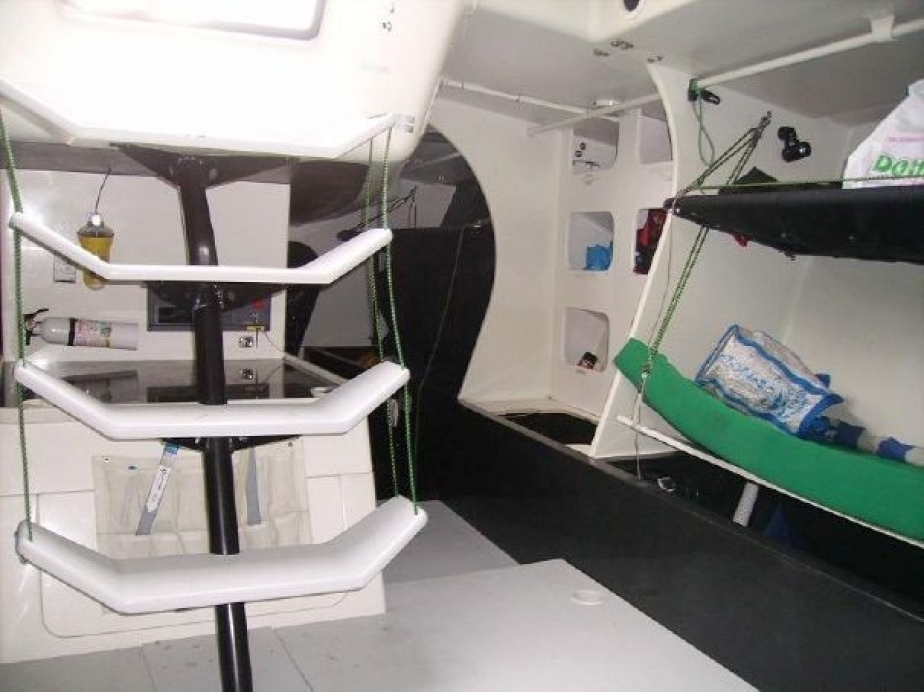

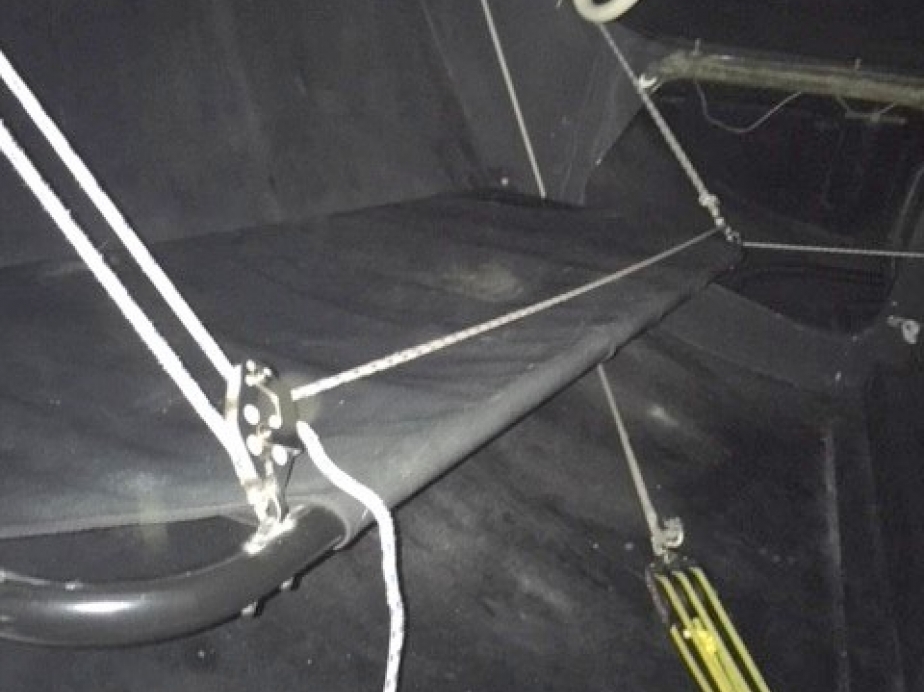

• Sleeps 10 on pipecots

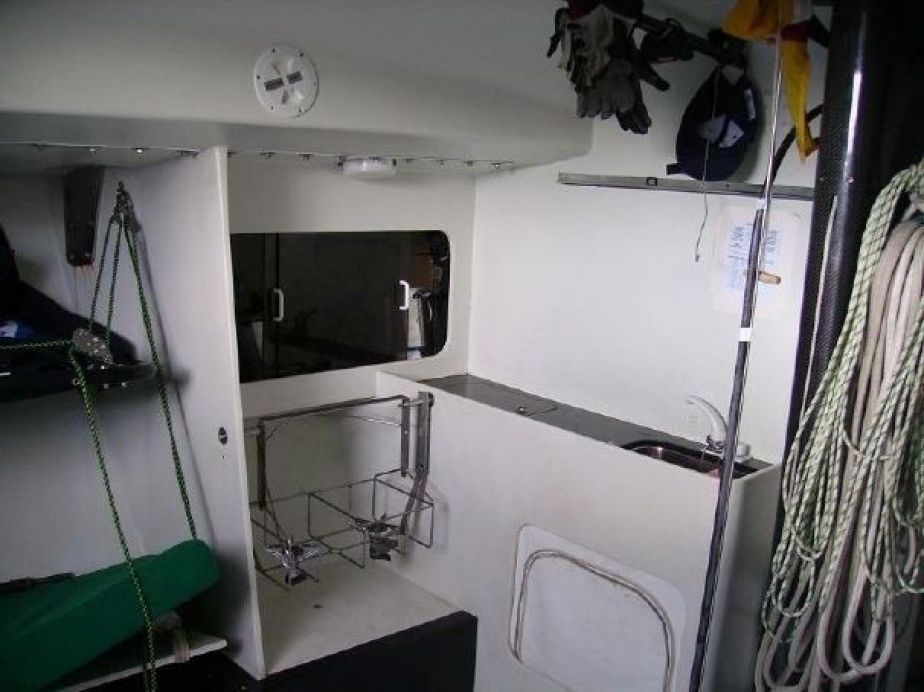

• Galley with cardanic stove, sink and coolbox
• Head with toilet and sink

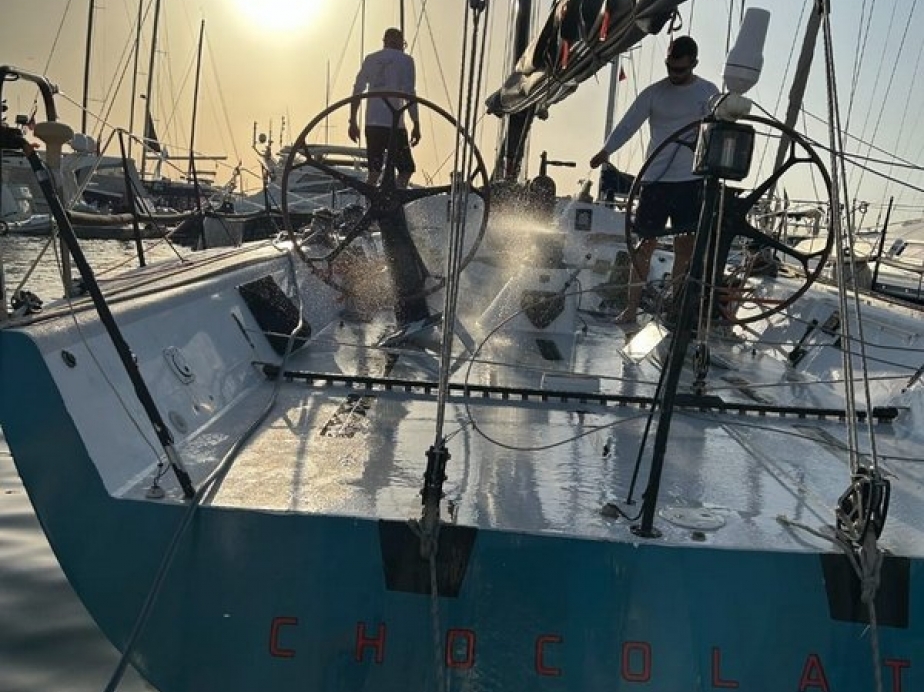

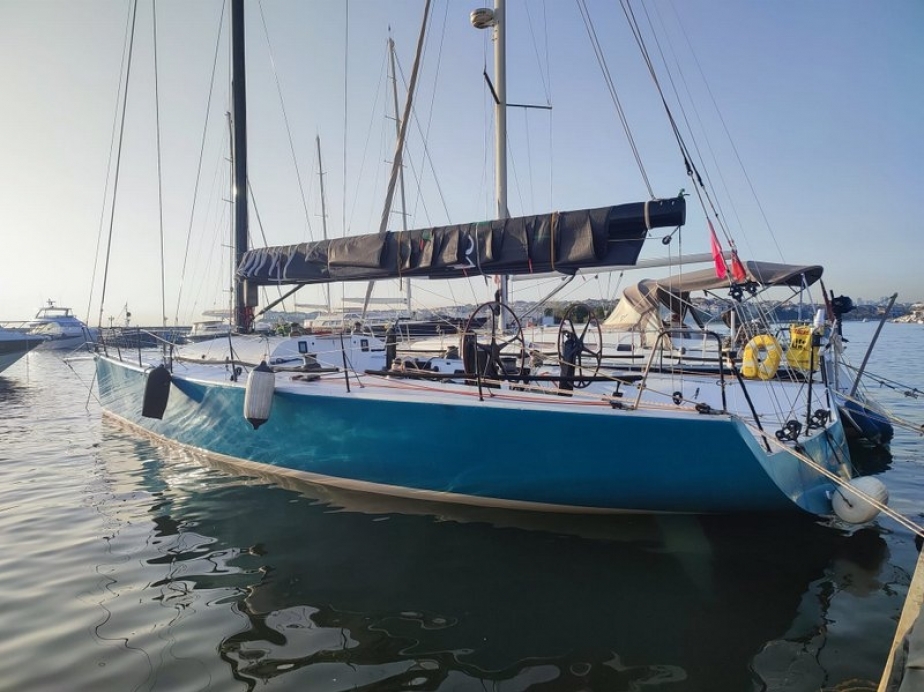

Deck and Cockpit

• 2020: service of the winch/pedestal system
• 1x Mainsheet winch (Lewmar 80:3 astr), 2 x Primary winches (Lewmar 60:3 astor).
• 2 x Coachroof winches (Lewmar 480:2 str), 2 x Runner winches (Lewmar 50:2 str).
• 2 x Pedestals (Lewmar above deck).
• 5 x Winch handles.
• Spinnaker tweaker lines lead under deck for easy adjustment.
• Harken black magic blocks used on high load systems.
• Harken small boat blocks used on control lines
• Harken Airtrack used on jib and traveller tracks
• All appropriate blocks and hardware for 1 x Mast (Hall Spars twin spreader).

Electrics

• Dual alternators: 115 AH and 55AH
• 12 VOLT AC system with distribution panel and voltmeter.
• Circuit breakers of appropriate amperage.
• Main battery switch: Battery 1 , Battery 2, Both, and crossover switch that aligns all 4 ship service batteries and 1 engine battery together.
• Ship service: 2 (each) X  120 AMP hour lead acid, Engine start: 1 (each) X  100 AMP hour
• Emergency crossover switch house batteries to engine start
• ORC approved running lights
• Red and white dome lights

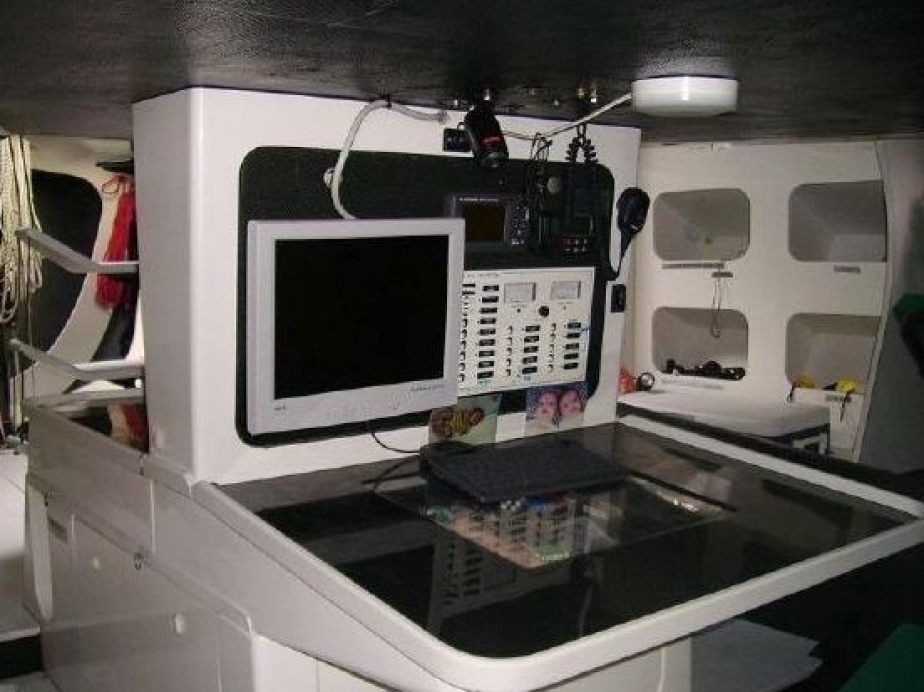

Electronics and Navigational Gear

• Unisys 001 (main CPU).
• Performance index interface (EEPROM with polars by Farr Yachts. October 2014)
• multiplex interface, anemometer, depth sensor, boat speed sensor.
• NMEA compass interface & 3D compass sensor.
• load Cell interface & sensor
• GPS interface & Furuno GP-32 GPS
• RS-232 interface
• 2x magnum displays, 4x mast displays

Other electronics

• Raymarine DSC VHF
• AIS (Digital Yacht AIT2000 class B, integrated GPS with antenna , Windows compatible via USB port)
• Raymarine AIS Splitter 100
• Main VHF antenna on top of the mast
• Furuno radar & display
• HSUPA modem router (Teltonika RUT-104 ,10/100 Lan, 2x WiFi antennas,  marine specs GSM antenna, 2nd ext GSM antenna ready)
• PC & 15" monitor (VoomPC, Intel Atom D25501.86 GHz (2 cores 4 threads), 4GB DDR3 RAM, 1TB HDD 2.5", NVIDIA GT 610M VGA, HDMI & DVI port, 4x USB2, 2x USB3, 7.1 onboard sound card, 1000 Mbps Lan, integrated WiFi card with 2 antennas, eSata port, wireless mouse, wireless keyboard, power control from the switch board, 12V, rugged metal case with good heat sinking design, 2x RS-232 to USB (external), slim-DVD ready.)

Software

• Deckman 9.1 for C-map with dongle
• C-map NT+ chart M-EM-C132.36 (Ionian & Aegean south)
• C-map NT+ chart M-EM-C207.03 (mid Mediterranean, Tunisia, Libya, Malta, Sicilia, Messina strait, Napoli, Bari,  Eolie islands, Sardegna east)

Additional

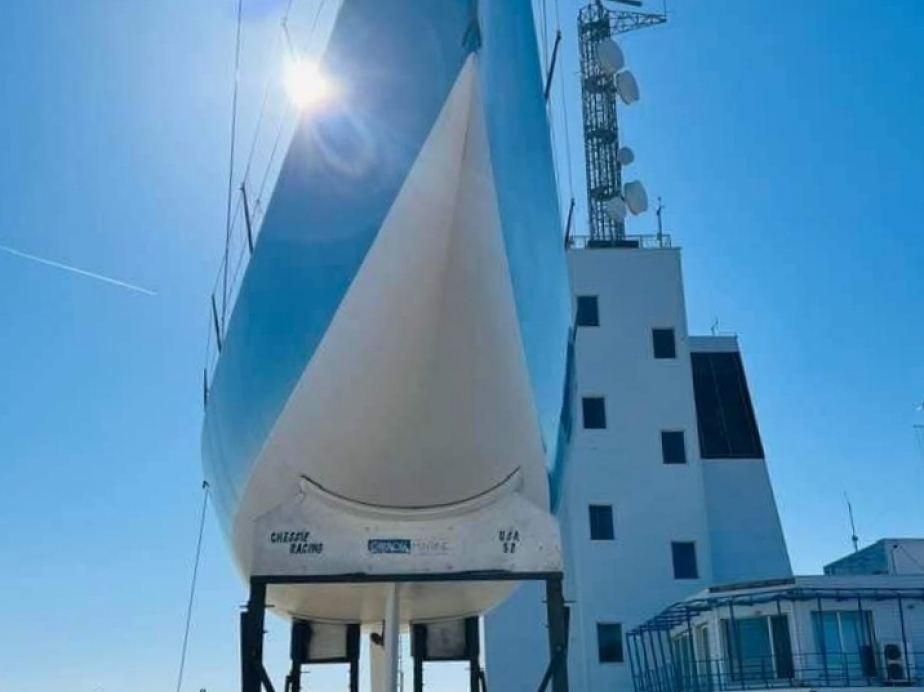

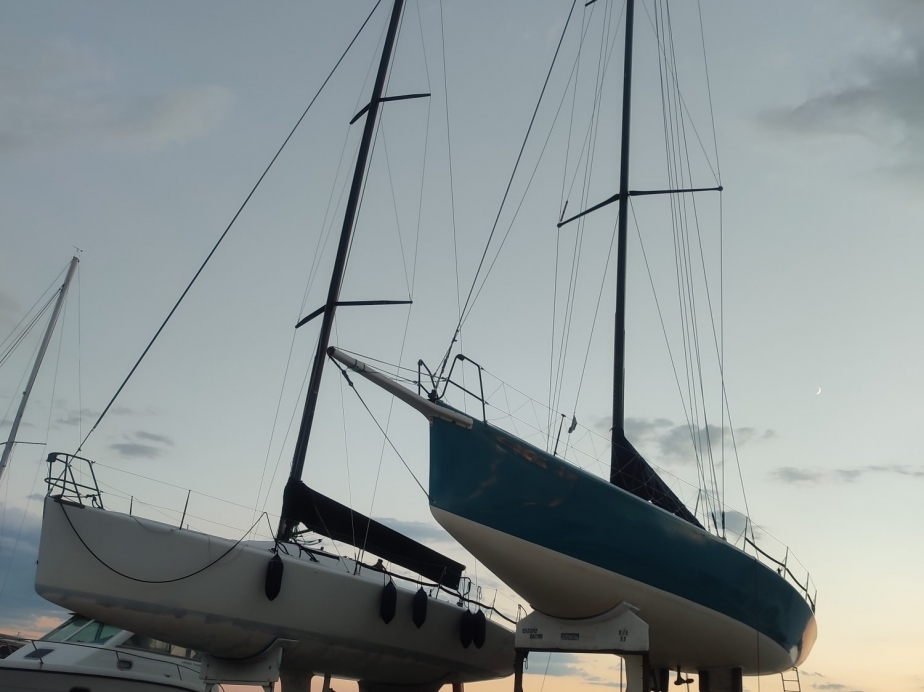

• US made steel cradle painted white with hull form beds.
• Multiple sets of halyards, sheets, runners and spares for winches, clutches and everything.
• Carbon inclining radar post that fits at the very aft of the boat
• No antifouling applied ever; hull has been professionally faired/treated with Epoxy. She has always been drysailed, on and off to her cradle, no more than 60 days/year in the water.
