IMX40

€109,000

VAT excluded

  • Reference ID 530
  • Builder X-yachts
  • Model IMX40
  • Designer Jeppesen
  • Year 2001
  • Location Turkey
  • Engine type Single
  • L.O.A. (mtr) 12.10
  • Beam (mtr) 3.80
  • Draft (mtr) 2.45
  • Displacement (Kg) 6370
  • Material GRP - polyester
  • Engine Volvo MD-2040 3-cylinder

Yacht description

IMX40 in very good condition

Her highlights include:

• Carbon fibre mast and boom
• Sails wardrobe
• Carbon fibre helm wheel
• Frederiksen three speeds winches
• B&G instruments including 20/20’s at mast and chart plotter at chart table
• Headstay tension. this has a simple turnbuckle that can be adjusted between races.
• The ‘magic wheel’ backstay adjuster
• The galvanized steel grid support
• Keel fin bullet. And polyester coated
• The folding table can be removed for racing
• Up to 10-berths in 3 cabins including saloon and fold-out pipecots in twin aft double cabins



Hullnumber 32
TCC 1.069 2019





Sails


• 1 x Ullman Sails FiberPath Gp Race Gold-Twaron M_H mainsail
• 1 x Ullman Sails FiberPath Gp Race Gold-Twaron genoa
• 1 x North Sails Kevlar fully-battened mainsail L training
• 4 x North Sails Kevlar -battened mainsail L_M_H training (repair)
• 7 x North Sails Kevlar fully genoa L_M_H traning
• 5 x North Sails Kevlar fully genoa L_M (repair)
• 1 x Ullman Sails gennaker M. symmetrical
• 7 x North Sails gennaker L_M_H symmetrical
• 2 x North Sails gennaker asymmetric (repair)
• 1 x North Sails storm jib

Accommodations

  • The interior layout has a double berth in the forepeak plus a large hangling locker.
  • There is a composite chain cover instead of a curtain.

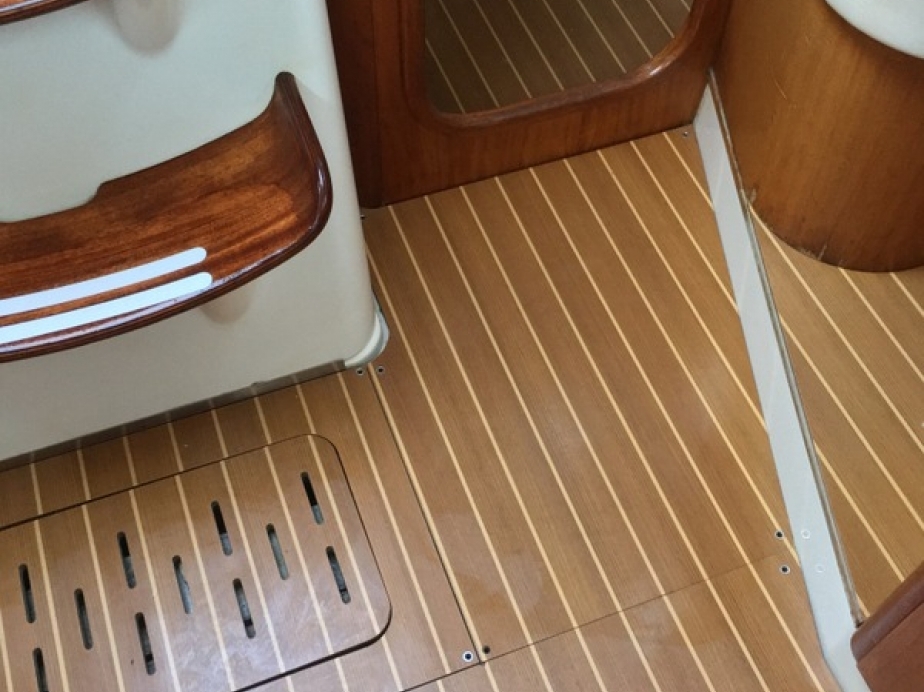

  • The single heads with shower is located aft with door access to the saloon, new teak floor.

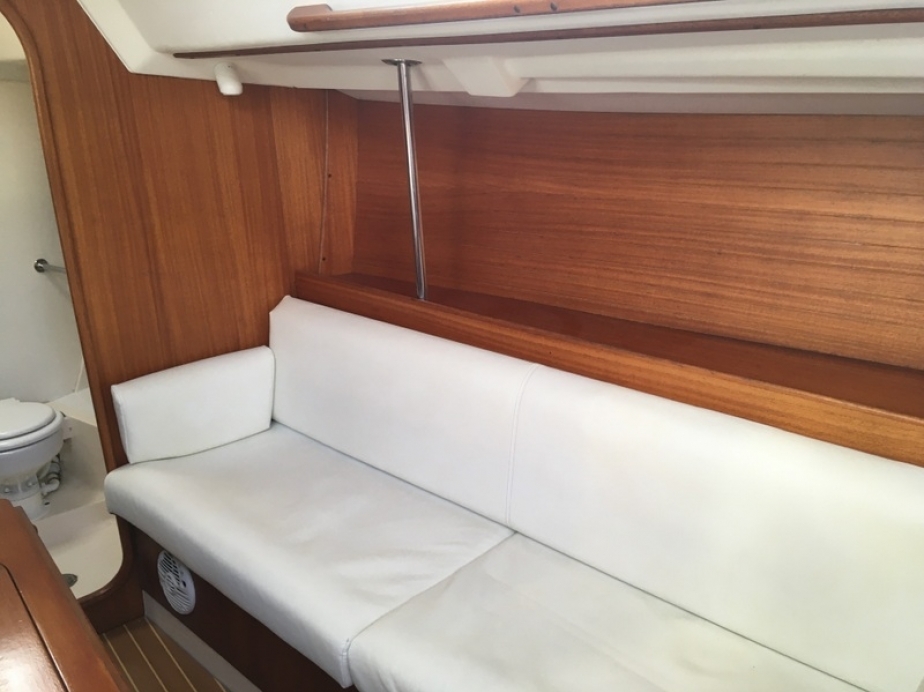

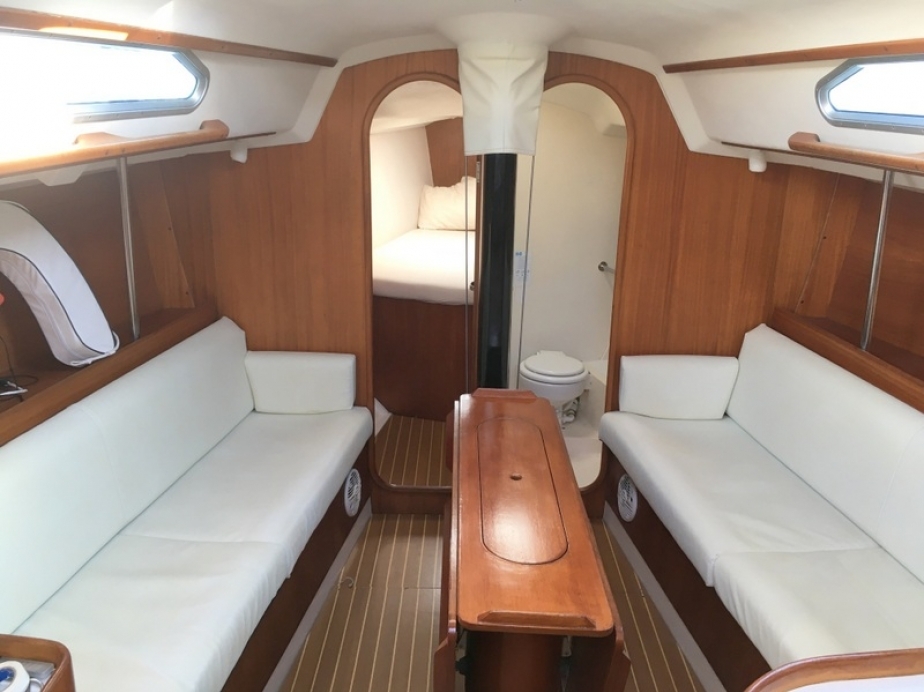

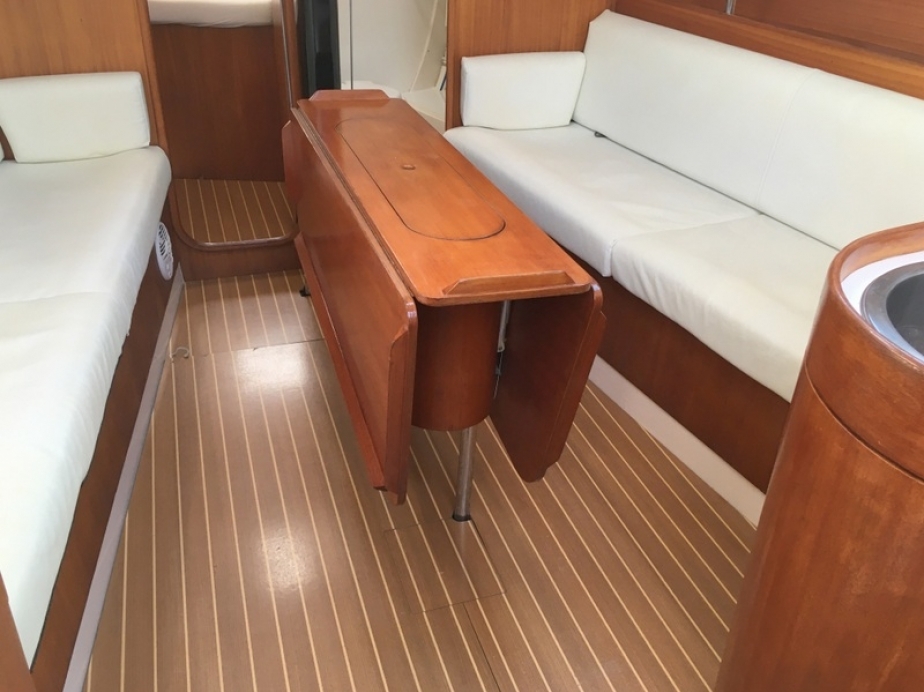

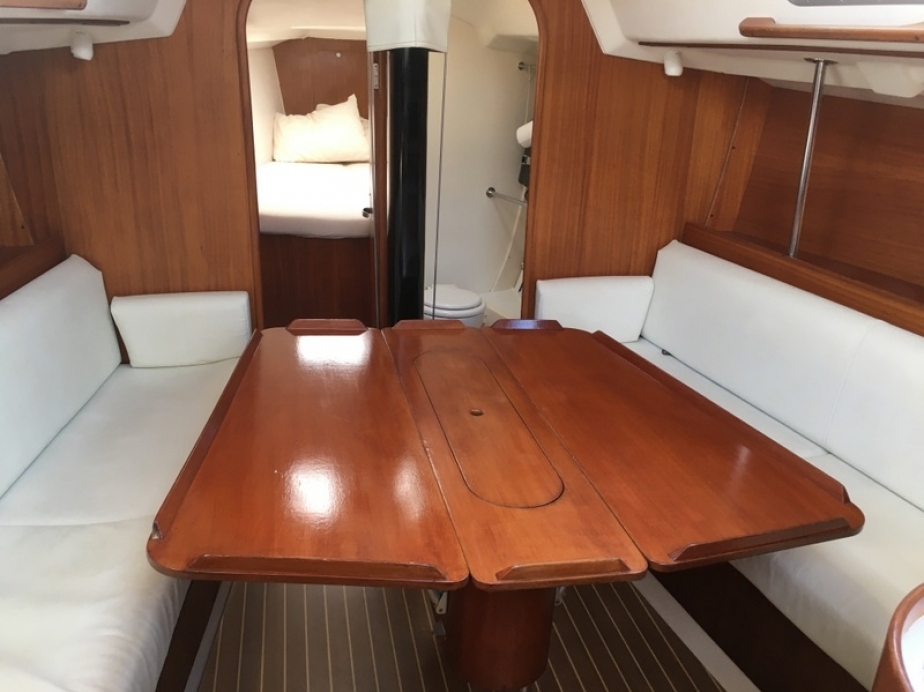

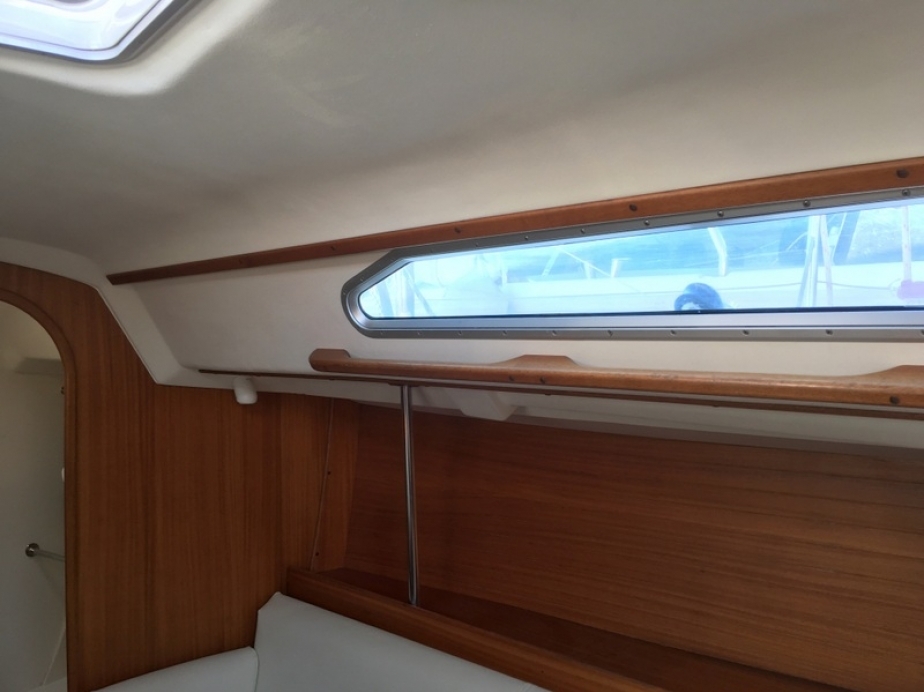

  • The main cabin offers a practical solution to the cruising with a large full-length settees to port and starboard with a central table complete with folding leaves. Outboard to port and starboard are stowage lockers and shelves.

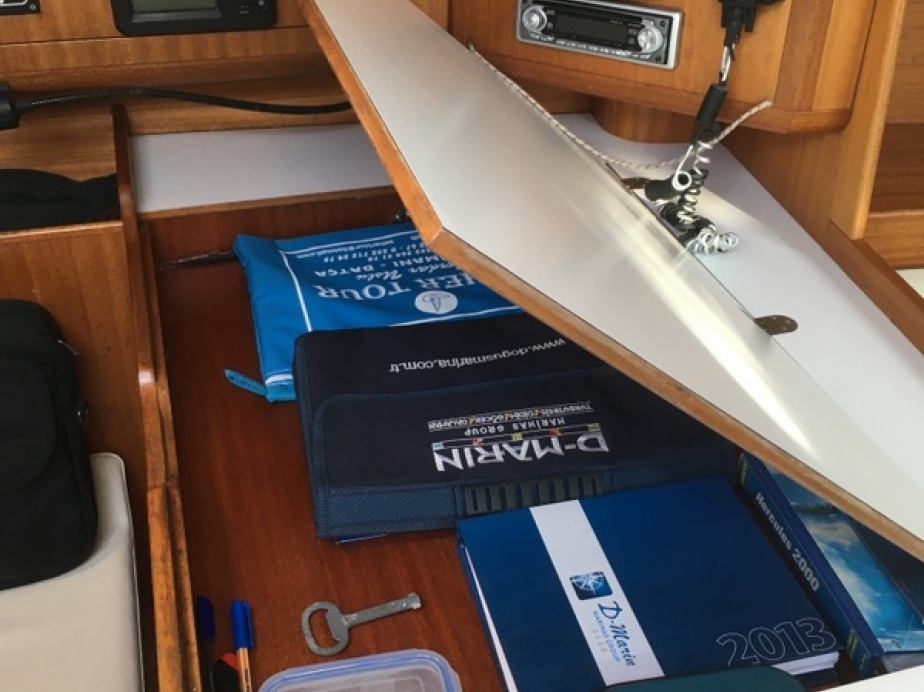

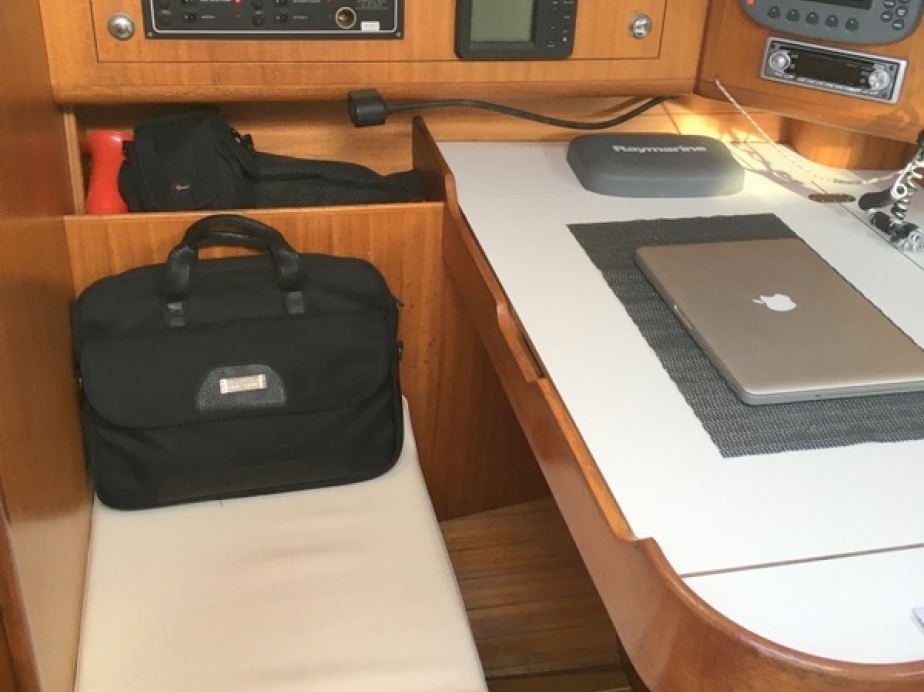

  • Aft of the saloon area to port is a forward-facing chart table with seat.
  • Opposite the chart table to starboard is a L-shaped galley with sink, stove and top-opening refrigerator.
  • Aft are two mirrored double cabins with hanging lockers and removable pipe-cots
  • 145 litres stainless steel fresh water tank
  • Pressurised cold water supplied via 12vDC pressure pump
  • Cold pressurised water to galley, heads and shower.

Heads

  • Tmc elektric marine toilet
  • Cold pressurised water supply with shower
  • Nova Italy paste tank 60 lt.

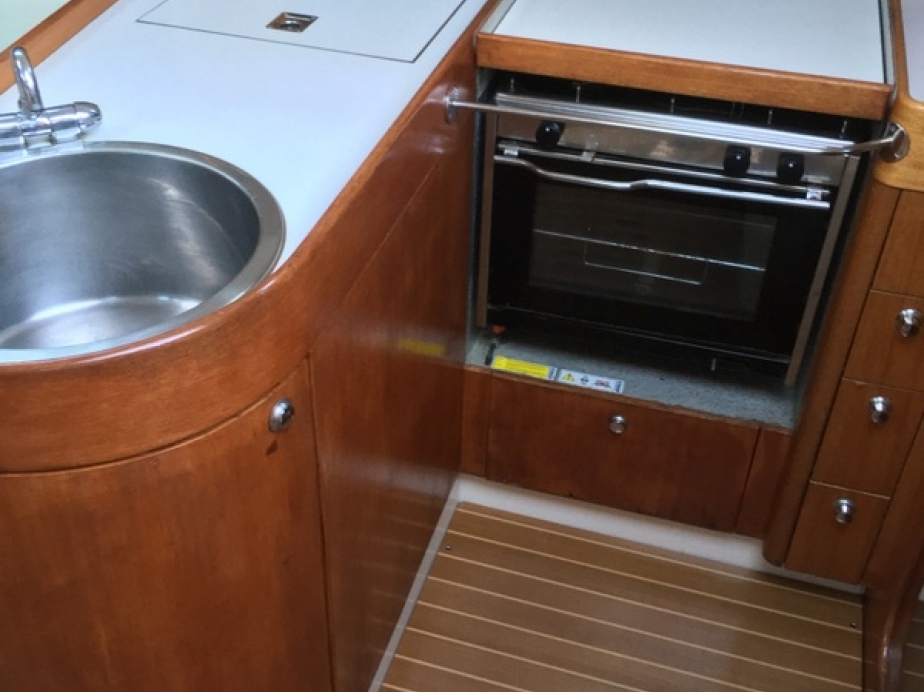

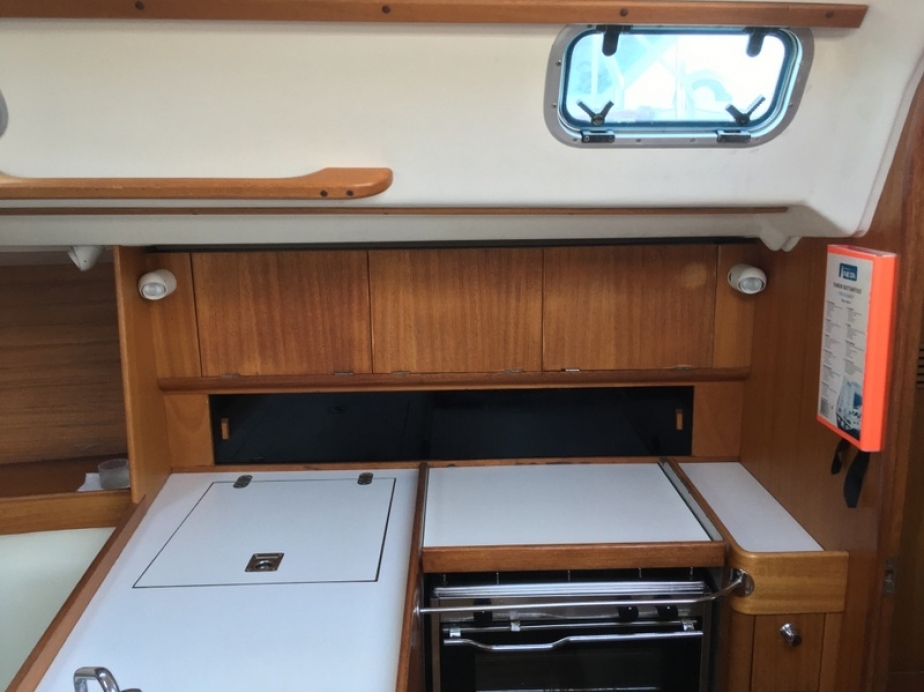

Galley

  • Gimballed gas stove with two burners and oven
  • Sink with cold water supplies

Electrics

  • Boss Marine CD radio with speakers
  • 12vDC primary domestic system with 12vDC starting circuit and 220v AC via shore power or inverter-150 Wat.
  • 1x 12vDC engine start battery 60 Amp. – 2018
  • 2x 12vDC service batteries 75 Amp = 150 Amp.– 2019
  • 12/220v Vetus automatic battery charger-3x 20 Amp.
  • 12vDC engine-mounted alternator

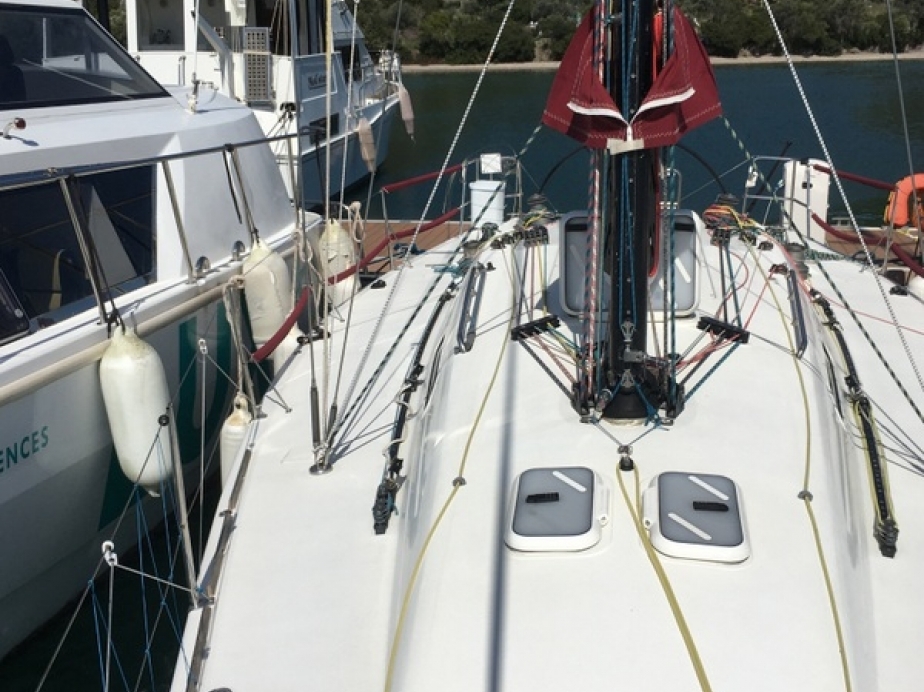

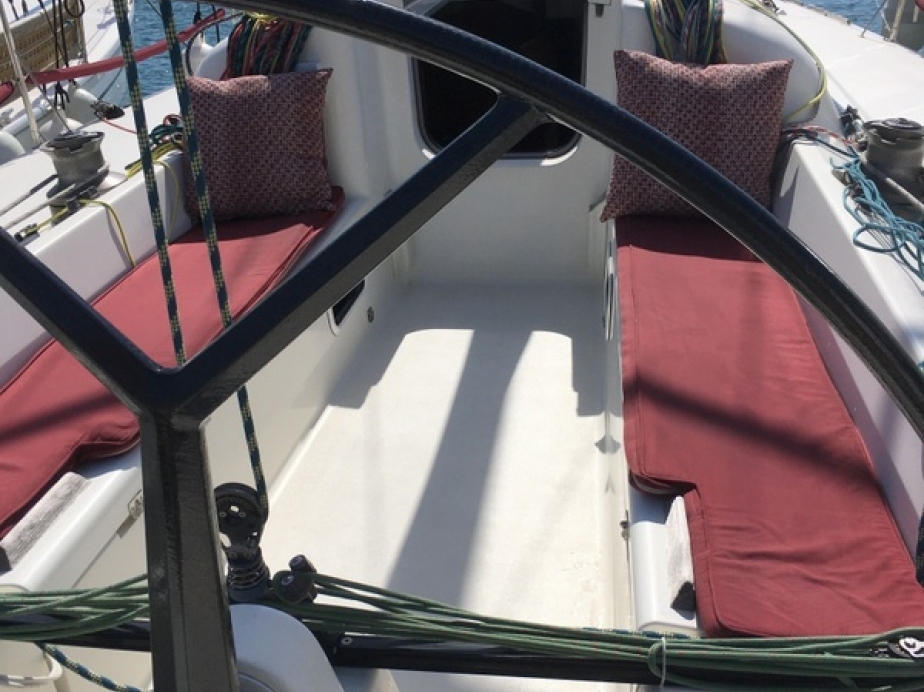

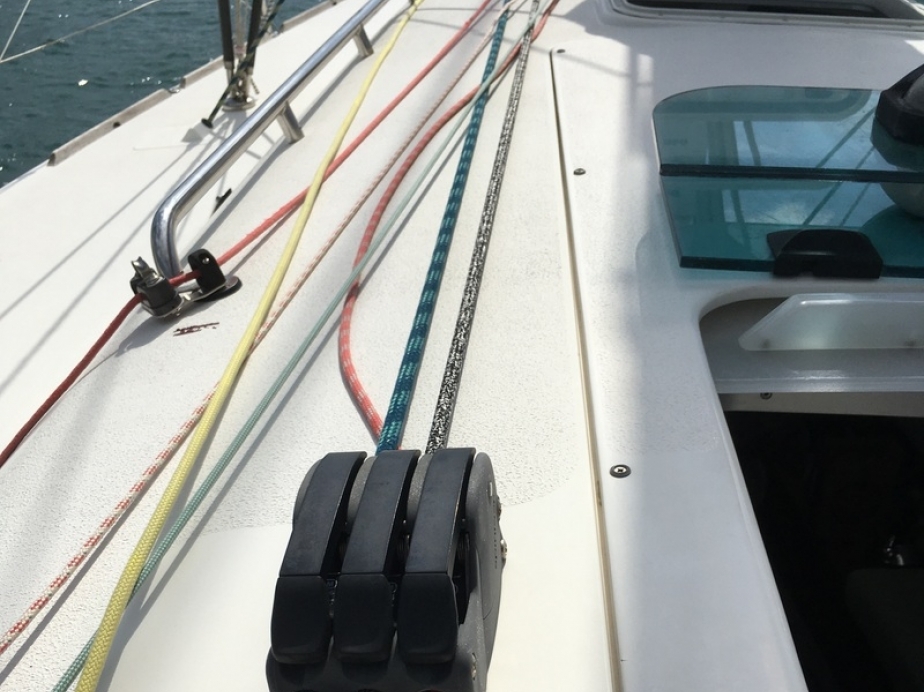

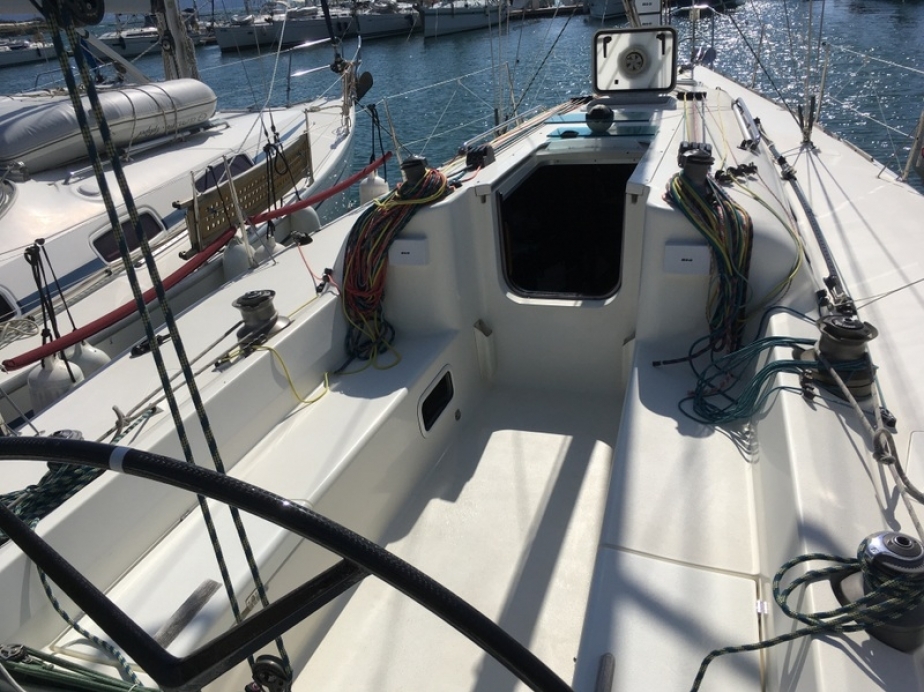

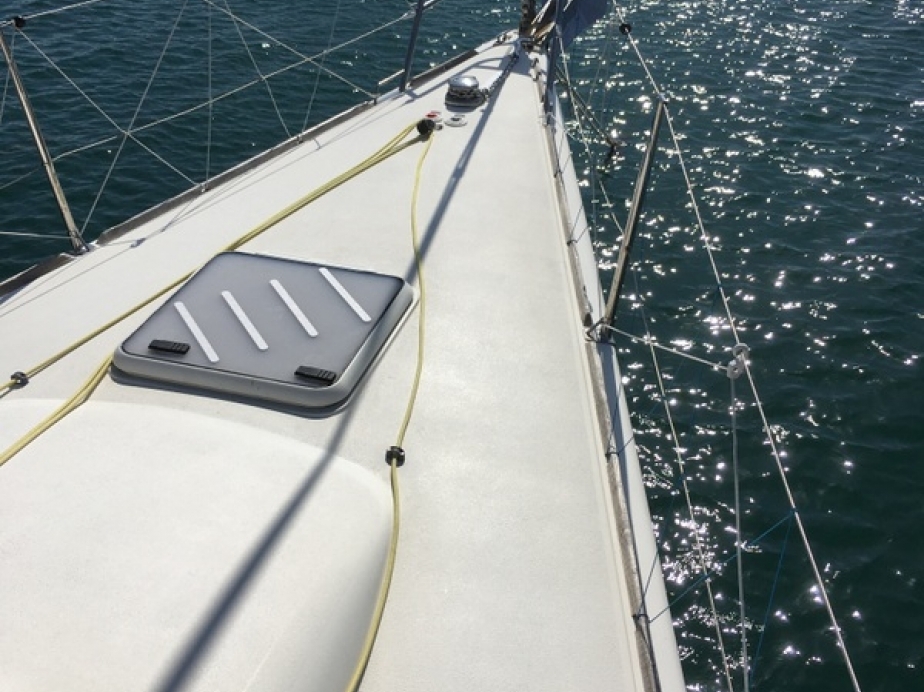

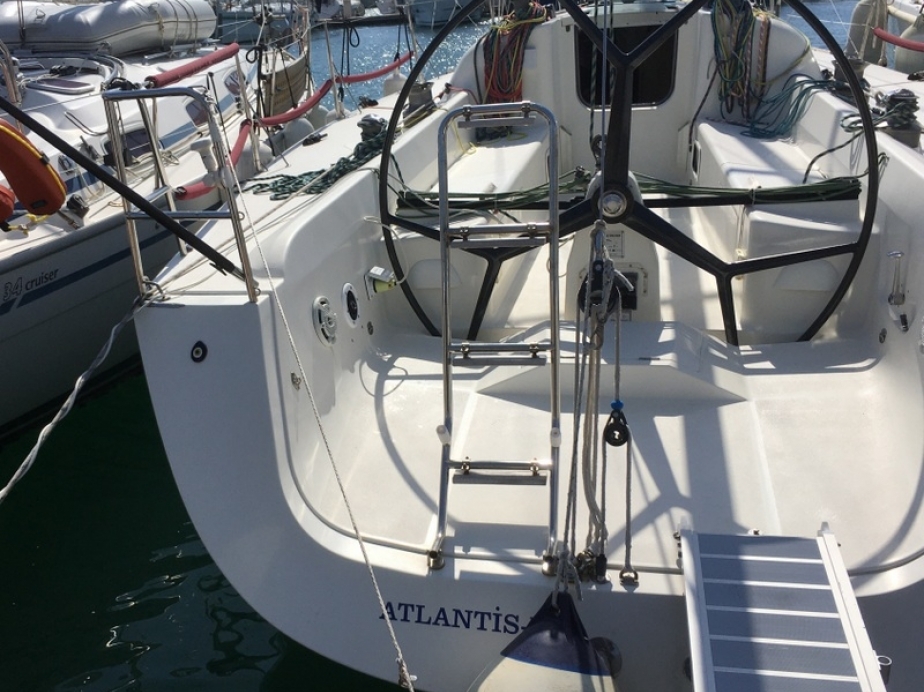

Deck and Cockpit

  • Jefa wheel steering with large diameter carbon-fibre helm wheel
  • Quick Aster 1000W 12vDC electric windlass
  • Stainless steel Delta model anchor 12 kg.with and 70 mt.8 caliber chain. 2 mt. stainless steel from the beginning.
  • Cold shower in the cockpit
  • Bathing ladder
  • German mainsheet system with full width cockpit track and dedicated cockpit winches

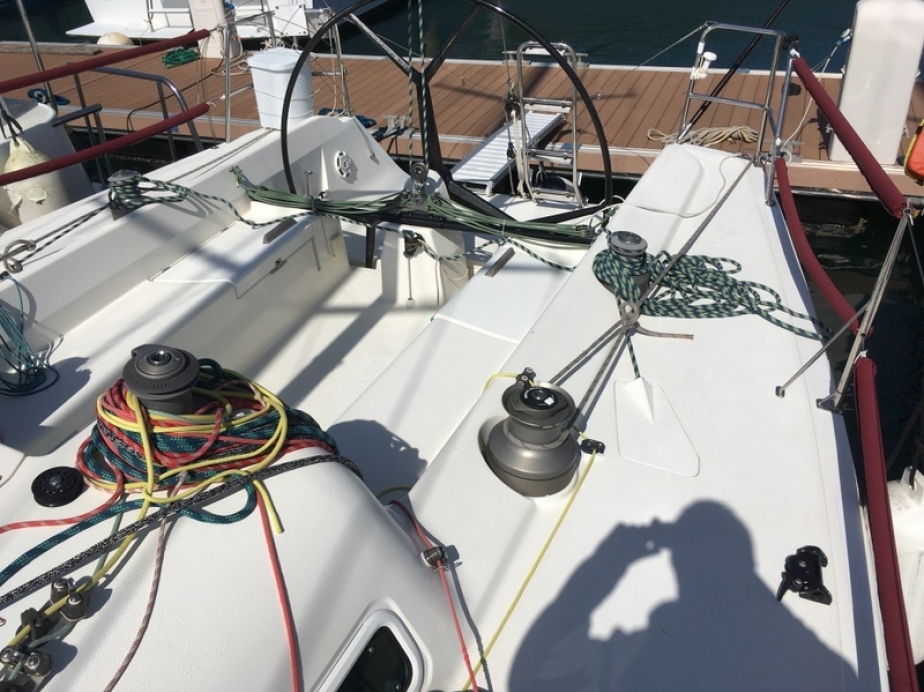

Winches:

  • 2x Lewmar 44ST 2-speed self-tailing primary winches

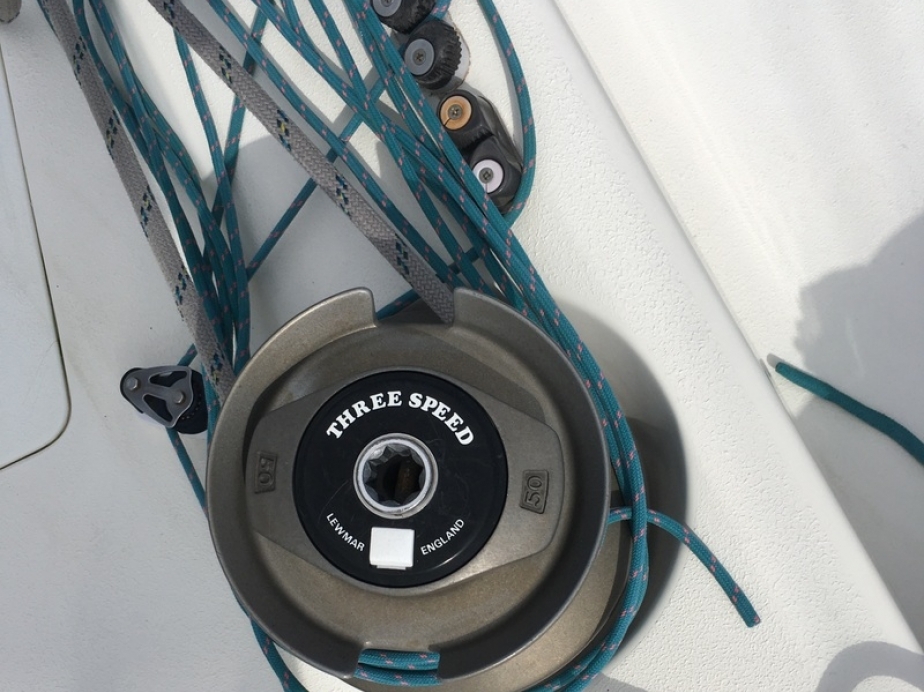

  • 2x Lewmar 50ST 3-speed self-tailing mainsheet/spinnaker winches
  • 1x Lewmar 44ST 2-speed self-tailing winch at companionway
  • 1x Lewmar 44ST 2-speed self-tailing control line winch at companionway

Rigging

  • Nordic Masts 3-spreader black-painted carbon fibre mast
  • Nordic Masts black-painted carbon fibre boom
  • Nordic gennaker carbon fibre pole
  • Stainless steel rod standing rigging and three spreaders
  • Tuff luff genoa
  • Rod vang
  • Low-friction batten-car track on mast with Frederiksen ballbearingsliders
  • Towable genoa tracks
  • New jib tracks, old genoa tracks available
  • Harken spinnaker pole track on mast
  • Mechancial adjuster for backstay
  • Rope Lazyjacks

Engine

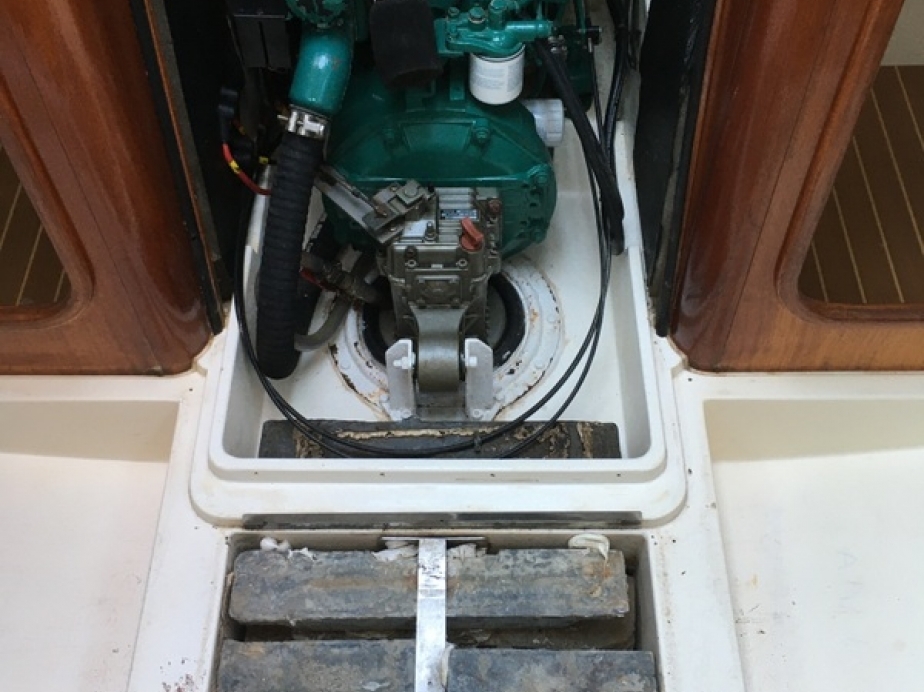

  • Volvo MD-2040 3-cylinder naturally aspirated diesel engine producing 40hp
  • Fresh water engine cooling via raw water intake and heat exchanger
  • Single lever gear/throttle control
  • Saildrive gearbox
  • 3-bladed folding propeller for racing -Gori model (over drive feature)
  • 90L dieseltank

Service & Maintenance:

  • Date of last engine and saildrive and propeller service –07/2019
  • Heat exchanger and exhaust replaced 2017

Electronics and Navigational Gear

On Deck:

  • 2x B&G Hydra-Hercules 2000 multi-repeaters adjacent to companionway
  • 1x Contest steering compasses
  • 5x B&G 20/20 dispalays at mast
  • Mast head unit carbon fibre construction wind sensor 1800
  • Electronic pressure meter headstay
  • Cobra VHF in cockpit

At Chart Table:

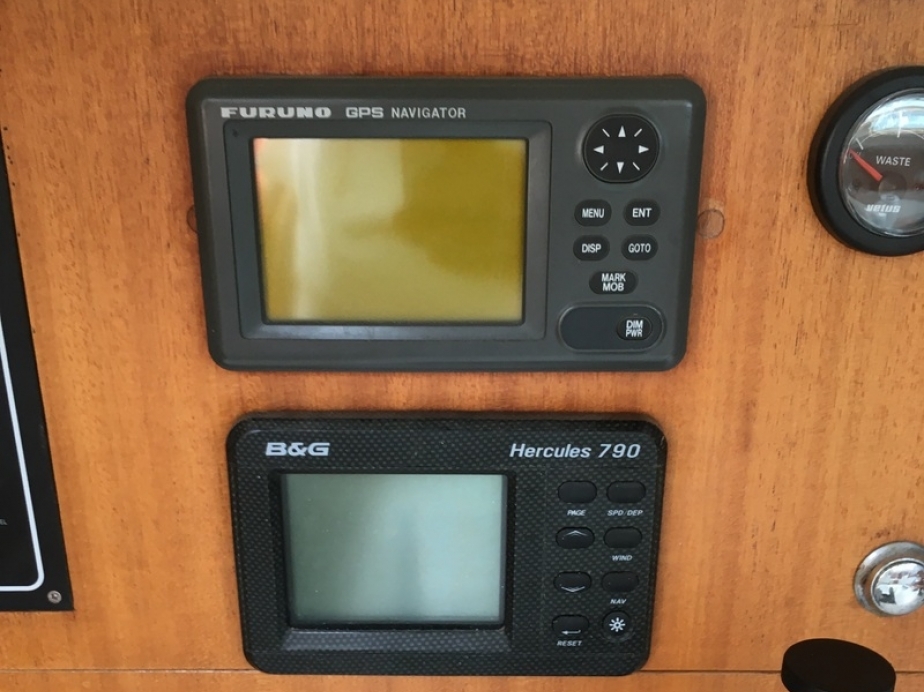

  • Raymarine and Furuno LCD Elite GPS chartplotter
  • B&G performans processor
  • Sailor VHF at chart table

Safety

  • 1x 12vDC electric bilge pump with manual override control -2019-Jabco 5 Amp.
  • 1x manual bilge pump.
  • 8-Man liferaft
  • 8-Life jackets
  • 2-Fire extinguisher 2 kg.
  • 1-Fire blankets

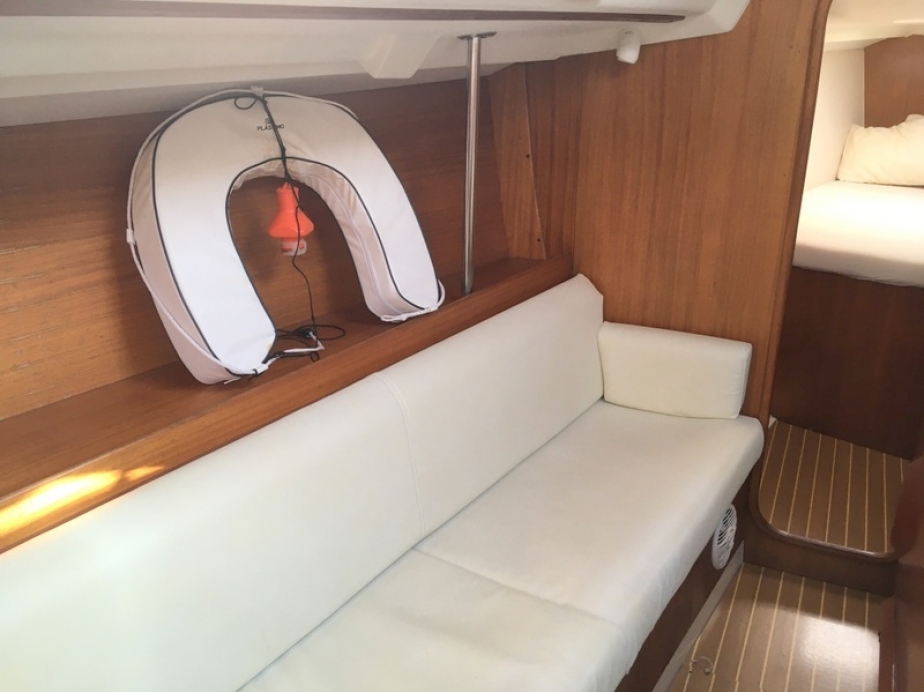

  • 1-Horseshoe

May require routine servicing, replacement, or changing to meet a new owners specific needs.

Additional

  • Aluminum passarelle 130 cm.
  • Mainsail cover
  • Wheel cover
  • Cockpit cushions

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
