J/80

Print to PDF

SOLD

  • Reference ID 429
  • Builder J Boats
  • Model 80
  • Year 2011
  • Location Spain
  • L.O.A. (mtr) 8.00
  • Beam (mtr) 2.51
  • Draft (mtr) 1.49
  • Displacement (Kg) 1315

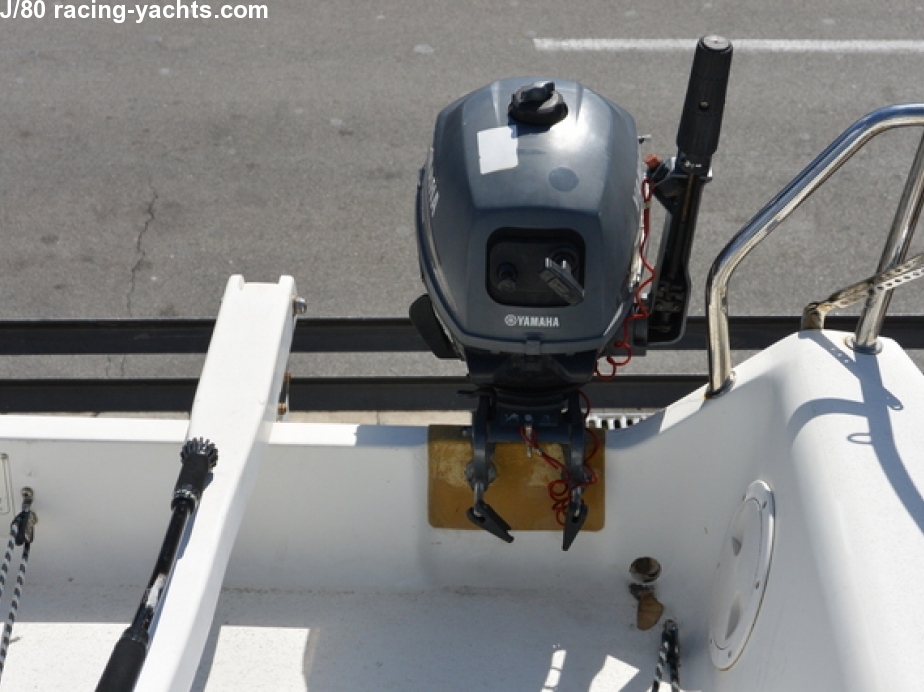

  • Engine Yamaha 2011 (4stroke)
  • Send to email

Yacht description

Construction

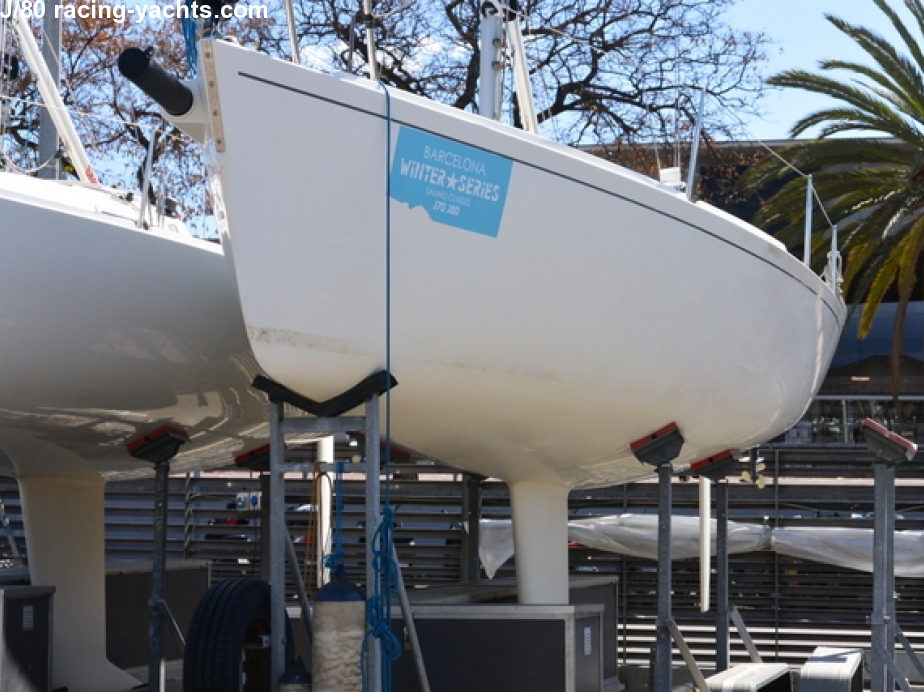

  • Composite hull and deck of GRP balsa sandwich, additional reinforcing by way of unidirectional and bidirectional laminate.
  • Vinylester resin and ISO NPG gelcoat of the hull are guaranteed for 5 years against osmosis. The bulkheads absorb the loads of the shrouds and mast compression.
  • The mast step loads are spread through an aluminum frame fastened to the main bulkhead.

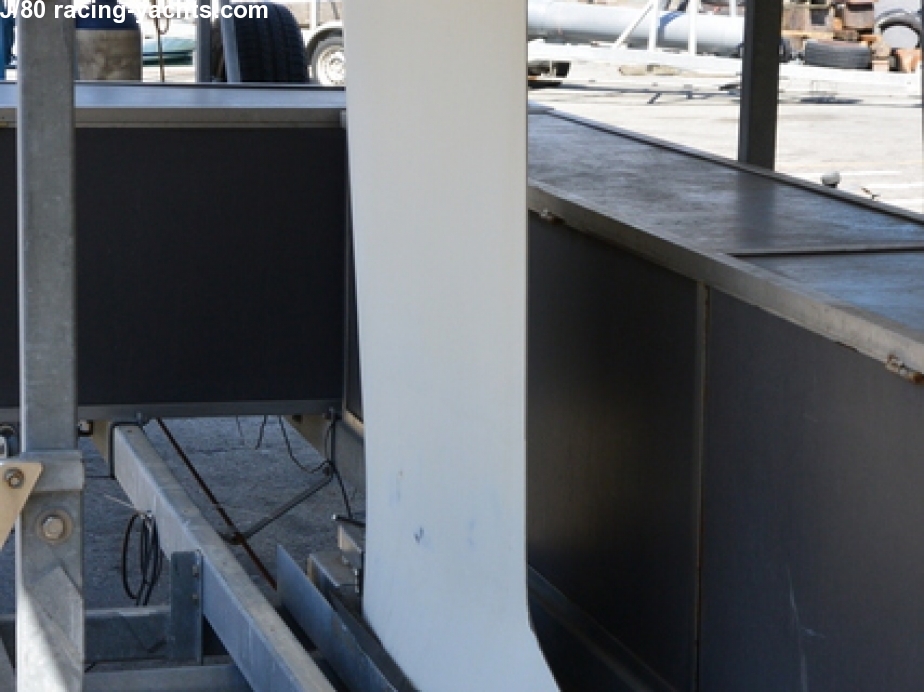

  • The keel is fabricated from lead and antimony. It is faired with an epoxy finish. The keel is secured by way of stainless steel bolts to an integral hull sump.
  • The hull is reinforced by various molded stringers.

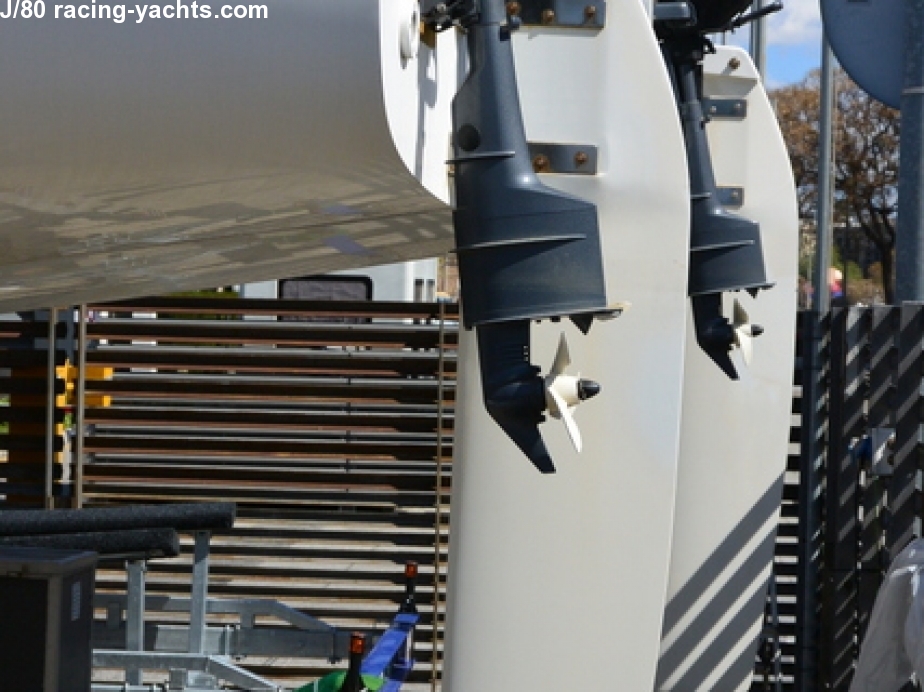

  • Reinforced FRP rudder on transom with stainless steel fittings.
  • Non slip finish to all horizontal deck surfaces in white.
  • Molded Toe-rail forward.
  • Low transom suitable for direct mounting of an outboard.

Rigging

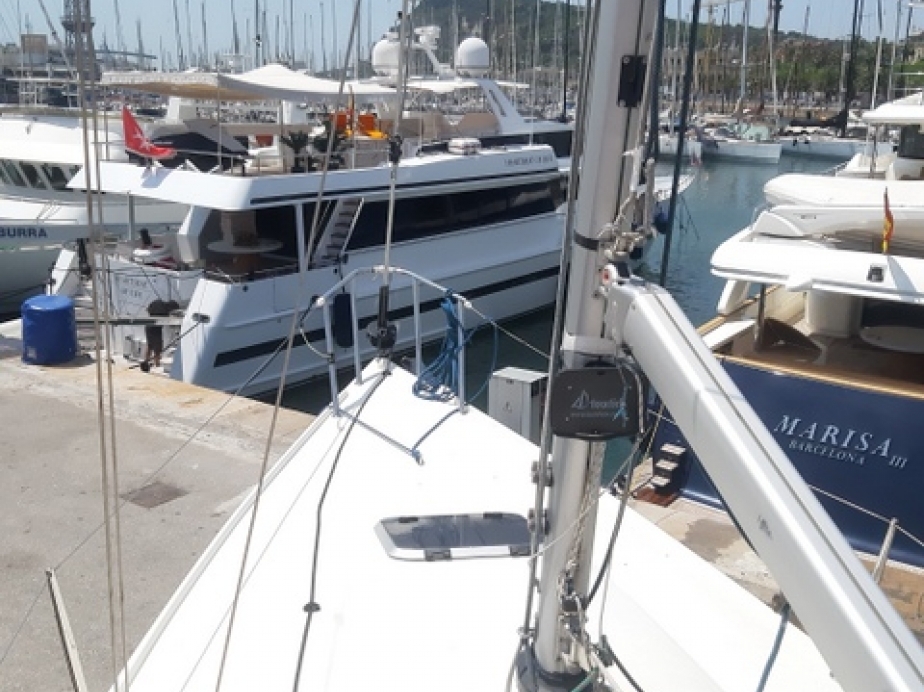

  • Anodized AG+ aluminum mast and boom Sparcraft
  • Profurl R250 roller furler for headstay.
  • Two pairs of spreaders swept aft 20 degrees.
  • Masthead tri-color navigation light.
  • Stainless steel wire standing rigging with turnbuckle adjusters.
  • Backstay with adjustment tackle led to either side of the cockpit.
  • Reef pennants and mainsail clew outhaul (6:1) led inside boom.

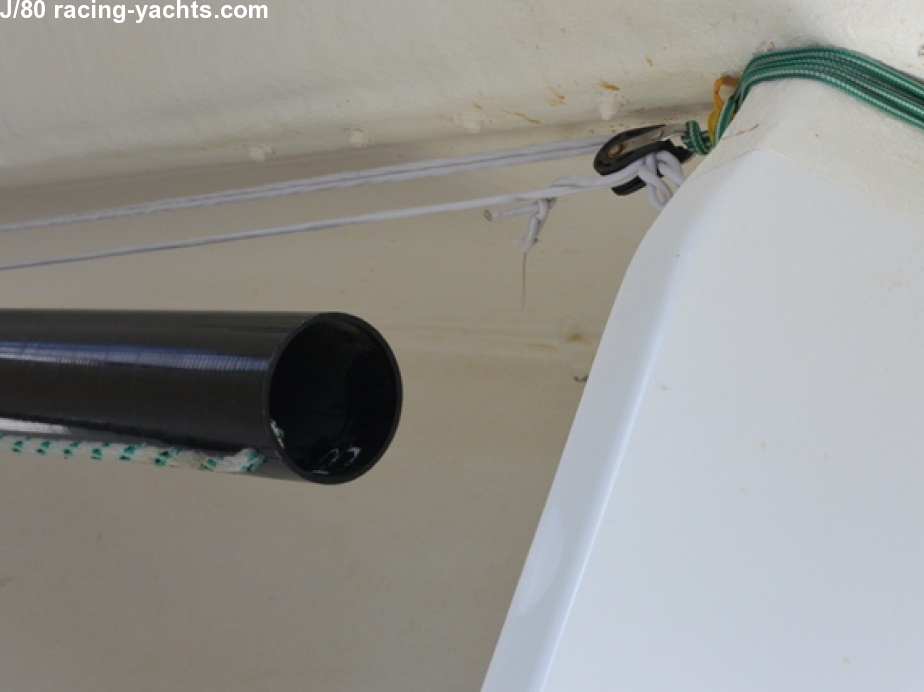

  • Retractable, clearcoat carbon bowsprit, controlled from cockpit.

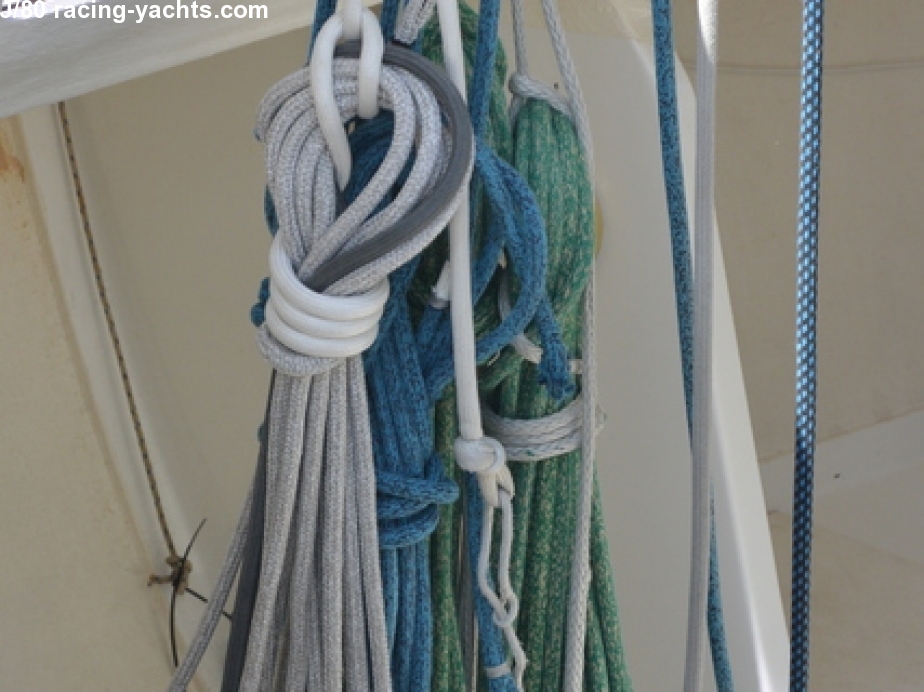

  • Main sail sheet Regatta 1x good condition
  • JIB sheet Regatta 2x good condition
  • Spinnaker sheets Regatta 2x good condition (united at the end)
  • Main haylard Regatta 1x good condition
  • Jib haylard Regatta 1x good condition
  • Spinnaker haylard Regatta 1x good condition
  • spinnaker pole line Regatta 1x good condition

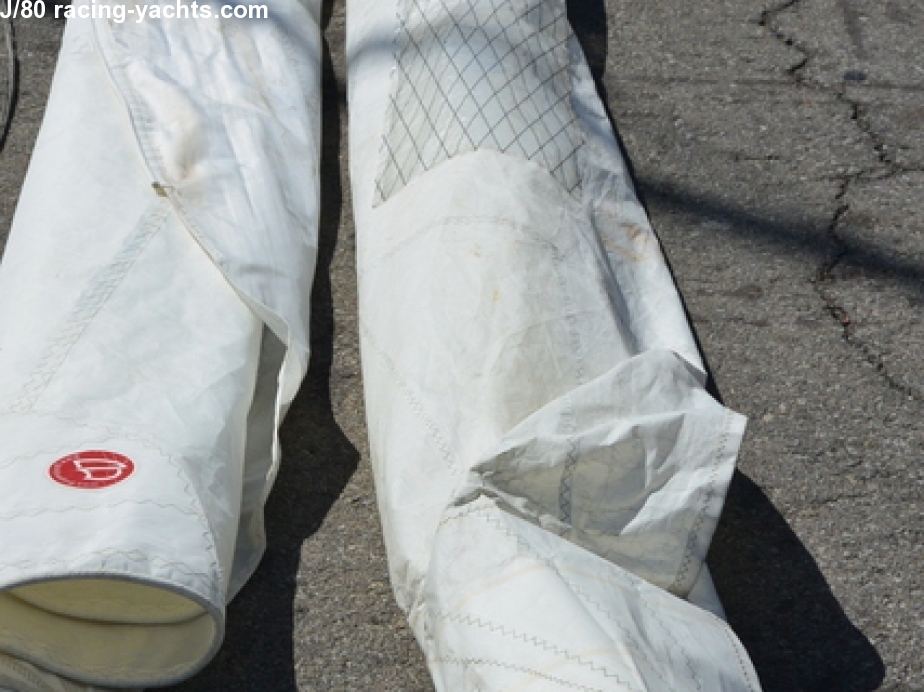

Sails

  • Main sail - 1 - delivery
  • Main sail Bank sails 1 2012 heavily used
  • Main sail Quantum 1 2013 heavily used / good shape
  • Main sail Gold sailing 1 2015 heavily used / good shape
  • Jib - 1 - delivery
  • Jib Bank sails 1 2012 heavily used
  • Jib north sails 1 2013 heavily used
  • Jib north sails 1 2014 heavily used
  • Jib Gold sailing 1 2015 heavily used/ good shape
  • spinnaker Bank sails 1 2012 heavily used
  • spinnaker Quantum 1 2013 heavily used / good shape
  • spinnaker Gold sailing 1 2015 heavily used / good shape
  • spinnaker north sails 1 heavily used / good shape

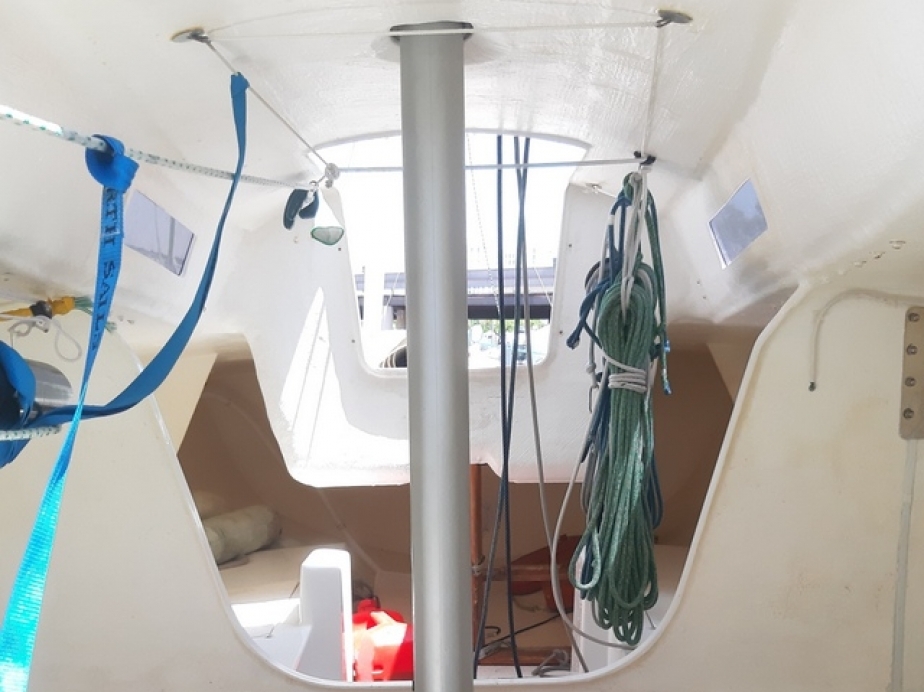

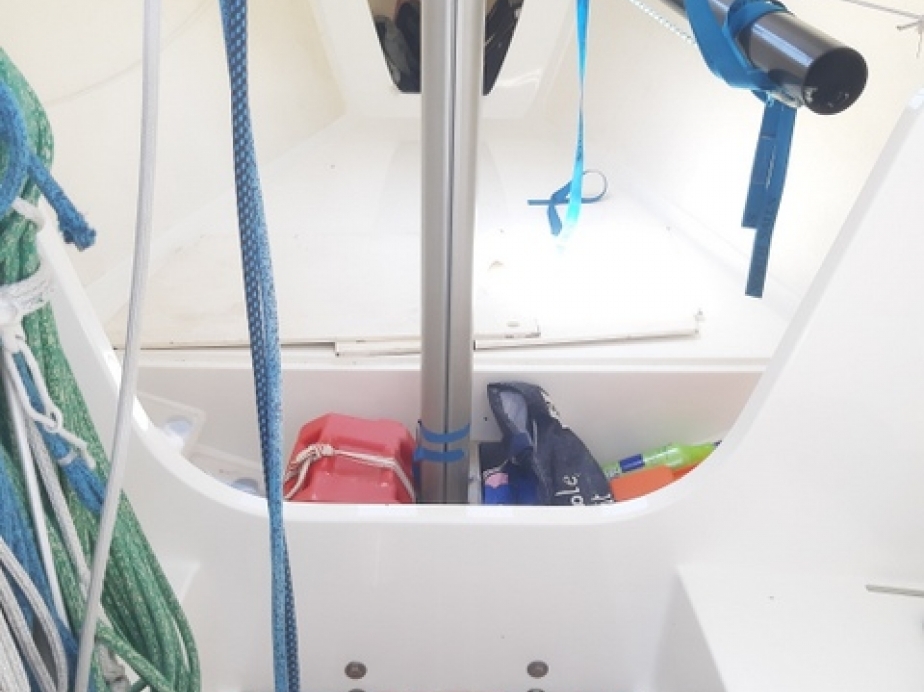

Accommodations

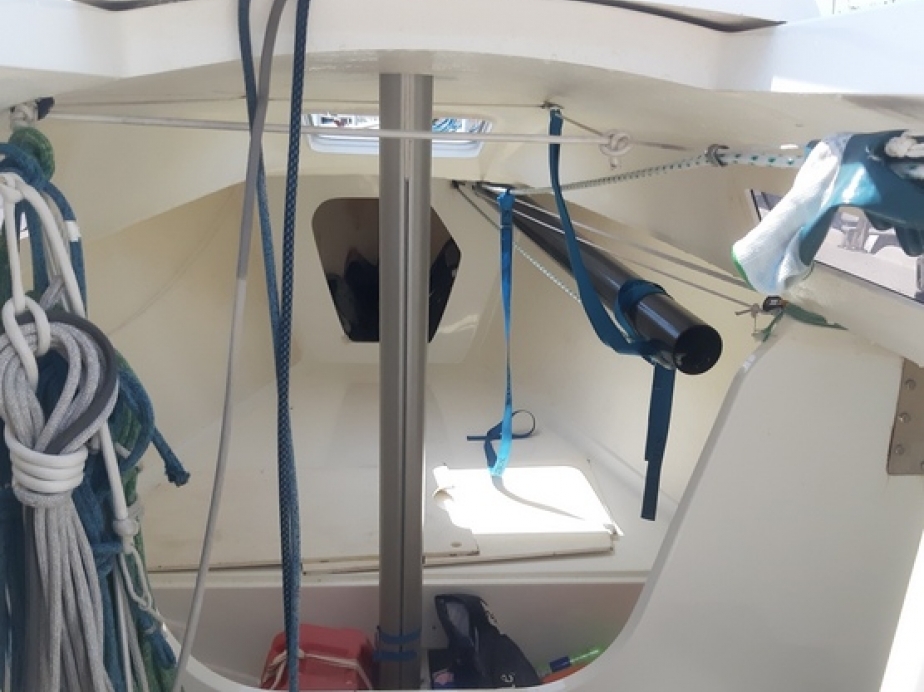

  • Removable cabin sole.
  • Molded settee berths with access to storage below.
  • Large forward V-berth platform with two access panels above mast step.
  • Large and removable molded step permitting an outboard engine and cooler to be stored aft.
  • Crane lifting bar integral to keel bolt system.

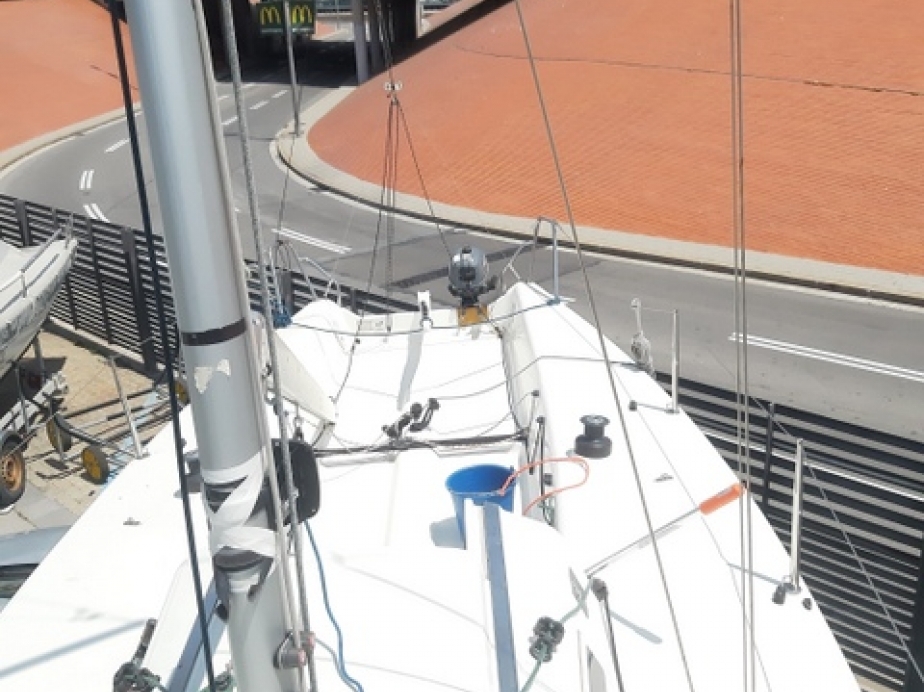

Deck and Cockpit

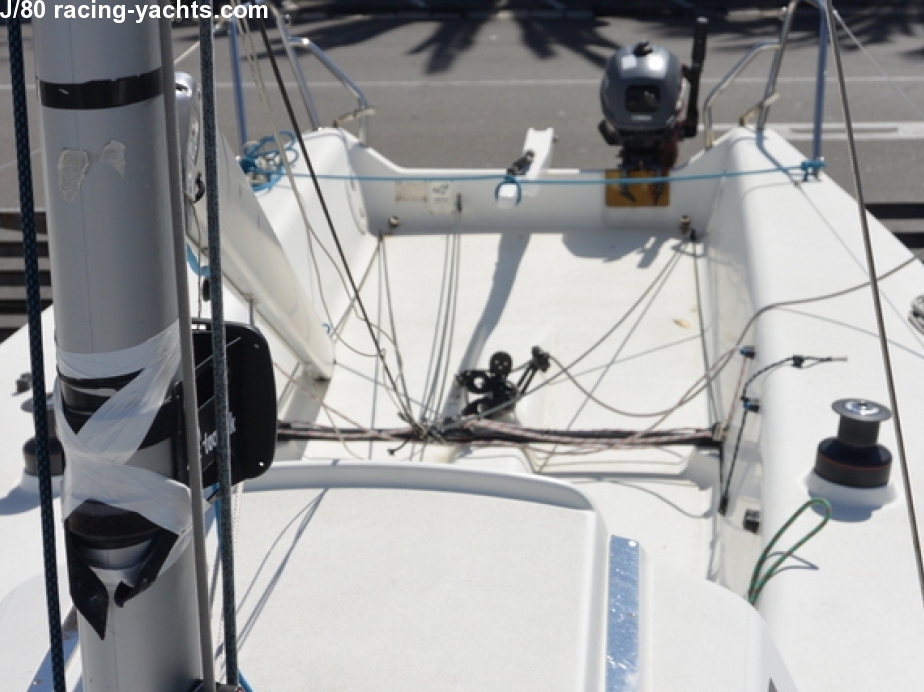

  • Large modern cockpit with molded foot braces on centerline.
  • Stainless steel forestay attachment plate.
  • Stainless steel pulpit single lifeline.
  • “U” bolt on the foredeck.
  • Stainless steel chain plates for cap shrouds, lower, shrouds and backstay.

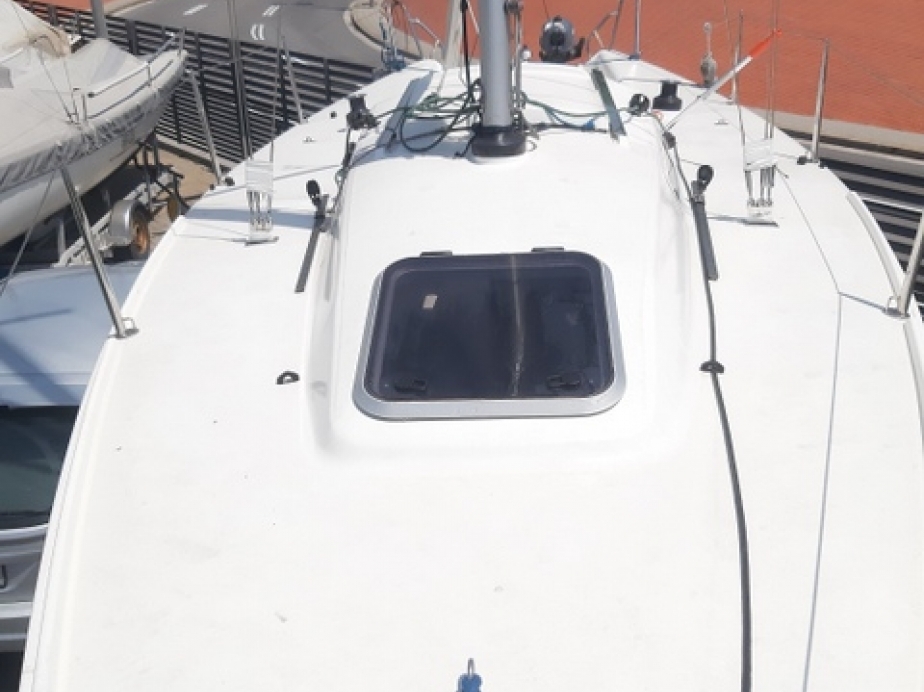

  • Opening hatch (420 x 420 mm) mounted on cabin trunk forward of mast.

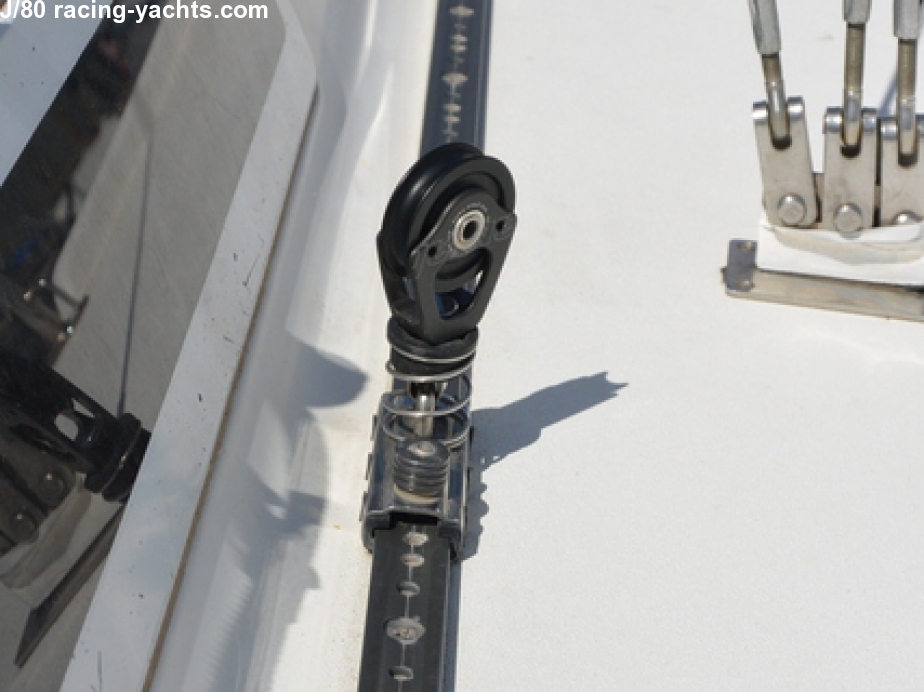

  • Two black anodized jib T tracks with cars.
  • Swivel mounted boomvang jamming cleat on each side of the coach roof.
  • Mainsheet traveler with coaming mounted (2:1) control line, cleats.
  • Swivel mounted mainsheet (5:1) jamming cleat and ratchet block on cockpit sole.
  • Jamming cleats and feed blocks for backstay adjustment (4:1) led forward in cockpit to port and starboard.
  • Two Harken winches

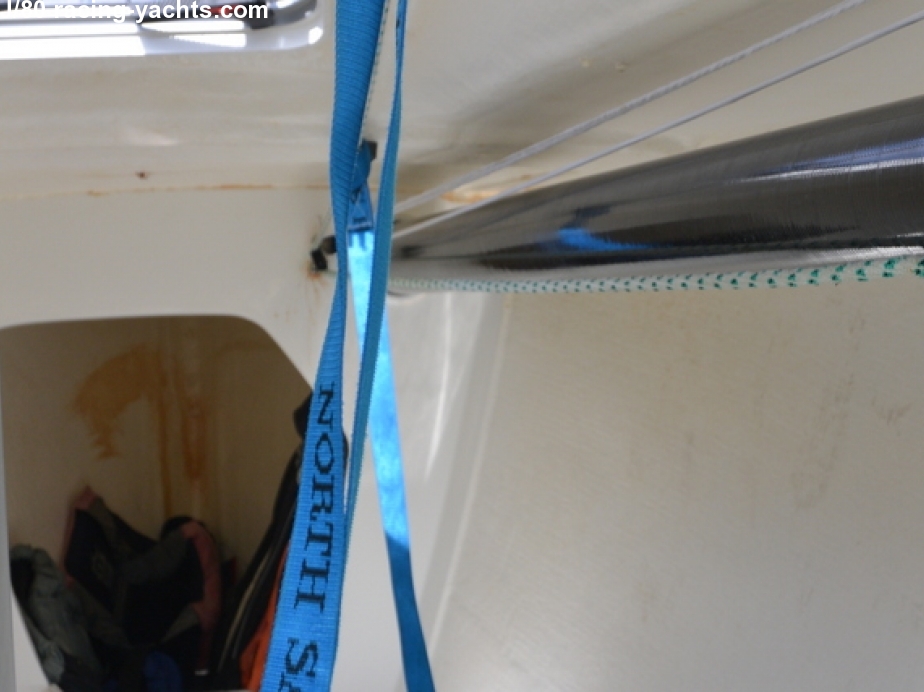

  • Internal spinnaker bowsprit launching line aft through fairleads inside the cabin to exit the aft face of the cabin trunk to a cam cleat.
  • Bullseye fairleads to lead roller furler control line (port with cam cleat) and tack line (starboard) aft to cockpit side mounted clutch.
  • Composite tiller, finished in white gelcoat, with tiller extension.
  • Spinnaker sheet blocks at aft and forward end of the cockpit.
  • Two stern pulpits.
  • Single continuous lifeline.
  • One fixed cabin window on each side of coach roof.
  • GRP main sliding hatch with Plexiglas one piece offshore drop board.
  • One winch handle.

Electrics

  • Interior reading light.

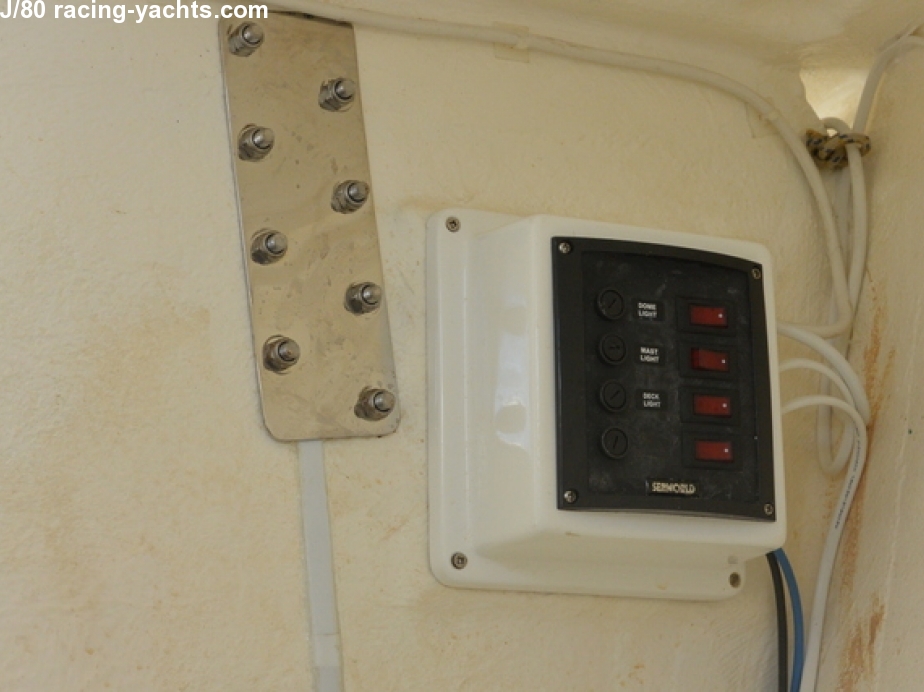

  • Electrical panel
  • 12 volt Battery with battery box.
  • navigation lights 2016

Safety

  • Bilgepump
  • Medicin box
  • fog horn
  • red hand flares 2x
  • Lifebuoy 1x orange

Electronics and Navigational Gear

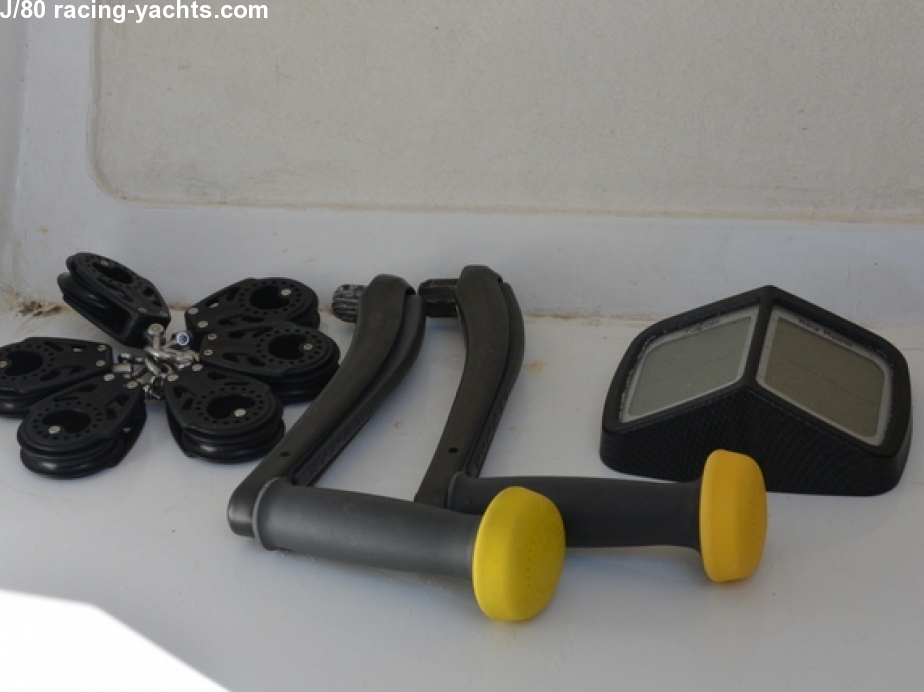

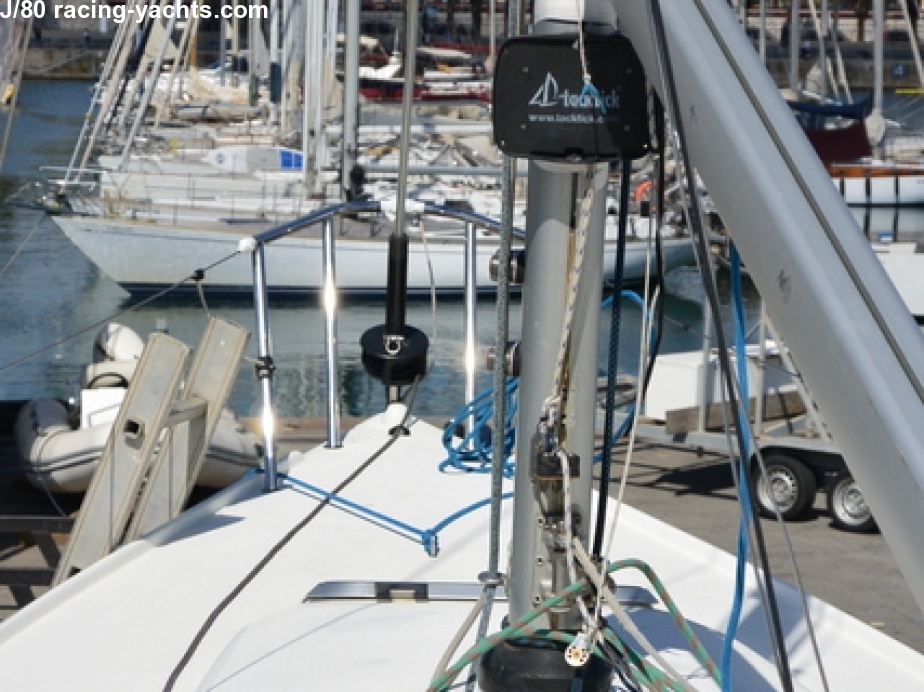

  • Tack tick race master
  • VHF icom float 2015

Additional

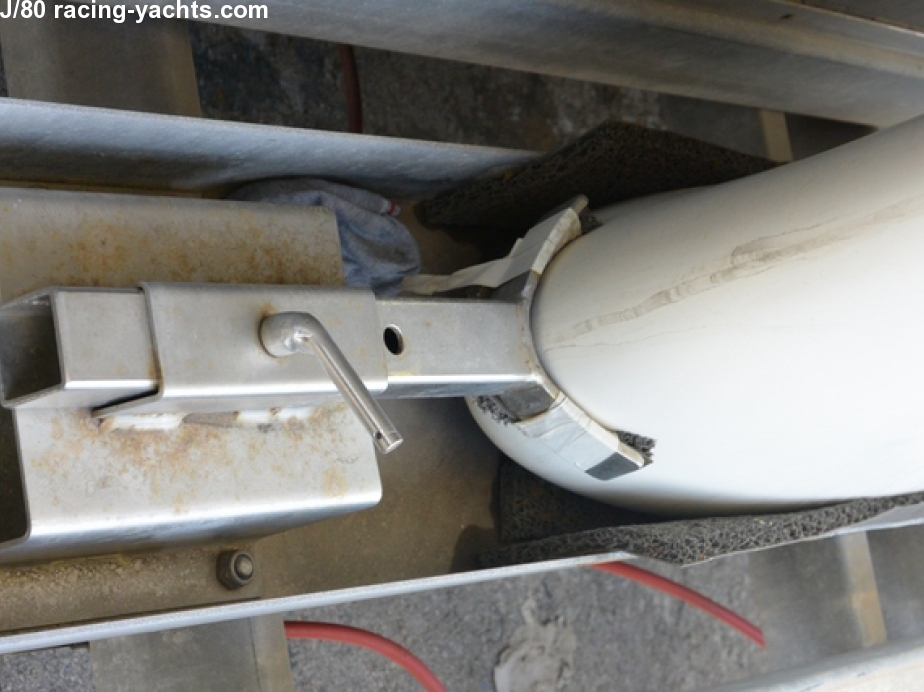

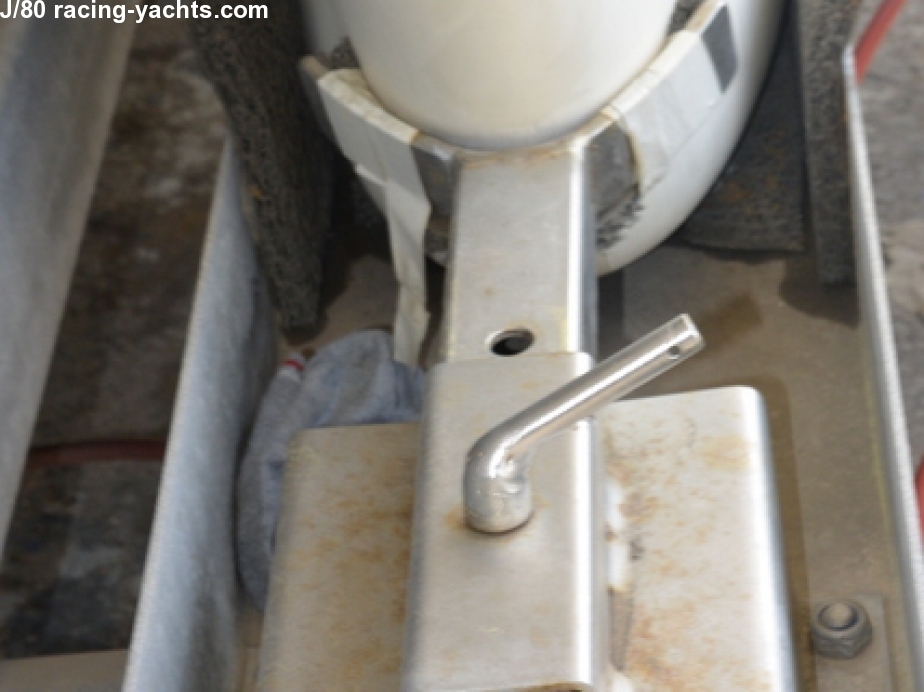

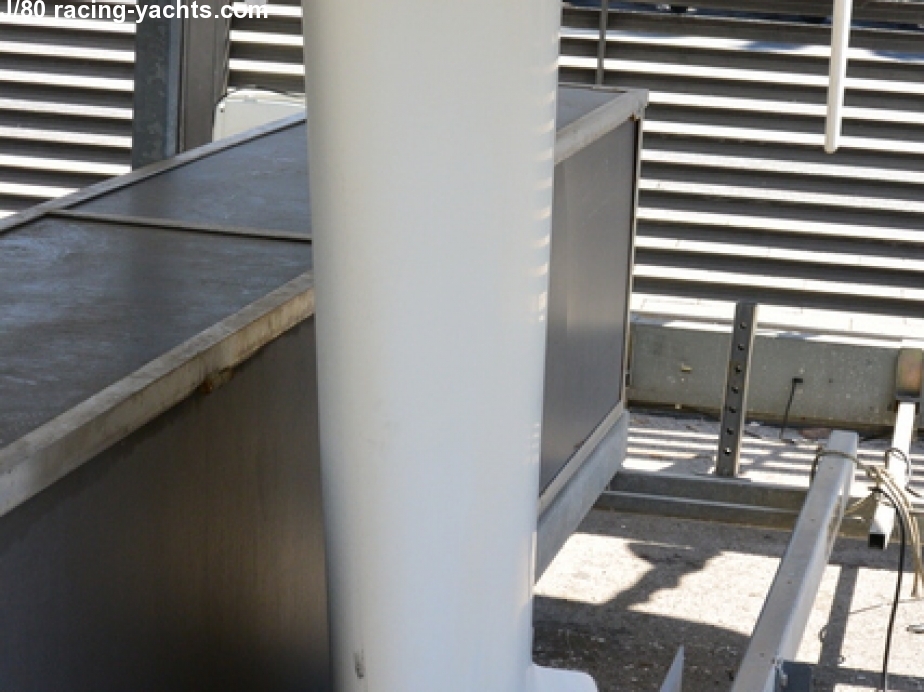

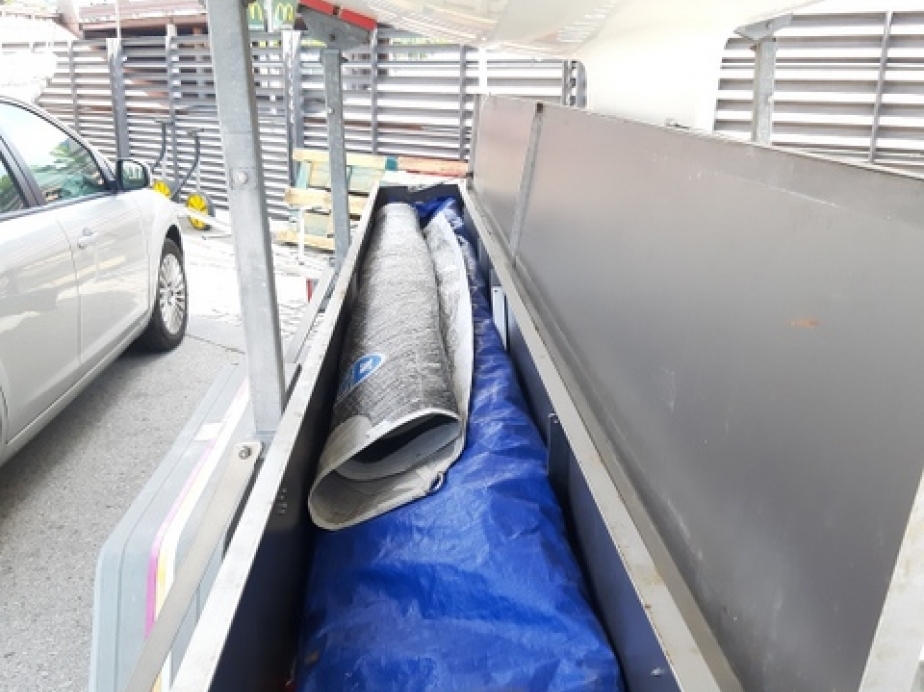

  • Trailer Mecanorem 2011 modified storage boxes
  • Mast crane Own design 2011 very good performance and details
  • race Shaping TP- proyectos nauticos 2013

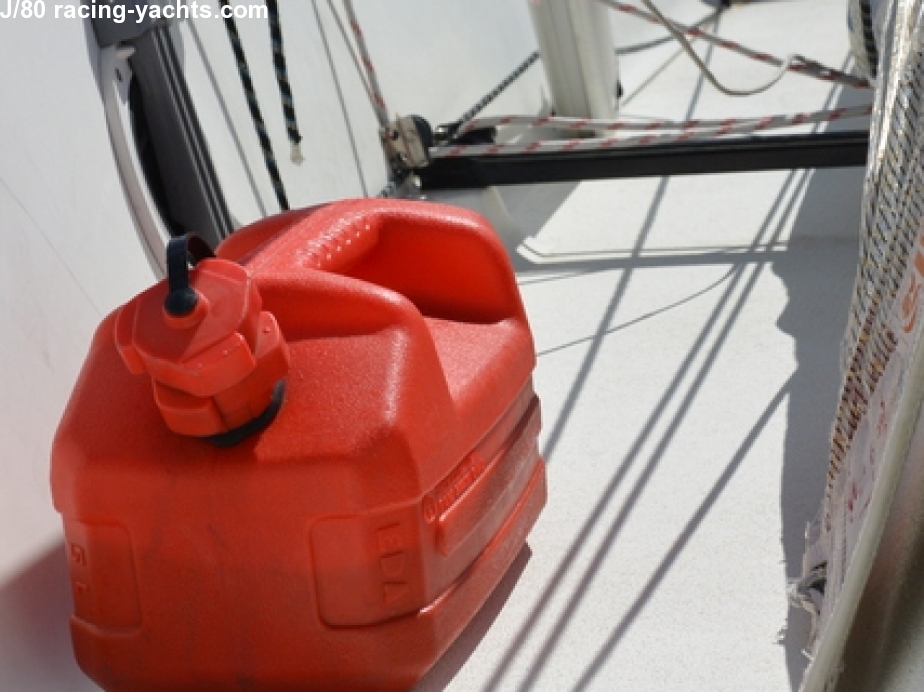

  • 2x gas tanks
  • Anchor plus 2 m chain and rope
