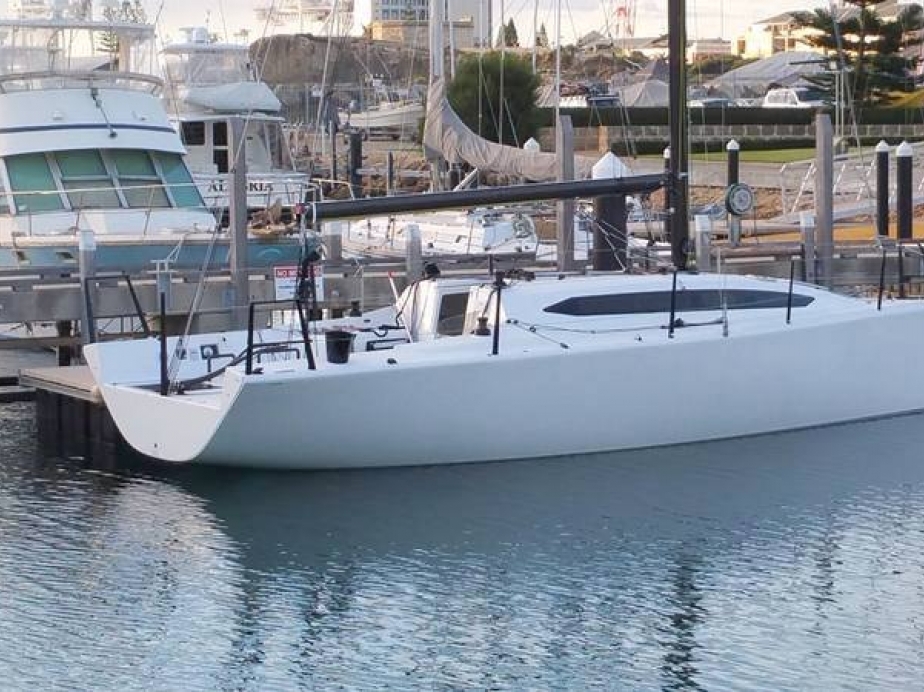

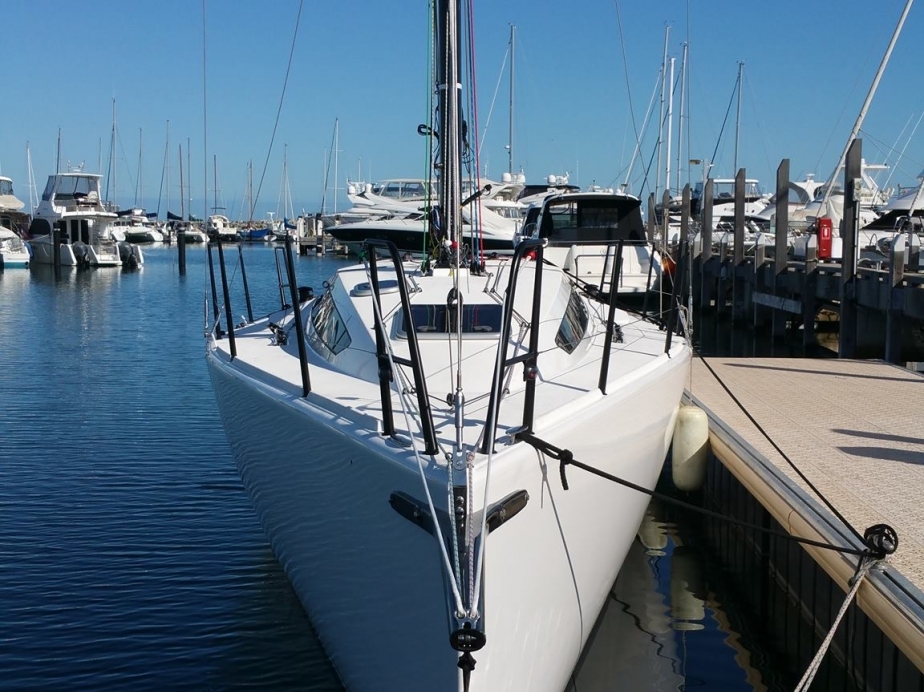

Ker 33

  • Reference ID 102
  • Builder McConaghy Boats(New builds)
  • Model Ker 33
  • Designer Jason Ker Design
  • Location Netherlands
  • Engine type Single
  • L.O.A. (mtr) 10.00
  • Beam (mtr) 3.36
  • Draft (mtr) 2
  • Displacement (Kg) 8
  • Material Composite

Yacht description

McConaghy Ker 33 Specification, Optional Extras

ISO Structural CAT.A

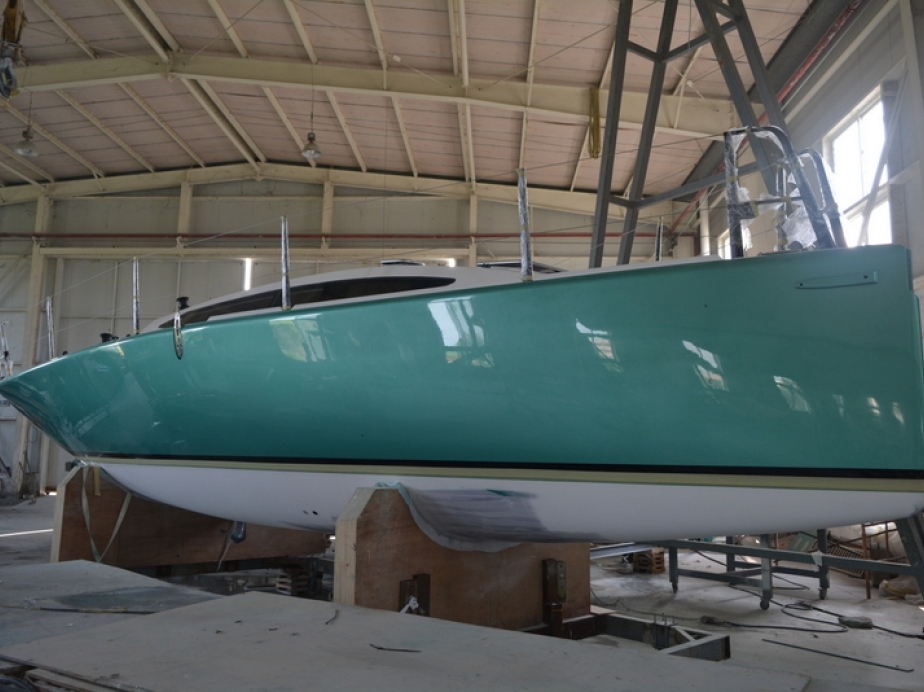

Hull

  • Eglass and Corecell foam construction vinylester infused
  • White gelcoat finish as standard

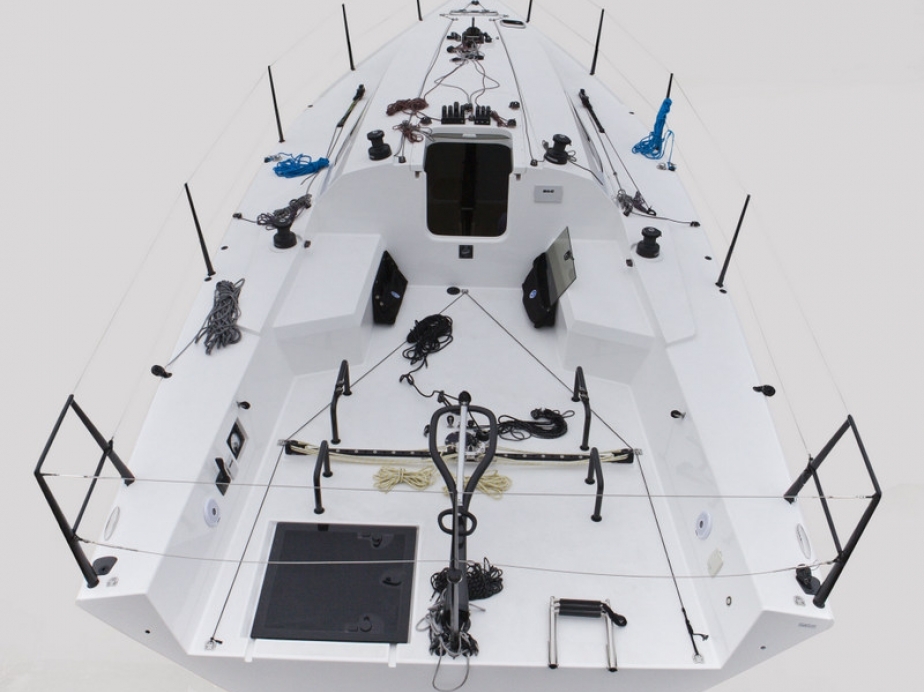

Deck Hardware

  • Deck: White gelcoat with non skid areas on foredeck and side decks

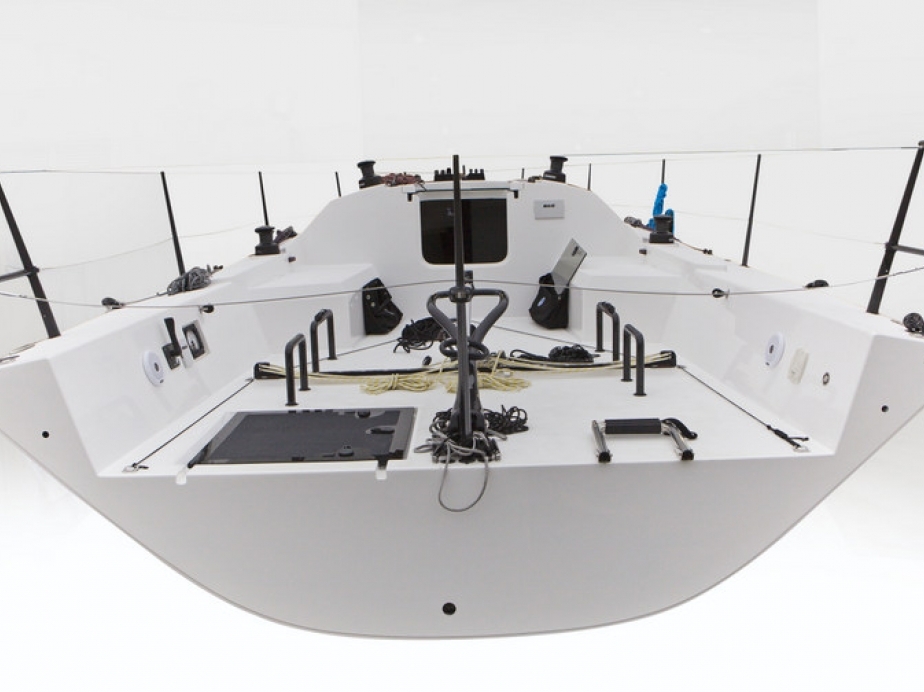

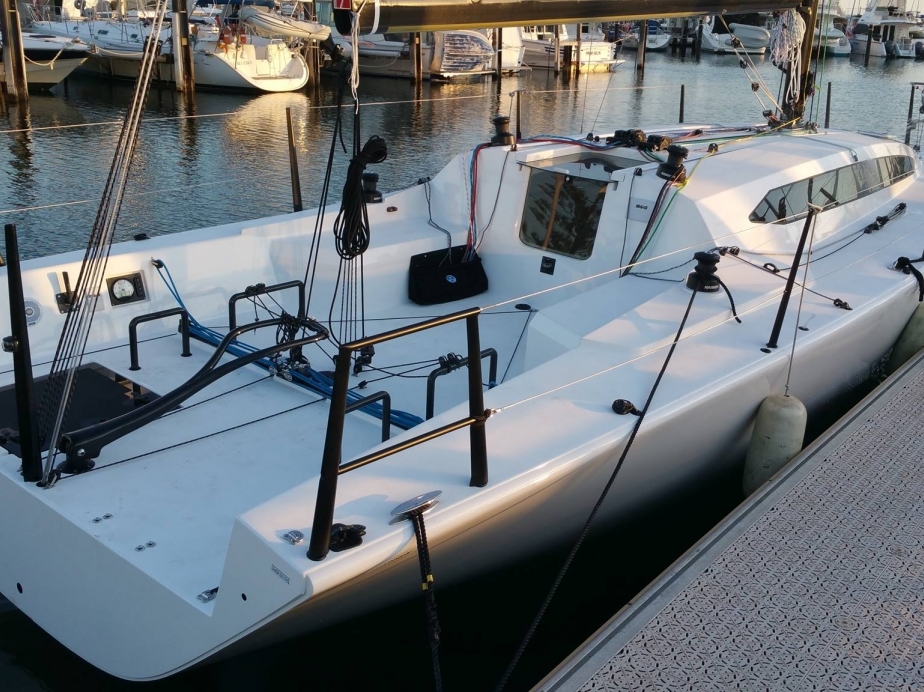

  • Cockpit Sole and Sides: White gelcoat, non skid areas on cockpit sole
  • Harken Deck Gear Package
  • 2 x Primary Winches Harken 40.2 STA (Self Tailing)
  • 2 x Pit Winches Harken 35.2 STA (Self Tailing)
  • Option Upgrade Pit Winches from 35.2 STA toPerformas 35.2 STP (Self Tailing Performas)
  • Option Upgrade Primary Winches to Harken 40.2 STP (Self Tailing Performas)
  • 2 x Harken Winch Handles
  • Option 2 x McConaghy Carbon Fibre Winch Handle Pockets
  • 3 Spinlock Clutches with custom organisers
  • McConaghy Composite Stanchions, Pushpits and Pulpits
  • Stainless Steel 1/19 wire lifelines
  • Toe Rails to Standards
  • Lewmar Forward Hatch Size 49 Low Profile
  • Lewmar Hatch on cockpit sole aft of traveller Size 70
  • Option Lewmar Hatch above head, lewmar hatch with flyscreen, 231x176
  • Anchor Locker (Drained area for anchor stowage, anchor and change not included)
  • Option Silva Compass mouted on centreline below the washboards in companionway
  • Option Padeyes for Cockpit Clipping Points (5 Folding Padeyes) suplied and installed
  • Option Stainless Steel Swimming Ladder

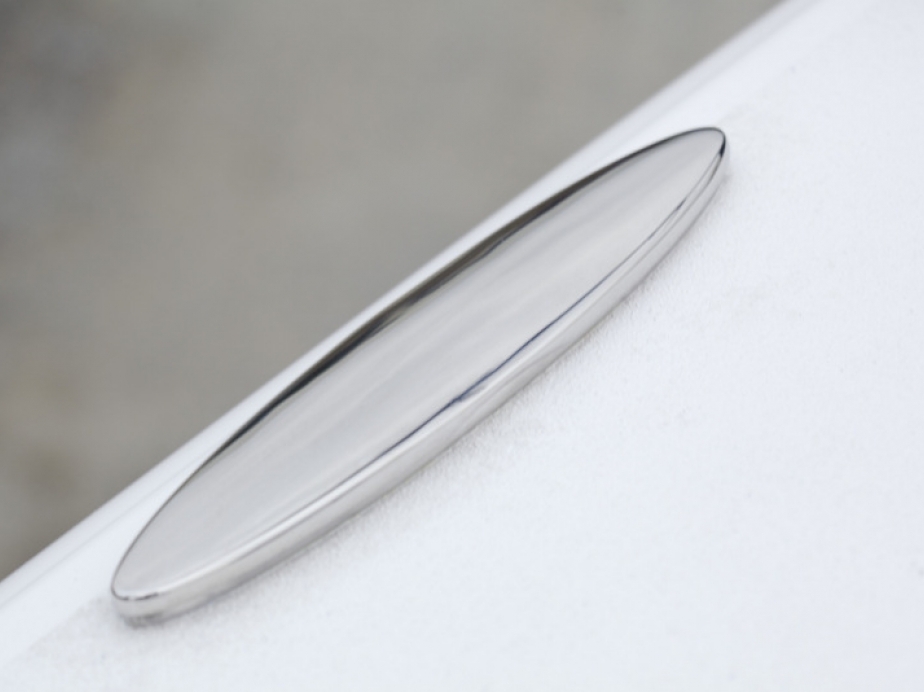

  • Option 4 Drop down mooring cleats
  • Tack point on tang at bow
  • Option Freshwater Transom Shower
  • Mainsheet Traveler 5:1
  • Mainsheet Coarse Tune 4:1
  • Mainsheet Fine Tune 16:1
  • Jib Car Fore and Aft Pinstop Adjuster



Rudder and Steering

  • Carbon Rudder Stock
  • McConaghy Carbon Fibre Tiller and Spinlock Tiller Extension

Keel

  • Cast SGI and Lead Fin
  • 2m Draft


Plumbing

  • Freshwater hand pump at galley sink

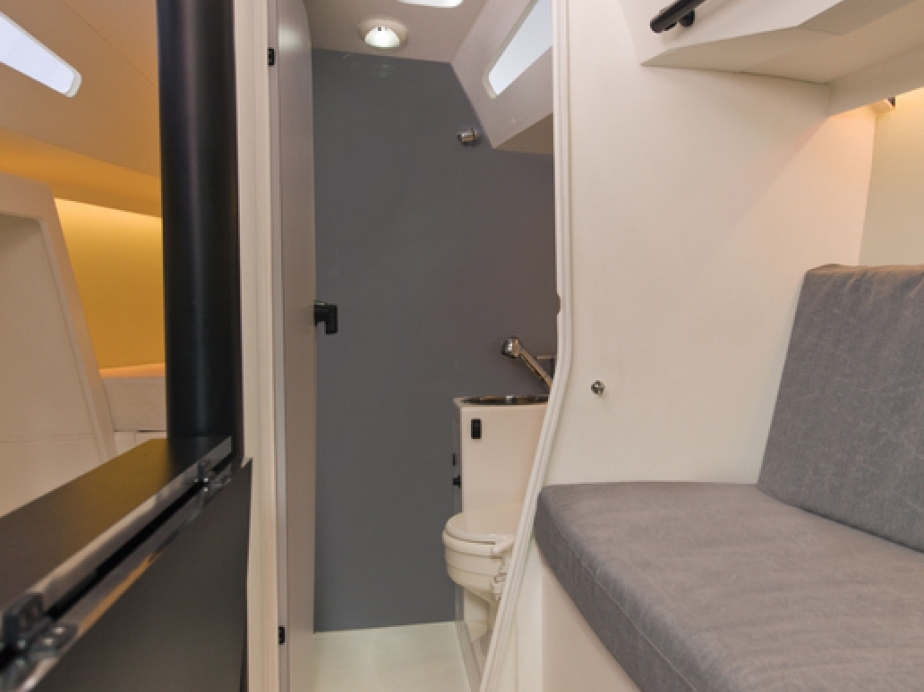

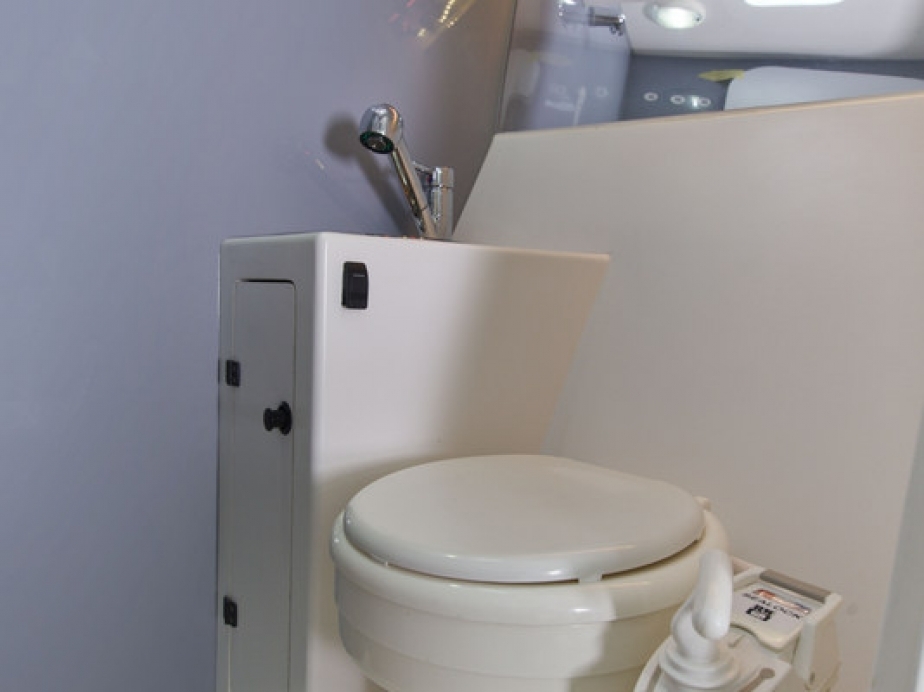

  • Manual head with overboard discharge three way valve installed with provision for holding tank (hold tank not included)
  • Option Blackwater Holding Tank
  • 1 x Manual Bilge
  • 1 x Auto Electric Bilge Pump in Lazzerette
  • 2 x 50L Freshwater Bladders
  • Option Auto Electric Bilge Pump (each)

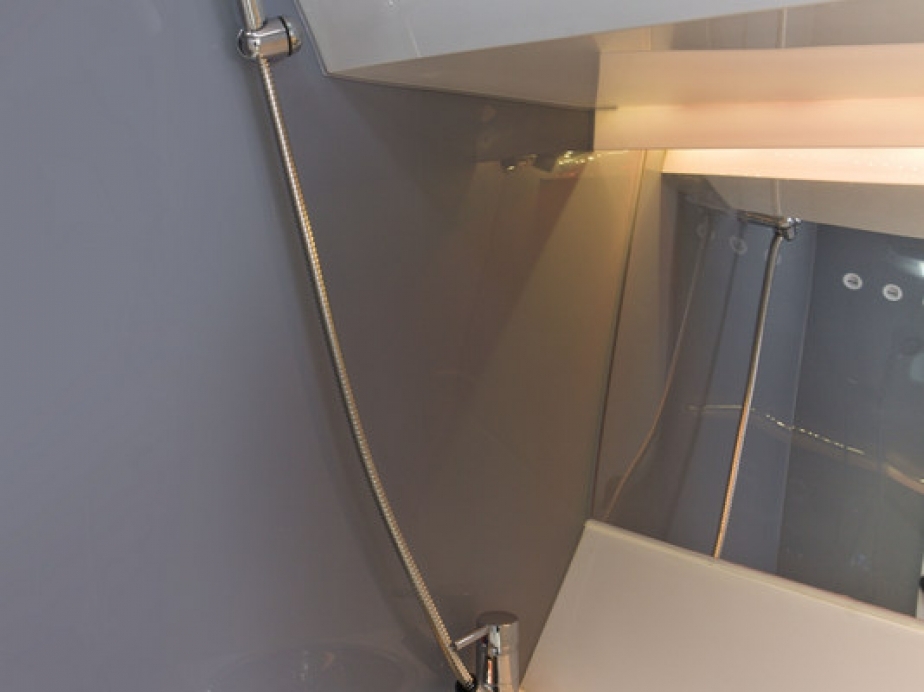

  • Option Pressurised fresh water system, hot water system with shower

Rigging

Rig and Rigging

  • Selden Aluminium Mast, keel stepped; Selden Anodised Aluminium Boom with twin reef
  • 1 Main Halyard (2:1) exiting on deck
  • 1 Fractional Halyard
  • 1 Jib Halyard
  • Main Cunningham
  • Boom Vang
  • Option Rig upgrades to carbon mast and boom - Price on application, supplier determined by location and perference

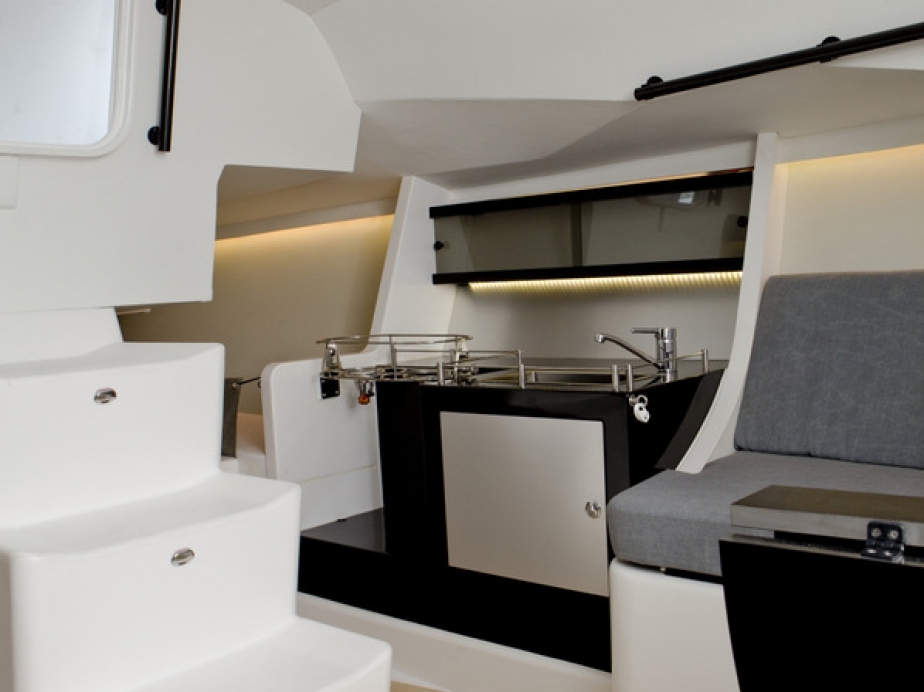

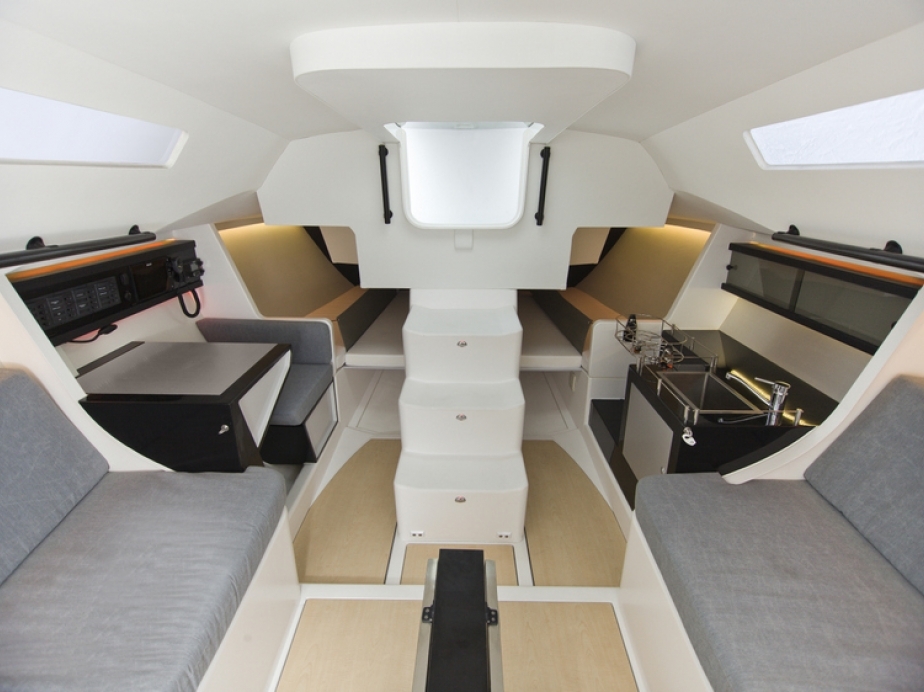

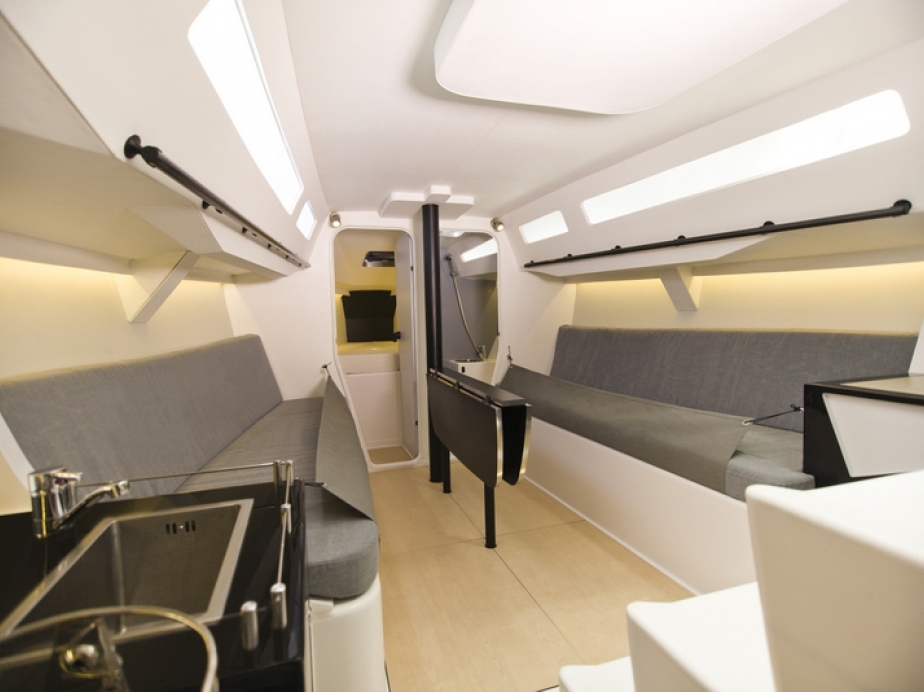

Accommodations

3 double berths plus 2 single

  • Interior Finish: Gelcoat with Fermica Laminate

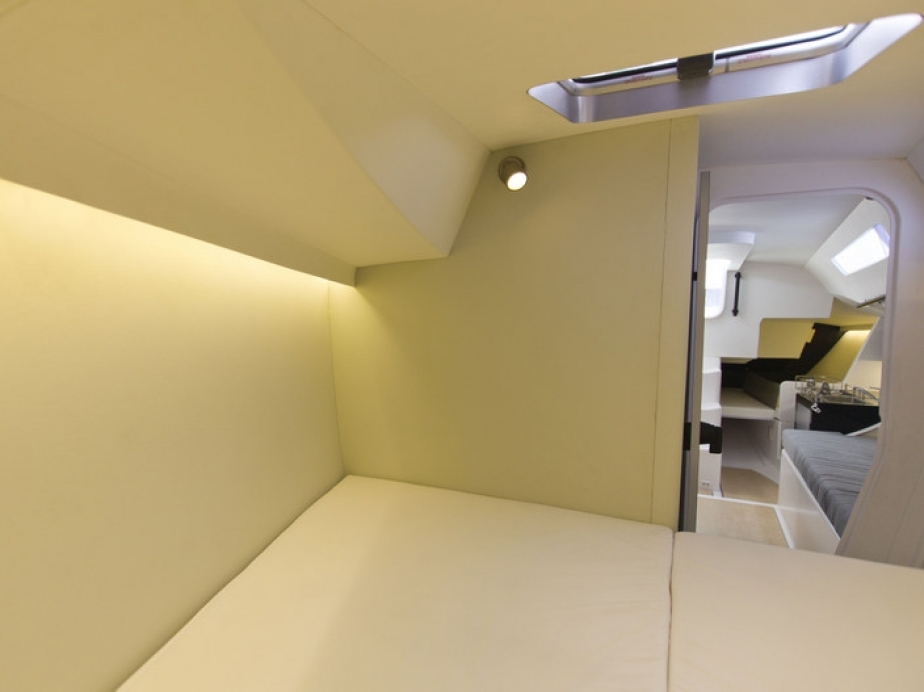

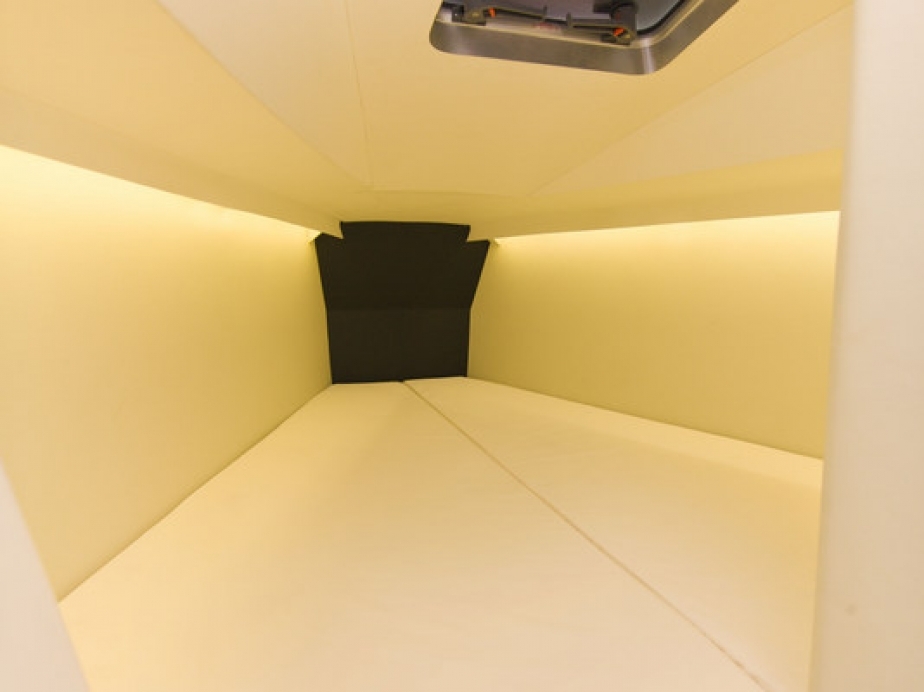

  • Three double berths: 1x Forward, 2x Aft
  • Two burner race boat stove (camping style canister)

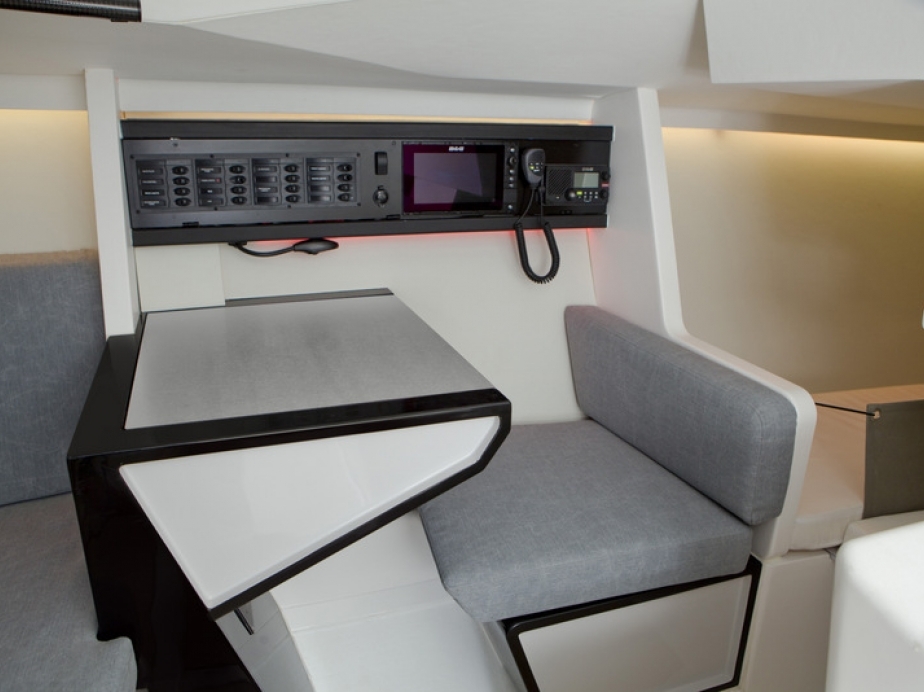

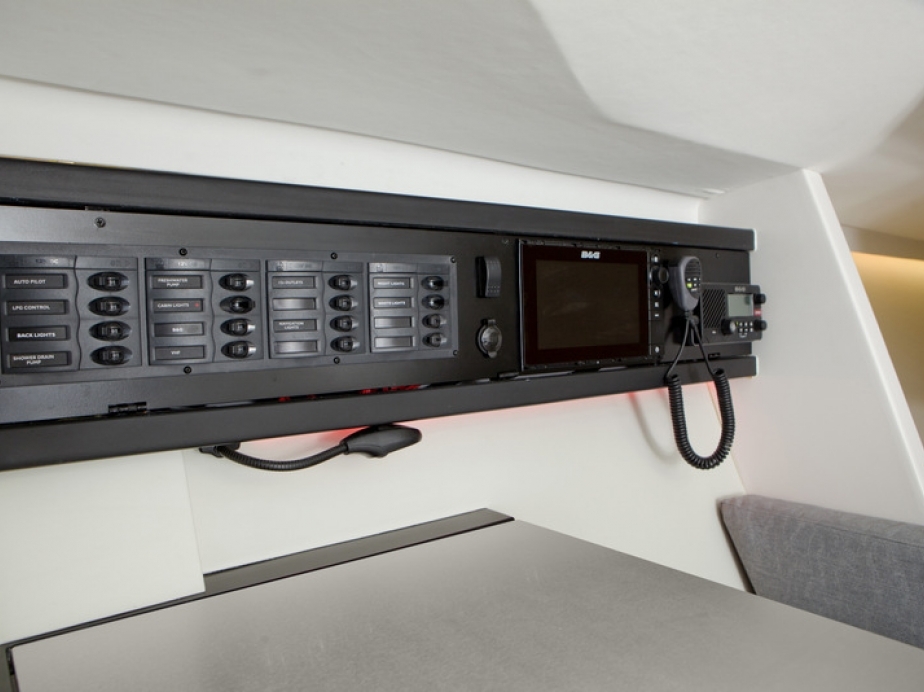

  • Navigation Station with Nav Panel
  • Storage Cupboard above stove
  • Sink with freshwater hand pump in galley and head
  • Dropleaf table with seating
  • Icebox Cooler
  • Option Isothermic Fridge

Electrics

  • Red/white cabin lighting in saloon, galley, head and navigation areas
  • 12 volt DC 16 switch panel
  • Battery isolator/selection switches battery switches house + engine start
  • 1 x House Batteries
  • 1 x Engine Battery
  • Navigation Lights mounted on pulpit and pushpit
  • Option Shore Power Pack including charger
  • 12V Socket at Nav station

Engine

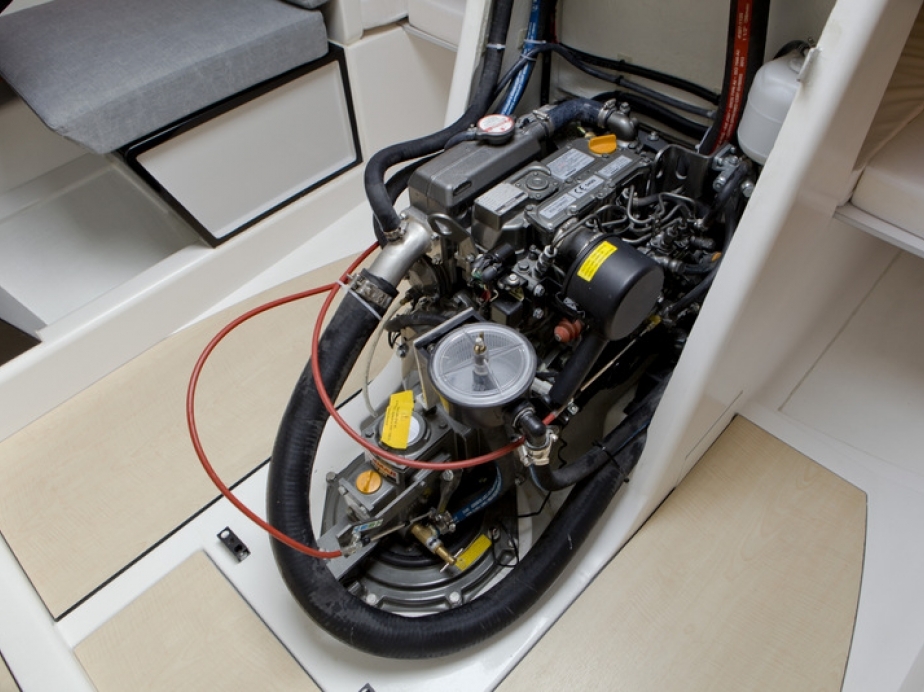

  • 20hp Yanmar Diesel Engine

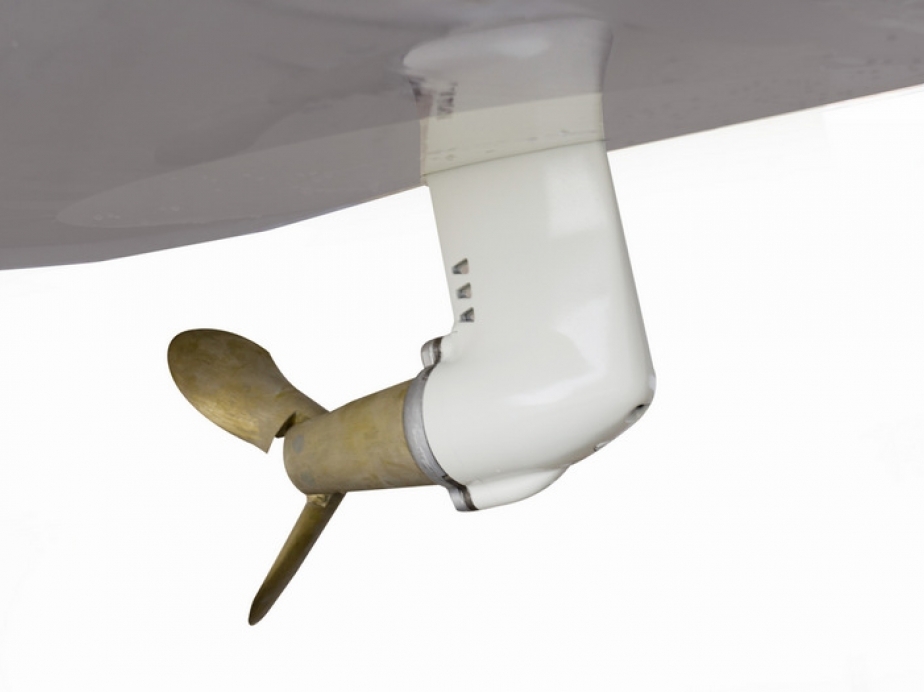

  • Folding 2 Bladed Propeller
  • Cockpit mounted Spinlock throttle and engine control
  • 42L Rigid Plastic Fuel Tank
  • Option Upgrade to 80L Fuel Tank

Disclaimer

Disclaimer and notes

  • Please refer to McConaghy Standard Sales Contract for full terms and conditions
  • Prices are Ex Factory China unless otherwise stated, duties, taxes, packaging and shipping are not included
  • Renderings, drawings and images may not reflect final specification detail, some items may not come as standard, please refer to Sales Contract for more detail
  • Pricing and Specifications may change without prior notice
  • This document is not contractually binding, McConaghy Boats reserve the right to withdraw this document, and or to review and update this document at our absolute discretion.
  • © McConaghy Boats - This document must not be reproduced, copied, loaned or disposed of directly or indirectly, nor used for any purpose other than that for which it is specifically furnished without the prior written consent of McConaghy Boats.
