Ker 46 sold

SOLD

  • Reference ID 18
  • Builder KER
  • Model 46 sold
  • Year 2009
  • Engine type Single
  • L.O.A. (mtr) 13.91
  • Beam (mtr) 4.20
  • Draft (mtr) Volvo Penta P2-40B, 29kW, 2 blade folding propellor, saildrive
  • Material Carbon

Yacht description

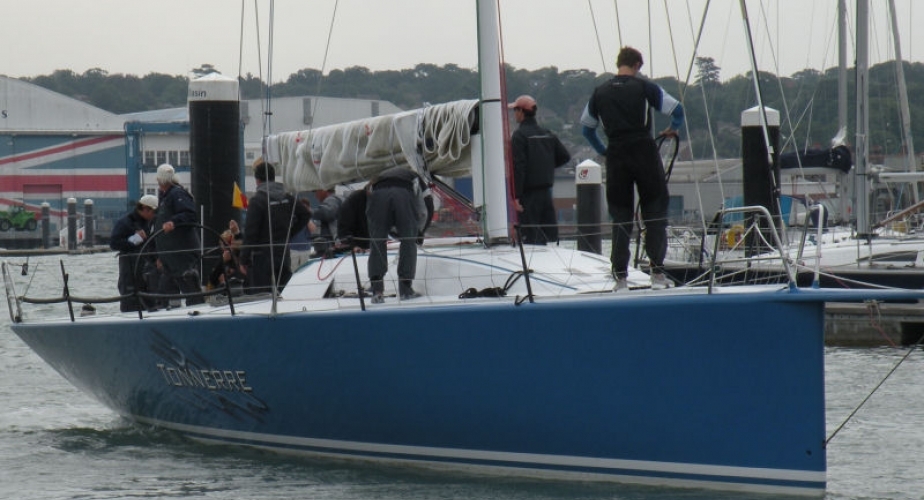

Specification Ker 46 Alvimedica 5 (ex-Tonnerre de Breskens 3)

DIMENSIONS

LOA........................ 13.91m
Beam:.......................4.2m
Draft:...................... 2.84m
Displacement..............6.970 tonnes
Ballast......................Approx 4,500 kg
Engine:.................. Volvo Penta Diesel (D2-40) with ‘sail drive’ leg
Gori 2 blade folding Racing propeller
Fresh Water:..............70 Litres
Fuel Tank:.................100 Litres
Displacment: ..............6970 kgs
Ballast: ....................4500 kgs

  • New keel fin and bulb 2011 a fully optimised machined fin with fairings .
  • New antifouling 2015 Awl Grip
  • New sprayed mast and boom

PALMARES

THE MOST SUCCESSFUL IRC BOAT OF ALL TIME

2013
Cervantes Race - 3rd Overall, 3rd in Class
North Sea Race - 1st Overall, 1st in Class
Myth of Malham - 3rd Overall, 3rd in Class
East Coast Race - 1st Overall, 1st in Class
Morgan Cup - 1st Overall, 1st in Class
IRC Nationals - 2nd Overall, 2nd in Class
Cowes-Dinard-St Malo - 3rd Overall, 2nd in Class
Cowes Week - 1st in class, 7th Overall
Breskens Week - 1st Class, Dutch IRC National Champions
RORC Class 1 Winner
RORC Overall Winner

2014
Ft Lauderdale to Key West Race - 2nd Class, 2nd Overall
Key West Race Week - 2nd Class
St Thomas Regatta - 2nd Class
BVI Spring Regatta - 1st Overall
Round Tortola Race - 1st Overall
Caribben 600 - 1st Class, 7th Overall
Antigua Race Week - 1st in Class, Overall Winner
Round The Island Race (Cowes) - Monohull Line Honours
Cowes - St Malo 1st in Class
East Coast Race - 1st Overall
Channel Race - 1st Overall
RORC Class 1 Winner (TBC)




YOU TUBE MOVIE

Specifications

Length (m.): 13.91
Beam: 4.2
Depth: 3.15
Displacement: 6970
Ballast: 4500
Material: Carbon
Year: 2009
Engine: Volvo Penta P2-40B, 29kW, 2 blade folding propellor, saildrive
Location: Holland, Lelystad



GENERAL
Keel: Fin Keel
Rig: Sloop
Design Jason Ker Yacht Design

Construction
Yard Salthouse New Zealand

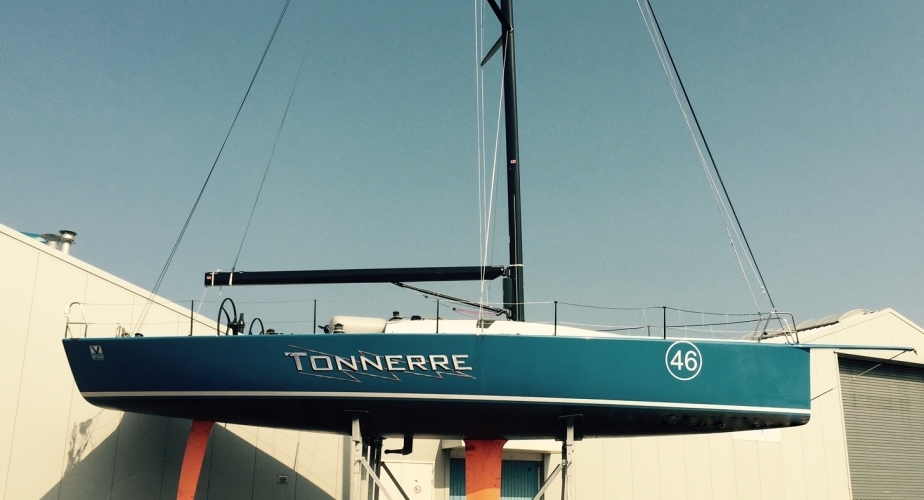

  • Black underwatership
  • Blue hull
  • Rudder construction with carbon rudder stock
  • Fin keel

ACCOMMODATION

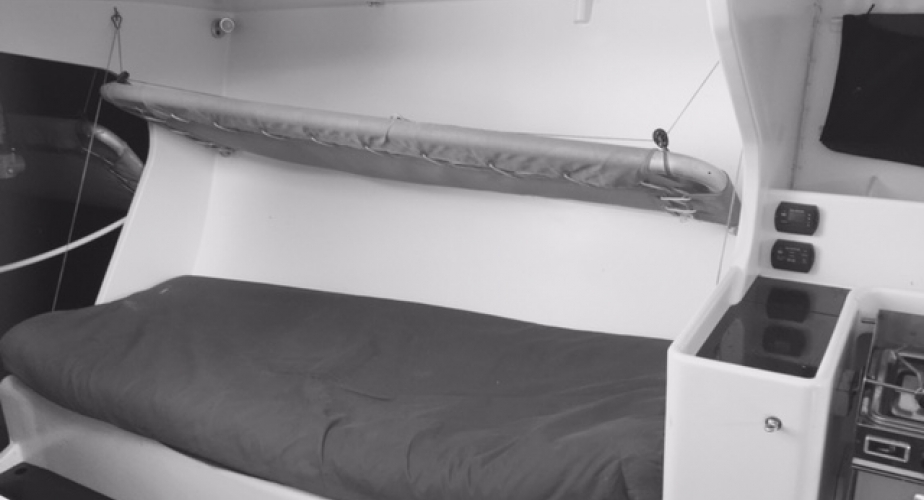

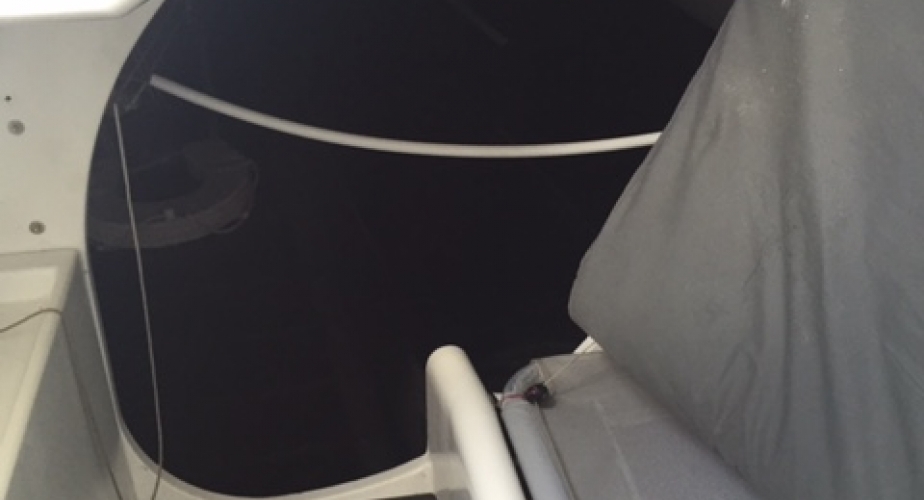

  • Sleeps 5 comfortably on the windward side on bunkbeds. 2 beds have a comfortable cushion
  • Main working area of the interior has full standing headroom

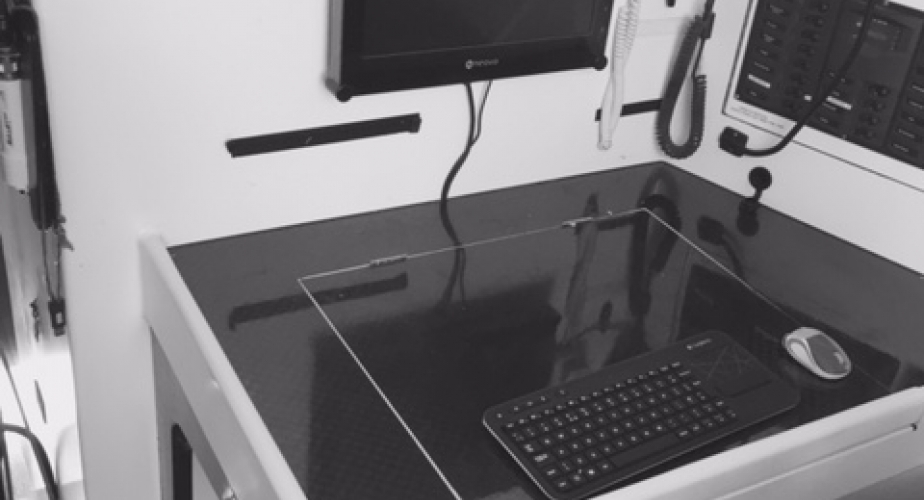

  • Large chart table with comfortable swivel seat, starboard side.

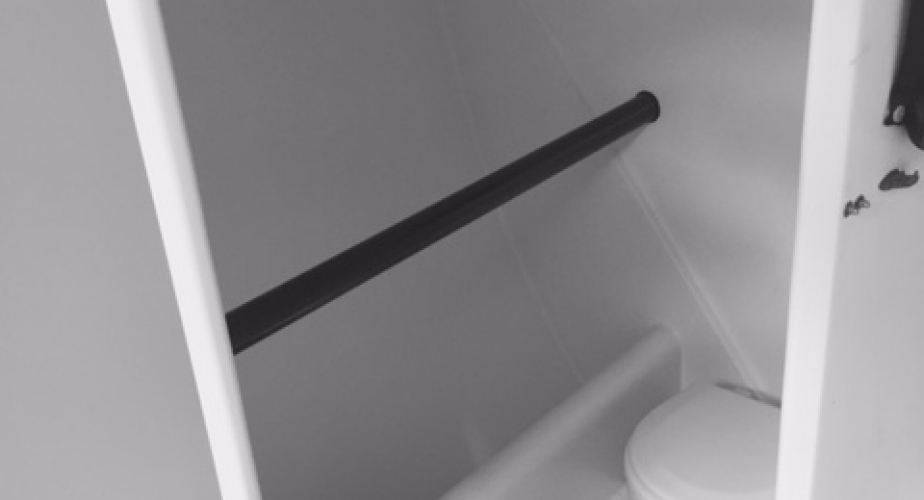

  • Forward of the chart table is a large head with toilet
  • Forward of the galley on the port side is an array of personal stowage bags
  • Oopposite the galley is a large hanging locker for wet weather gear.
  • At the front of the accommodation space is a full bulkhead which can be closed off to create an isolated compartment.
  • Another bulkhead at the rear of the bunk area can be similarly closed of to provide some protection against sinking in the case of a collision at sea.

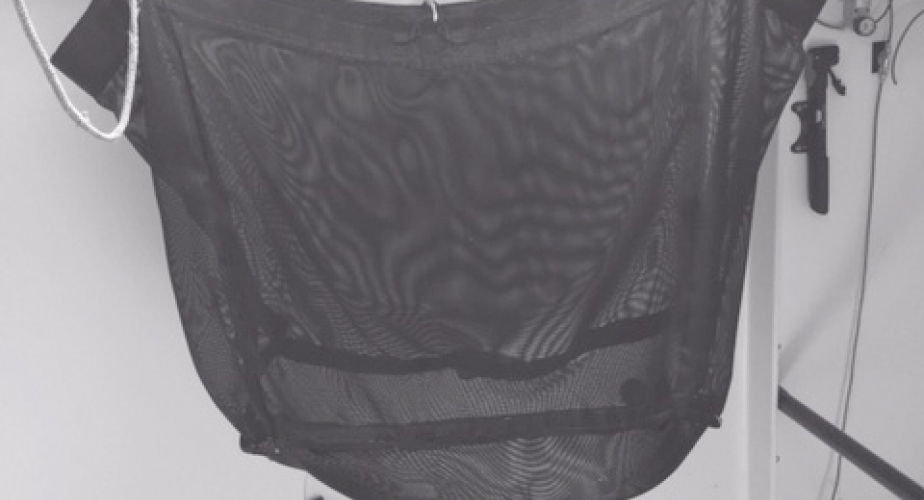

  • Bags for storage
  • Grab rails carbon

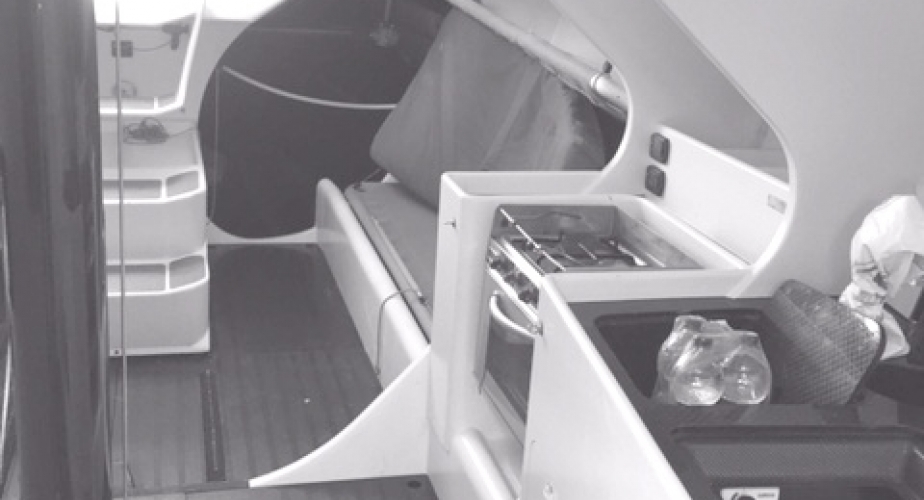

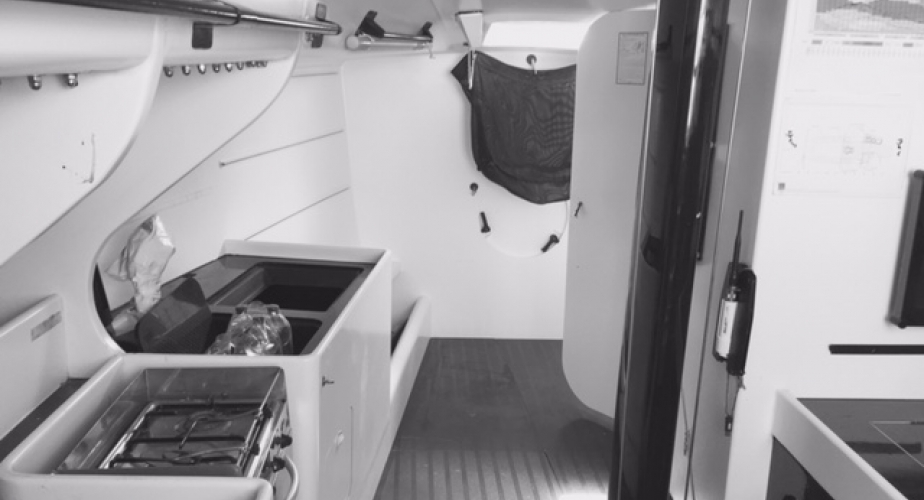

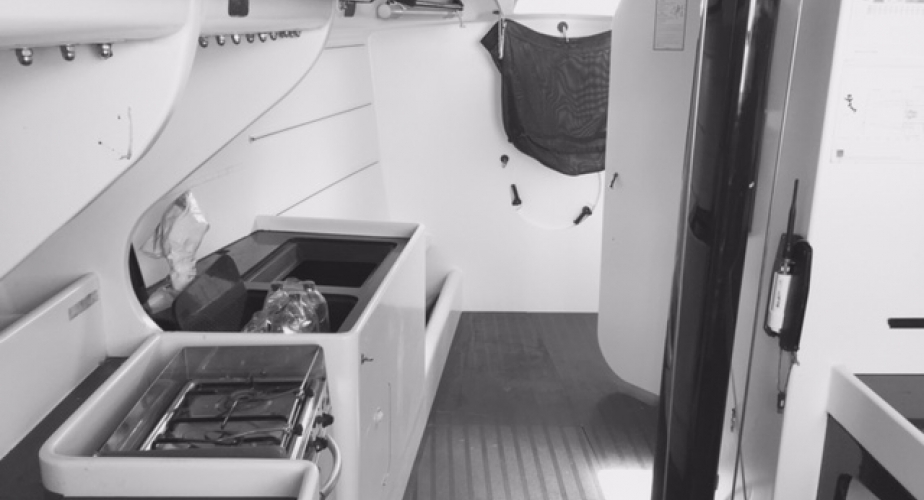

GALLEY
  • 2 burner stove with oven
  • Sink unit with a cover
  • Carbon worktop
  • Storage in lockers and bag
  • Highly efficient built-in electric coolbox/fridge.
ELECTRICS
  • System voltage 12/220V
  • Batteries
  • Shorepower with cable

Electronics
  • B&G H3000 Performance Processor
  • Onboard Computer
  • 19” LCD Monitor
  • 3 x B&G GFD’s on deck, one at Nav Station
  • 5 x B&G 20/20 on Carbon Mast bracket
  • Speed, Depth and Wind Sensors
  • GPS Simrad MX500 Navigation System
  • VHF DSC ICOM IC-M505
  • Sailor Iridium satphone

RIGGING
  • Mast Hall Spar HS40 Ultra High Modulus carbon fibre (stiffer than permitted for either Americas Cup or Volvo masts, to maximise stiffness within a highly aerodynamic section). Mast was sprayed black 2015
  • Backstay system can accommodate either a single or twin backstay, depending on whether a square-head mainsail is desired.
  • Boom high strength carbon cored with Nomex.
  • Bowsprit
  • ROD/PBO rigging (PBO Future Fibres)
  • Spinnaker halyards have locks at the masthead which can be engaged offshore to prevent chafe.
  • Combination track fitted to the back of the mast to allow both a bolt-rope mainsail for inshore use and a roller-car system for the offshore mainsail allowing easy reefing.
RUNNING RIGGING
  • A comprehensive running rigging package is included of which all is in good race condition.
New in 2014;
  • 2 jib sheets
SAILS
Entire inventory from North Sails.

2014
  • Cuben Fibre A3-B
  • 3Di Medium Jib - MED-F
  • 3DL Light JIb - LT-E
  • 3DL Offshore Mainsail - Sq Top OM-E
  • A2-E
  • Spinnaker Staysail - SS-C
  • 3Di Inshore Mainsail - Sq Top IM-D
  • 3Di Medium Jib - MED-G
2013
  • Windseeker - WS-B
  • 3Di Furling Genoa Staysail - GS-C
  • A2-D
  • 3Di Heavy Weather Jib - 3+C
2012
  • Inshore mainsail – 3Di C SQ TOP
  • Offshore mainsail – D SQ TOP
  • Light jib D – 3di
  • Heavy jib – c 3di
  • Medium E Jib – 3di
  • J4 Jib - B
  • Code Zero - B
  • A4-D
2011
  • Inshore mainsail – 3Di B SQ TOP
  • Offshore mainsail – C SQ TOP
  • Light jib C – 3di
  • Medium C Jib – 3di
  • Medium D Jib – 3di
  • 3.5 ORC B
  • Jib top B
  • A5 A
  • A1.5 A
  • A2-C
  • A4-C

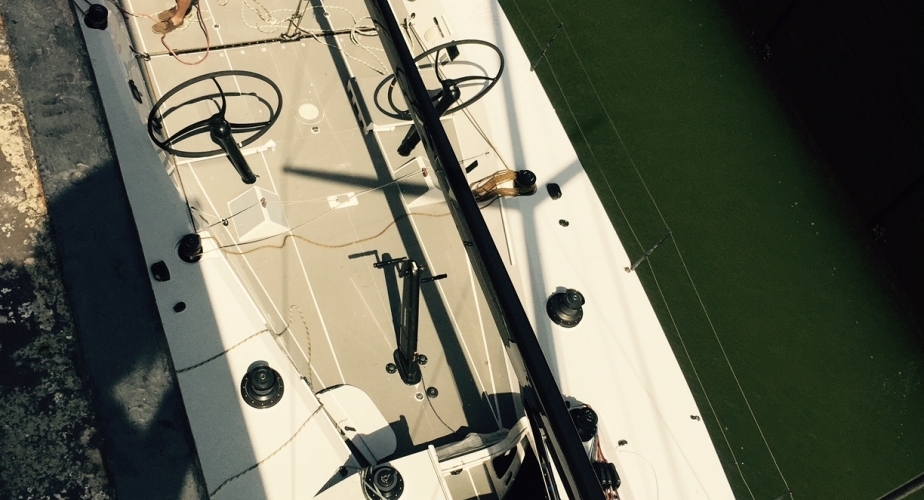

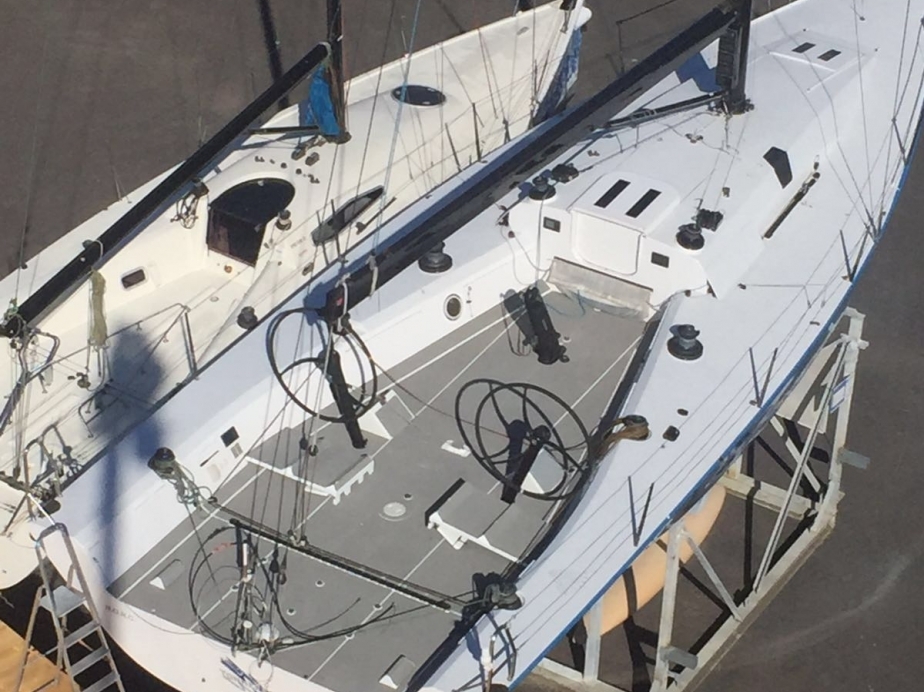

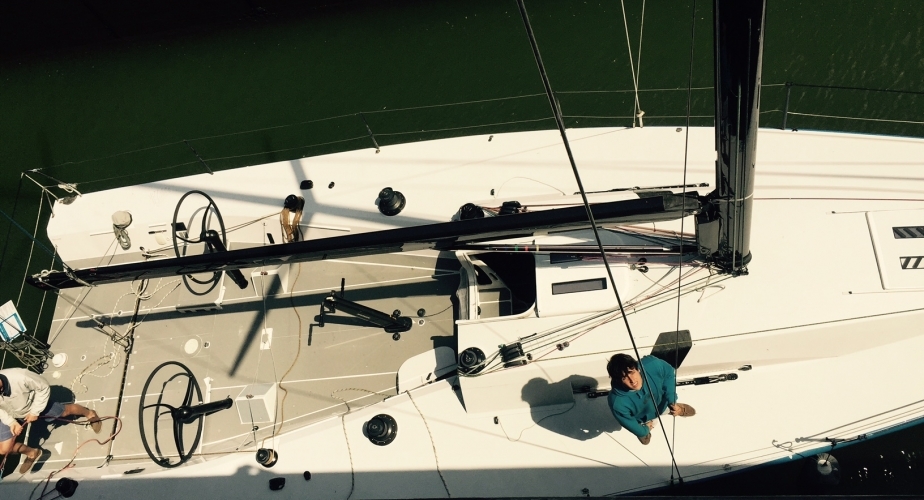

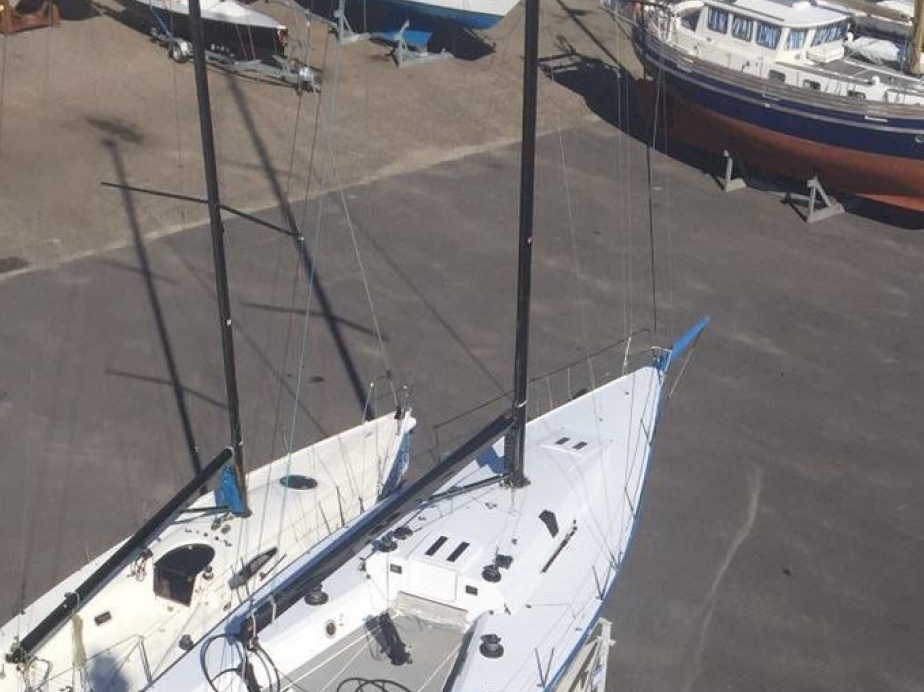

DECK
Deck gear Harken or Spinlock
Antislip deck and cockpit
  • Plinths for the helmsman that are adjustable to match the heel angle of the yacht.
  • Near-Maximum beam extends right to the transom to maximise the crew’s contribution to stability and a single stanchion at the aft corner allows unrestricted crew positioning right to the transom for heavy airs sailing downwind.
  • Fore and Aft Jib tracks allow for unencumbered headroom inside the cabin, while a coarse-fine barber-hauler system allows correct lateral positioning of the clew.
  • Fore Hatch has a pneumatic sealing system to ensure full water tightness at sea.
  • Companionway Hatch is external to ensure complete water tightness offshore. A low profile version is used inshore and a raised version of the Hatch is fitted for offshore use.
  • 2x 4 stoppers
  • 2 x carbon steering wheels
  • Manual bilgepump
  • Cockpit bag for lines
  • 2x Watertight lockers
Winches
Runner, mainsheet and cockpit winches are "handed” to allow direct rope leads without deflection.
  • Primary winches with a speed ring base and are connected to a Harken Pedestal system, which incorporates and overdrive gear for rapid gybes and hoists
  • Harken 50.2, Harken 50.2 LH, Harken 50.3
  • Grinder Harken
  • Covers for the small winches
ADDITIONAL
  • Boom cover x 2
  • Reef nappy’s x 2; Reef strops for mast x 2
  • Carbon flag pole
  • Backstay for pinhead main
  • Cover for mast below decks.
  • Personal bags in bow area - port side x 12
  • spare window for front hatch
  • Floor cover for cockpit
  • 6 winch handles
SAFETY
  • Periscope
  • Offshore hatch
  • Emergency tiller
  • Horseshoe + light
  • Lifelines
  • Gas detector
