MAT 1180

€215,000

VAT excluded

  • Reference ID 363
  • Builder M.A.T. Yachts
  • Model 1180
  • Designer Mark Mills
  • Year 2016
  • Location Sweden
  • L.O.A. (mtr) 11.80
  • Beam (mtr) 3.98
  • Draft (mtr) 2.90
  • Displacement (Kg) 4375
  • Material Composite
  • Engine Yanmar 3YM30AEC

Yacht description

MAT1180 hull #5 2016

Boat has only raced twice this season due to other commitments by her owners.

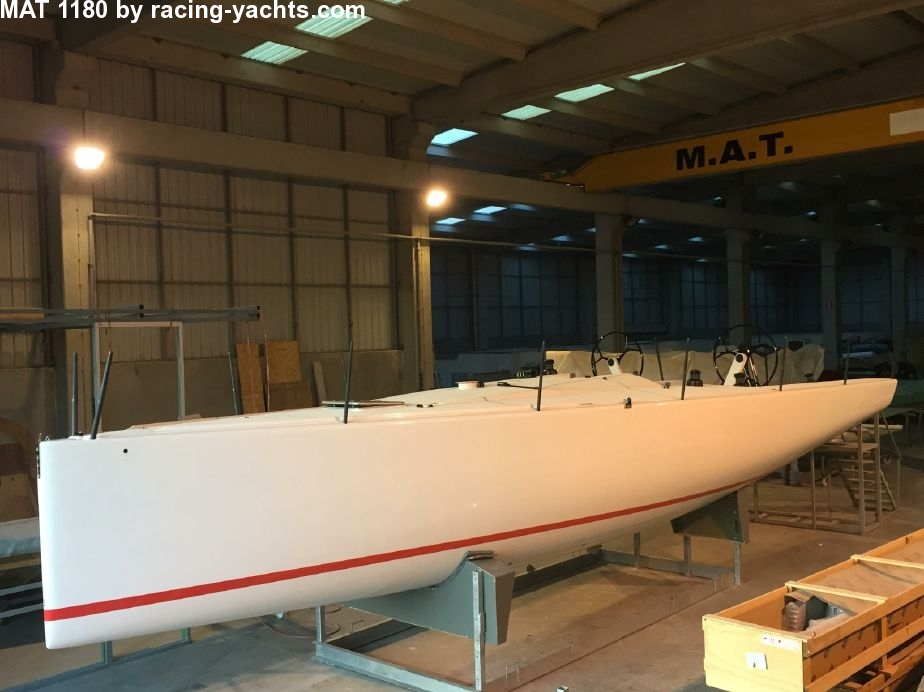

Construction

  • Female hull and deck tools
  • E-glass, carbon fiber, PVC core, epoxy vinylester resin
  • Vacuum assisted resin infusion
  • ISO 12215 structural regulations category A
  • Gelcoat finish on hull, deck and internal structure
  • Custom draft adjustement from 2500 mm to 2600 mm Replaced!
  • International VC Tar2 epoxy base coat and VC Offshore Teflon antifouling for racing
  • New 2017 2,9m keel and bulb design
  • Wrapped in black foil for logos, hull white gelcoat under foil

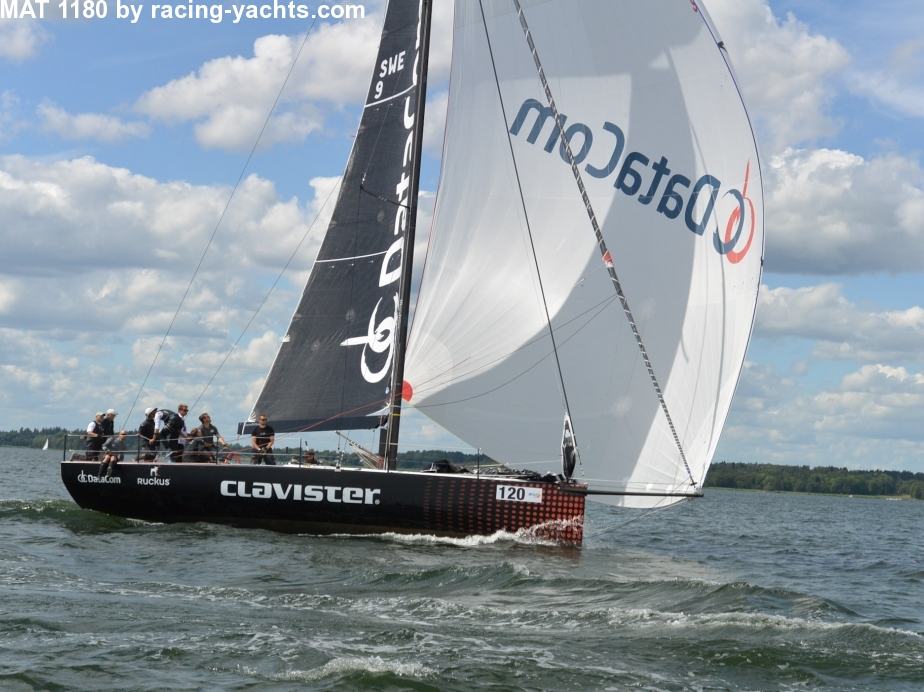

Sails

All North Sails. All sails serviced and stored at North Sails Stockholm. Very good condition.

  • 2016 Main 3Di Raw (recut 2018)
  • 2017 Main 3Di Raw
  • 2016 Main Dacron Triradial, smaller transport
  • 2016 Storm/trysails
  • 2016 Jib L/M 3Di Raw (recut 2018)
  • 2016 Jib M 3Di Raw (recut 2018)
  • 2016 Jib H 3Di Raw
  • 2016 Staysail for Assy
  • 2016 Code 0 close upwind incl. Cable (needs recut to fit new rig measures)
  • 2017 Code 1 aka Force. Same design as the Fast40 class
  • 2016 A1
  • 2017 A2
  • 2016 A3
  • 2017 A3 new design.

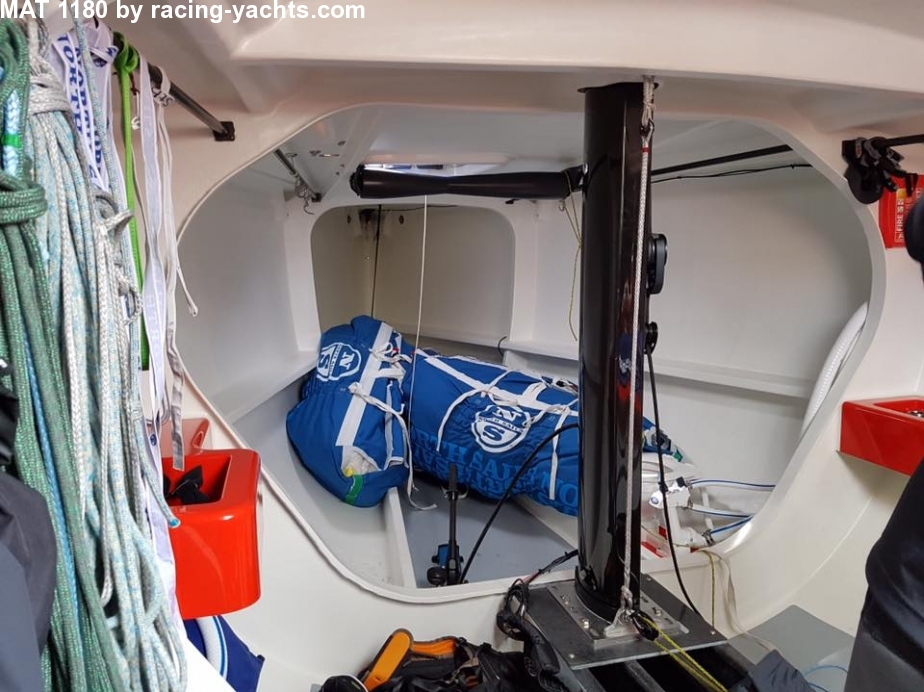

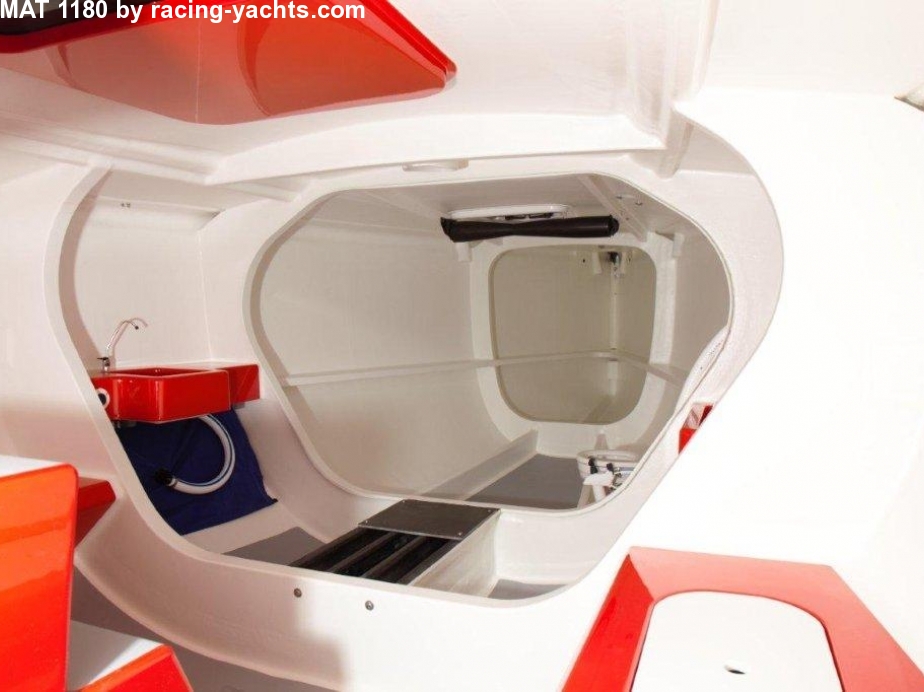

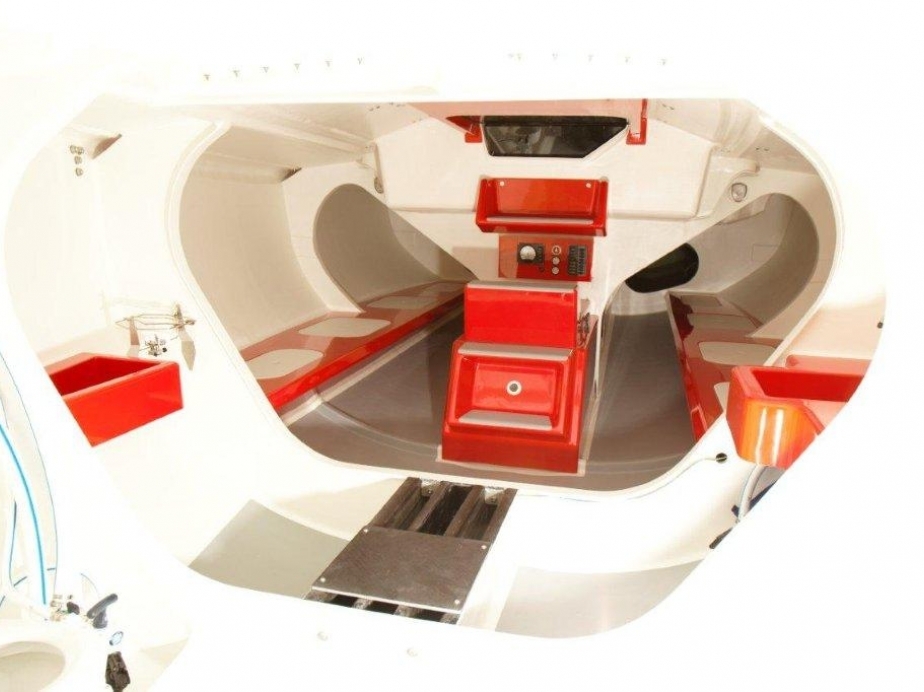

Accommodations

  • Ultra thin engine box and bunk tops
  • Light chart table over fuel tank for navigation
  • 4 pipe cotes for ocean race
  • Internal grab rails in carbon
  • Galley with sink, pressurized fresh water and cooker
  • 100 liter flexible fresh water tank
  • Two manual bilge pumps
  • Jabsco marine toilet
  • Racing marelon seacocks and flush valves

Electrics

  • Lime Lithium battery system 2x60Ah 16kg in total
  • LED interior lights
  • LED navigation lights

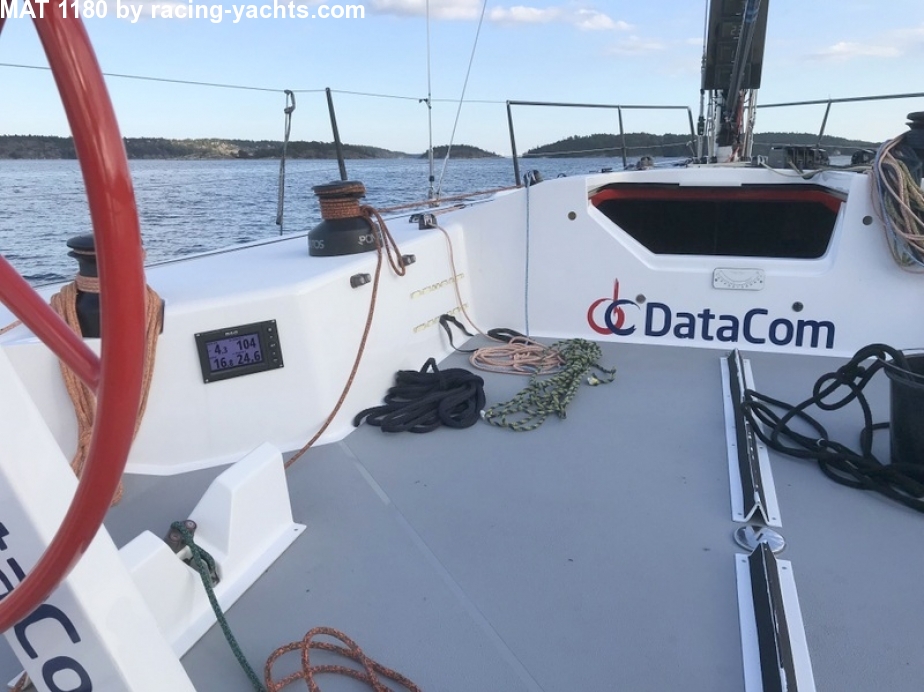

Deck and Cockpit

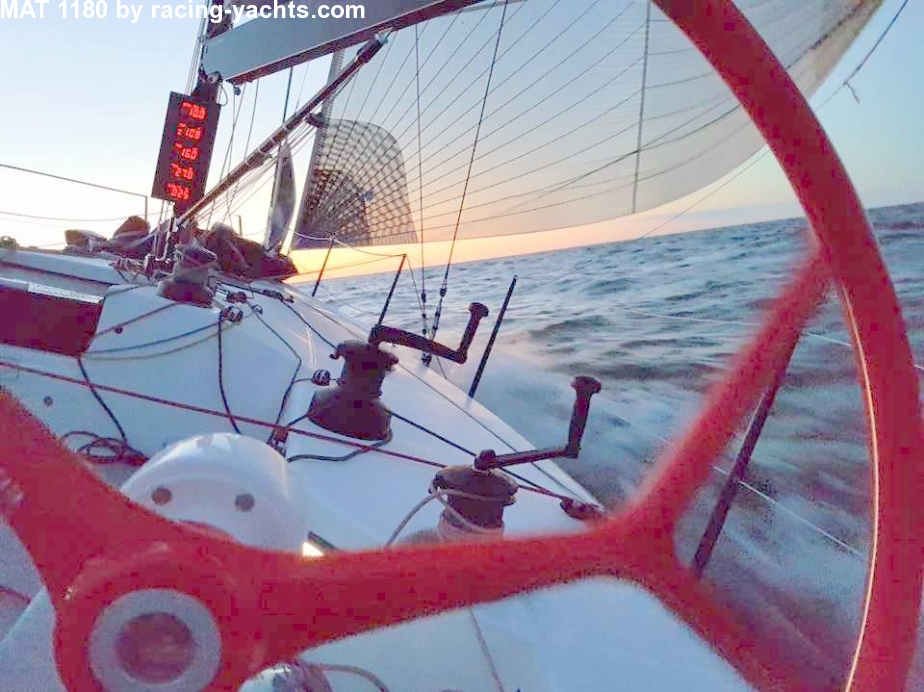

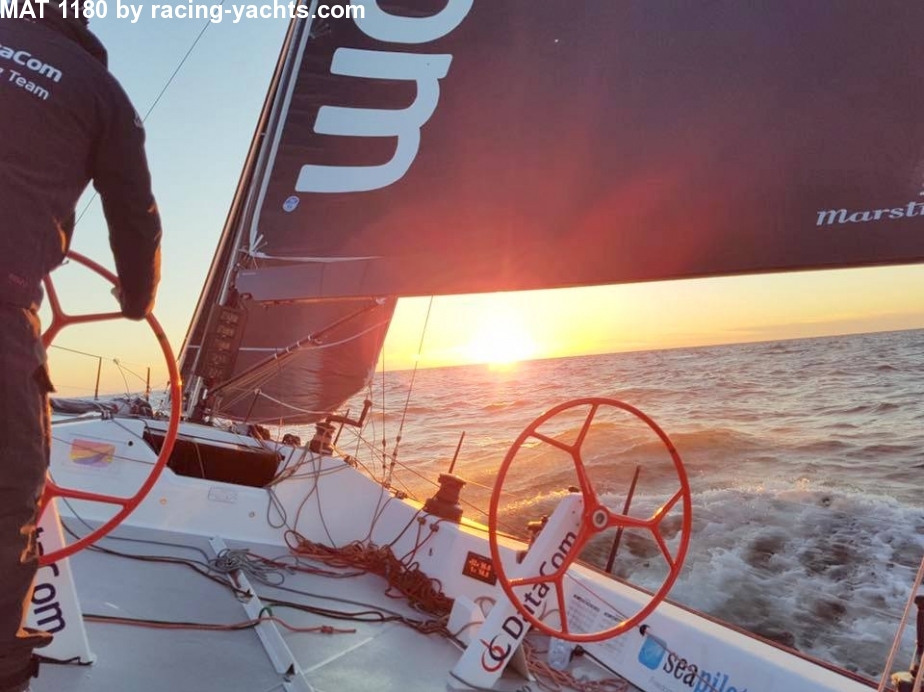

  • 900 mm composite twin wheels, red

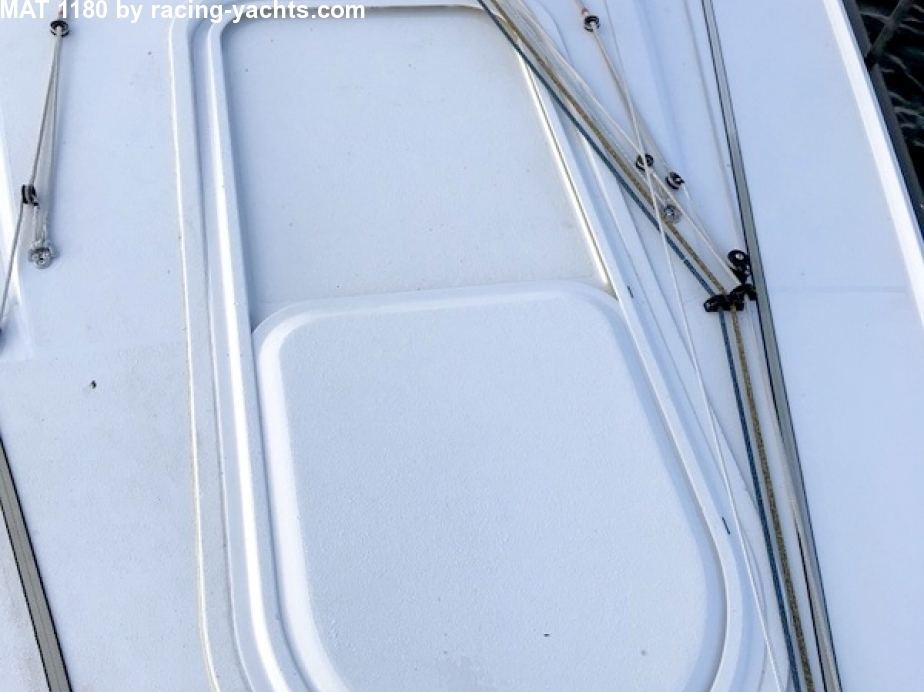

  • Pneumatic Sliding Hatch, MAT/Diverse Yachting
  • Carbon tubing between stanchions for low friction

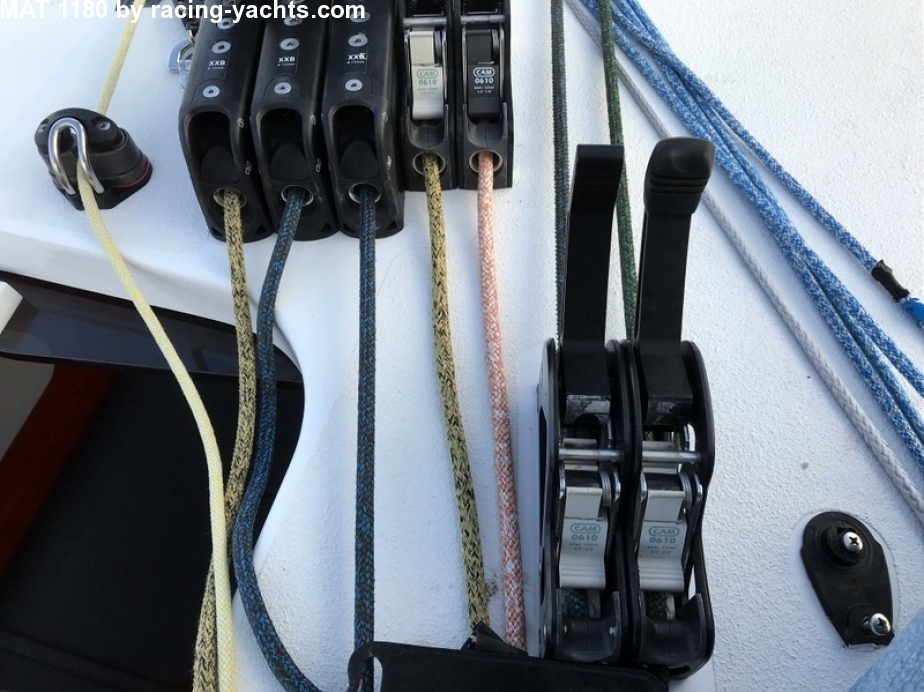

    Ceramic upgrades Spinlock
    All blocks and hardware Grand Prix version Harken/Antal
    Spinlock engine lever

Harken winch upcharge:

  • Primary: Harken 60.2 STP Self Tailing Performa instead of 46.2 STP
  • Main: Harken 50.2 STP Self Tailing Performa instead of 46.2 STP
  • Pit: Harken 46.2 STP Self Tailing Performa instead of 40.2 STP
  • Lewmar EvoRace 45 backstay winch upgrade
  • Harken 52.2 STP Main winch upgrade
  • Marstrom carbon rig, very light and super stiff. Halyard locks main, jib and code Facnor
  • Marstrom carbon high aspect racing boom, 12,4 kg

Rigging

  • Backstay: Harken 40.2 STP Self Tailing Performa instead of 35.2 STP
  • Extra work at deck collar to accommodate 4.75" mast section
  • Extra carbon internal structure for higher loads on mast and forestay (5 tons)
  • One step up in chainplates for higher loads
  • Carbon roller for take down

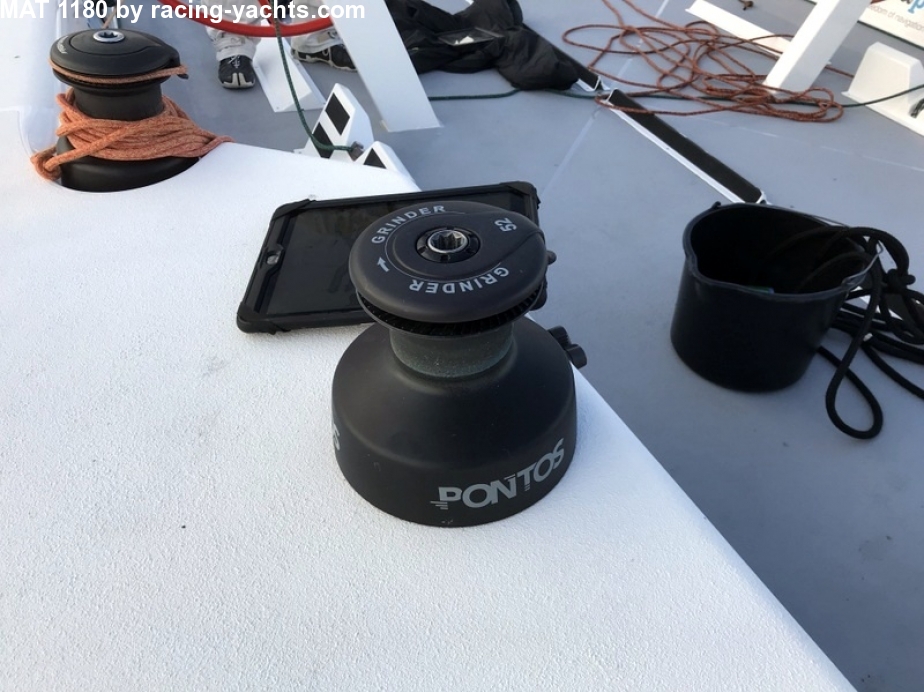

  • Pontos 52 Jib and spinsheet upgrade for tremendous speed and take down
  • Modified Vang system for easy handling aft
  • Marstrom carbon rig, very light and super stiff.
  • Halyard locks main, jib and code Facnor
  • Marstrom carbon high aspect racing boom, 12,4 kg
  • Running rigging: Constantly replaced and serviced by partner Happy Yachting. Grand Prix level

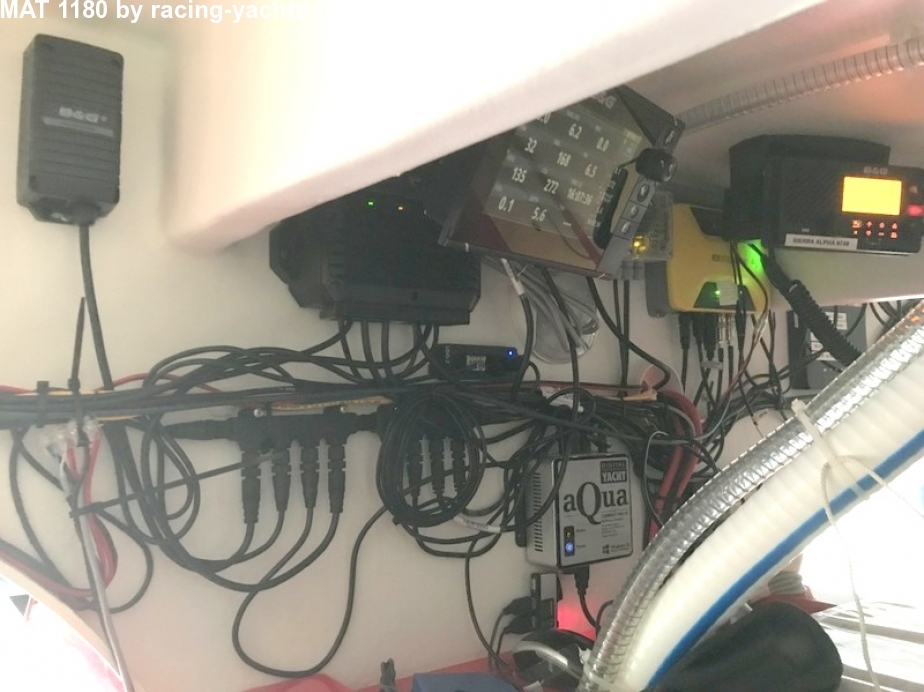

Electronics and Navigational Gear

  • B&G H5000 Hercules CPU
  • ZEUS²7 Multi-function Display

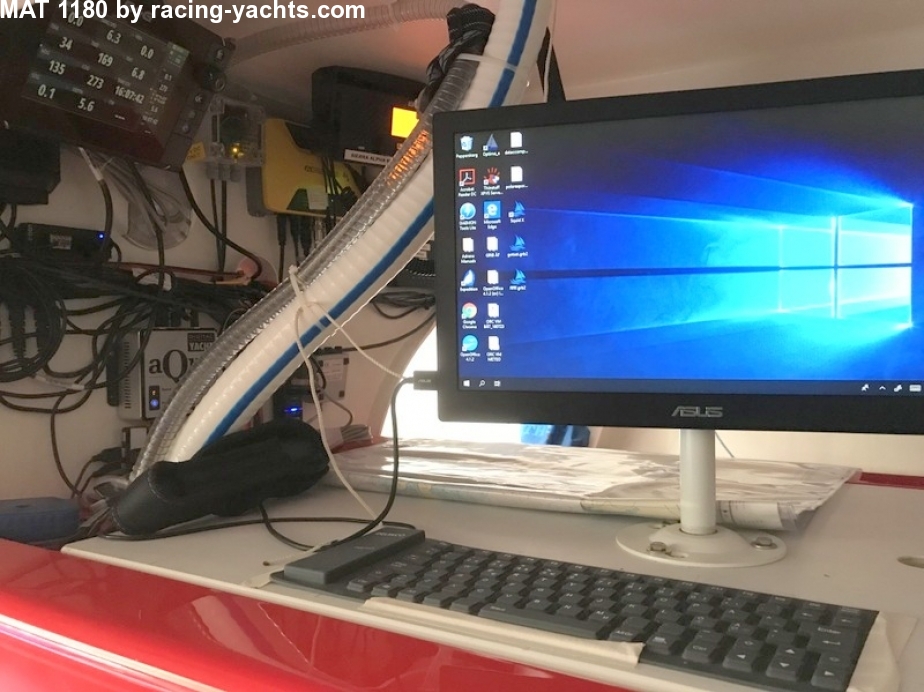

  • Aqua 12v SSD server win 2016 server with Expedition
  • 16” Asus usb Display
  • Load cell pin on forestay, Diverse Yachting. 2x B&G 10/10 at backstays
  • VMHU Pack 1050mm, carbon wind instrument
  • AIS RX Carbon+ with GPS
  • Simrad Precision9 GPS
  • Simrad HS70 GPS Compass, primary
  • H5000 3D motion sensor

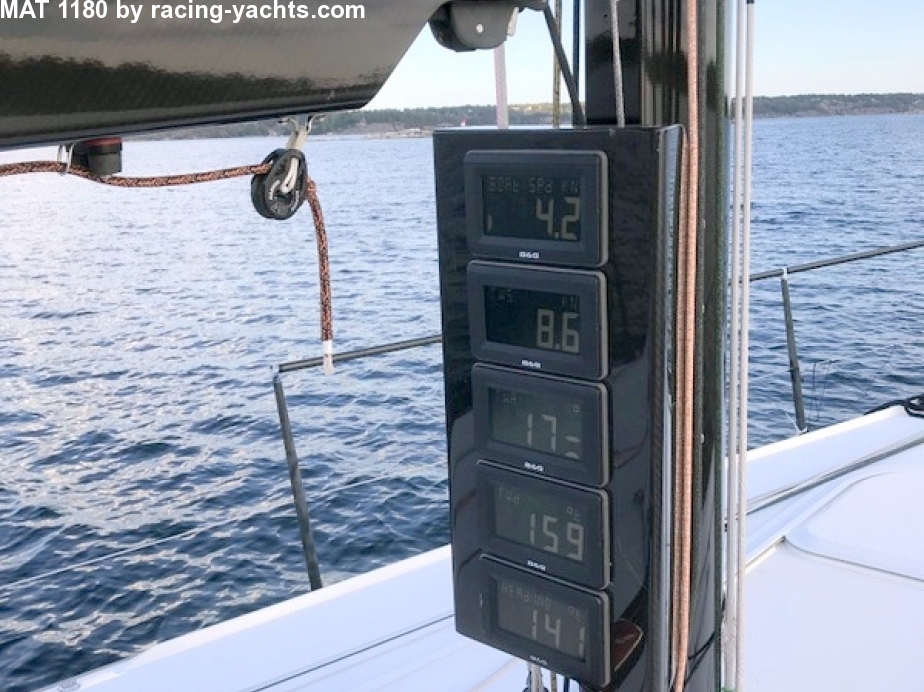

  • 5x 20/20 HV displays in carbon bracket
  • 2x B&G H5000 Graphic Display
  • V50 VHF Marine Radio, with AIS and DSC. NMEA2000
  • GoFree wifi and mast top antenna 4G

Safety

  • Fire extinguisher
  • Life vest x10

Additional

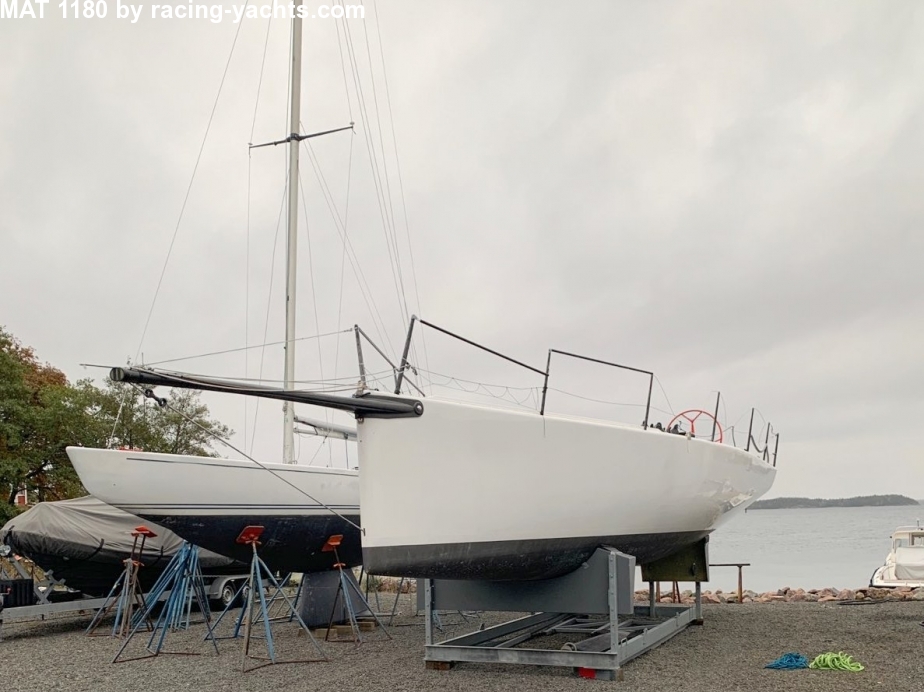

  • Steel cradle, low high position, galvanized
  • Spare carbon stanchions
  • Tools

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice
