General

• The design has been developed to minimize weight and windage
• The structure is fully optimized for minimum weight and maximum stiffness.
• State-of-the-art FEA design tools have been utilized to optimize the layouts, laminate specs and
details. Designed and built in accordance to ISO structural regulations to Class A with plan
approval by Germanischer Lloyd
• Hull and Deck moulded from CNC machined tooling

The hull and deck constructed from Intermediate and high modulus unidirectional pre-preg carbon in Kevlar honeycomb sandwich.

Additional optimized unidirectional carbon epoxy pre-preg reinforcements in way of all deck fittings and other highly loaded areas.

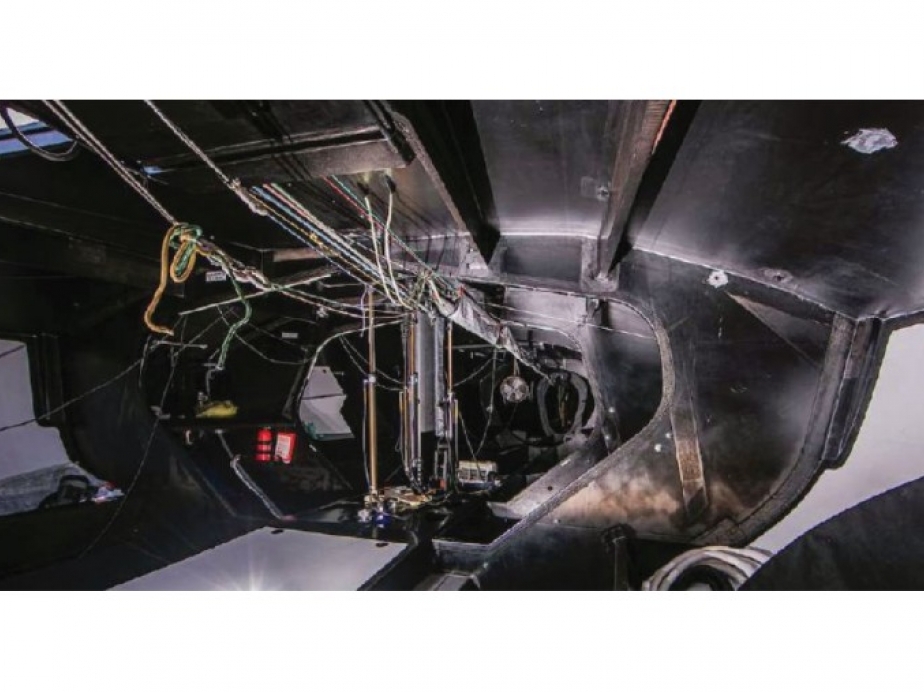

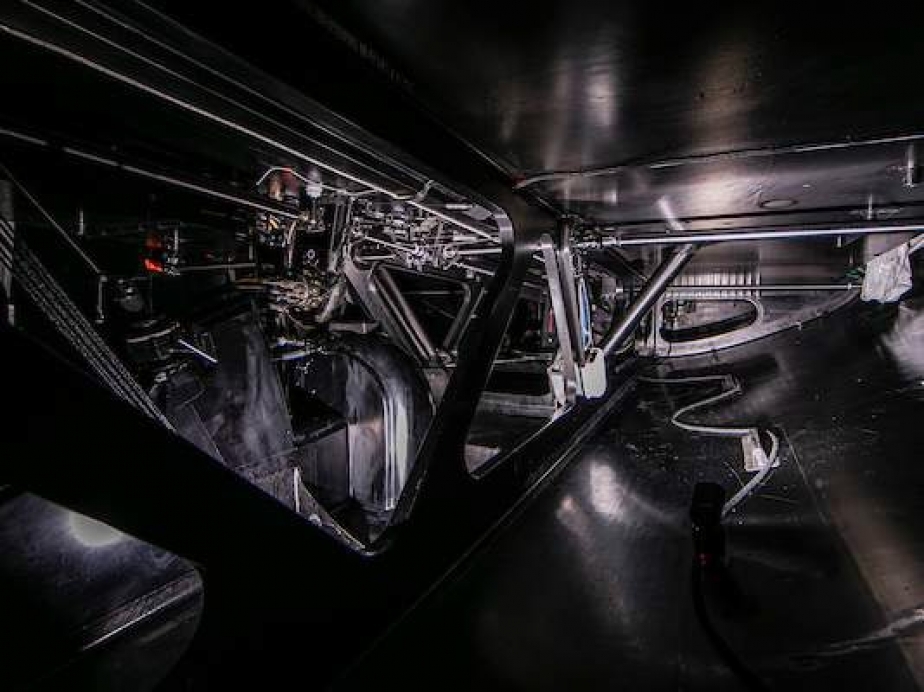

Structural internals are L flange style capping and built from vacuum consolidated unidirectional pre-preg carbon/Kevlar honeycomb construction

Non-structural components are built from unidirectional Prepreg carbon/Kevlar

Keel and bulb

• CFD optimized fin keel
• High resistance steel keel strut made out of Grade Dillimax 690QL (Similar to Weldox700) to designer specs.
• Keel assembled with CNC milled lead and composite leading and trailing edges covered with glass and carbon.
• Keel Tenon CNC milled and aligned
  withtesting jig on CNC hull mould
  • Refernce marks
  • Inconel bulb and keel bolts and nuts
  • Bulb milled to excat weight once installations are completed

Rigging

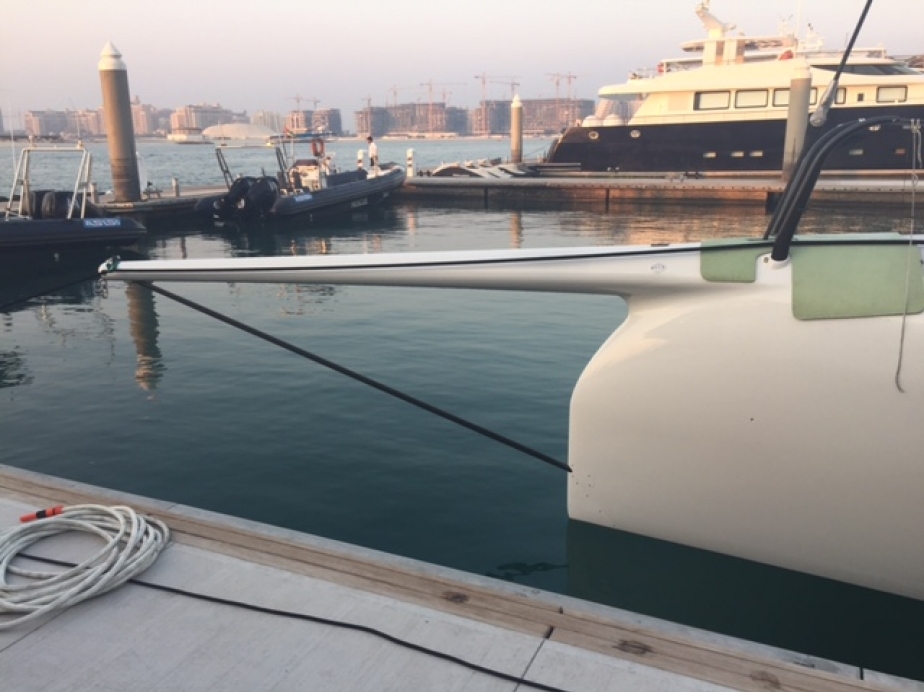

• Custom autoclaved fixed carbon bowsprit
• Titanium pignose fitting
• Carbon airfoil shape bobstay
• Spinnaker sheet reelers supplied by Diverse Yacht Services UK

HYDRAULICS
Quoted by Cariboni Italy: Cylinders @500 bar for the following functions: Forestay , Jib Cunningham, Jib Top luff tensioner, Genoa
Staysail tensioner, Jib Up/ Down x 2, Jib in,Main Cunningham, Outhaul, Deflector, Mast Base, Nang , Mast Jack is connected manually

PUMP
• 1 x Rotary on aft pedestal 700 bar max
• 2 x Manual for trimmer with Carbon handles

Sails

• 3 sets North Sails 3Di Raw
• 2 sets Quantum 2019 (Jib - Main - GS - Code Zero - SS )

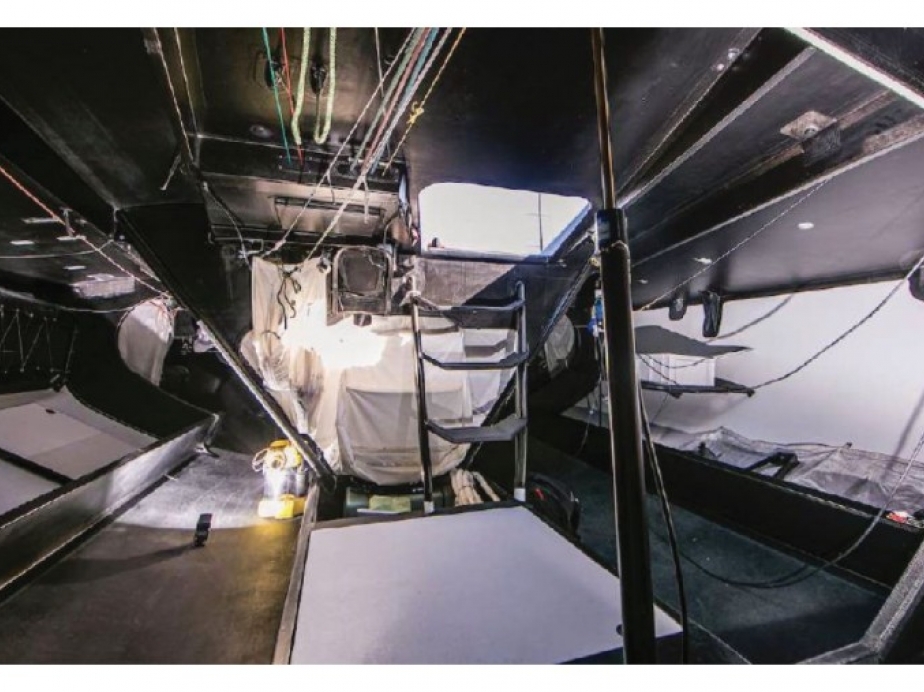

Accommodations

• Racing style cooker and sink carbon autoclaved moulded shelf
• Nomex cored ultralight carbon flloorboards
• Custom gimbled composite WC
• Carbon engine box cover and panel
• 2 x Vetus flexible racing water tanks

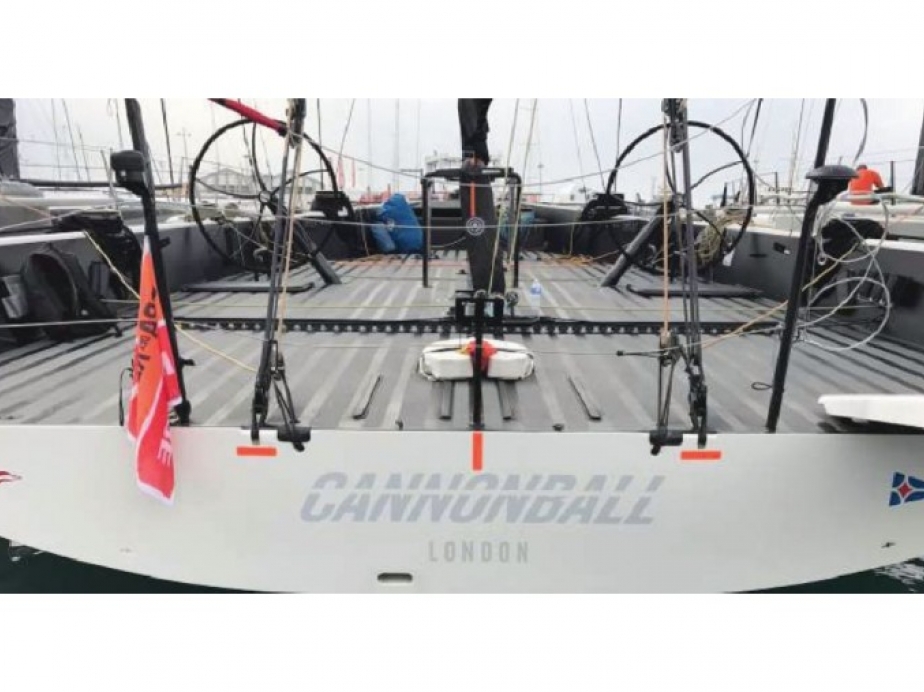

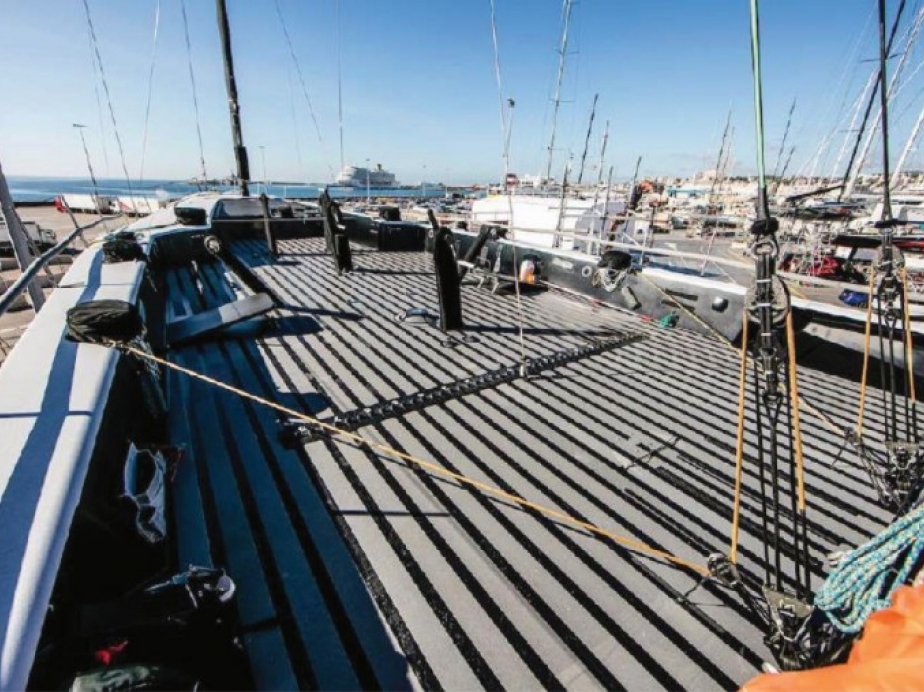

Deck and Cockpit

• Blocks, Sheaves, Tracks & Cars supplied by Winmar
• Stoppers and Jammers supplied by Spinlock
• Organizers and metal custom parts supplied by Spinlock Custom
• Riders supplied by KZ Marine NZ
• Extra unexpected material D-Winch System Supplied by Stay in Phase and Harken Italy
• Drive Carbon Pedestals by Stay In Phase by SiP)
• Gear Boxes and Overdrives by SiP
• Carbon Shafts, Couplings, Glue and Components by SiP
• Disconnect buttons for clutches by Harken
• Composite parts by SiP

Rudder and steering

• Female moulded carbon fiber rudder with autoclaved rudder stock
• JP3 self aligning Upper rudder bearing model 48.20.28
• JP3 self aligning Lower rudder bearing model 48.22.16
• 750mm diam double system carbon quadrant
• PCT made carbon pedestals
• PCT made 1200mm diameter pre preg carbon wheels 2 x JP3 Titanium 5/8" sprocket steering heads.
• 4 x 100mm diameter Winmar blocks
• 7mm steel Steering cables

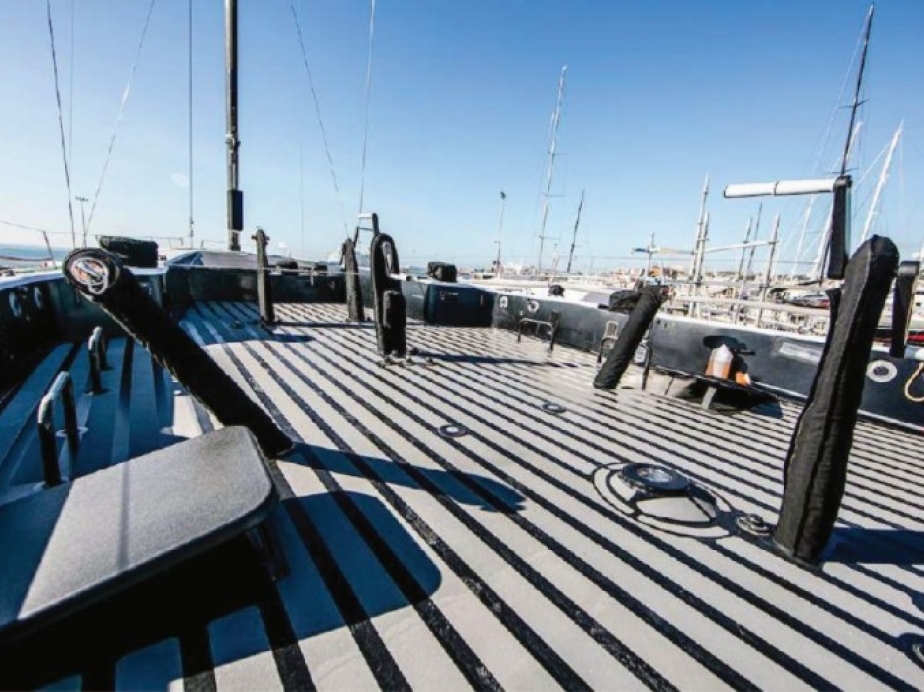

Cockpit and hatches

• Ultralight hollowed minimum drag to rails
• Air pressurized foredeck sliding hatch with Staysail and sheets doors
• External Companionway sliding hatch
• Flush stanchions sockets
• Adjustable helmsman upstands (Zero, 15 and 25 degrees of heel)
• Adhesive cockpit floor non skid

Electrics

• x 12V / 90AH Lithium batteries

Engine

• 110 HP Yanmar Engine 4JH4-HTE
• 2 x Xtreme morse cable control cables
• Customized Morse cable mechanism from Spinlock source
• Air vent installation
• Retractable Prop system by Cariboni in titanium.
• 22.25' diameter bronze propeller
• Vetus plastic fuel tank
• Complete fuel system. Goodridge
• Carbon fiber waterlock and exhaust

Safety

Category 1 complete pack from Ocean Safety including:

• 1 x UltraLite 10C and 12C Carbon CanisterLiferaft
• Anchor and warp
• Fire extinguisers x 2
• 20 x Spinlock racing inflatable lifejackets
• 7 x Equiplite 7DS offshore lifeline anchoring points
• West engineering OSR compliant titanium stanchions
• Carbon OSR compliant carbon pulpits and pushpits
• Steel wire lifelines

Bilgepumps

• 5 x Bilge pump Whale Orca Auto 1300 GPH
• 3 x Bilge pump Whale Orca Auto 2000 GPH
• Automatic switches and non return valves for the above
• 2 x Whale Gusher Urchin model hand pumps
• 1 x Whale Gulper 320 emergency electric bilge pump
• Through hulls for the above mentioned composite WC

Electronics and Navigational Gear

Electronics by SiP

• Faro Processor Advanced Instrument system
• Octans opticafiber gyro compass
• 3DM-GX4-Compass
• Main GPS
• 3 x Garmin GNX 120 Displays on deck
• 4 x Garrnin GMI 20 Displays on deck
• 1 x Garrnin GMI 20 Display underdeck
• Runner load Displays (tbd)
• B&G Top mast Wands x 2
• Panasonic Tablet Toughbook Computer
• Navigator Tablet
• Signet Speedo sensor
• Airmar depth sounder
• Novatel DGPS system
• Hatch watertight system
• RUT950 LTE WLAN Router
• Satelite Fleet Broadband 250
• VHF, AIS, WiFi Antennas
• Broadband 4G Antenna
• B&G Deckman C-Map USB
• Panasonic Toughpad MK3
• load Mini 2 16GB
• Zeus Multifunction display
• 2 x 6 5mm dram endoscope through hulls
• Marine Grade VMG Navigation lights

Additional

• Mauri designed and built carbon passerelle
• Mauri designed and built flag pole

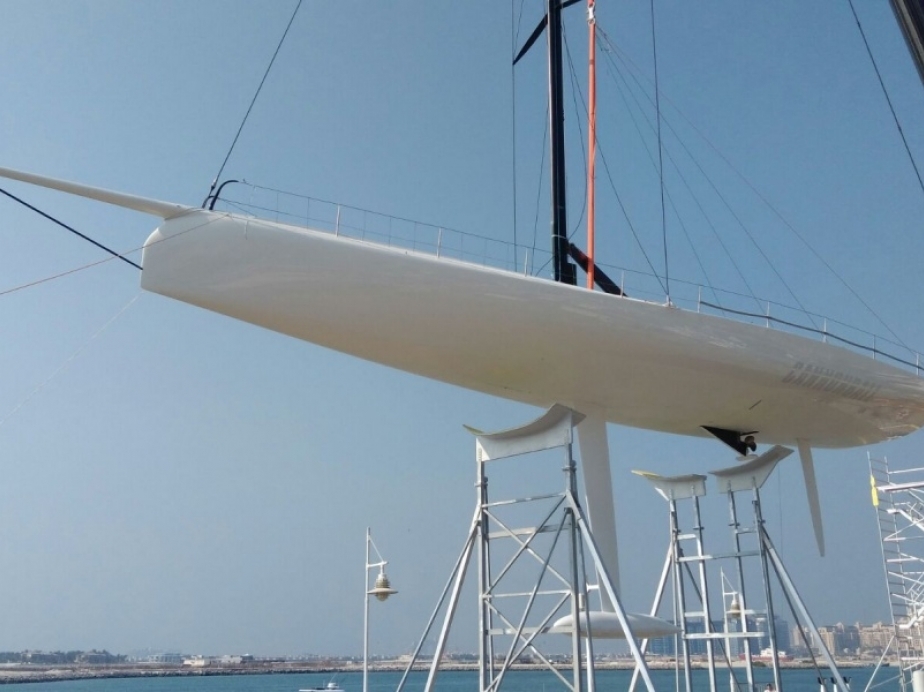

• Galvanized cradle
• 1 x 40' Workshop and tool container fully operative
• 1 x 40' Sail container with full racks
• 2 x container 40 ft
• 1 Van Iveco Daily
• 1 Chase Boat 14 mtr ( 2 engine 300 hrp)
