Rigging

• Carbon composite rig with three spreaders (built by Riba Composites Ltd.)
  High quality composite female moulds. Mast is produced in two segments for transport reasons, the joint is at the second spreaderposition and is secured with titanium bolts and titanium backing plates. New UV coat on Mast

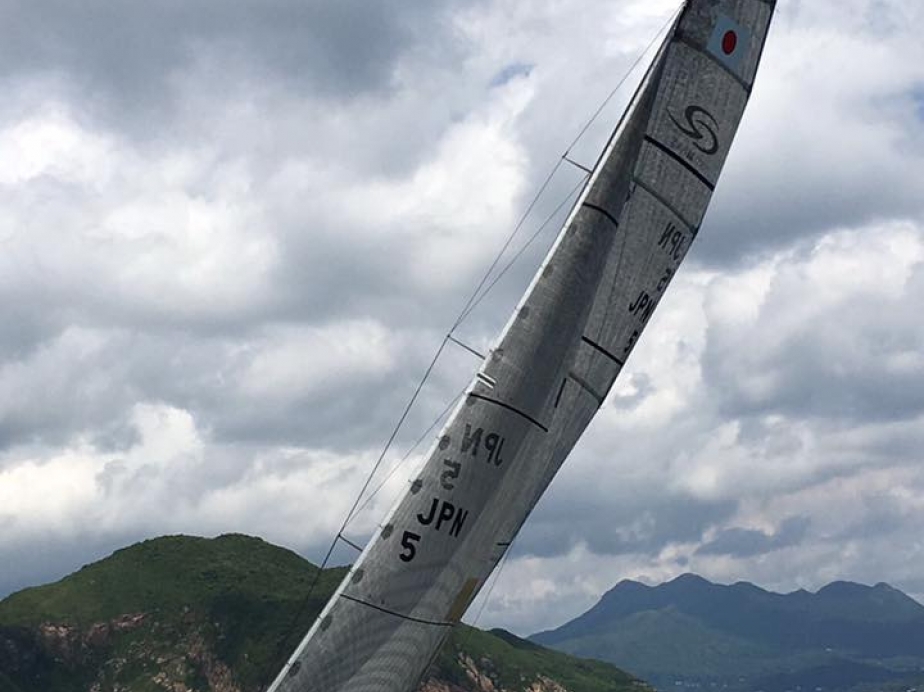

• Fractional rig with three backswept spreaders
• Carbon boom
• Pivoting retractable bowsprit carbon
• Running backstays are non structural
• The PBO forestay Nitronic 50
• ALL New PBO Standing Rigging
• ALL New Running Rigging

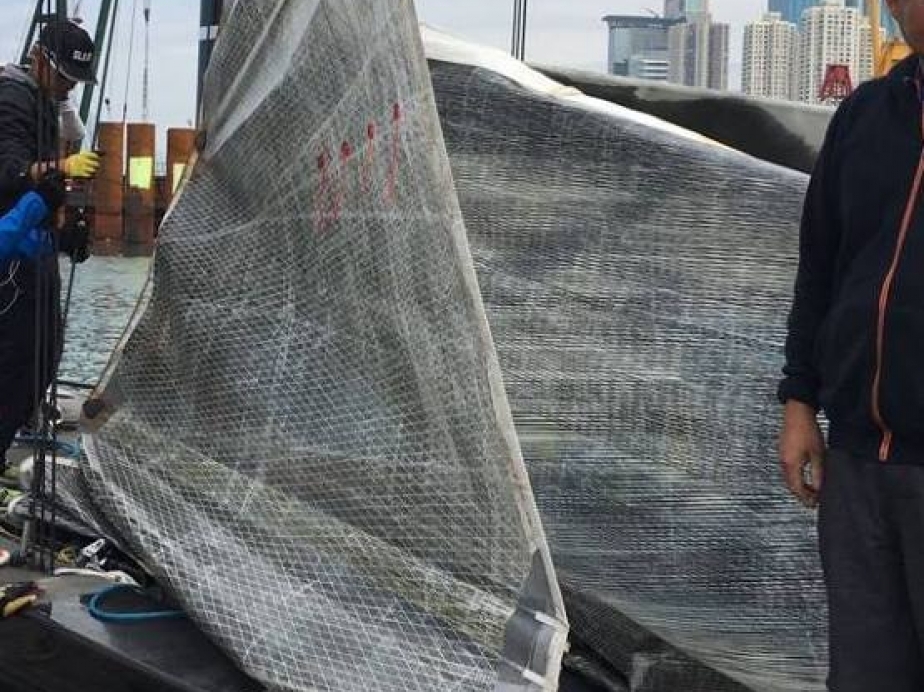

Sails

New delivery / training Dacron sails

Option: New set of Laminated Racing Sails

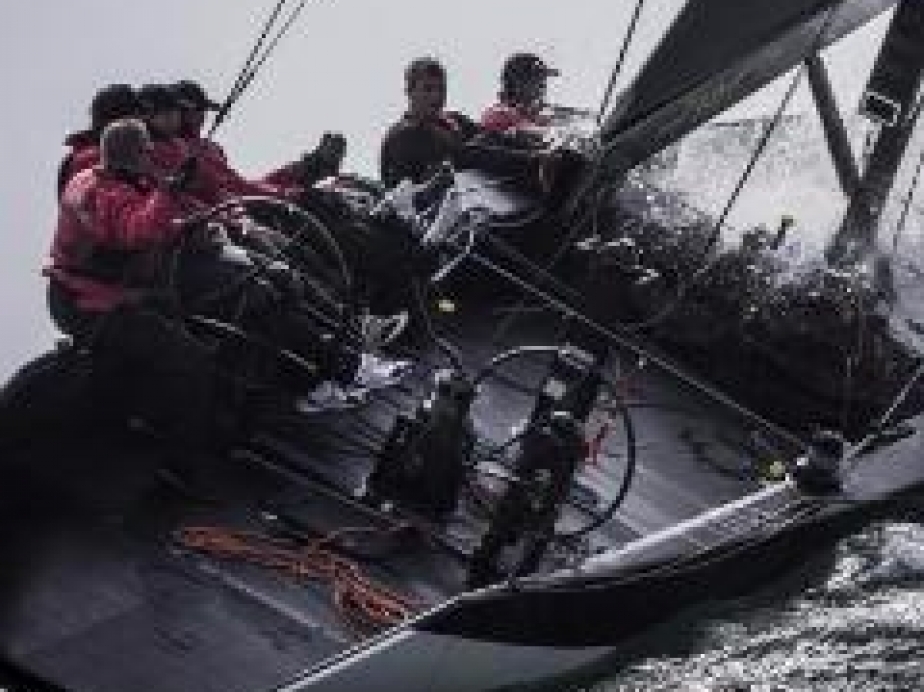

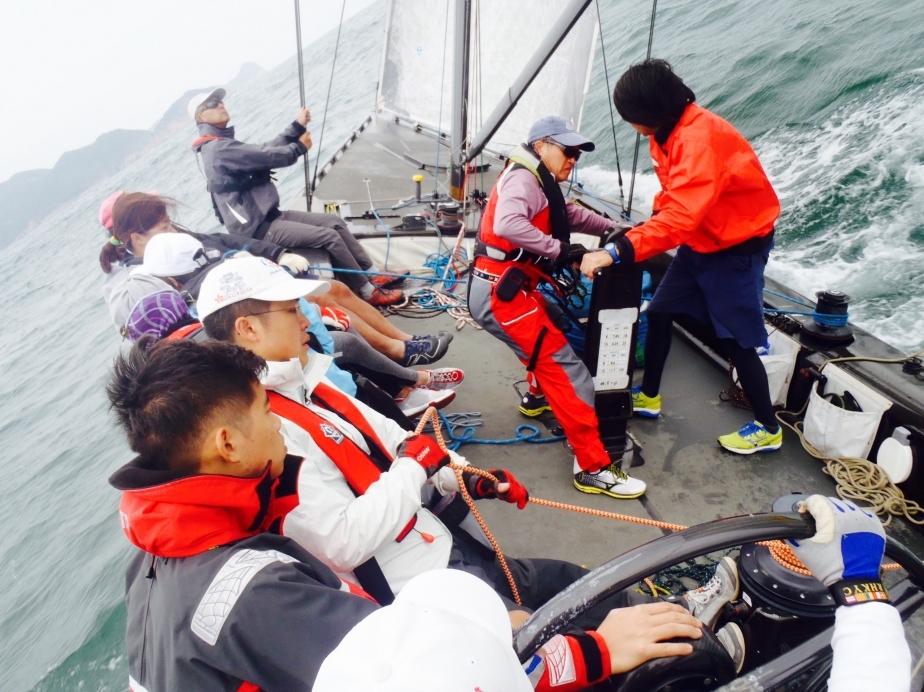

Deck and Cockpit

The deck hardware is oversized to provide low maintenance.
All the control lines, main sheet, backstays and gennaker retriever system are fitted under the deck to keep the deck as clean as possible. The hardware layout was optimised in extensive sailing with Russell Coutts' match race crew.

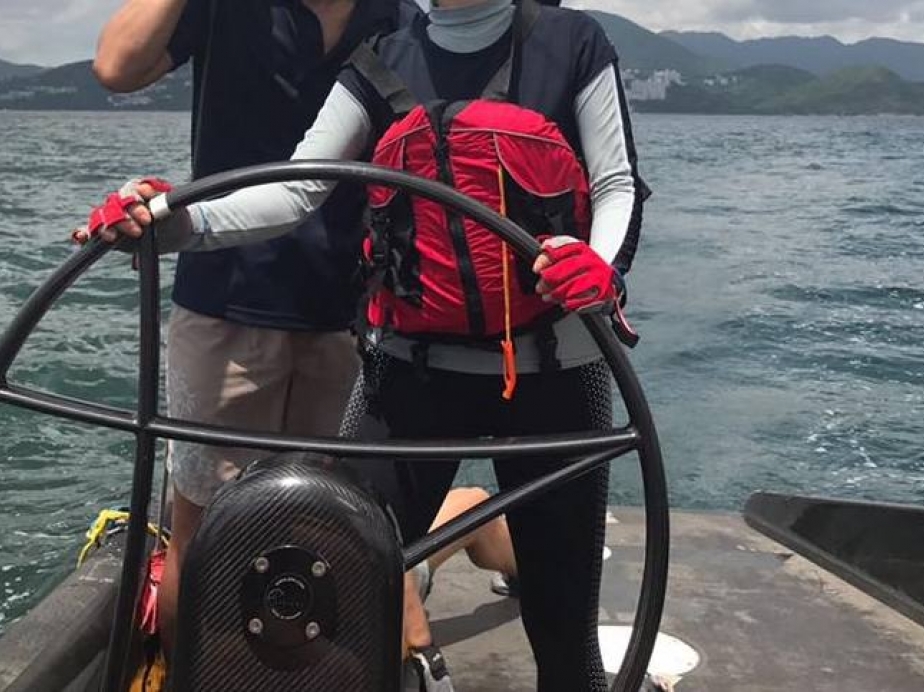

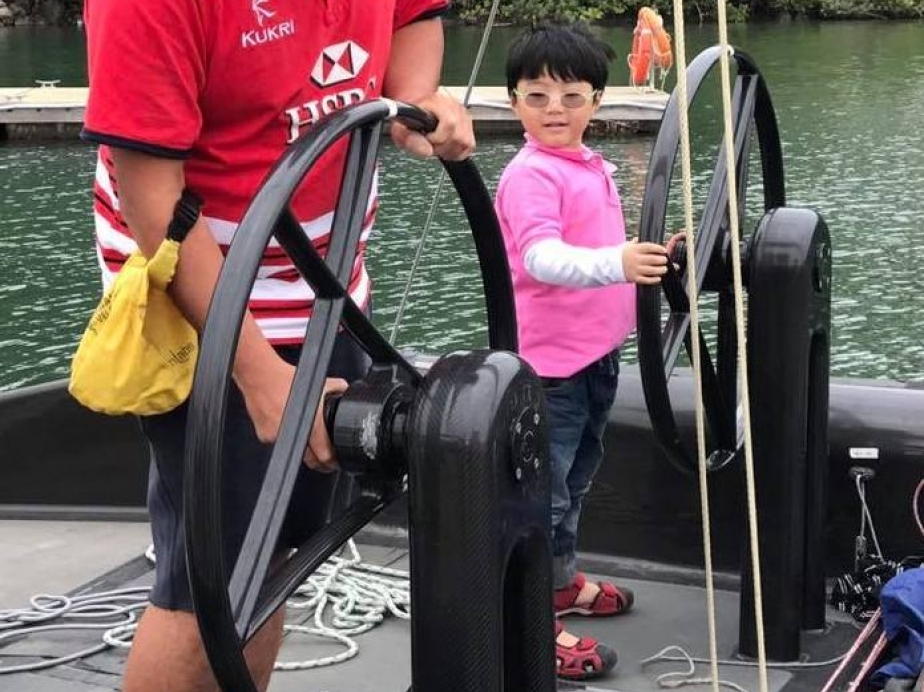

• Twin carbon steering wheels
• New anti-slip on deck

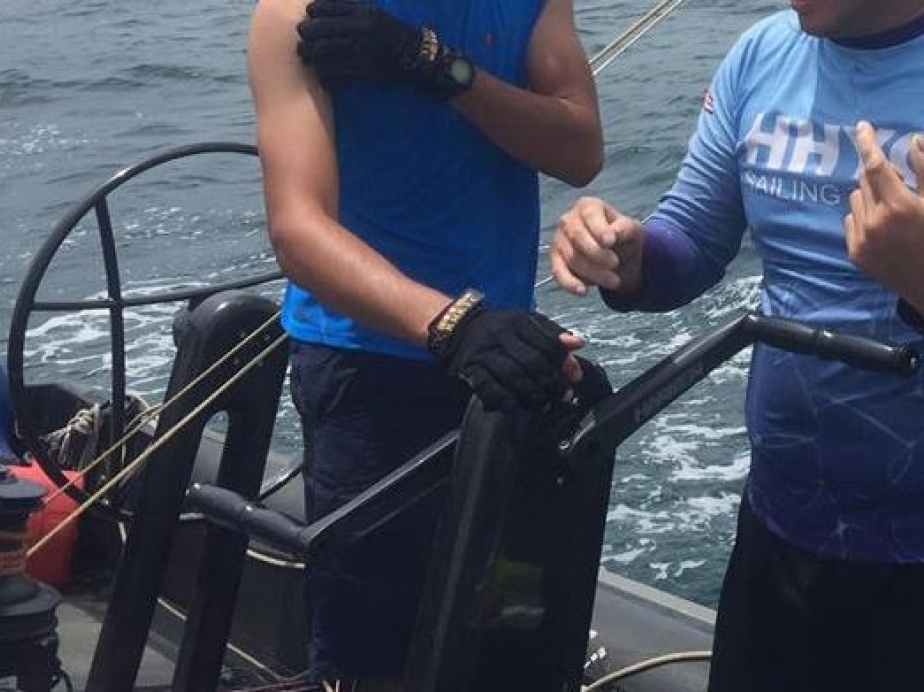

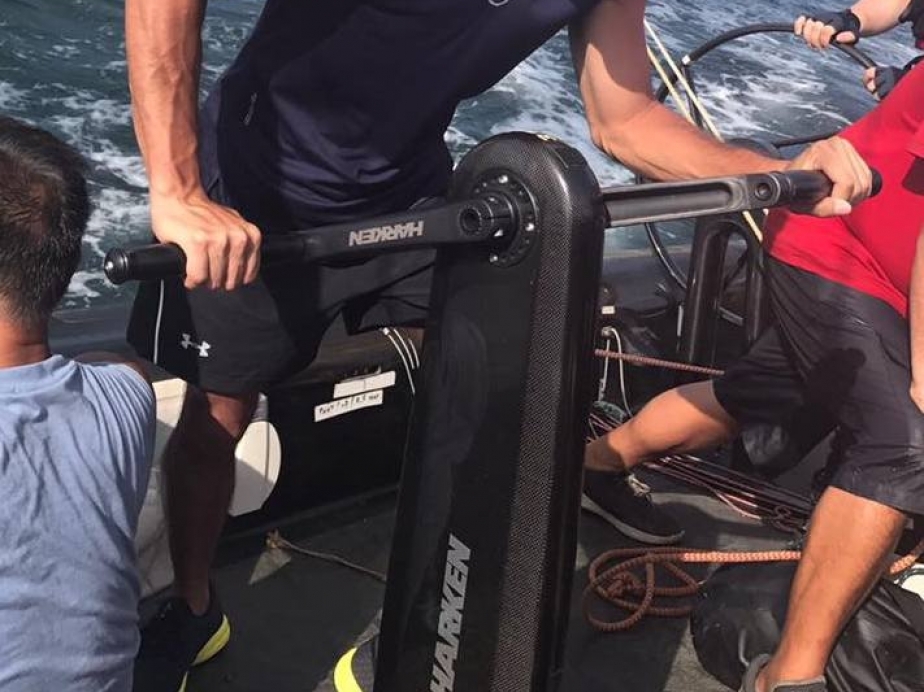

• pedestal driven primary and mainsheet winches
• recessed jib tracks and winches
• ergonomic sidedecks and steering position
• customized top quality deck hardware
• custom carbon toe rail is fitted from bow to mast
• Halyard: 2x B40.2 STA - Primary: 2x B530 TCR UD pedestal driven -
• Main: 1x B55.3STR pedestal driven (Harken)
• Jib system: midrange (4:1 car purchase) - Main system: bigboat (2:1 mainsheet, 4:1 car pur
• foredeck hatch AC style shaped, the carbon cover has fast release fittings
• cockpit engine drive inspection hatch fitted with a carbon cover with fast release fittings.
• New UV coat on deck

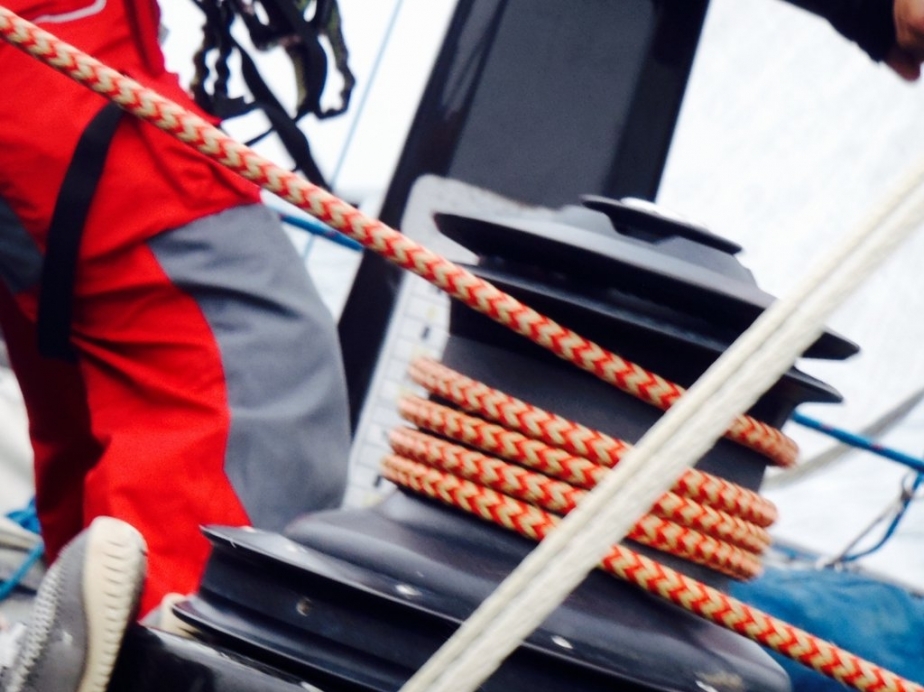

Winches
Fully serviced winches and pedestal

• Halyard - 2 x Harken B40.2 STA

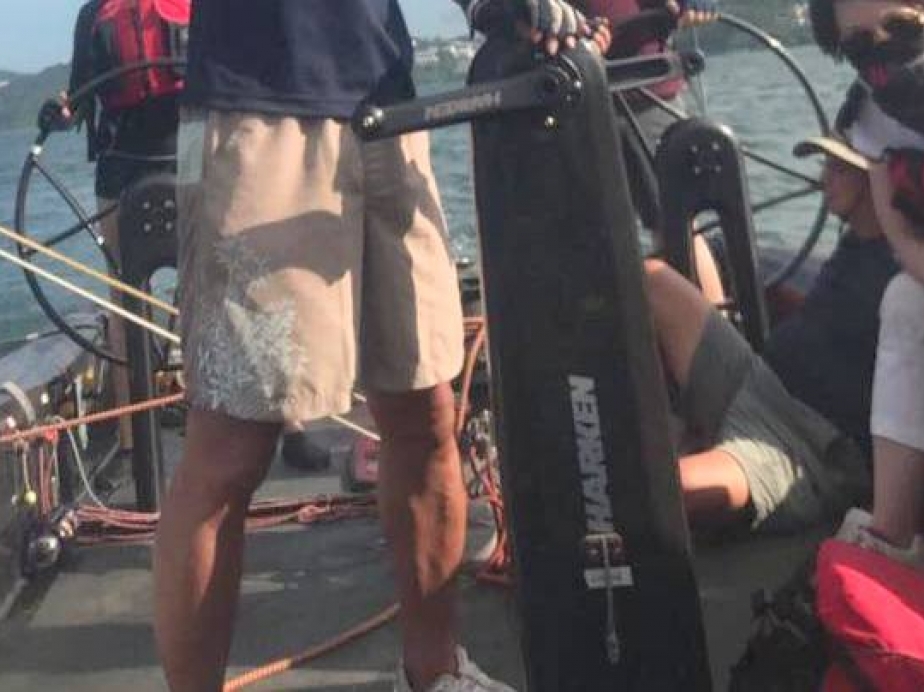

• Primary - 2 x Harken B530 TCR UD pedestal driven
• Main - 1 x Harken B55.3 STR pedestal driven

Electronics and Navigational Gear

A complete set of B&G Hercules2000 sailing instruments with mast unit

• GPS
• electronic compass
• speed and depth transducers
• trim tab and rudder angle transducers

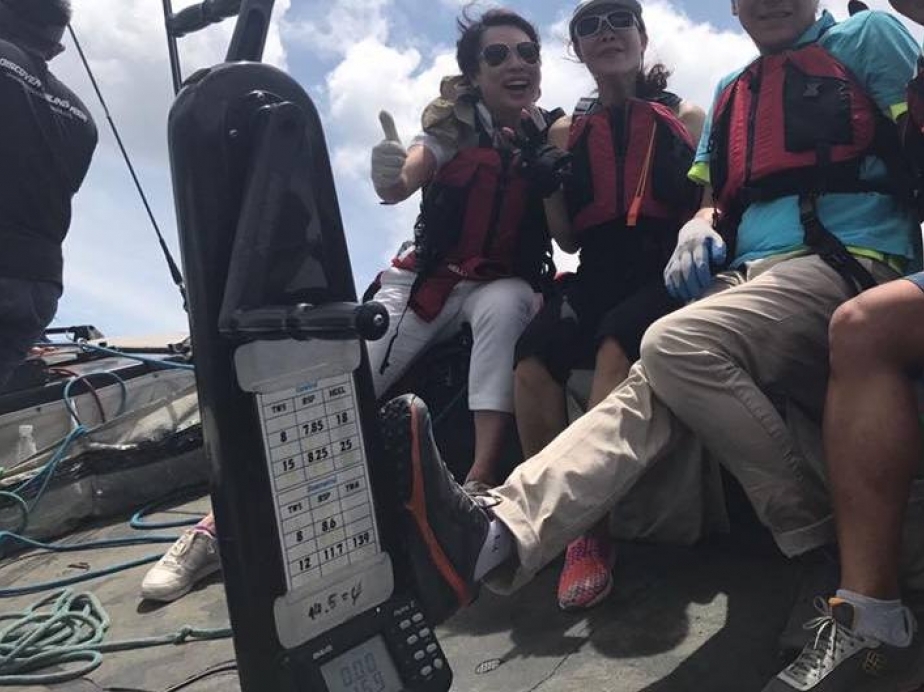

• multi-display on the coffee grinder pedestal (for rudder and trim tab angles)
• five 20/20 maxi displays fitted in a carbon rack on mast.
• Hercules race base pack (include 1 FFD on pedestal grinder)
• Hercules 20/20 display (5 units on mast rack)
• Vertical wind sensor (1.04 m)
• Speed sensor
• Depth sensor
• Compass sensor
• Heel sensor
• Icom VHF hand set
• VHF antenna
• GPS receiver 12 channel
• New GPS antenna
