Volvo 70 - Mc Conaghy Boats

€390,000

VAT excluded

  • Reference ID 141
  • Builder Volvo
  • Model 70
  • Designer Mc Conaghy Boats
  • Year 2007
  • Location Malta
  • L.O.A. (mtr) 21.50
  • Beam (mtr) 5.70
  • Draft (mtr) 4.5
  • Material Carbon
  • Engine Volvo Penta D2 - 75

Yacht description

General

  • Builder : MC CONAGHY BOATS
  • Naval architect : REICHEL PUGH
  • Type : VOLVO 70
  • Year : 2007 – some new interior accommodation in 2015/2016
  • Flag : Austria
  • Displacement : 14.50 tons

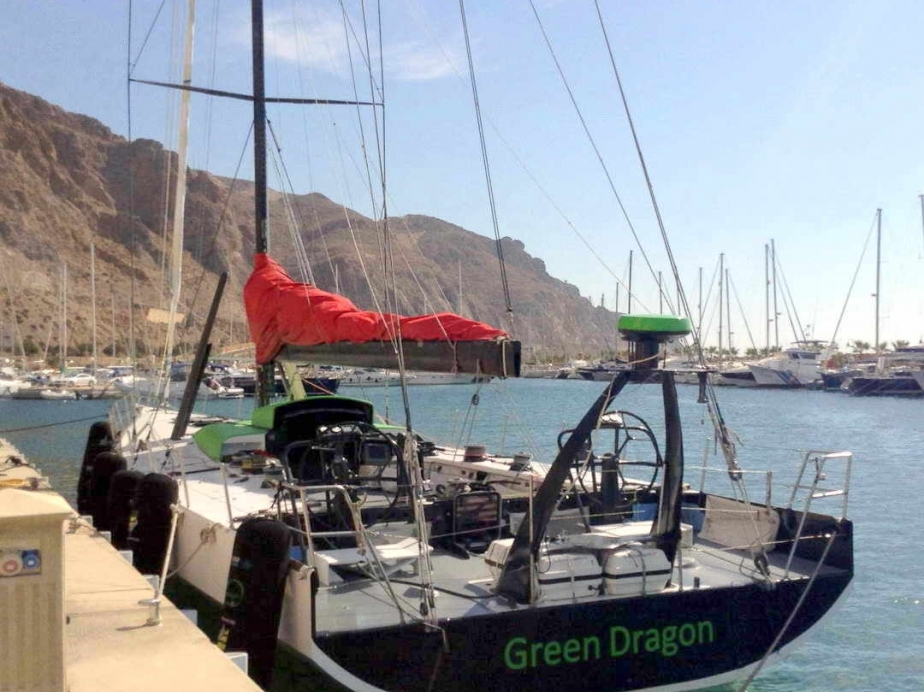

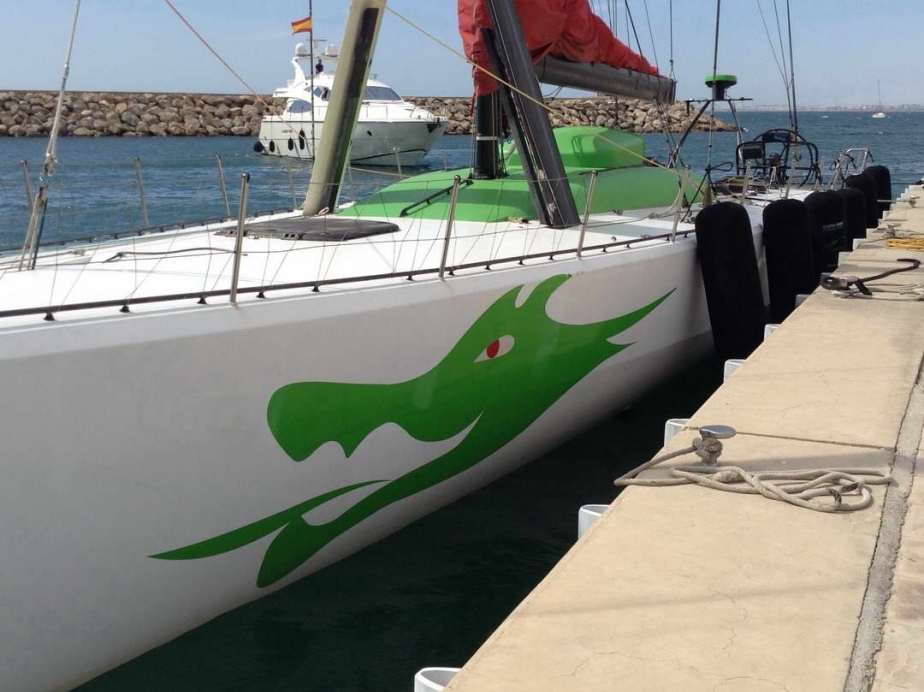

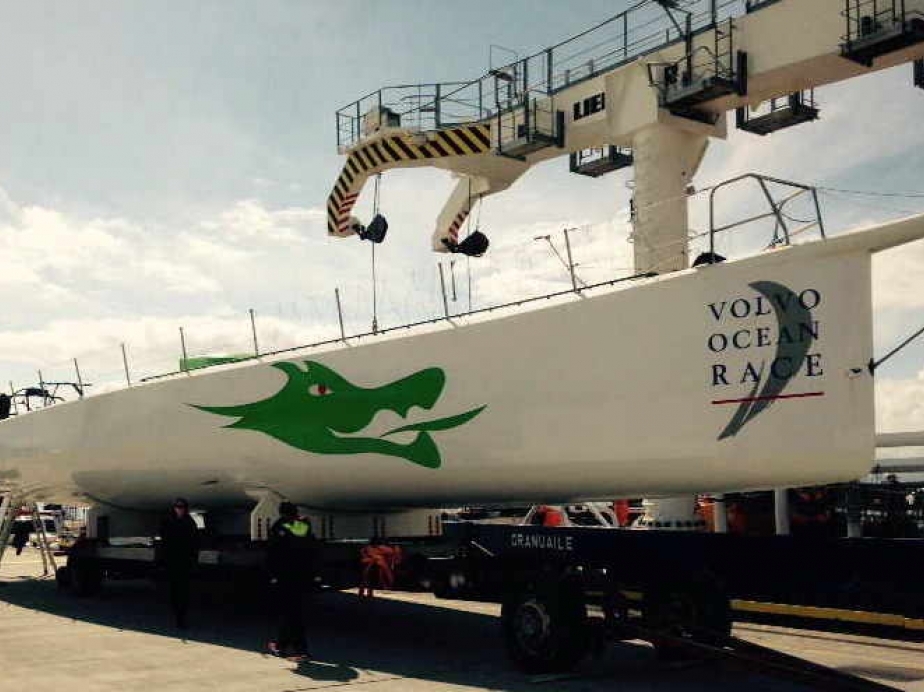

GREEN DRAGON is the most perfect Volvo 70 Class boat to combine serious racing, race charter, cruising and conversion project.

There are several features making her preferable to other Volvo 70s, such as:

· contemporary Carbon C6 Rigging not having any expiry date like Kevlar or PBO
· large spare rigging inventory
· engine Saildrive transmission fitted (reliable and safe - no further hassle with
retractable shaft)
· no hydraulics for trimming
· extremely weel built hull, no structural problems during the Volvo Ocean Race and
since
· very little use and almost no serious racing after the Volvo Ocean Race
· thanks to her interior layout and original structure, she is very well suited for an interior
conversion project

Construction

In 2016 the underwatership was completley stripped down to the original hull filler and built up a new system with Veneziani's Speedy Carbonium.

  • hull : Carbon composite
  • superstructure : Carbon composite
  • deck : Carbon composite
  • Keel : canting keel with hydraulic rams
  • Dagger boards : 2 (+ 2 spares)

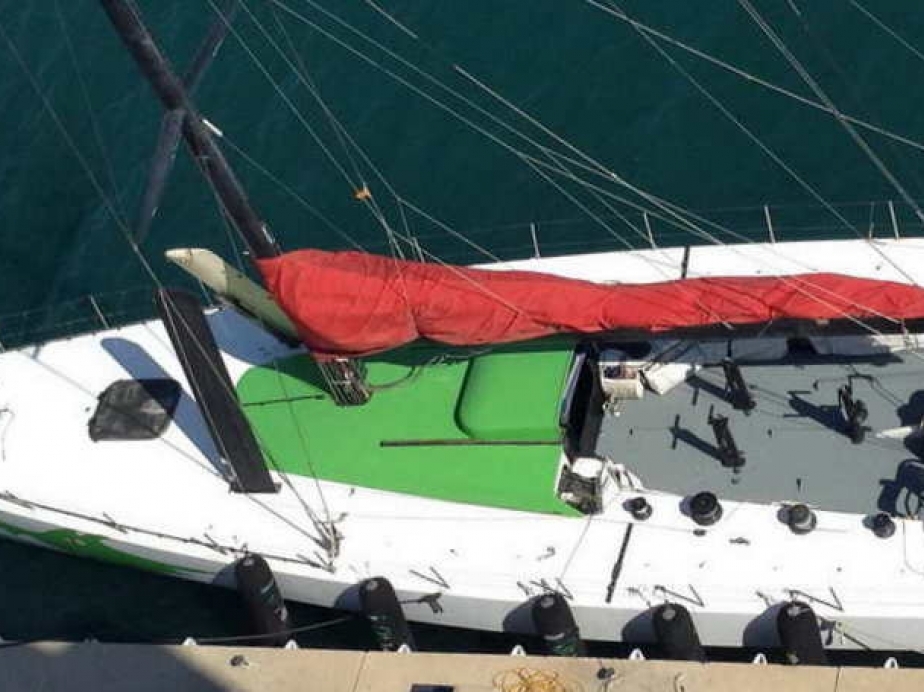

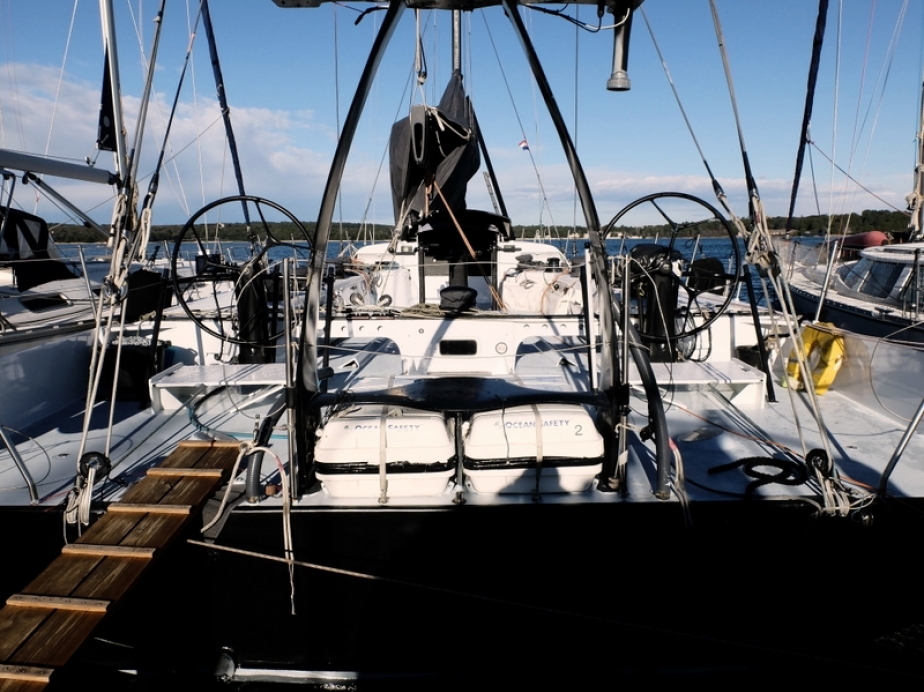

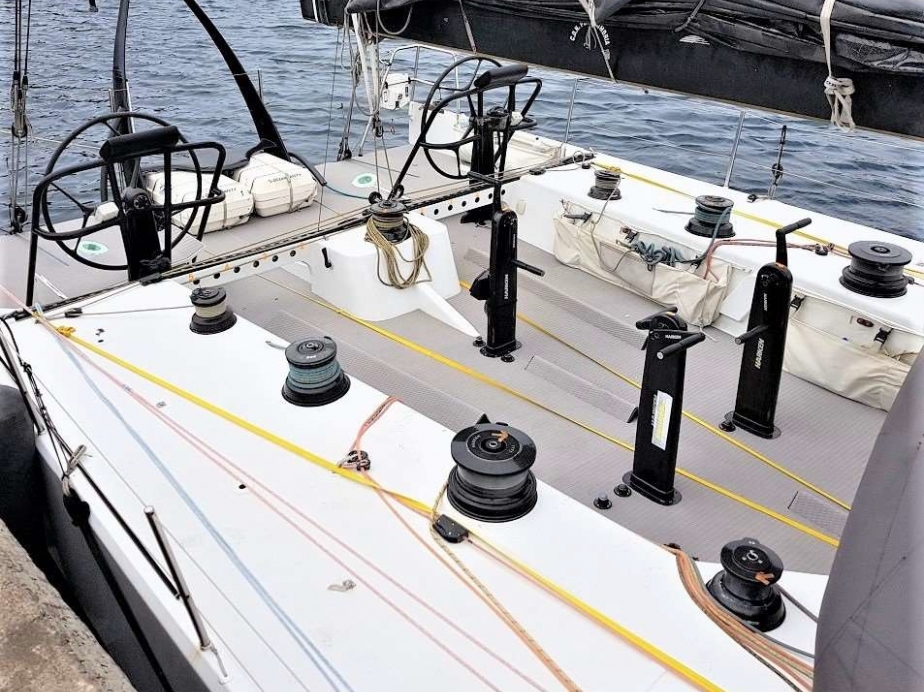

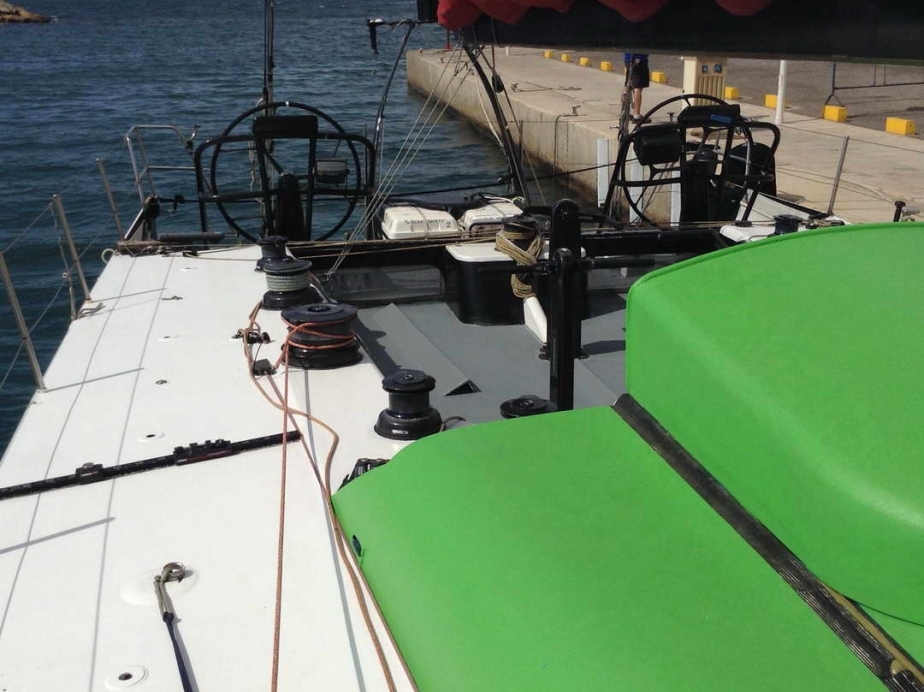

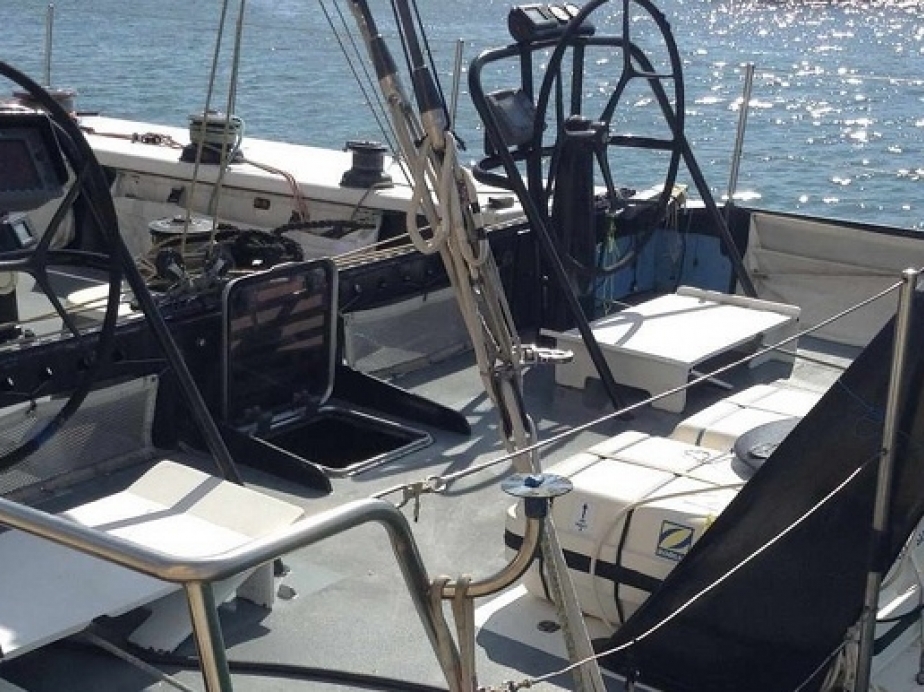

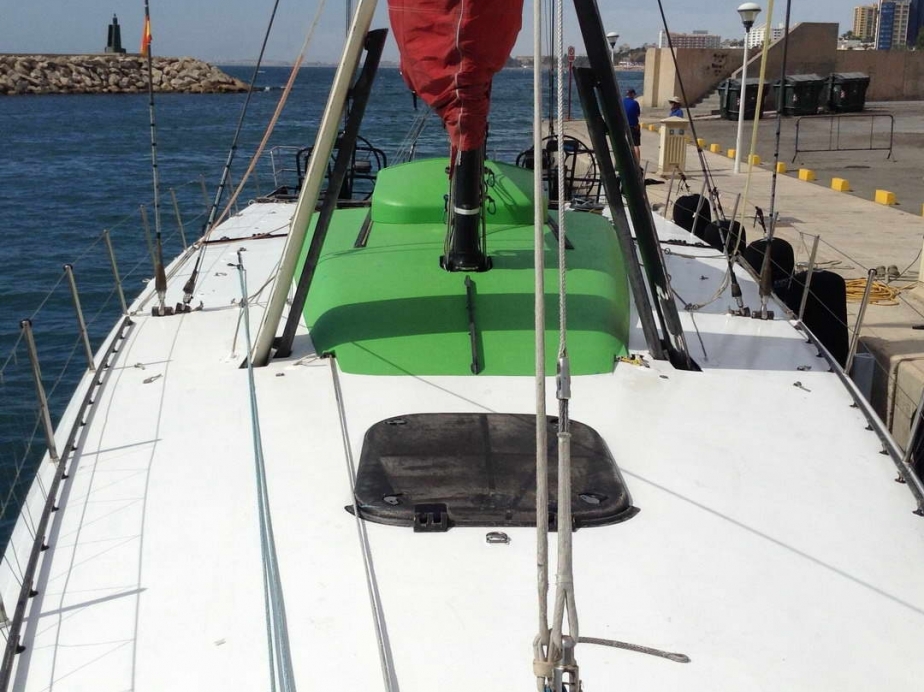

DECK AND COCKPIT

Deck repainted 2016

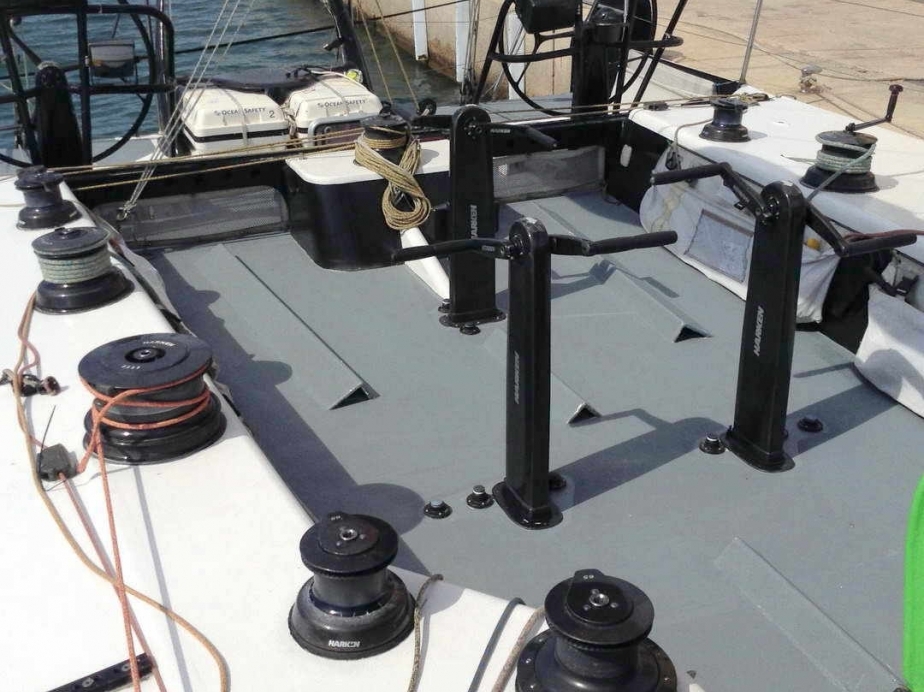

HARKEN winches (all Carbon Series) :

  • 2 x Primary
  • 1 Main
  • 2 Runner
  • 3 Halyard
  • 2 Traveller
  • 3 pedestals
  • Various blocks, clutches, jammers, etc.
  • Complete set of ropes (sheets, tack Lines, halyards, runner tails, spares, etc.)
  • Dagger Boards : 2 fitted + 2 in spare
  • Electric anchor windlass (new on board but not fitted yet)
  • Bow roller for anchor (new on board but not fitted yet)

Anchors :

  • 30 kg stainless BRUCE anchor
  • 2nd FORTRESS aluminium anchor
  • Wrap approx. 60 m
  • Anchor Lead Rope 50m (new)

Engines

  • 75 HP VOLVO PENTA D2-75 - approx. 1,600h (March 2016)
  • VOLVO PENTA Saildrive 150S transmission
  • 3 blades VOLVO PENTA folding propeller
  • Generator VOLVO PENTA D1-30


Electrics

  • Batteries Service Batteries 14 x Optima YT S 4,2 55Ah (new in 2016)
  • Start Battery 2 x 12V (new in Oct 2015)
  • Service Batteries 14 x Optima YT S 4,2 55Ah (new in 2016)
  • Start Battery 2 x 12V (new in Oct 2015)
  • Additional 24V/140A Alternator on Main Engine with Balmar Charger Controller
  • Sinus Inverter 2kW
  • Charger 24V 30A Sterling Power
  • Monitoring Systems for Batteries
  • Generator Volvo Penta D1-30


Tankage

130 L spare plastic tank



Sails

Numerous sets of sails

Sail area
*upwind : 375 m²
*downwind: 675 m²
Main sail max.: 175m²
Code-0 max.: 350m²
Genoa 1 max. 200m²
Gennaker max.: 500m²

Sails inventory
Racing set

  • Code type of sail material hoisting type condition
  • MN-A main 3Di cars on track excellent
  • MH0 masthead Code 0 3Di furled very good
  • FRO fractional Code 0 3Di furled excellent
  • G1 Genoa 1 3DL hanks on forestay very good
  • G2 Genoa 2 3Di hanks on forestay excellent
  • G4 Genoa 4 3Di furled excellent
  • G5 Genoa 5 3DL hanks on J5 stay very good
  • SJ Storm Jib Spectra hanks on J5 stay good
  • TS Trysail Spectra cars on track dood
  • A1 Gennaker Nylon free flying excellent
  • A2 Gennaker Nylon free flying excellent
  • A3 Gennaker Cuben Fibre furled very good
  • A4 Gennaker Nylon free flying excellent
  • A9 Gennaker Cuben Fibre furled excellent

Training, cruising, delivery, spare

  • MN-2 main 3Di cars on tack good
  • MH0 masthead Code 0 3DL furled fair
  • FRO fractional Code 0 3DL furled good
  • G1 Genoa 1 3DL hanks on forestay good
  • G4 Genoa 4 3Di furled fair
  • SJ Storm Jib Spectra hanks on J5 stay good
  • TS Trysail Spectra cars on track good
  • A3 Gennaker Cuben Fibre furled very good
  • Further there are many additional unchecked sails in various conditions partly like new.

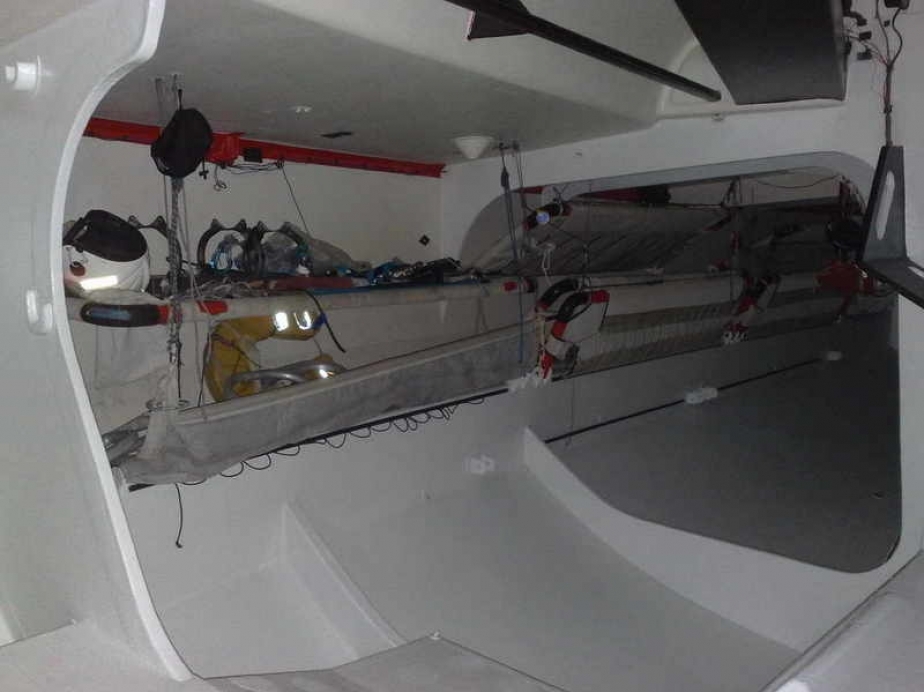

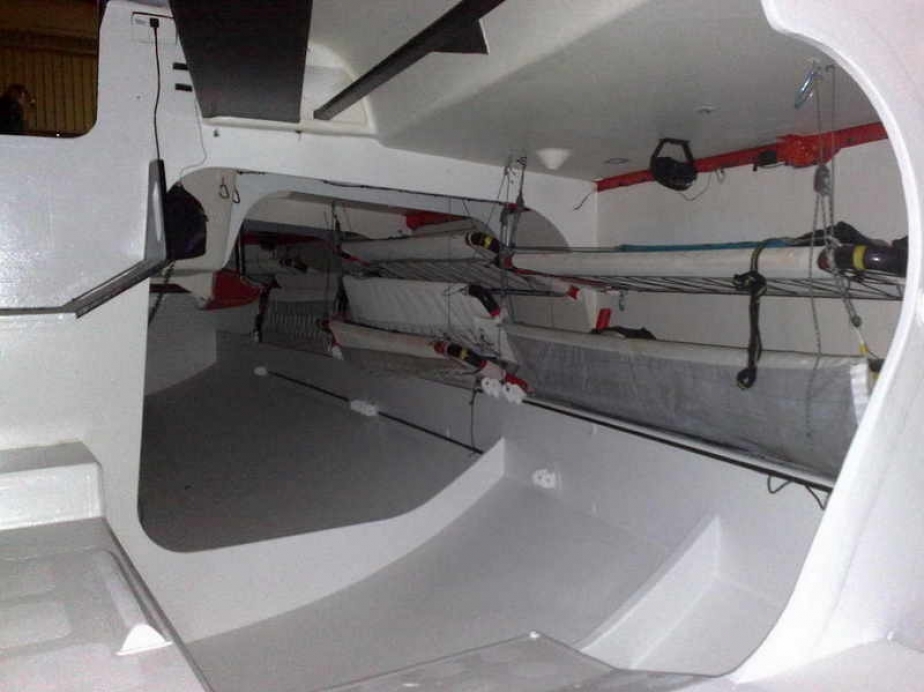

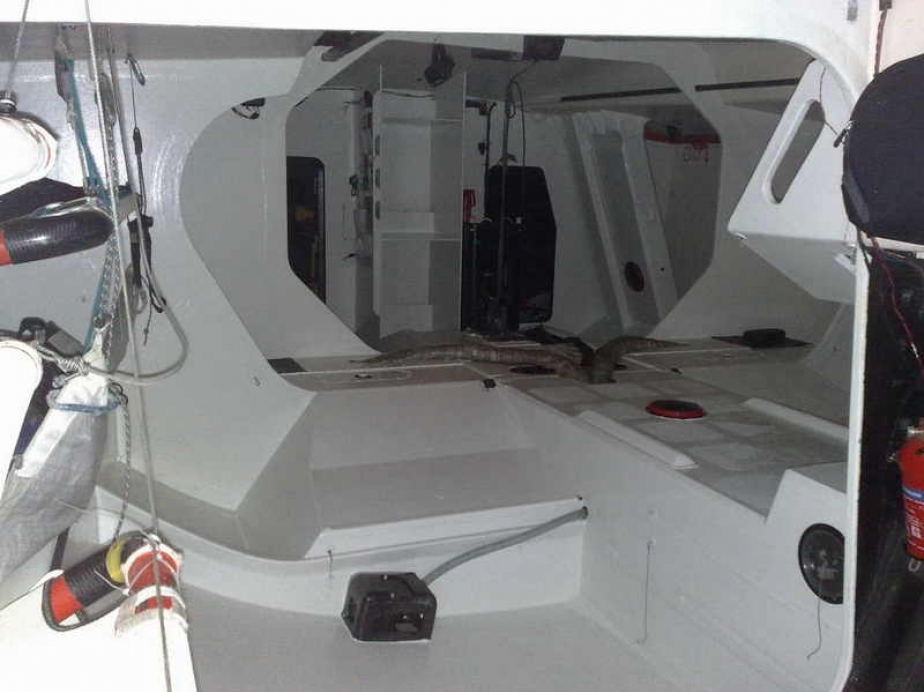

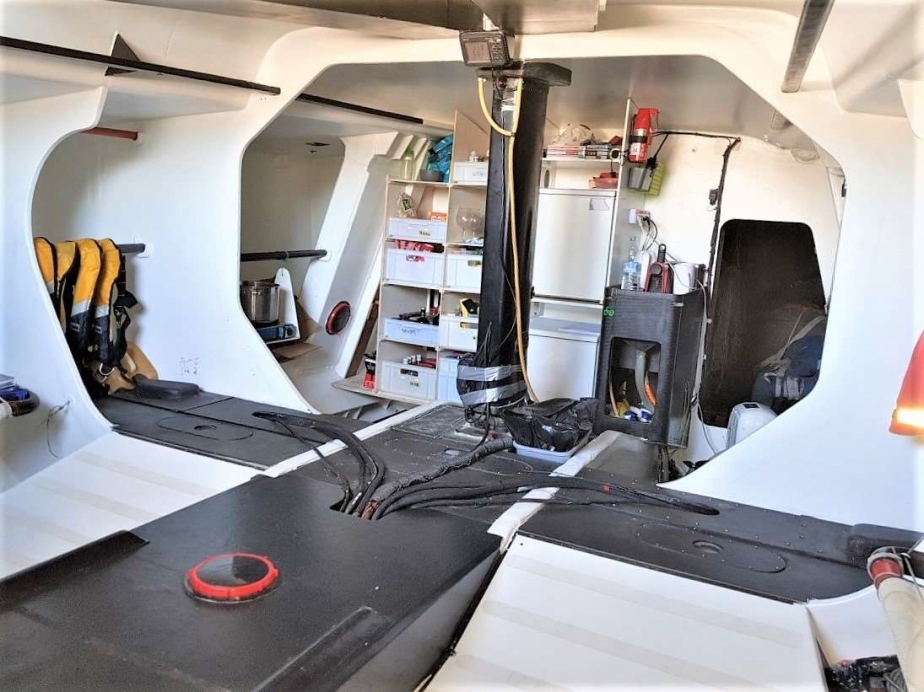

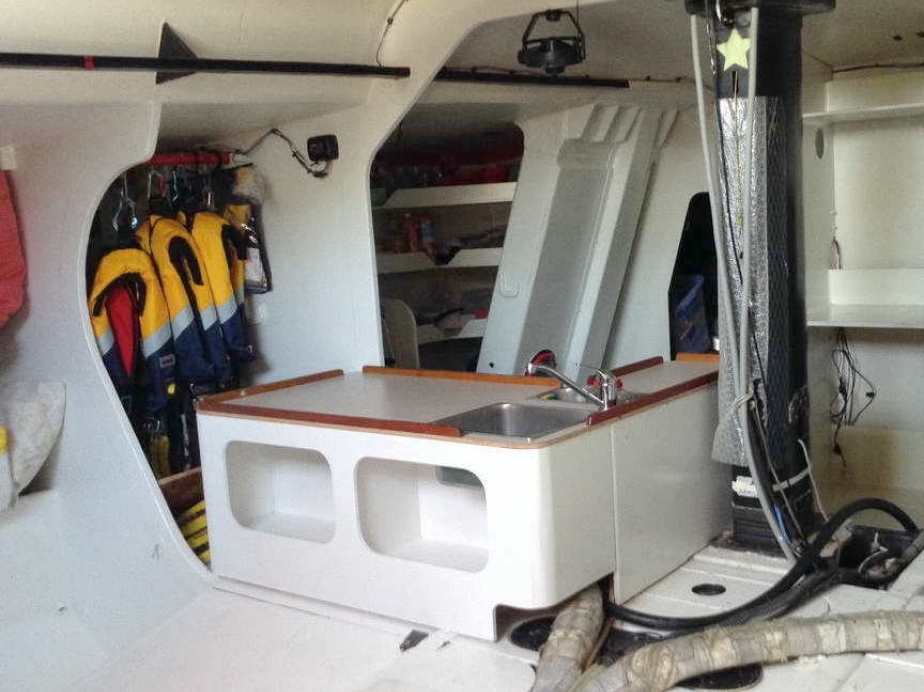

Accommodations

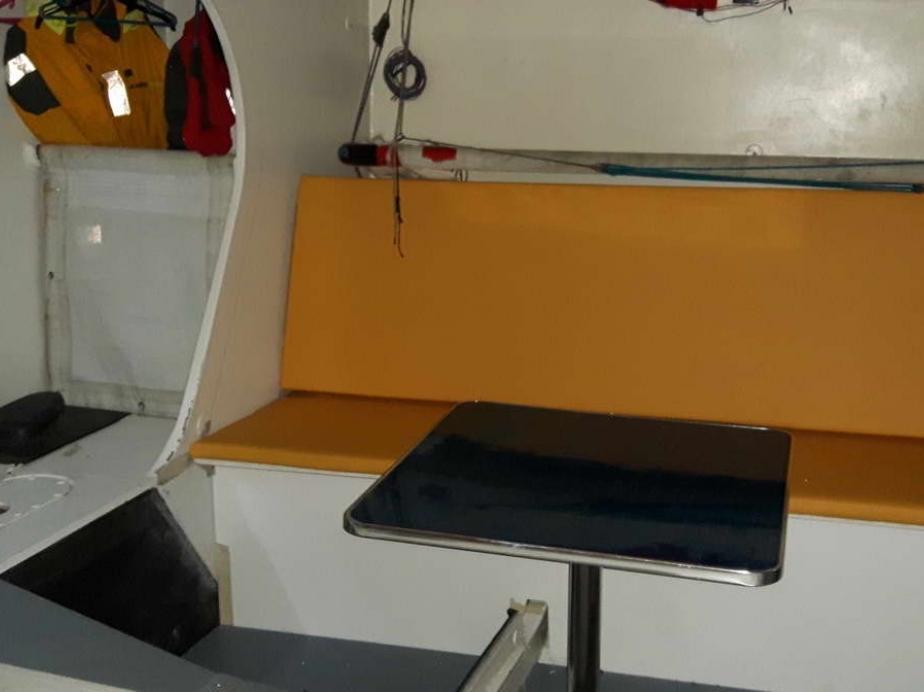

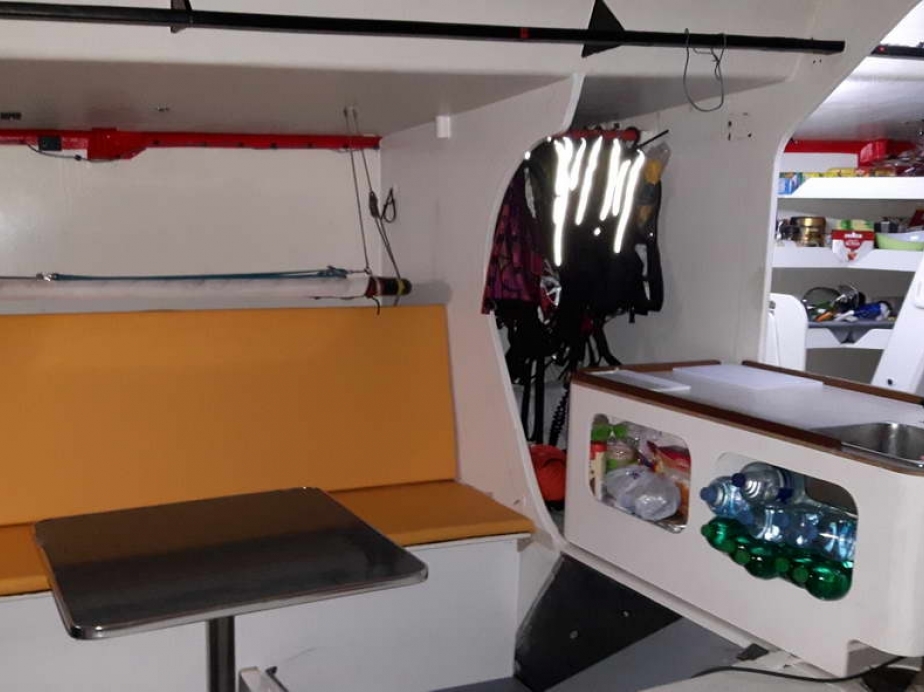

  • Salon with 2 upholstered benches (retractable for serious racing)
  • 2 removable tables

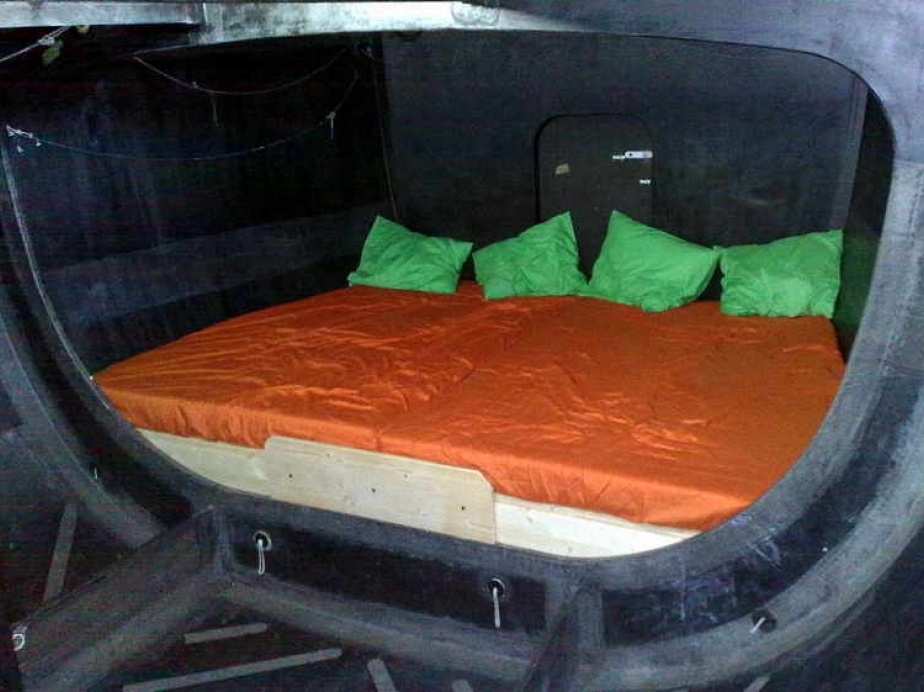

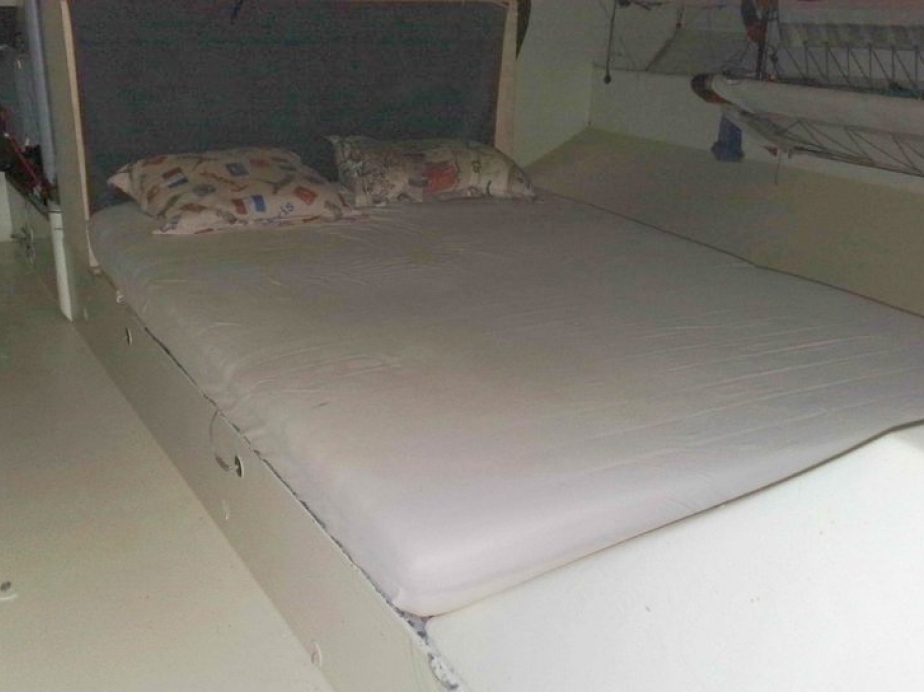

  • The big bed in the bow is easily retractable for races just like the yellow benches in the 'white saloon'.

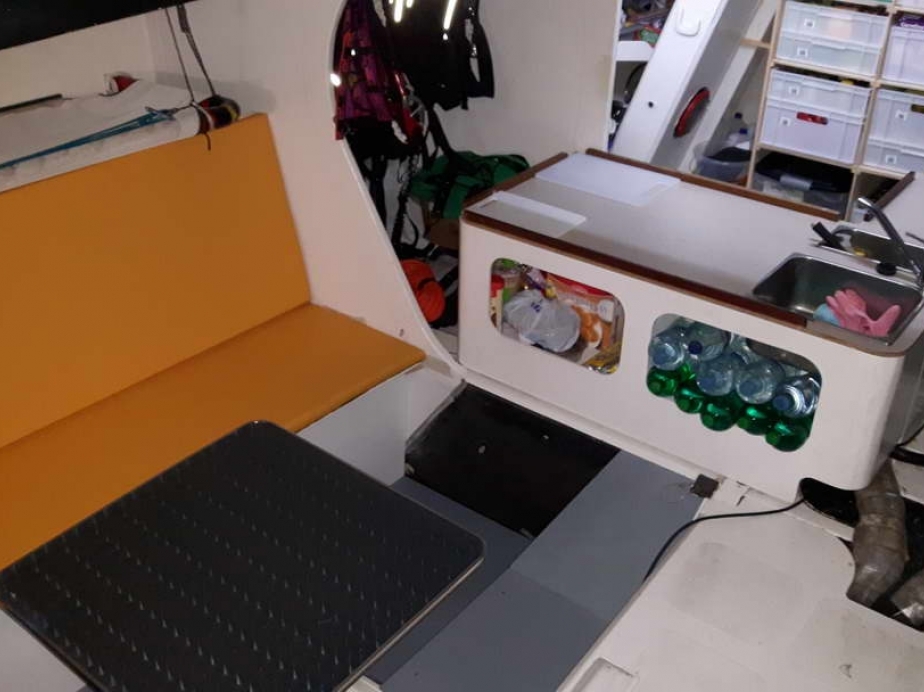

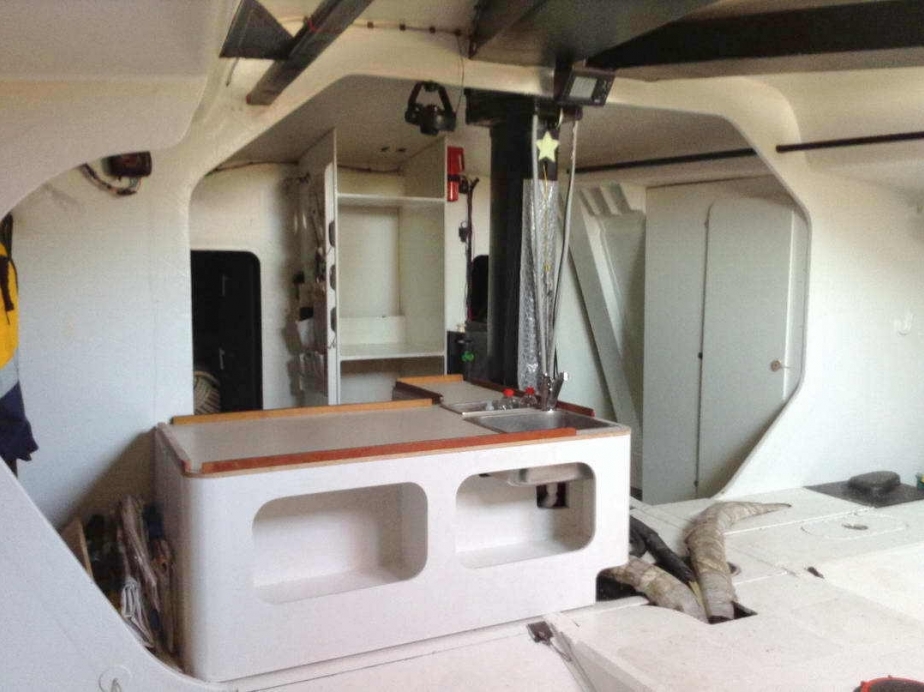

  • L-shaped Galley with 2 sinks (retractable for serious racing)
  • One burner cocker with canting system (additional spare cocker)
  • 2 refrigerators
  • Electric head
  • Electric fresh water pump
  • Aft ballast tank of approx. 1,000 L, can used as fresh water tank
  • TV HD LCD, connected to board PC
  • Media Box Maxell
  • Board- PC Mini ITX
  • Hercules Monitor

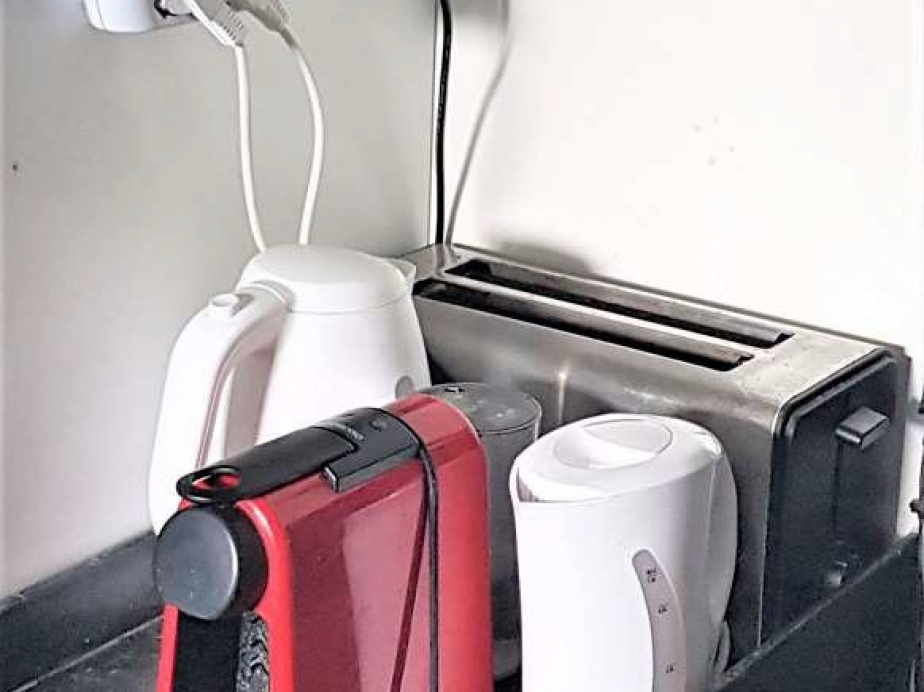

  • Domestic equipment (Nespresso Coffe machine, Water Heater, Toaster, etc.
    Galley fitted with cutlery, pots, pans, etc.

Rigging

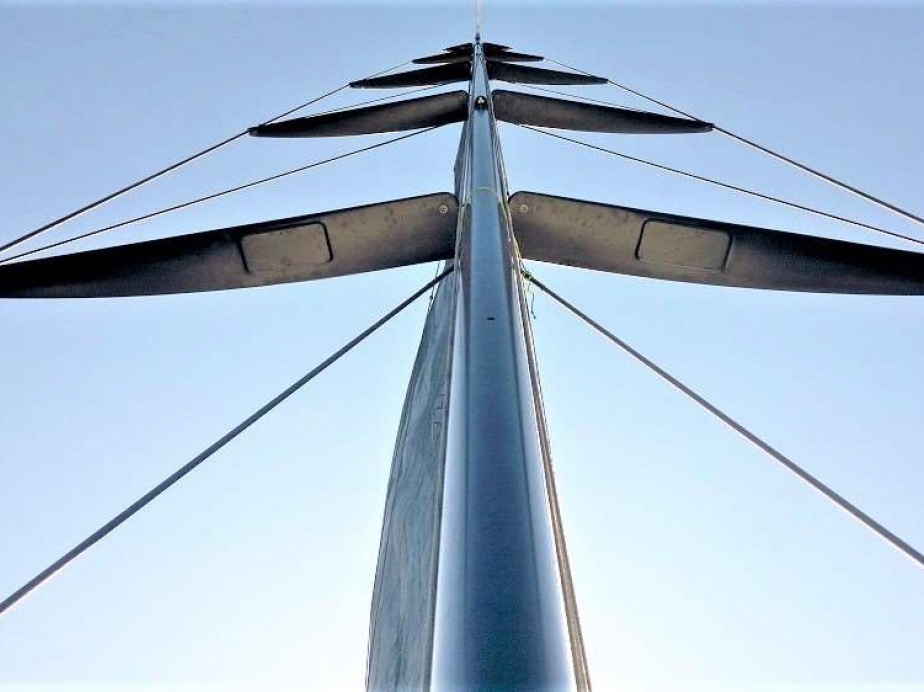

  • SOUTHERN SPARS carbon mast :
    · 31 m of height
    · completely rebuilt in July 2015
    · Hydraulic Jack System (electric pump)

  • SOUTHERN SPARS carbon boom

  • Carbon bowsprit

  • Standing rigging : SOUTHERN SPARS
  • Running rigging : SPECTRA
  • Furlers : HARKEN & KARVER
  • SOUTHERN SPARS C6 rigging with Titanium fittings
  • Spare rigging (same as above)
  • SOUTHERN SPARS C6 forestay with Titanium fittings
  • Spare forestay (same as above)
  • SOUTHERN SPARS C6 runners with Titanium fittings, each 1 pair Top, Frac, upper Checkstay
  • Spare Runners (same as above, TBC weather set is complete)
  • Luff cables for MH Code-0, FRO, J4, SJ
  • Various Spare Luff cables

Furlers

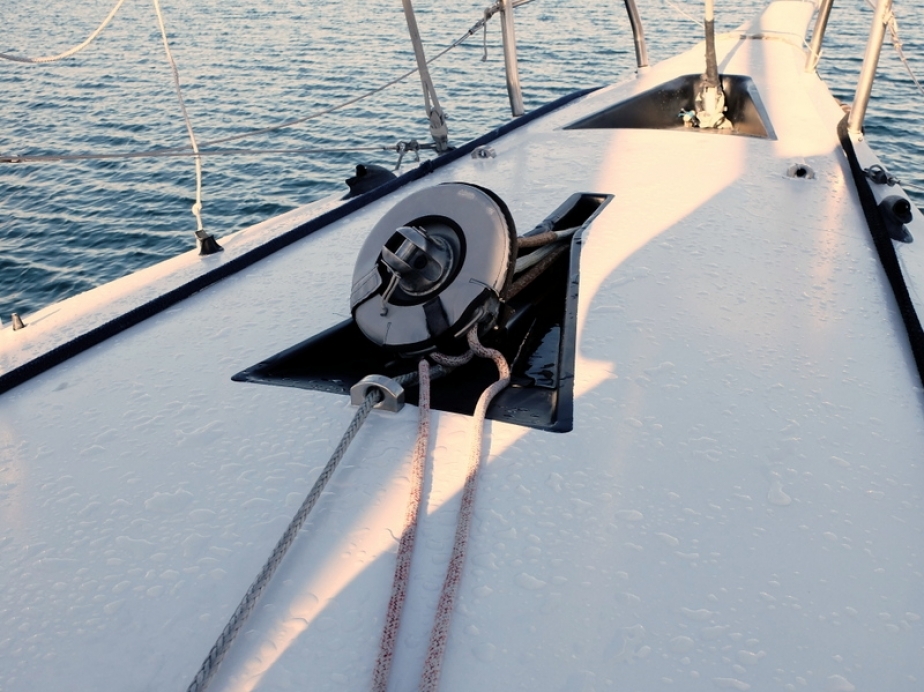

· 1 x KARVER racing,
· 1 x HARKEN

Electronics and Navigational Gear

  • B&G WTP 2
  • B&G 5 x 20/20 Mast Displays, 8x MFD-Displays
  • sounder B&G
  • Autopilot/Smart Pilot S3G
  • 1 x ST7002 + 2 x ST6001 controllers + Type 2 linear drive
  • AIS Class A : AIS Transonder with own GPS Antenna Comar CSB200
  • computer : Beta Version of Transas Tsunamis ’99 Program with world wide
    maps on Board PC
  • LAN network Netgear
  • Serial server Moxa nPort 4 channels
  • NMEA WiFi Comar NMEA-to-WiFi
  • NMEA Buffer 2 units of SB1324
  • Fleet 500 (powers up, ready to work but without SIM Card). Satcom C (condition unknown)
  • VHF radio : Silva S15 DSC (= Nexus NX2500)
  • VHF/FM Antenna Splitter NAVICO
  • Emergency VHF Antenna
  • NAVTEX receiver Nexus NX2600 (display on VHF and/or PC)
  • NAVTEX / VHF Silva S15 (= Nexus NX2500)
  • NASA Meteoman Barograph
  • GPS : FURUNO GP-90 (Furuno GP-31 in spare)
  • RAYMARINE Raystar 130 SeaTalk / NMEA
  • Plotter Raymarine E80
  • Raymarine 2kW Colour radar
  • Epirb



Safety

  • 2 Life Rafts 16 persons each (serviced in October 2015, next service in October 2018)
  • 20 Life Jackets with lifelines (new in 2015)
  • 2 Jon buoys (serviced in Jan 2016), one of them includes AIS
  • Jackstays (new)
  • 2 Floating Flash lights
  • EPIRB (new)
  • Flares (Parachute, Hand Flares, Orange Smoke Pots)
  • Anchor Ball
  • Motor Cone
  • 2 Fog Horns plus Spare Can
  • 3 Fire Extinguishers (new)
  • Fire Blanket
  • Search light
  • Emergency Nav. Lights

Additional


MISCELLANEAOUS EQUIPMENT

  • Boarding ladder (telescopic, new on board but not fitted yet)
  • Rope bags (original ones repaired + a completely new set made Jan 2016 to be fitted)
  • Covers for pedestal and winches (new in Jan 2016)
  • Boom cover (new in Jan 2016)


Hardware and Tools:

  • Bag with deck equipment (soft shackles, loops, blocks, etc.)
  • Toolbox with var. hand tools for hardware jobs
  • Toolbox with var. hand tools and bits & pieces for electric jobs
  • Toolbox with var. hand tools and bits & pieces for electronic jobs
  • Toolbox with var. bits & pieces for plumbing jobs
  • Box with var. electric tools (drill, lamp, hot air gun) and cables & spares
  • Box with var. bits & spares for rigging jobs
  • Box with var. hardware bits & spares, tapes, sealants
  • Box with var. lubricants, cleaners, etc.
  • Box with var. thinners, paints and tools for paintjobs
  • Several Diesel 20 litres Canister
  • Boathook
  • Bowman Chair
  • Climbing Harness

Container (located in Galway, Ireland) :

  • Boat Cradle (dismounted)
  • Spare Rudder
  • Spare Dagger Boards
  • Satellite Systems, some Media Hardware, Wireless Cams, etc.
  • Loads of sails
  • Spares for winches, rigging, deck hardware
  • Carbon spares
  • Sail bags
  • Covers

Disclaimer

Detail given in good faith with no guarantee nor warrant for accuracy or conditions. A Buyer should instruct his surveyor to investigate such details as he desires validated. This is NOT a contractual document.
