X-Yachts X-35

SOLD

  • Reference ID 526
  • Builder X-yachts
  • Model 35
  • Designer Jeppesen
  • Year 2010
  • Engine type Single
  • L.O.A. (mtr) 10.61
  • Beam (mtr) 3.27
  • Draft (mtr) 1.85
  • Displacement (Kg) 4300
  • Material GRP - polyester
  • Engine Yanmar 3YM30
  • Berths 6

Yacht description

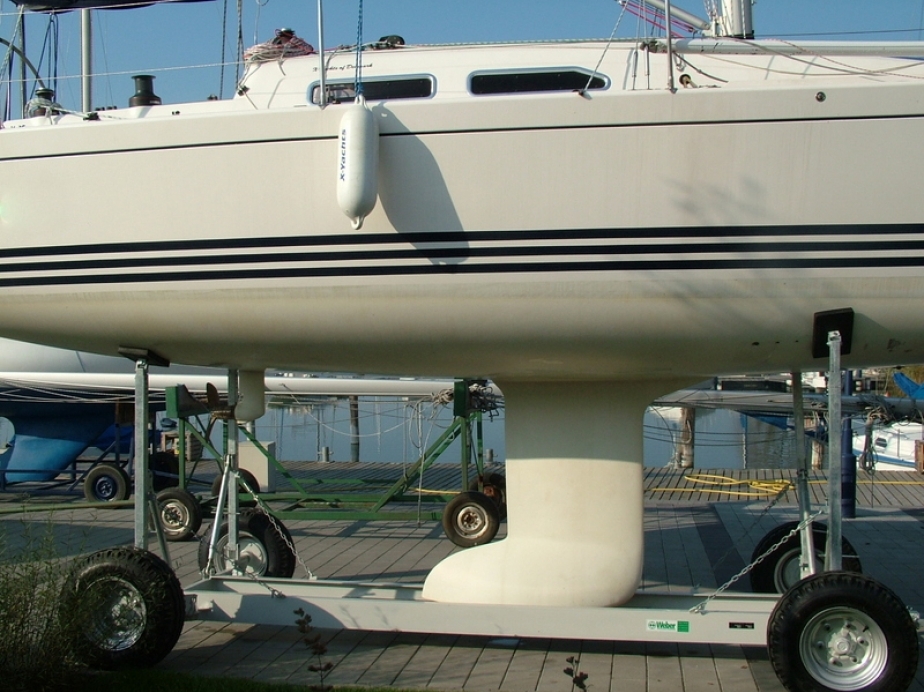

X-35 in very good condition, lake version, shallow draft keel: 1.85m
Hull number DK-XYA35221B909.

Very little used, only as demo boat

Equipped with competition package.

She features:

  • Cockpit teak

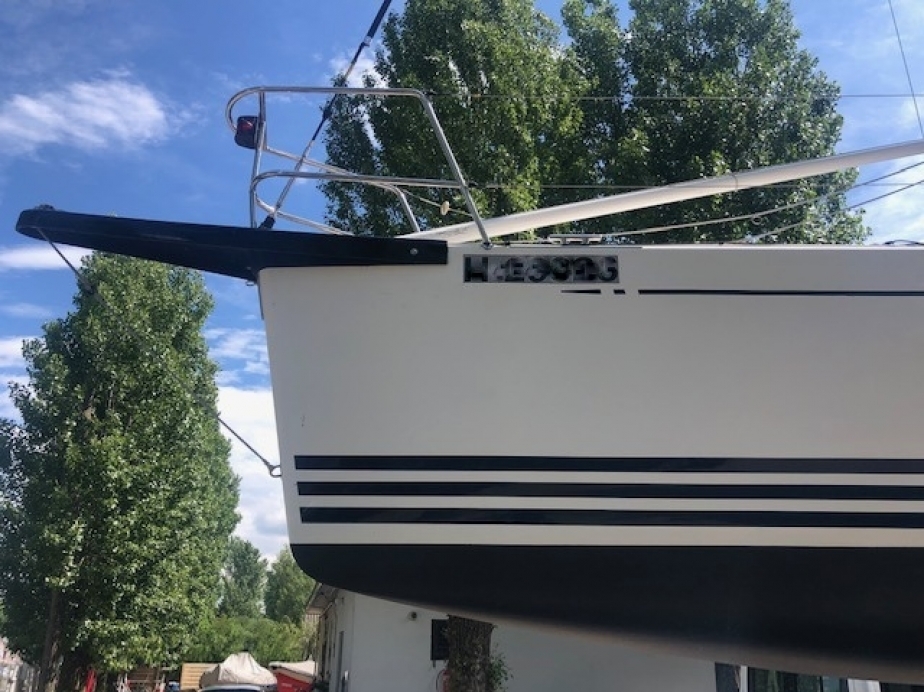

  • carbon bow sprit
  • CodeO system

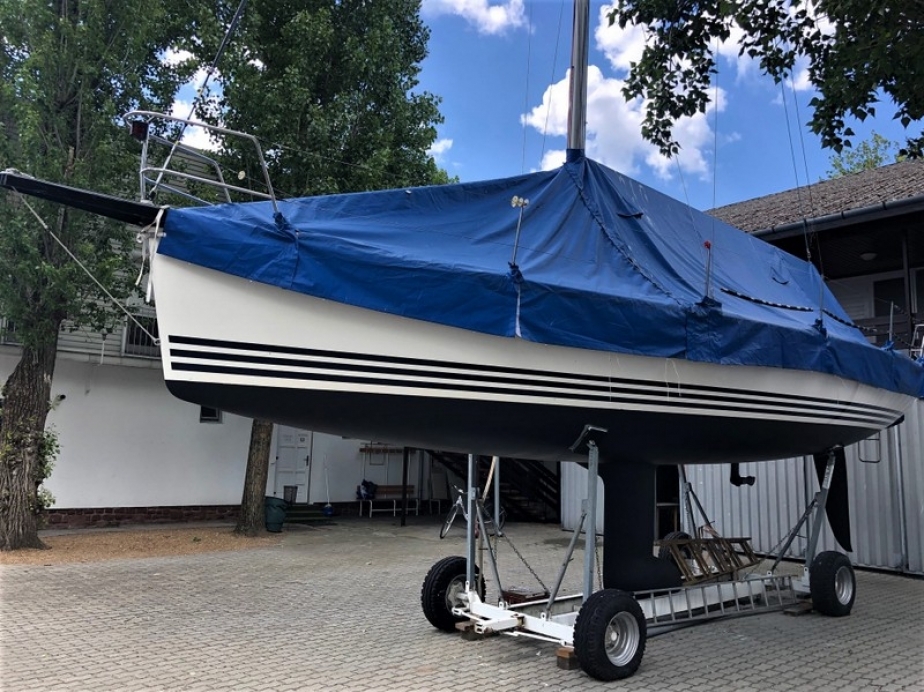

  • Winter cover
  • B&G instruments
  • RM plotter
  • new Seajet 034 black AF
  • etc





Rigging

  • Mast with double spreader, tapered anodised aluminium mast section. The mast is fitted with Windex including light, steaming light, tube for additional electrical masthead equipment and track for spinnaker pole.
  • Anodised aluminium boom incorporates an outhaul including a purchase system inside the boom and one reef line for single line reef system. The boom is prepared for second reef line.
  • Vang, telescopic type with an outer purchase block system.
  • Discontinued rod rig with rod turnbuckles or similar quality
  • The rod head stay with plastic foil including a turnbuckle is positioned at forward end of the bow on the outside chainplate.
  • The backstay system consists of a block system above deck led via a block below deck to an X-Yachts “Power Magic wheel”.
  • The control line will appear on a swivel based cam cleat just in front of the wheel for easy and responsive control by the mainsail trimmer.
  • Carbon bow sprit and CodeO system
  • Carbon spi pole

Running rigging

  • 1 x main halyard          10 mm Spectra
  • 1 x genoa halyard        10 mm Spectra
  • 2 x combi spin halyards 10 mm Spectra
  • Mainsheet:                        10   mm Spectra
  • Mainsheet traveller control:   6   mm Polyester
  • Genoa sheets:                   10   mm Spectra
  • Genoa cars controls:             6   mm Spectra
  • Cunningham:                       6   mm Polyester
  • Vang:                                 6   mm Polyester
  • Reefing lines (1):                10   mm Polyester
  • Boom prepared for second reef
  • Outhaul:                             6   mm Spectra
  • All halyards and reef lines are led via deck organizers to the two halyard winches for simple and safe operation from the cockpit.
  • The control lines (Cunningham, outhaul and vang) are led back on both sides to turnable cam cleat bases, positioned on the coach roof.
  • The Genoa in-hauler and pole down haul are part of the race packet – see extras. Both are led back to fixed or  turnable cam cleat bases, respectively (both sides).

Sails

  • HydeSails Triradial twaron Main Contender
  • HydeSails Triradial twaron Jib Contender
  • North Sails 0,75 105 nm spi
  • Dacron main and pentex jib in good condition

Accommodations

  • Mahogany interior
  • Dome halogen spotlights.
  • Forward cabin has a hinged berth (200x170/65 wide) with easy access to the three compartments below. For cloth, the modern design incorporates a double wardrobe with shelves and hangers (90x55 cm deep). Natural light from the skylight is employed to compliment the polished mahogany woodwork, achieving a warm and cosy atmosphere, also during daylight.

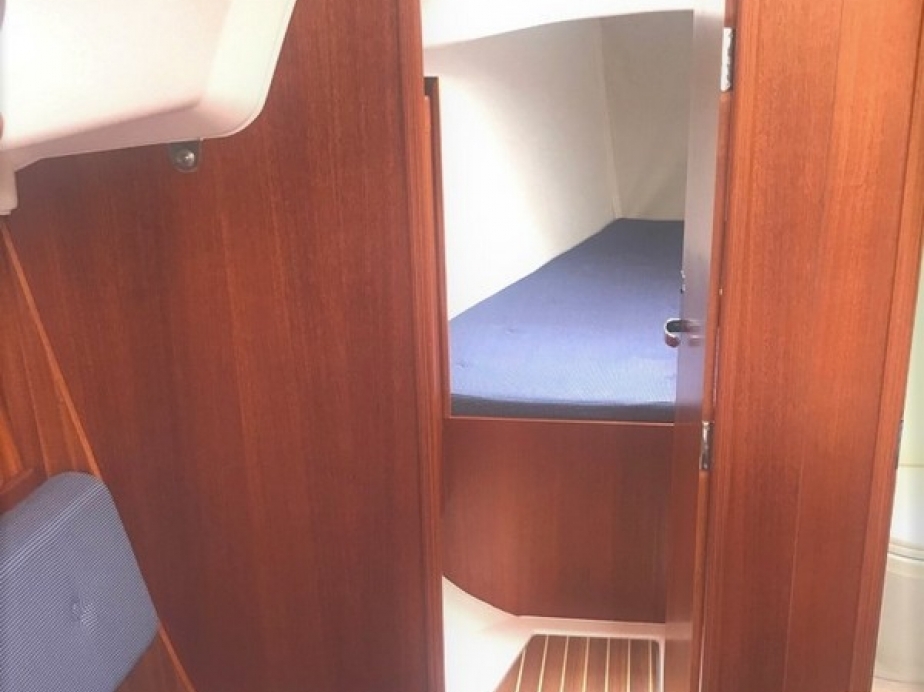

  • Aft cabins. Two berths are 200 x 130 cm wide tapered towards the aft end.
  • Head with a water-flushed pump toilet and white gelcoat units with integrated sink with mixer tap. A holding tank with self-draining outlet, tank level watch and deck outlet can be fitted (see extras).
  • Saloon with on each side of the rectangular shaped, foldable table (110x100 cm) are two large sofas (190 cm long). The table also has a built-in locker.
  • Navigation area starboard of the companionway
  • upholstery ARON BLUE 510.
  • 6 reading lights are placed throughout the aft cabin, saloon and forward cabin.

Galley

To port of the companionway is the galley

  • a rectangular sink with a tap integrated in laminated tabletops
  • s/s gimballed gas stove with 2 jets and an oven. A 2 kg gas bottle is stored in a separate self-draining locker.
  • Shelves and lockers with plexi-glass sliding doors give sufficient storage space for food, plates, cutlery, pans, cups and glasses.
  • Fridge with Danfoss compressor
  • Cold water system

Deck and Cockpit

  • 4 pad eyes for safety harnesses in the cockpit.
  • A 30 mm high toe rail is fitted between bow and shrouds with 2 stainless steel mooring cleats and stainless steel chamfer protection plates at bow.
  • Rope pockets at companionway.
  • One locker is located at the back of the cockpit.
  • Bathing ladder
  • German mainsheet system
  • 6 ball-bearing blocks.
  • Winch jammers for halyards and reef line are placed on the cabin roof, 5 in total.
  • Teak in cockpit, 5mm

Harken winches

  • Primaries/genoa:     2 x Harken B48.2 A
  • Halyards:               2 x Harken B40.2 STQ (Quattro)
  • Mainsheet:             2 x Harken B40.2 STA
  • 3 x 10” speed grip handle with lock.

Electrics

  • 12V DC system
  • Batteries: 1 x 12V 120 amps Gel service and 1 x 12V   55 amps engine spiral-cell battery.
  • 230V AC shore power system
  • Radio / CD player LG with speakers in cockpit and saloon
  • Blue mast/deck lights (mood)

Safety

  • Fire extinguishers
  • Fenders and mooring lines

Electronics and Navigational Gear

  • 1x FFD B&G
  • speed and depth B&G
  • masttop windindications:  213 vertical MHU – 810 mm B&G
  • Hydra processor B&G
  • Halcyon 2000 compass B&G
  • 3 x 20/20 disp. at mast B&G
  • Raymarine 8.4`plotter
  • Autopilot 3000 ACP1 pilot
  • SUUNTO B115 compass, 100mm

Additional

  • 10 kg galvanised Trefoil anchor with 30 m warp including lead insert.
  • wintercover blue
  • mainsailcover
  • NEW Seajet AF 034 black 2020
