General

Twin rudder system

Rigging

• 2nd spinnaker and jib halyard
• Twin groove forestay foil
• 2 spinnaker barbers installation
• All sheets and lines from Gottifredi Maffioli New 2023
• Black anodized AG+ aluminum boom with internal 8:1 clew outhaul system to lead to cockpit, boom vang attachment, mainsheet block termination with sheaves for two reef lines and outhaul.
• Rigid boom vang with double ended 18:1 purchase to cam cleats on aft corners of coachroof.
• Dyform standing rigging with soft backstay.
• 48:1 cascade purchase system for backstay control.

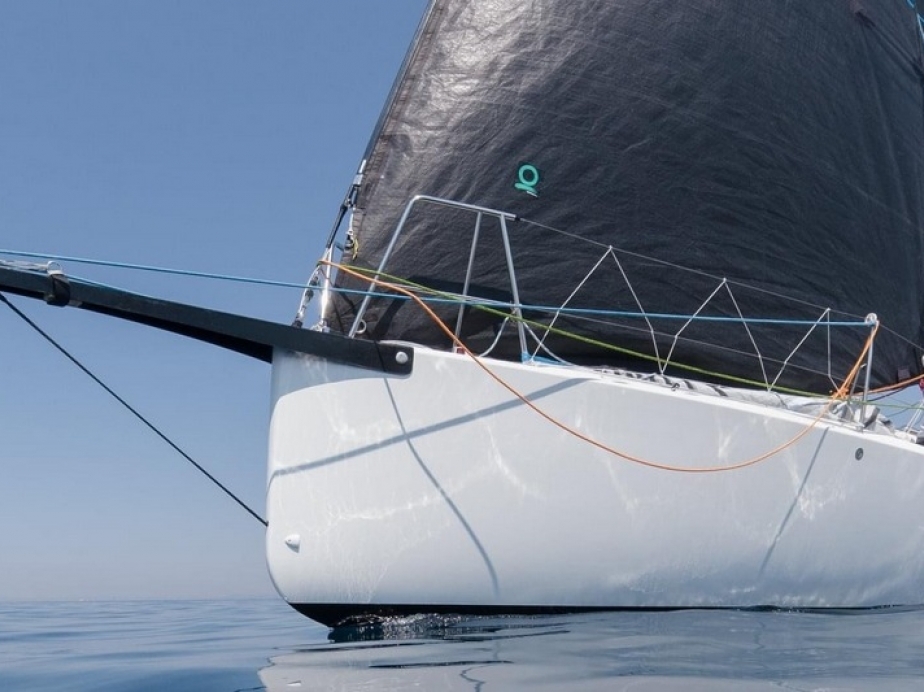

• Fixed carbon fiber bowsprit painted black, with tack line padeye & underside bobstay attachment.

Sails

QUANTUM SAILS

• FUSION M® M5 MAIN Sail Area: 35.077 m2 P: 12.770 m E: 4.360 m
• FUSION M® M5 J2 Sail Area: 28.635 m2 I: 13.220 m J: 3.850 m LP: 106 %
• FUSION M® M5 J3 Sail Area: 25.432 m2 I: 13.220 m J: 3.850 m LP: 101 %
• ASYMMETRICAL CODE ZERO A0/A3 Cable less Sail Area: 84.144 m2 ISP: 14.430 m J: 3.850
• ASYMMETRICAL A2 Sail Area: 108.768 m2 ISP: 14.430 m J: 3.850 m
• QUANTUM DACRON J4
• QUANTUM STORM JIB ( new never used)
• QUANTUM TRY SAIL (NEW never used)



ONE SAILS

• J1 2022 Vantage One Filmless Dyn SK99/Twaron

Accommodations

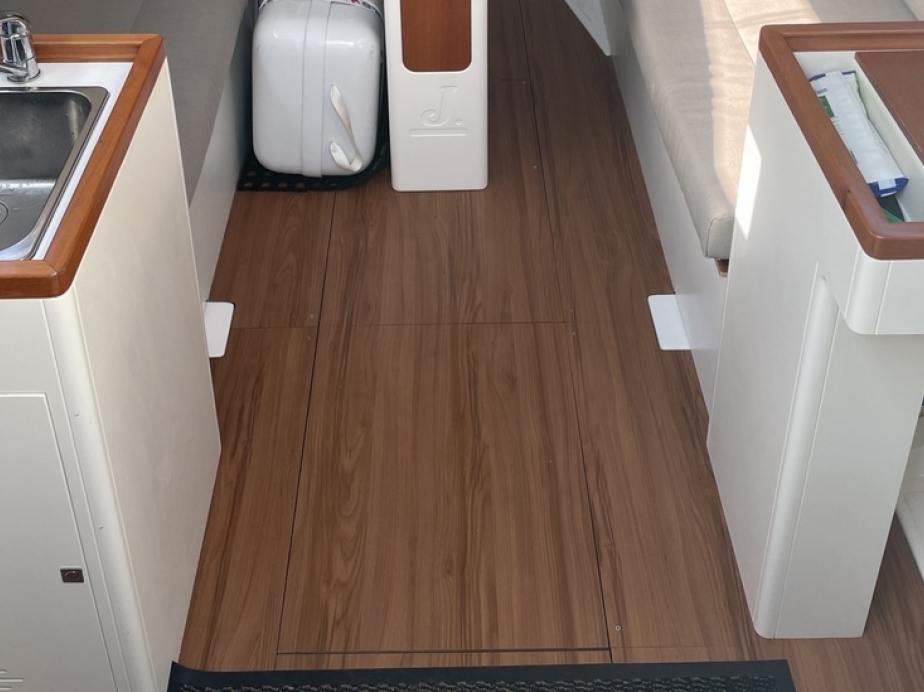

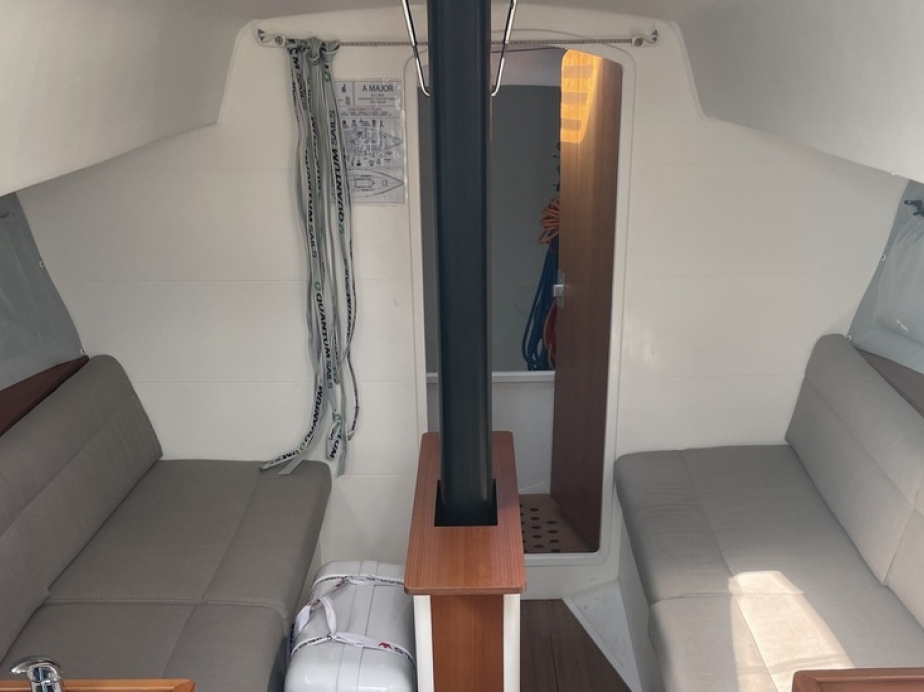

• Spacious saloon with standing headroom and natural light from 2 fixed acrylic deck ports, saloontable with fold down sides. Matching settee berths to port and starboard with cushions and backrests.
• Storage compartment areas behind back rests and below settee platform. Mesh storage bags on hull sides.

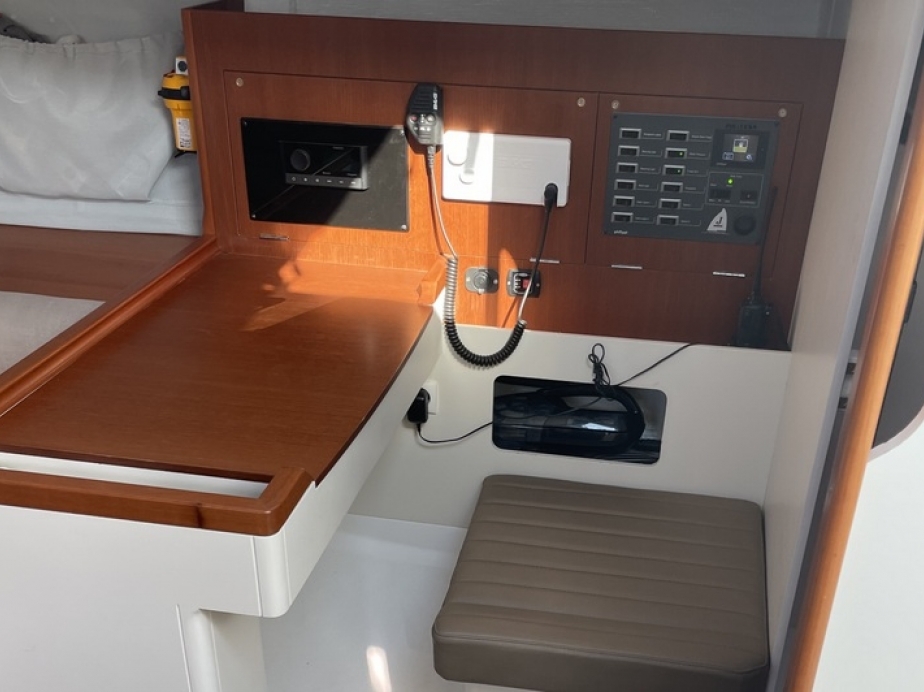

• Sit-down, forward-facing navigation chart table with lifting table lid, chart storage, instrument storage & mounting panel outboard, and nav gear storage shelves under the table. Additional storage opportunities located outboard and under the seat.

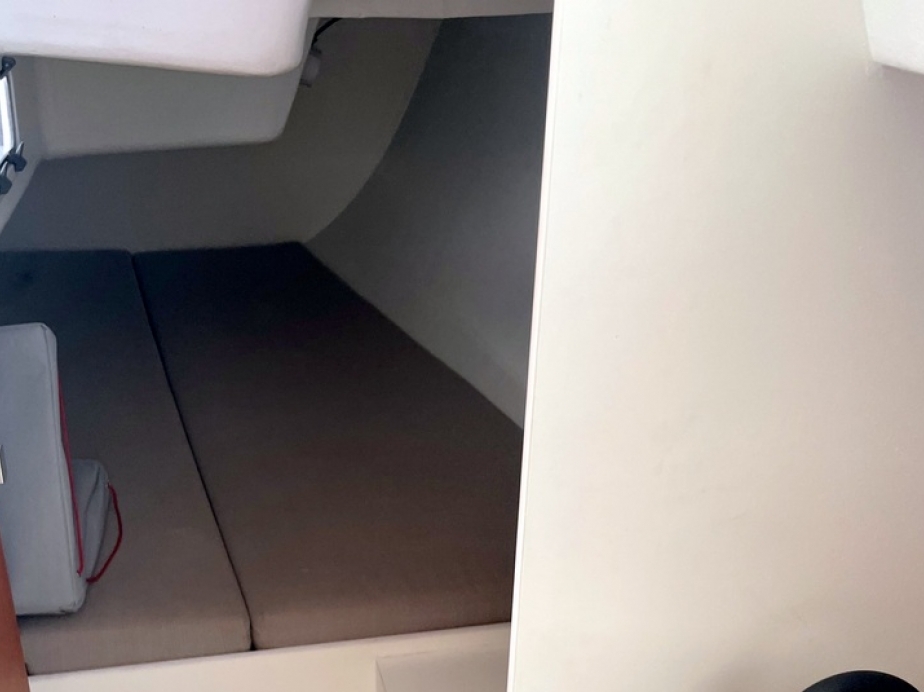

• Twin double private quarter berth cabins aft, each equipped with cushion, reading light and storage vanity. Additional storage below berth.
• Beige upholstery

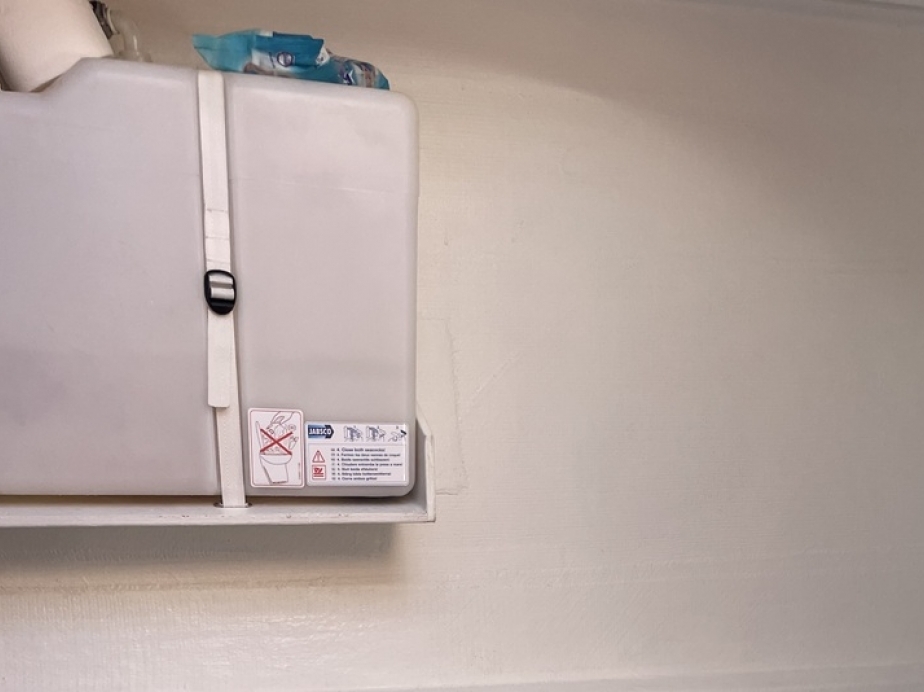

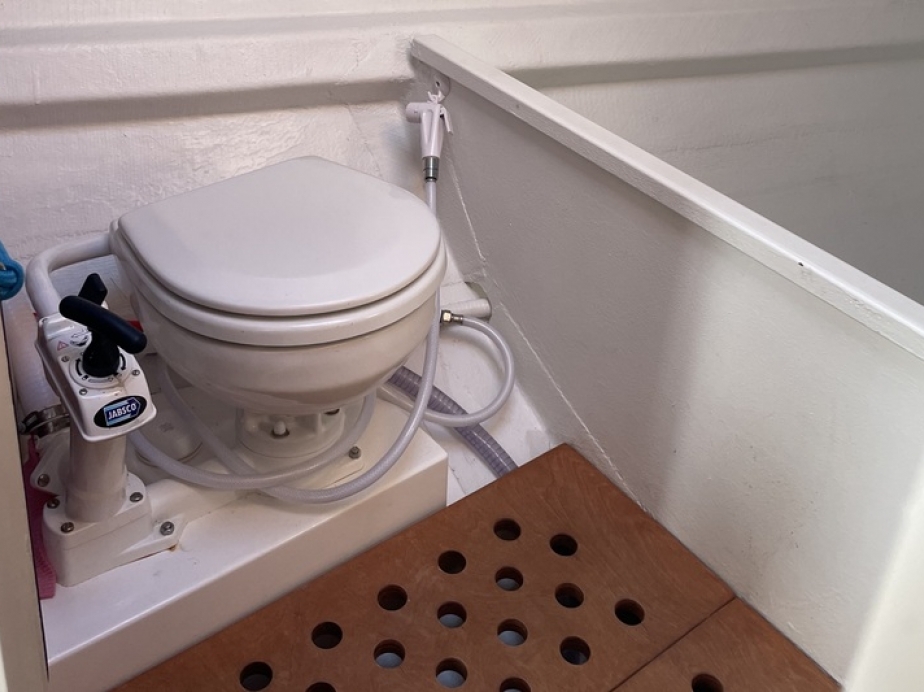

• Toilet shower (cold water only)
• Additional toilet floors

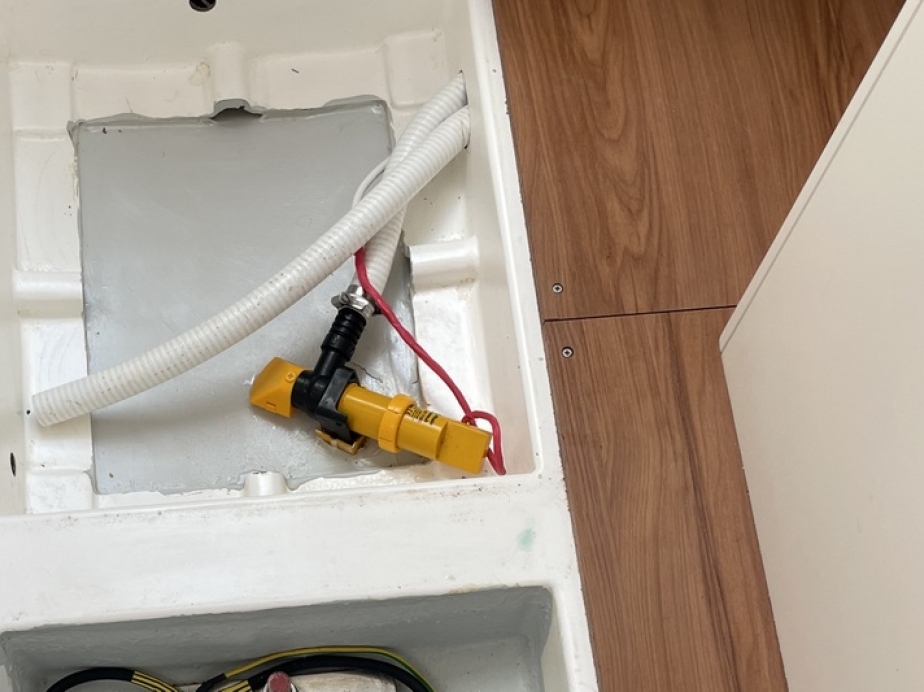

• Additional toilet bilge pump

Galley
Galley with “L” shape configuration

• top opening insulated icebox

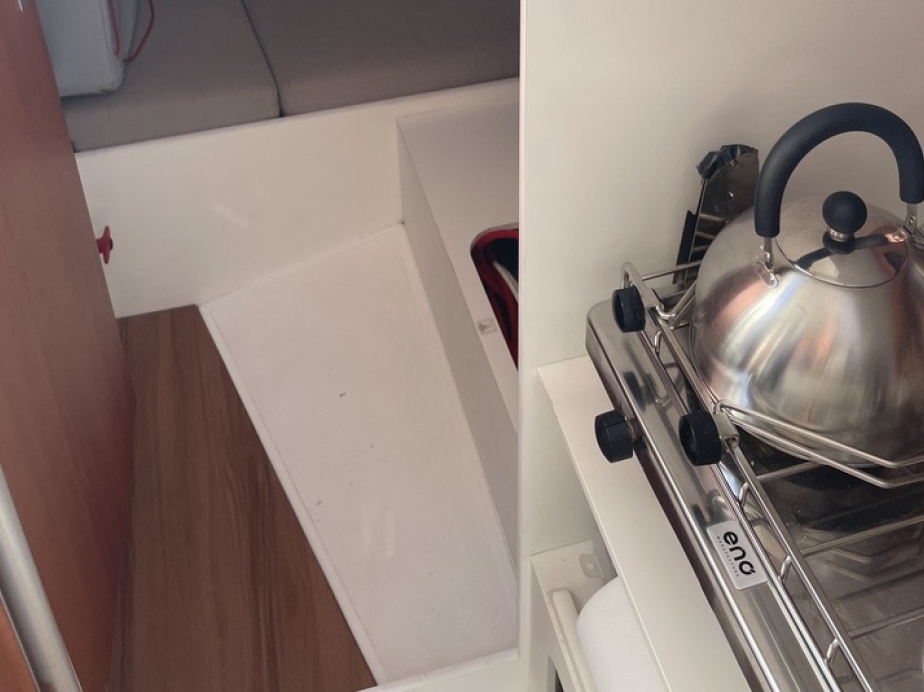

• single-burner stove with gimbal
• polished SS sink with overboard drain
• dry goods storage outboard and storage & trash locker below the sink & under the stove.
• 12V fridge unit

Plumbing

• pressurized freshwater system & faucet
• 100L (26 gal.) flexible freshwater tank under aft starboard quarterberth.

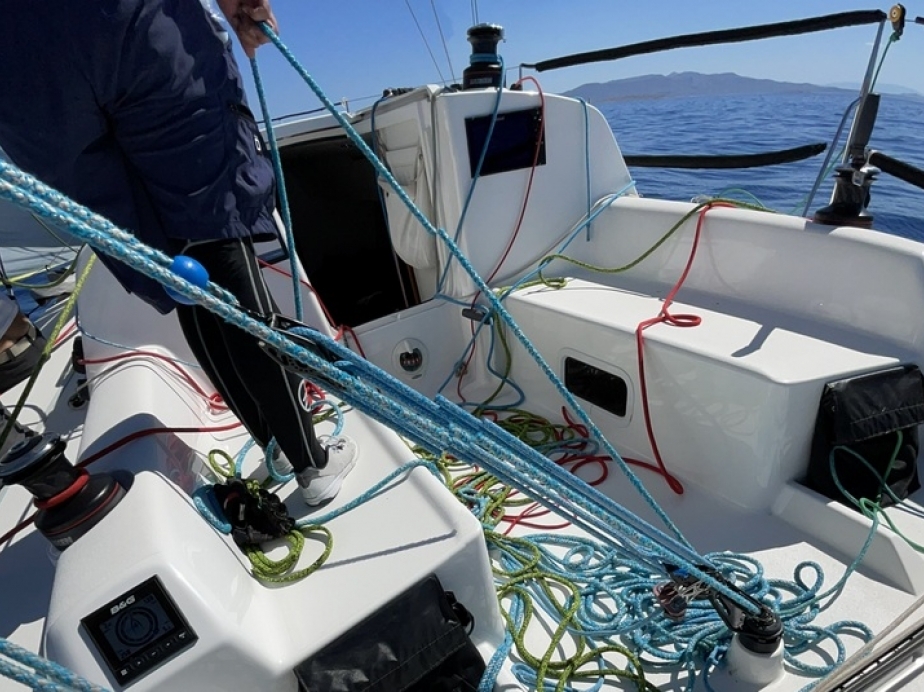

Deck and Cockpit

Deck Hardware

• Primary winches: 40:1 power ratio, aluminium self-tailing configuration with 2-speeds, mounted on cockpit coamings.
• Secondary winches: 35:1 power ratio, aluminium self-tailing configuration with 2-speeds, mounted on aft end of coach roof on each side of companionway.

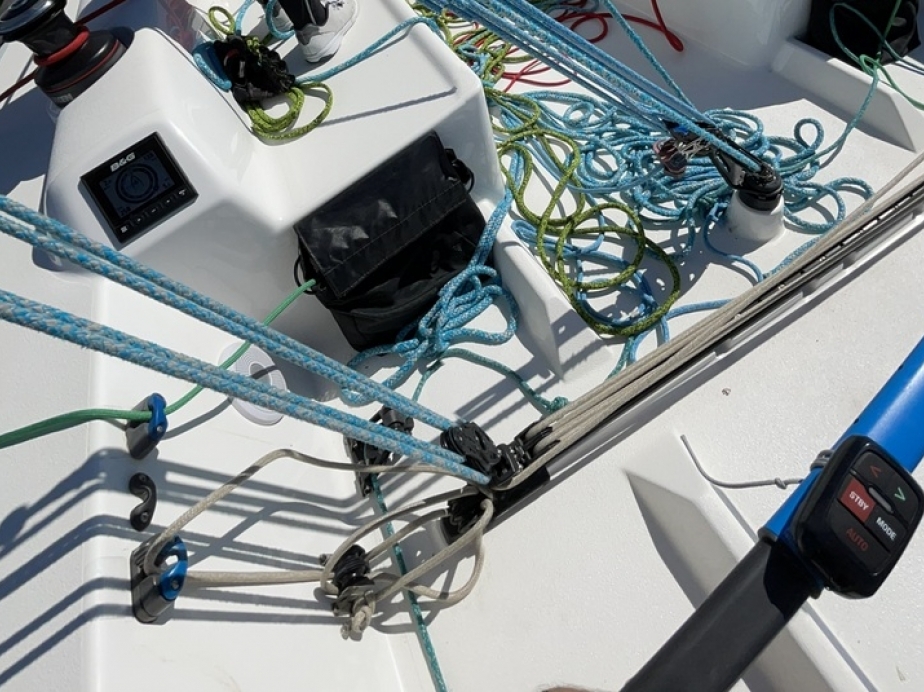

• Mainsheet purchase system with 6:1 coarse-tune terminating to centerline swivel cam base, and with 24:1 fine tune purchase.
• Mainsheet traveller track mounted to raised molding at cockpit floor with drainage below and with 4:1 control purchase system at each side of cockpit.
• Adjustable jib lead system with floating lead blocks, 8:1 inhauler system, and cockpit controls.
• Jib sheet turning blocks attached to padeyes on the side deck outboard of the cockpit to deflect jib sheet to the primary winches.
• Turning blocks for spinnaker sheets attached to padeyes & stern rail points.
• Fairleads and rope clutch for spinnaker tack line (on starboard side of coach roof).
• Clear anodized mast collar with lead block attachments for halyards and reef lines.
• Halyard organizer blocks on each side of seahood.
• Rope clutches for cabin top halyards, reef and mast control lines.

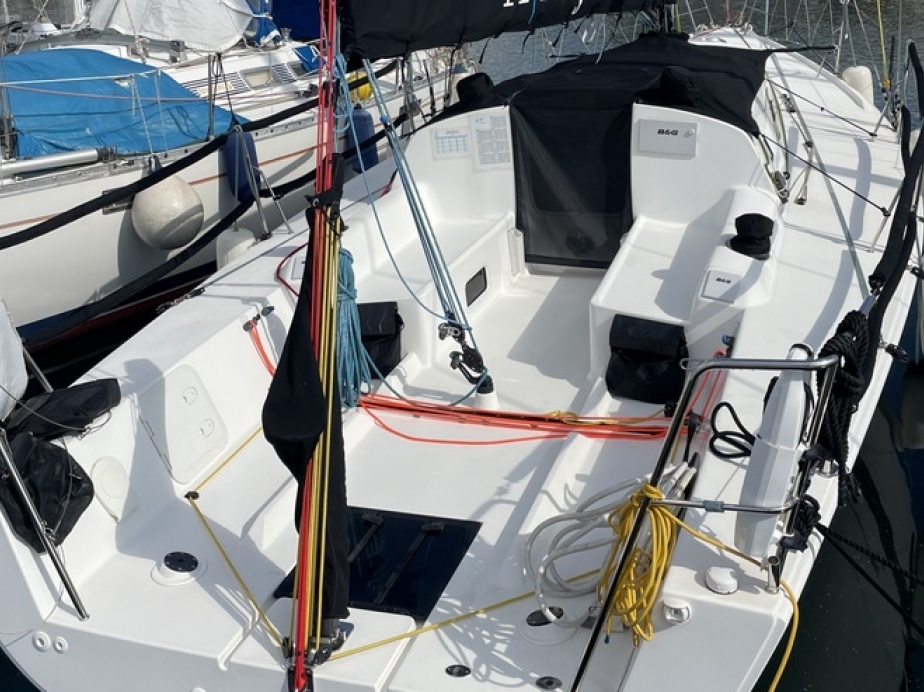

Deck/cockpit

• Composite tiller with vertical articulating tiller head and universal telescoping tiller extension with handle grip. Stainless steering stops are built into the tiller bearing at the deck.
• 2 additional opening ports in cockpit
• Retractable and removable swimming ladder
• 4 cockpit rope bags
• Deck cover
• Main sail cover
• Tiller cover
• Winches covers
• Exterior cockpit sofa
• Cockpit shower (cold water only)

Electrics

• Inverter 1000W
• 100 amp AGM house battery
• 70 amp AGM engine start battery with switches and double diode/circuit breaker.
• Master battery on/off switches located under nav table.
• 12V DC distribution panel mounted outboard in nav station.
• Overhead LED lighting in main cabin.
• Cabin lighting in the head area & aft cabins.
• LED bow and stern navigation lights.
• Electric bilge pump.

Engine

• VOLVO D1-20
• Sail drive
• 180 Hours approx.
• Keyless Volvo engine panel in cockpit.
• 50L (13 gal.) diesel fuel tank located under port settee.
• Hi/low engine room ventilation fan.

Safety

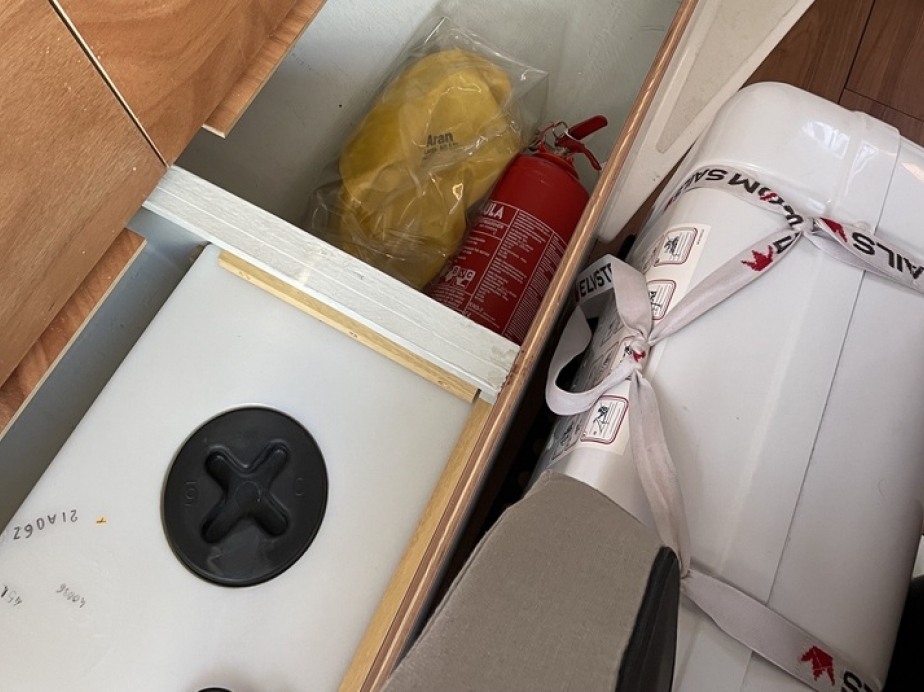

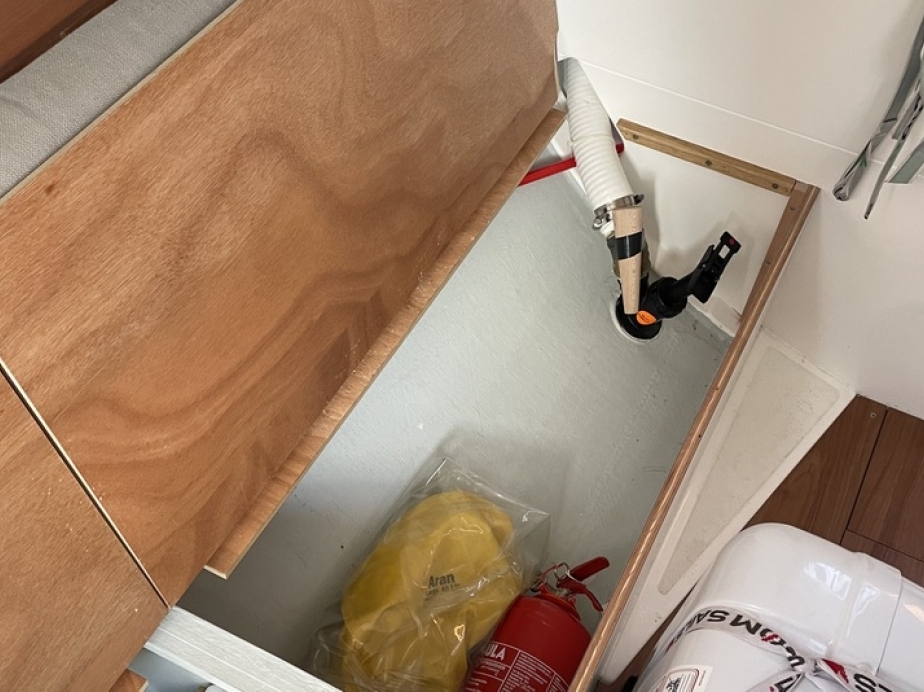

• FIRE EXTINGUISER 6 Kl in base under galley sink

Electronics and Navigational Gear

Electronics : ALL B&G

• B&G ZEUS3S 9 MFD,WORLD BASEMAP
• TRITON2 DIGITAL DISPLAY 2pieces ……………mast mount
• Triton2 Speed / Depth / Wind pack …………..Cockpit
• Triton2 Pilot Controller & Display ………………Cockpit
• AUTOPILOT ELECTRIC RAM 12V
• VHF with AIS Transeiver  B&G V60-B
• GMDSS DBC-1212 POWER SUPPLY & CHARGER 12/12 with extra battery
• FUSION Stereo system with 2 Cockpit speakers
