General

MAT1220 for sale!

Naval Architect: Mills Yacht Design / Mark Mills
Composite Engineering: SDK Structures / Steve Koopman

The MAT 1220 is a modern IRC racer designed for versatile inshore and offshore performance. Based on proven French-style IRC principles, the design combines medium displacement, pronounced bow overhang, a moderate-draft fin keel, and a refined sail plan to deliver strong corrected-time performance—particularly above 12 knots true wind, while remaining competitive in lighter conditions.

The sail plan is optimised around a low-rated pinhead mainsail, with an optional square-top for increased light-air performance. Base IRC rating is approximately 1.155, rising to around 1.190 with the square-top.

Building on the MAT 1070, the MAT 1220 features a large, open cockpit suitable for both high-level racing and family sailing. The interior is available in multiple configurations, from stripped racing to offshore and racer/cruiser fit-outs.

Designed with SDK Structures, the boat offers a socketed fin keel system (standard fin or deeper bulb), optional twin rudders, and a range of winch configurations. An ORC-optimised configuration is also in development.

Every choice for this boat was made with performance in mind, from the painted lightweight hull to the stiffness-tuned Axxon carbon mast. No expense was spared; full North Sails 3Di wardrobe, carbon deck gear, twin rudders, water ballast, and a cockpit redesigned for pure race efficiency.

She thrives above 12 knots but stays lethal in the light stuff, always punching above her rating. The systems are dialed, the bottom is fresh, and the race inventory is complete. Professionally maintained and endlessly optimized, she is fast out of the box and faster with the right crew. This isn’t just a MAT 1220, she is the fastest one built. A true turnkey race yacht, ready to step straight onto the start line. A winning boat, specced to the absolute maximum, with nothing left on the table.

Hull & Finish

• Full bottom refinish before the Admirals: faired, longboarded, finished to 2000 grit, and polished antifouling.
• Special attention given to rudder–hull junction and alignment marks

Steering & Rudder Systems

• Boat includes double rudder upgrade + new E-bar for precise tow-in/out calculations.
• Single rudder also included swapping between single and double setup takes 2–3 hours

Water ballast system
Fully removable, including tanks, Pumps,Switches fully tested and works excellent!

Keel:

The keel has two draft options

• Boat was Painted to avoid gelcoat extra weight
• Keel has been faired

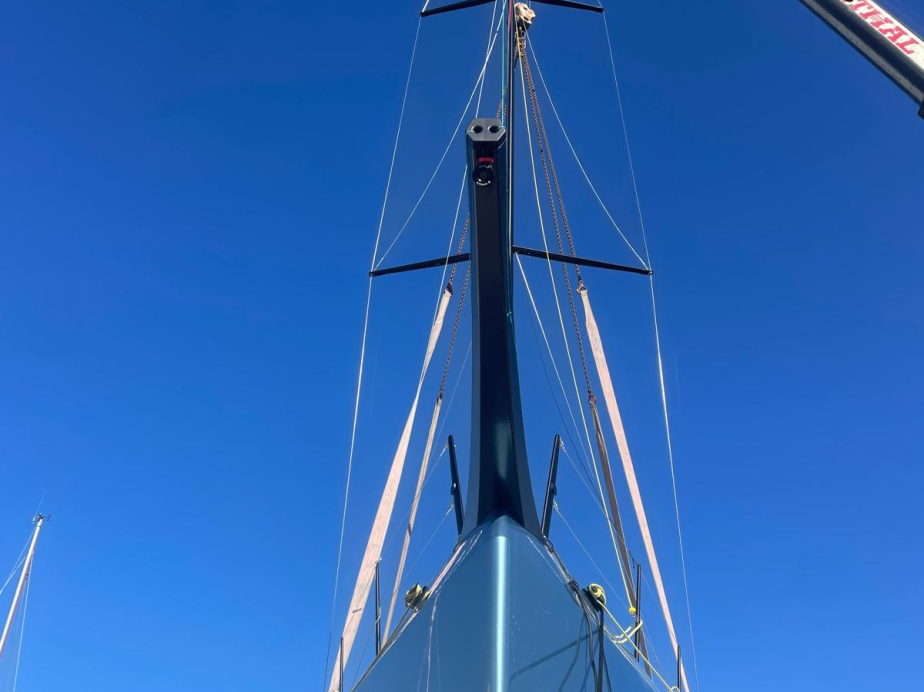

Rigging

Axxon Composites

• HR standard modulus carbon fiber mast,
• 2 x mast head Kevlar 7T backstay tails to winches
• 2:1 main halyard sheave box
• Double masthead sheave box for spi
• 2 x Deflector for Fracc Halyard
• Carbon spreaders
• Carbon gooseneck and vang bracket
• Rigid vang
• RAL 9005 black finish
• BSI Rod rigging
•  internal mast jack
• Prepreg carbon autoclave cured bow sprit
• Spare bowsprit prefitted ready to swap fast.
• Mast is Taller/Longer Than standard Mat1220

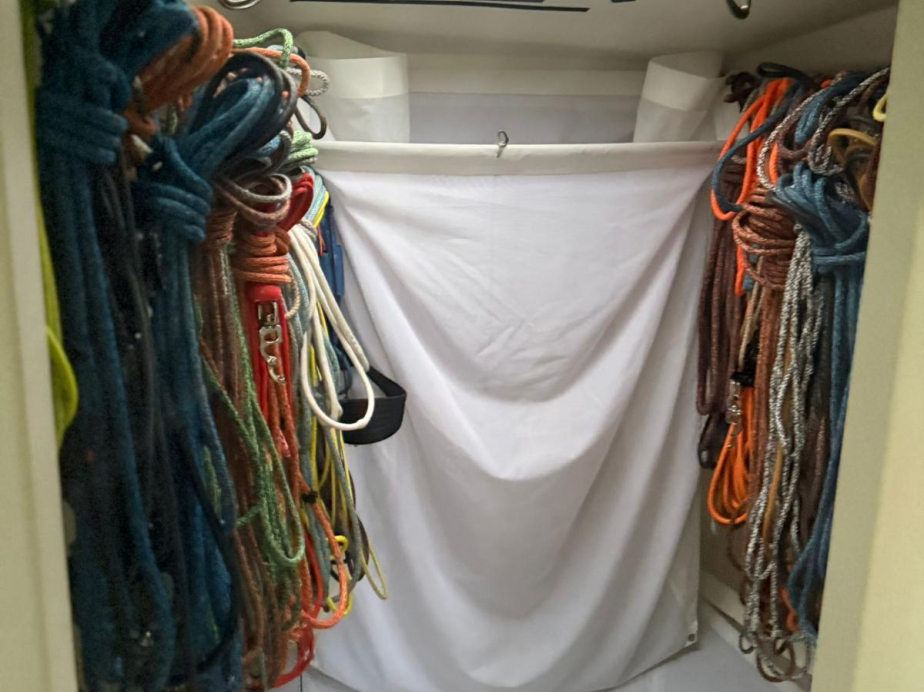

Upgraded running rigging — almost new, with extensive spares:

• 2 full sets of FULL PBO runners (one used only in Malta) + other older sets.
• 4 sets of jib sheets + some extras
• 3–4 sets kite sheets +some extras
• Old + new jib halyards (new one used only in Malta) + 1 spare   on trailer brand new.
• 2 tack lines rigged (one newfrom MMSR + 1 spare).
• New mainsheet (MMSR), new furling line, etc.
• All running rigging are in Excelent condition

Sails

North Sails
All sails developed with our design team and custom and in excellent condition.

Mainsails:

• Main A – 3Di North, 2 reefs.2024
• Main B – 3Di North, 2 reefs (used only at Admirals & MMSR).2025

Jibs:

• Light A – modified luff curve.2024
• Light B – used only at Admirals & MMSR.2025
• Medium A – training/delivery sail.2024
• Medium B – race sail (used only at Admirals & MMSR).2025
• Heavy – tested but never used .2024

Storm / GS Sails:

• GS 3Di2024
• GSB orange dacron (new for MMSR, ).2025
• Both GS sails hoisted with 2mm stay custom system.

Staysails:

• SS A 2024
• SS B (new, slightly smaller ) 2025
• Both furling.

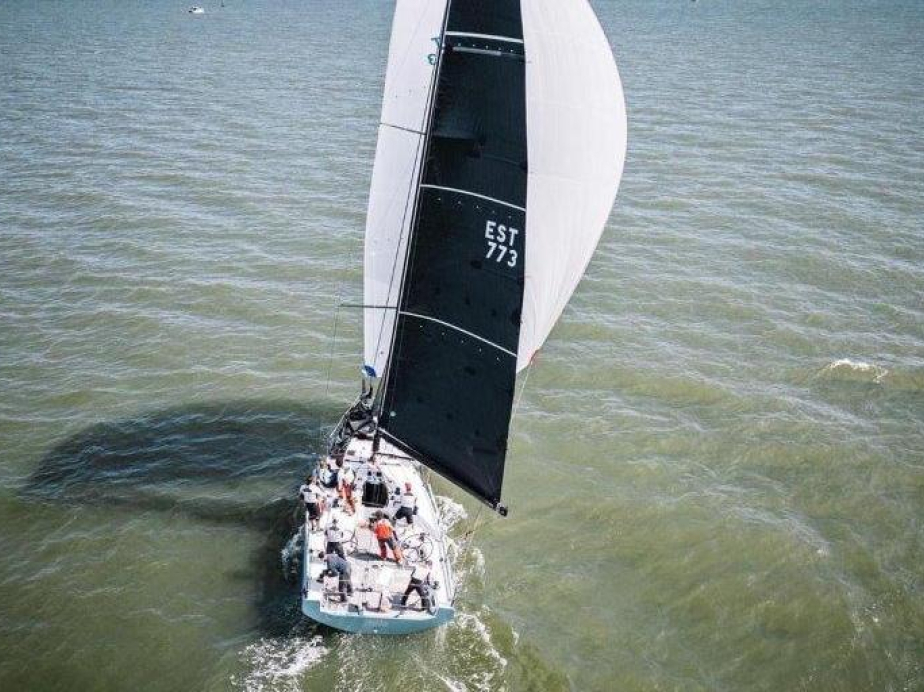

Kites:

• A1B – excellent. 2025
• A2A 2024
• A2B – very good (repaired but maybe total hours seen is less than 15 h). 2025
• A2C – used only ~2h. 2025
• A2+ – brand new, only hoisted pre-MMSR for testing. 2025
• A3 – excellent. 2024
• A4 – excellent. 2024

Code & Specialty Sails:

• Code 0 laminate, top-down furling (used only at Admirals). 2024

Storm Jib and Storm Main also included. 2024

Accommodations

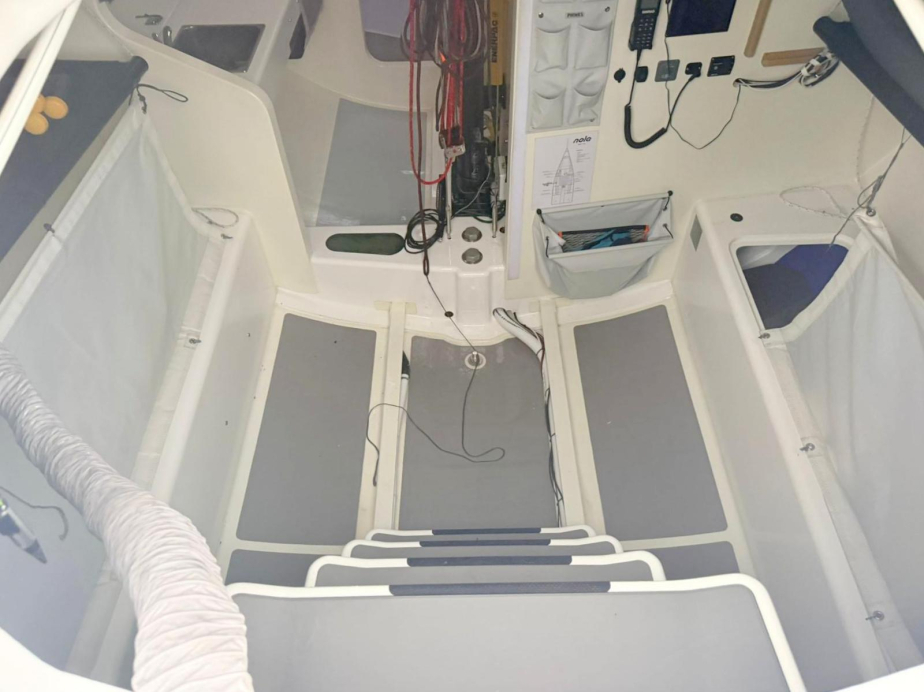

Interior

• Bulkheads and interior components in PVC foam cored composite glass sandwich

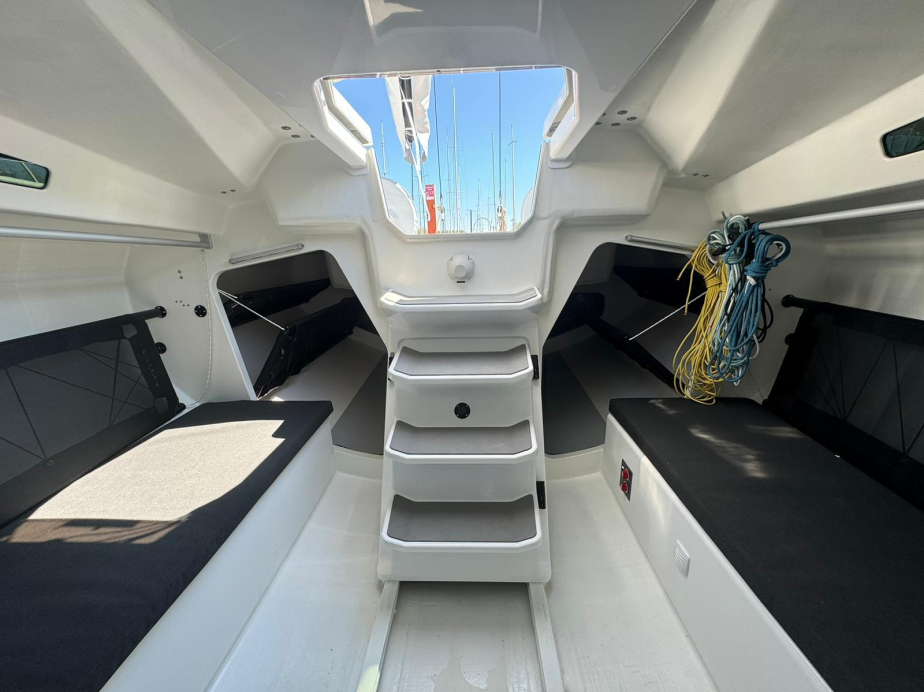

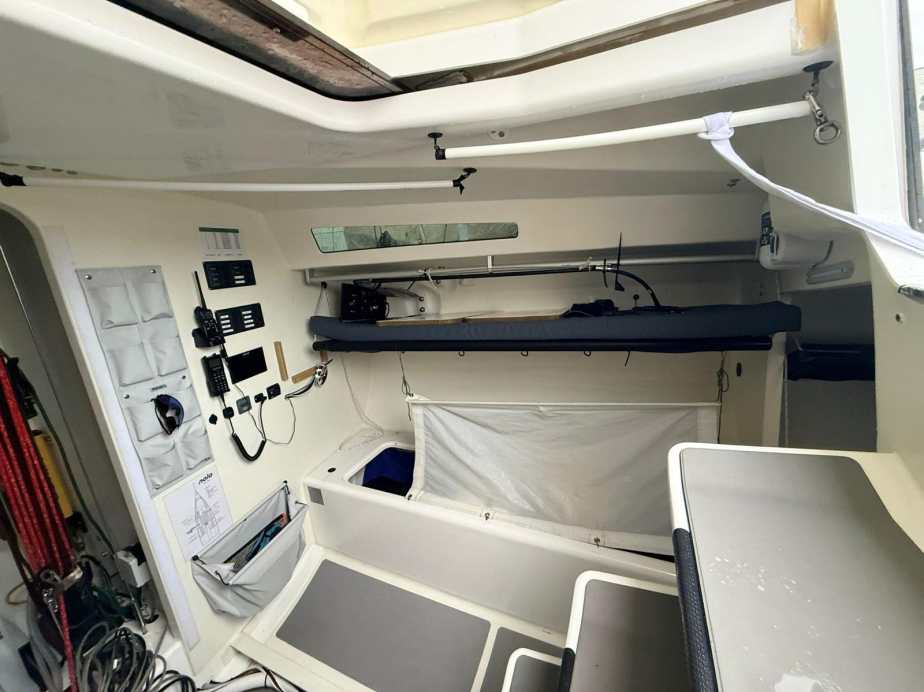

Central cabin:

• Lightweight composite companionway ladder for easy access to engine
• Composite bunks stb&port
• 2 mesh pipe cots over bunks serve as backrest when folded down
• Lightweight composite nonskid floor boards (never used)
• waterproof cushions new 2025

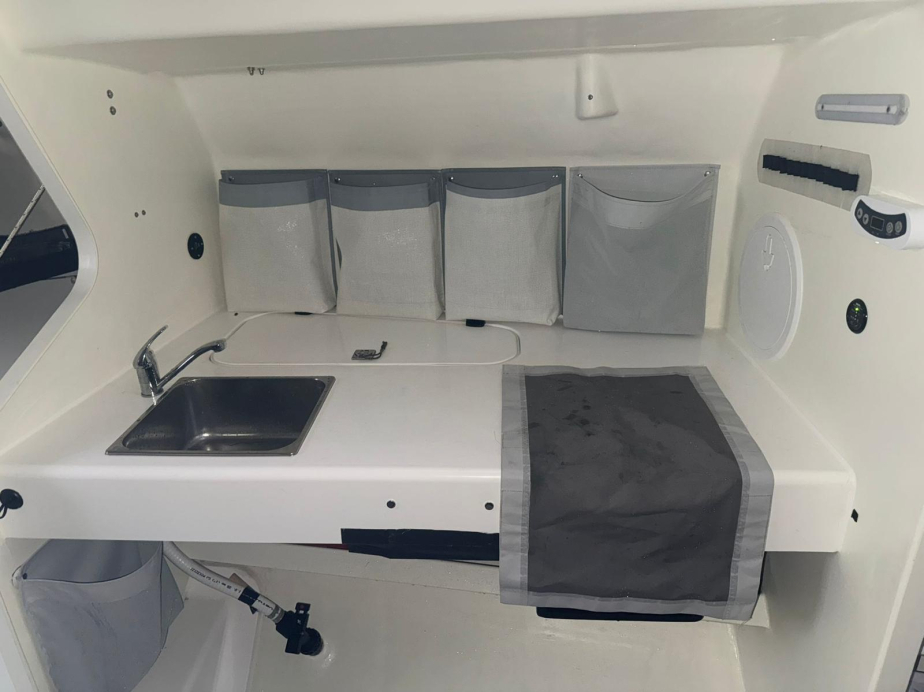

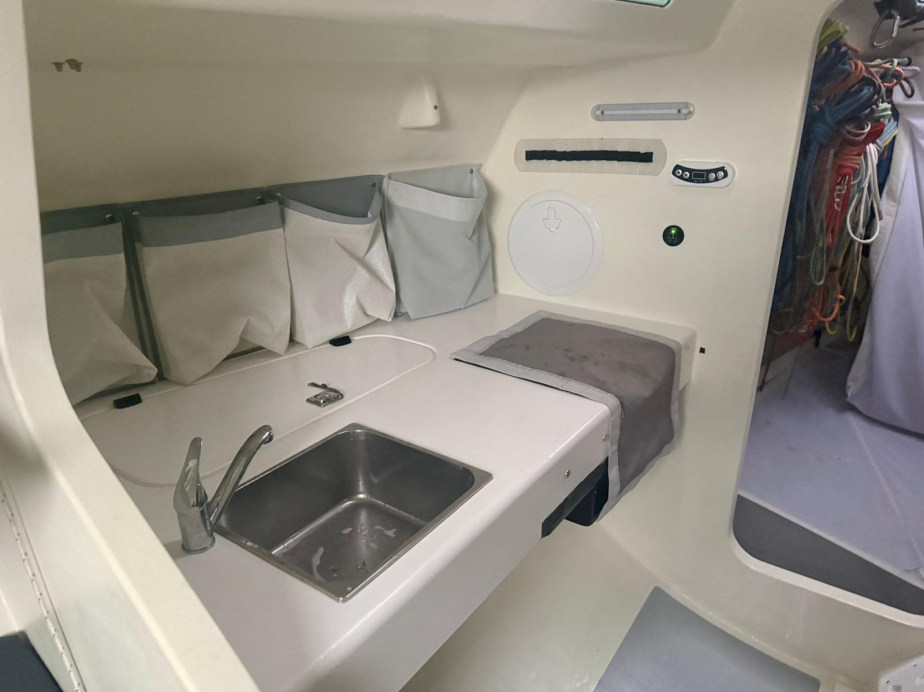

Galley:

• Custom carbon galley
• Eno gimballing single burner gas cooker (spare)
• Fridge with light compressor.
• Can Marine stainless steel galley sink

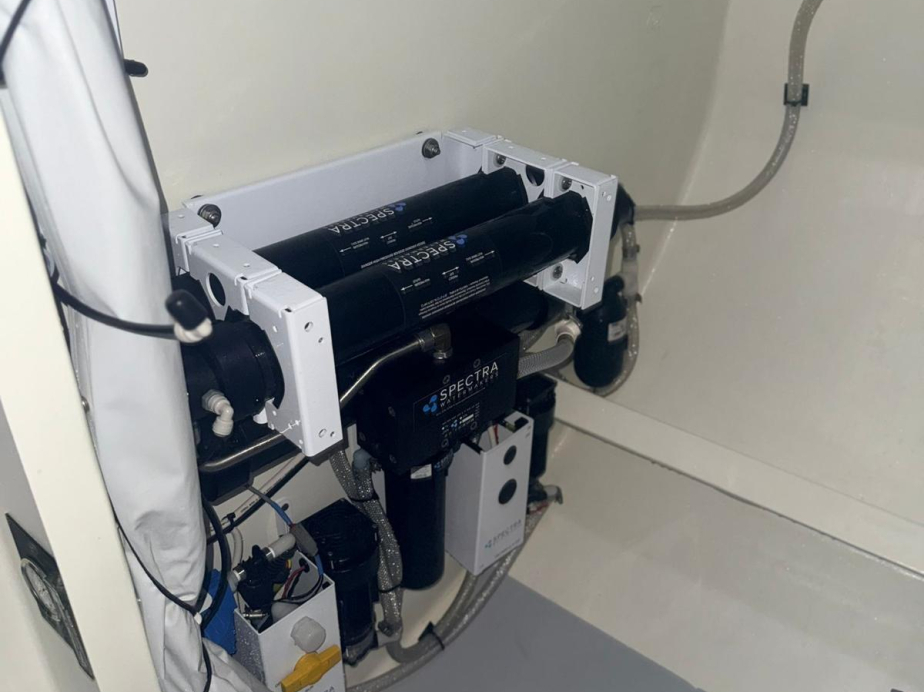

• Watermaker with 25L daily tank connected to the sink.

Enclosed heads:

• Can Marine hand basin
• Jabsco marine manual toilet

Aft Section

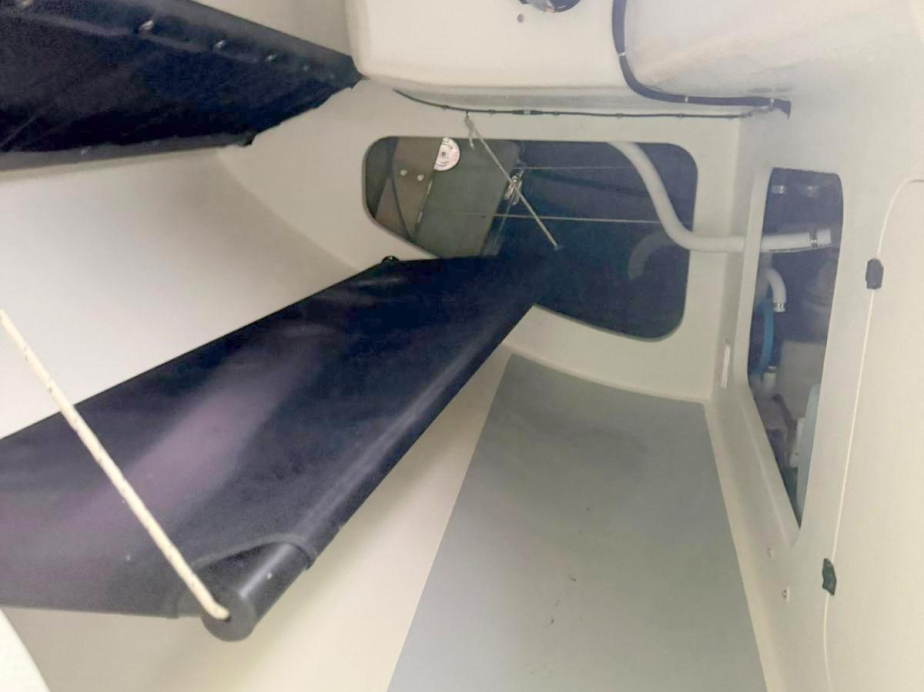

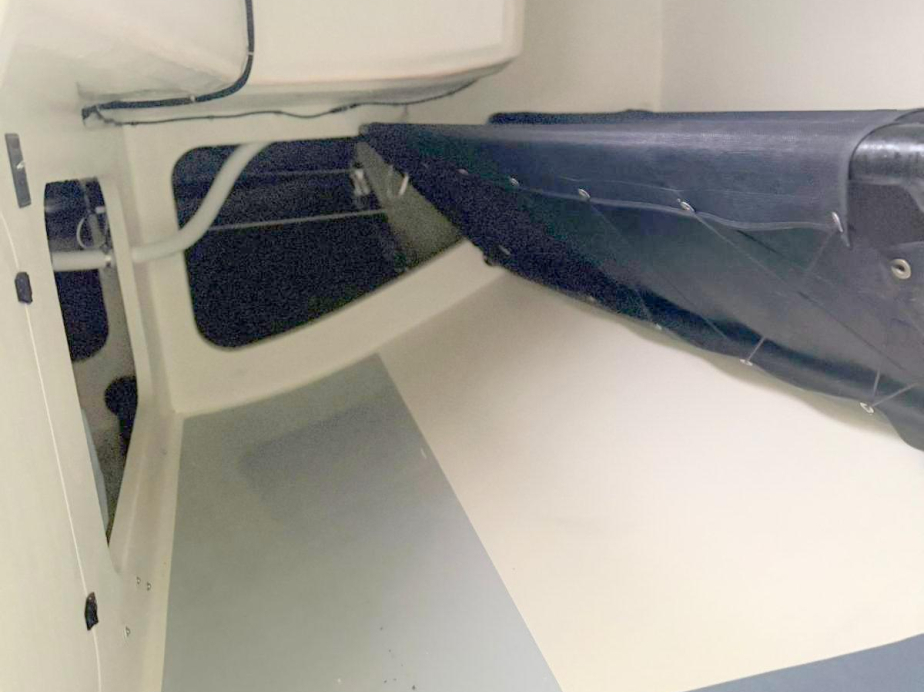

• 4 mesh pipe cots, 2 in each cabin, over under

Plumbing

• Plastimo 200 l flexible fresh water tank
• Jabsco pressurized fresh water pump
• Jabsco manual bilge pump 3000 l/h operated from cockpit
• Rule electric bilge pump 7570 l/h
• Forespar racing marelon flush valves, when the valve is closed, the internal plunger and valve creates a flush, fair & fast outer surface

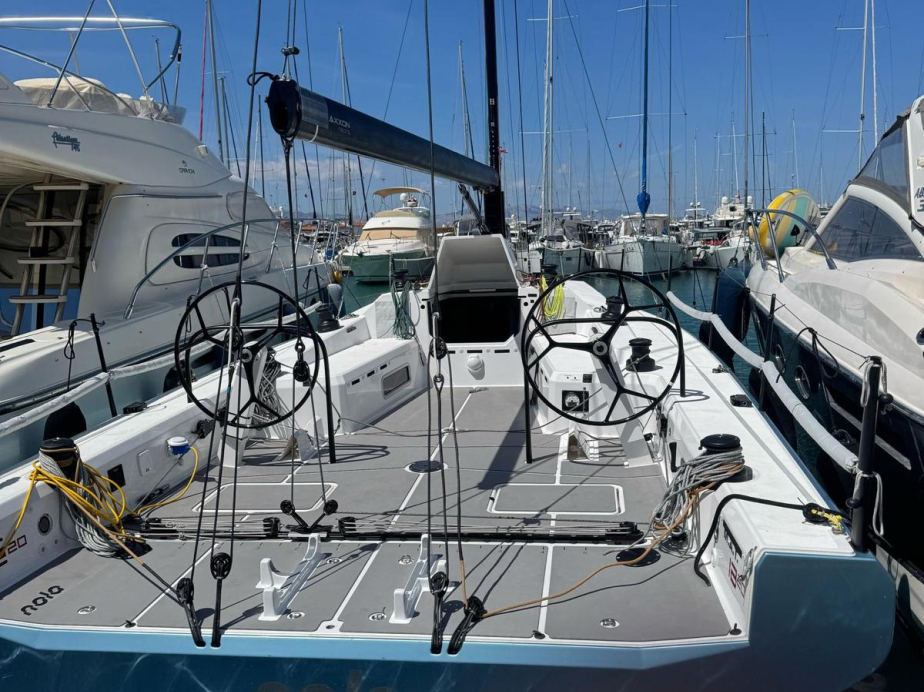

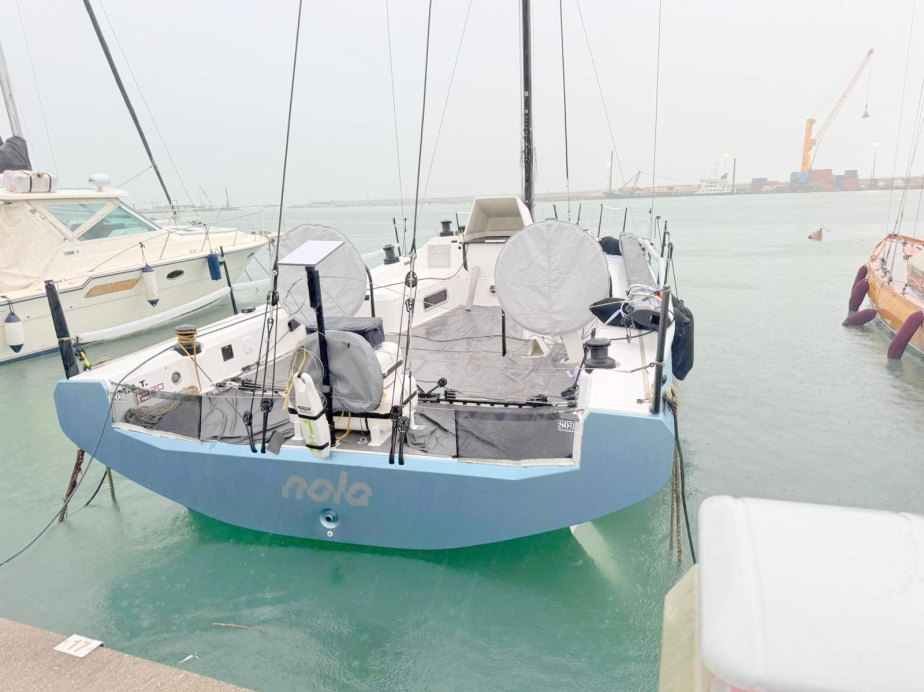

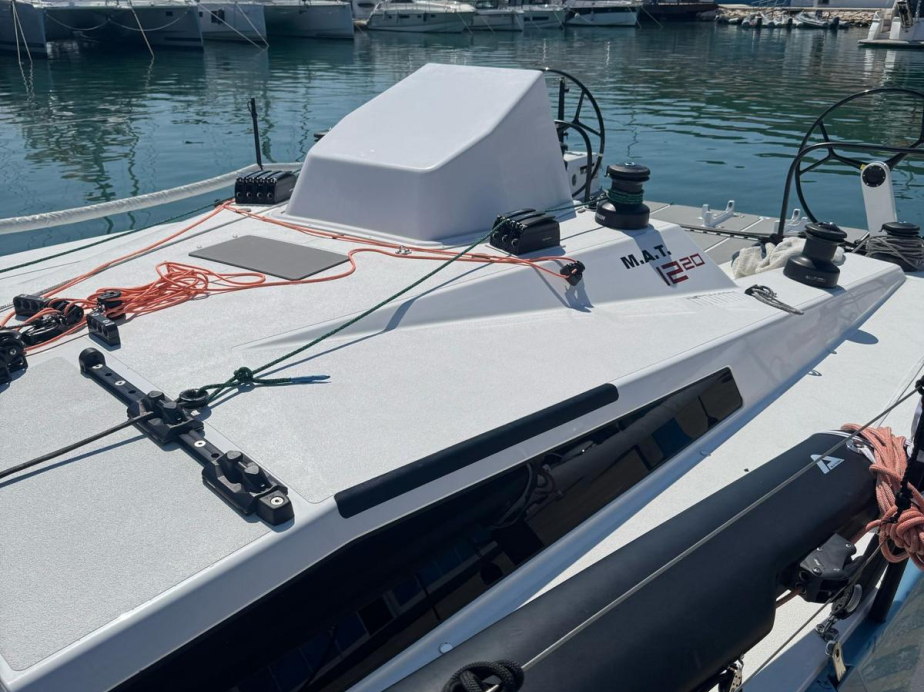

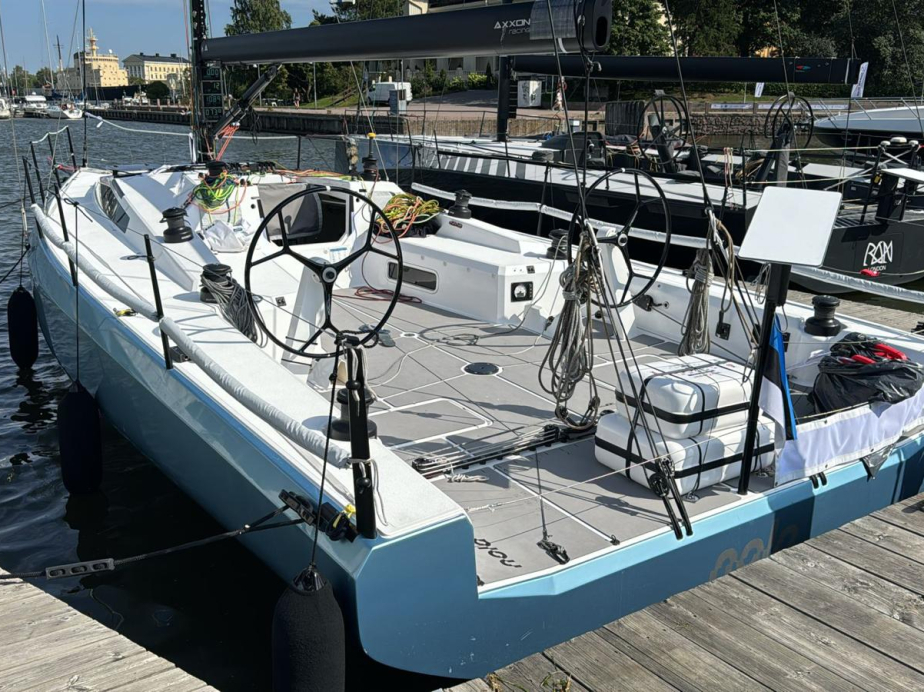

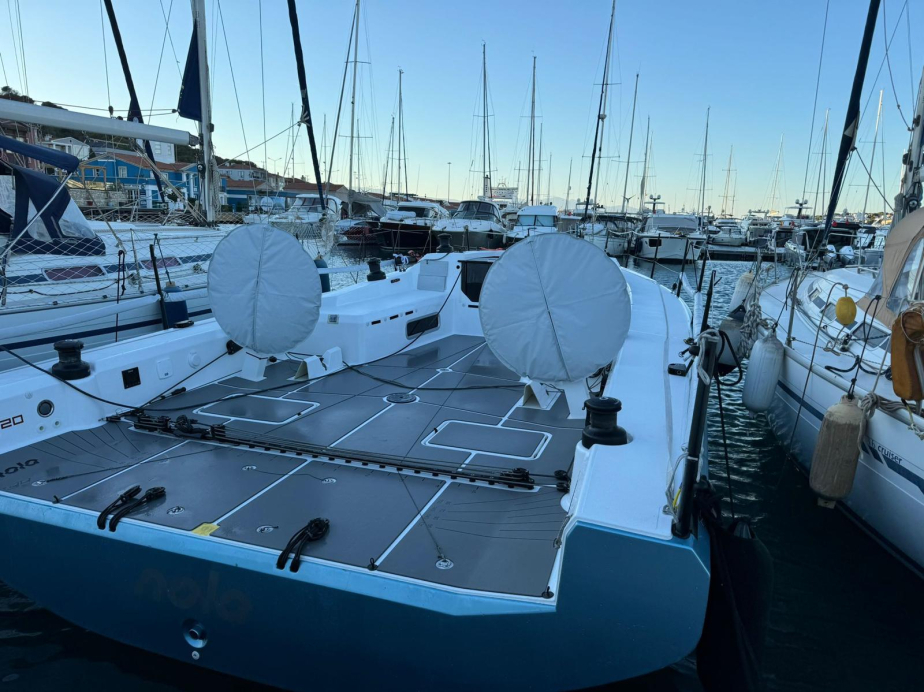

Deck and Cockpit

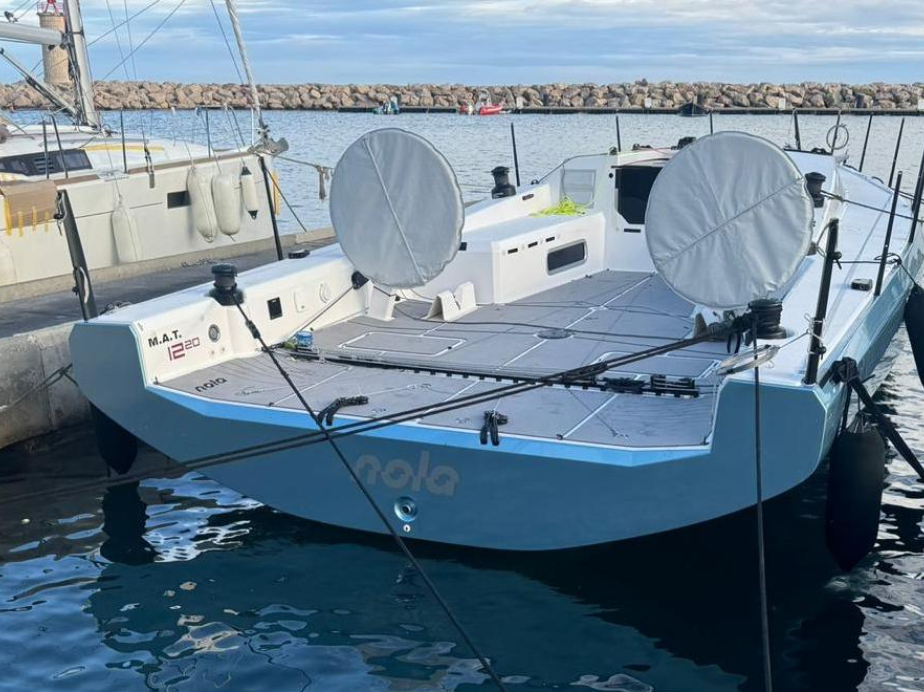

Newly redesigned cockpit (winter refit) PIT is divided into two sides with a composite sprayhood dismountable.

• 6 x Harken Performa 50.2 STP black winches for primaries, main sheet and backstay
• 2 x Harken Performa 46.2 STP black winches for pit
• Harken mainsheet track 6:1 up down purchase and 2:1 mainsheet to winch
• Harken transverse jib tracks and ball bearing cars allowing up to 5 degrees sheeting angle
• Harken Black Magic ball bearing halyard lead blocks
• Harken Black Magic ball bearings primary blocks
• Harken composite control blocks
•  Spinlock xx + extra mainsheed and kite sheet stopper
• Custom alloy fairleads
• Custom stainless steel chainplates recessed in hull
• Composite mast feet to be able to fine tune during sailing
• Carbon stanchions, pushpit, and pulpit, plus spare stanchion.
• 5 mm SS lifelines, Blue Wave terminals
• 2 opening Lewmar portlights
• 1 opening Lewmar foredeck hatch
• 2 opening Lewmar flush hatches
• 1 opening Lewmar foredeck hatch for crash locker
• Custom laminated tempered security glass coachroof windows
• Recessed companionway sliding hatch
• carbon steering wheels with custom foam for grip (new)
• Custom carbon hatch
• custom carbon offshore stanchion

Electrics

• 12V circuit
• Victron Energy 2 x 110 A AGM deep cycle house batteries
• Victron Energy 1 x 90 A starter battery
• BEP Marine battery switches
• BEP Marine distribution switch panel
• Victron Energy battery management system
• Frensch GmbH dimmable rotating LED interior lights
• LED navigation lights
• ISO wiring

Engine

• Yanmar 30 Hp diesel engine with sail drive
• Enclosed engine compartment, soundproofing foam
• Vetus rotomoulded 60-liter diesel tank
• Vetus fuel filter, water separator, syphon breaker, water lock
• Southco diesel fill on deck
• Gori 2 bladed racing folding propellers
• Teleflex Single lever engine control
• Spinlock ATCU lever on request

Electronics and Navigational Gear

• Full Faro system
• 4x Garmin mast displays.
• 4x B&G displays on cockpit for runner trimmer and mainail trimmer
• MOB button on steering pedastal
• B&G plotter inside
• Panasonic laptop and mount inside
• Wifi modem and Bullet antena on cockpit
• Starlink mounted on Stern
• Gps sensor
• Speed sensor
• Depth sensor
• MHU carbon and extra length, with square mount
• String pods for double rudder set up
• E bar sensor
• Magnetic rudder sensor for single rudder
• Load cell forestay
• Autopilot: fully removable.

Additional

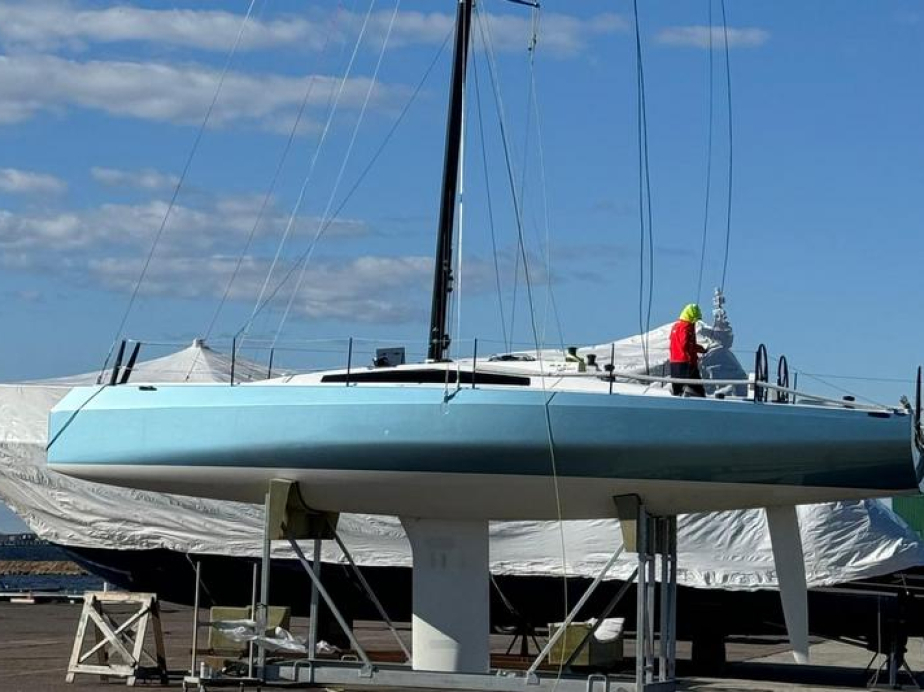

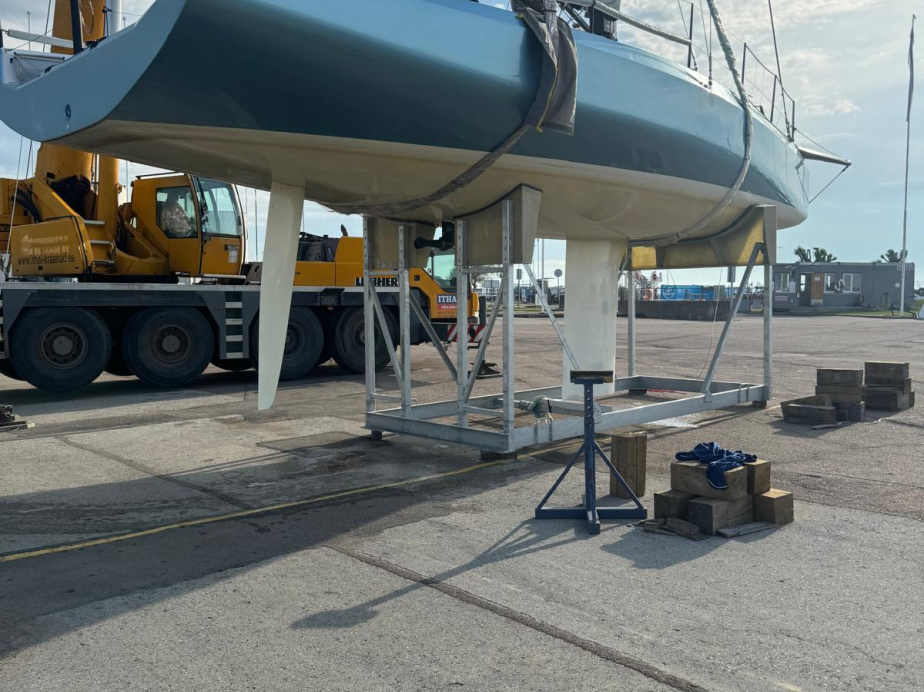

• Cradle included
• Boom cover
• Cocpit floor cover
• Mast cover inside
• Mast collar custom made cover
• Bow net
• Staysail bow bag
• steering wheels cover
• Garmin displays cover
• runner rope bags
• Pit rope bag with 2 separator
• 4x Kite sheet bags with 2 separator
• crew personal bag
• Nav area bag
• 4x Kitchen bag
• Kitchen cover
• Bow hatch cover
• Hiking protection renew 2025
