General

Hull, Deck & Superstructure Construction

The Hull, deck, bulkheads, structural interiors and reinforcements are constructed in direct female moulds using unidirectional and multidirectional E-glass with high-density Corecell cores, vacuuminfused with vinylester and epoxy resins. Carbon fibre is used locally only, in high-load areas around the keel and shroud chainplates.

The hull and deck joint is bonded with triple tapered bidirectional E-glass fibre banding, with vinylester resin, vacuum-infused and post-cured at 50°.

• White painted topsides, decks and superstructure using 2-part paint system
• Bolina sprayed antifouling system with epoxy primer

Keel & Rudder

• T-profile keel constructed using a Weldox 700 steel fin, CFD optimised and moulded with epoxy fibreglass fairing and CNC-machined lead bulb NEO 350
• Pre-preg autoclaved carbon fibre balanced rudder with carbon fibre rudder stock and JP3 selfaligning bearings

Rigging

• Pauger carbon fibre mast and racing boom
• Deck-stepped mast with 3-sets of swept-back spreaders
• Stainless steel rod standing rigging - 2018
• Harken ball-bearing low-friction battencar system for mainsail
• German mainsheet system with Harken mainsheet track on cockpit sole
• Pauger carbon rod vang with block & tackle adjustment
• Spectra SK75 textile backstay with block & tackle adjustment
• Harken towable jib tracks • Harken and Antal deck gear
• Antal V-Cam jammers
• Carbon fibre headsail foil
• Furler for Code Zero plus dedicated 1:1 halyard
• Carbon fibre bowsprit for gennaker, Code Zero and anchor
• Carbon fibre spinnaker pole with pole track on mast
• Dyneema and Vectran running rigging
• SK75 Dyneema life lines

Sails

• North Sails 3Di RAW 780 10,850 Dpi light jib – 2021
• North Sails 3Di RAW 780 16,800 Dpi heavy jib – 2021
• One Sails mainsail – 2025

Accommodations

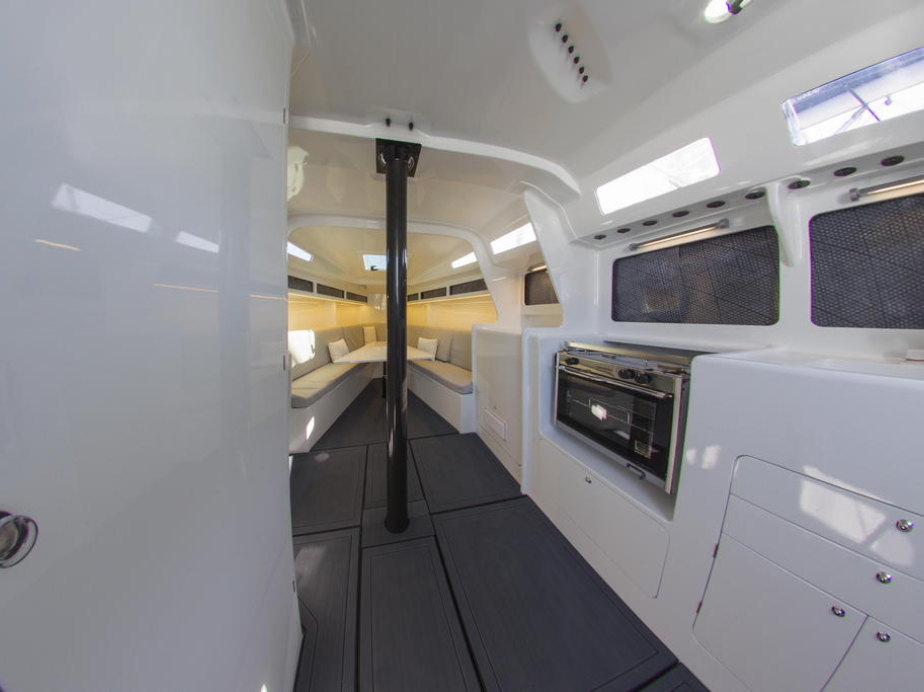

Loft-style ‘Cruise – A-Version’ interior layout with open-plan forward seating and dining area, amidships galley and heads, and two double aft cabins

• Carbon-fibre superlight doors to aft cabins and heads
• Composites soleboards with SeaDeck non-slip finish
• Carbon sailcloth cupboard fronts
• Grey leatherette upholstery

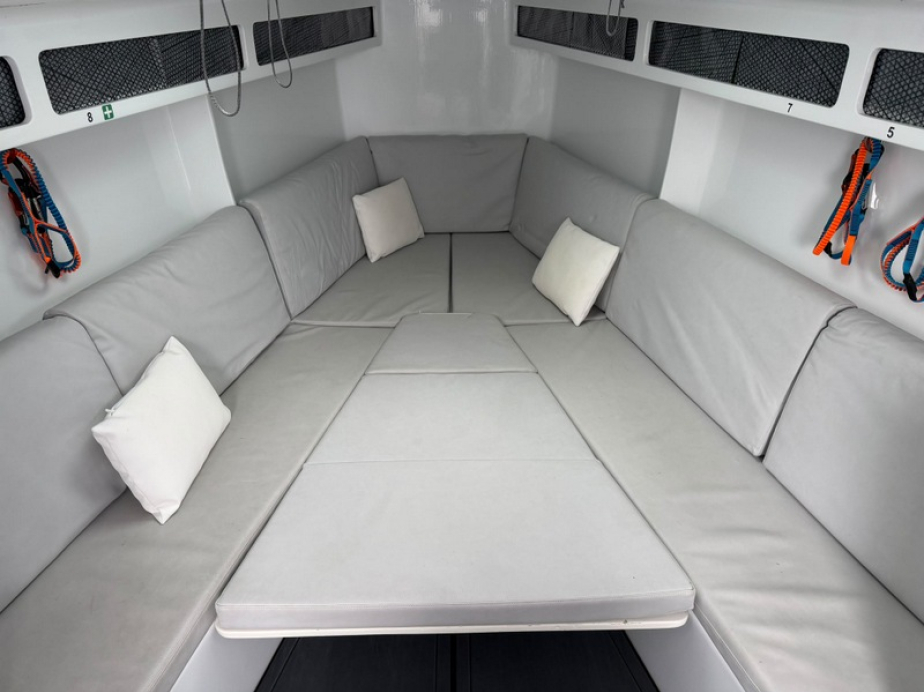

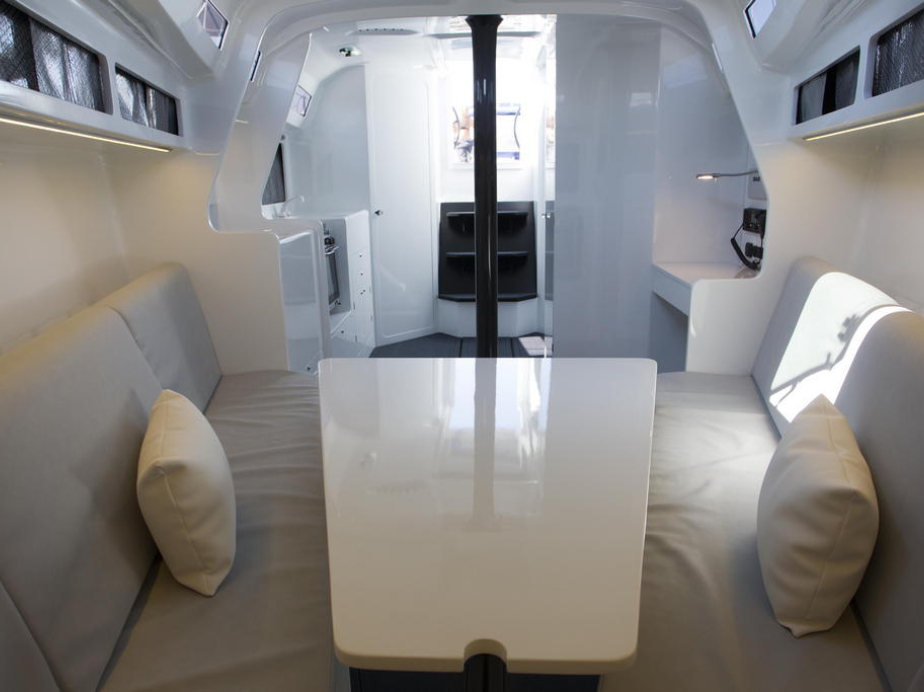

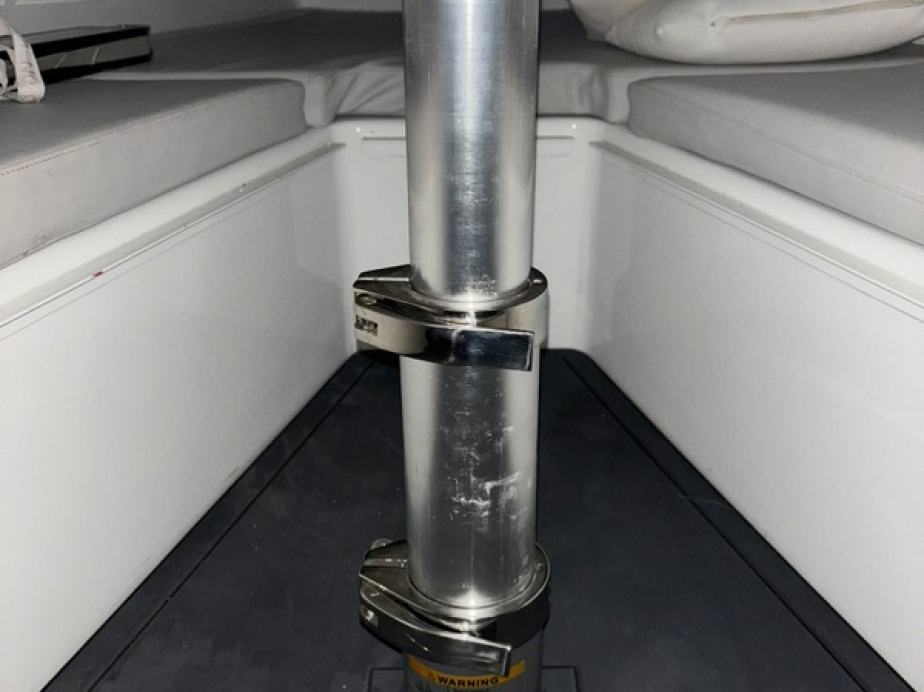

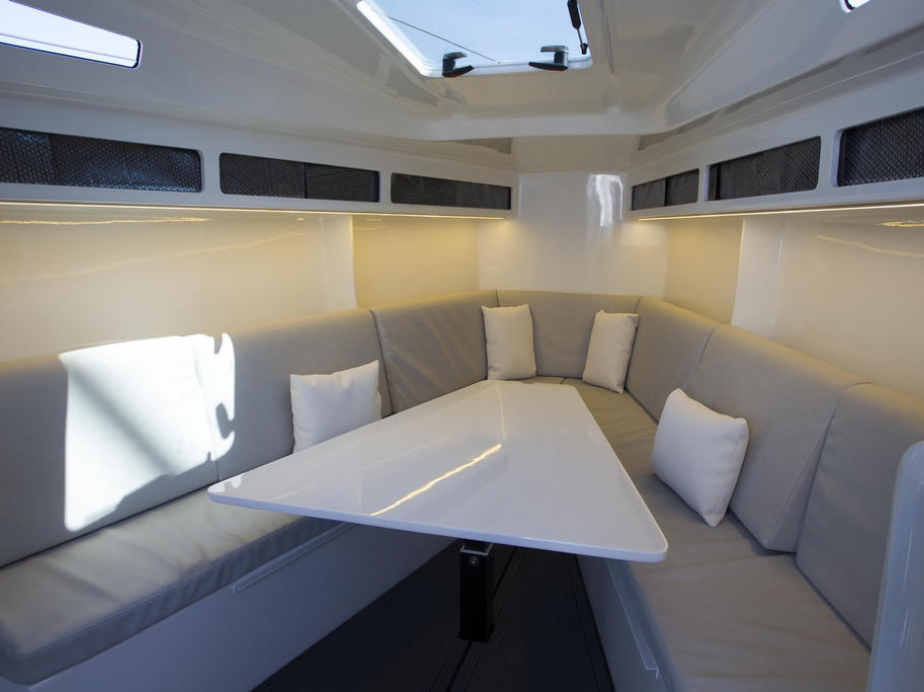

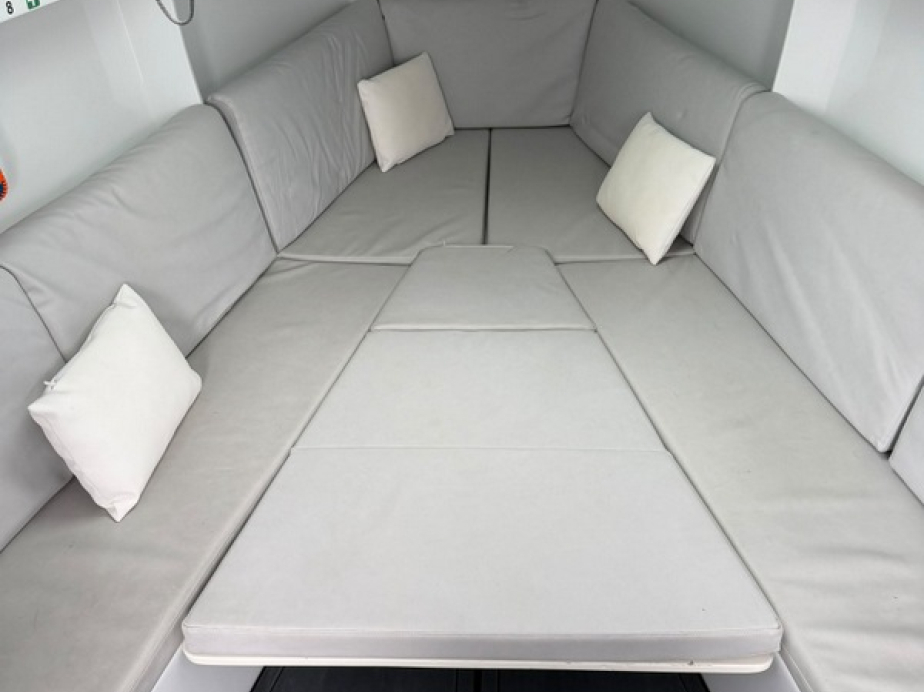

• Forward saloon area with settee seating and central height-adjustable table, dropping to create double berth

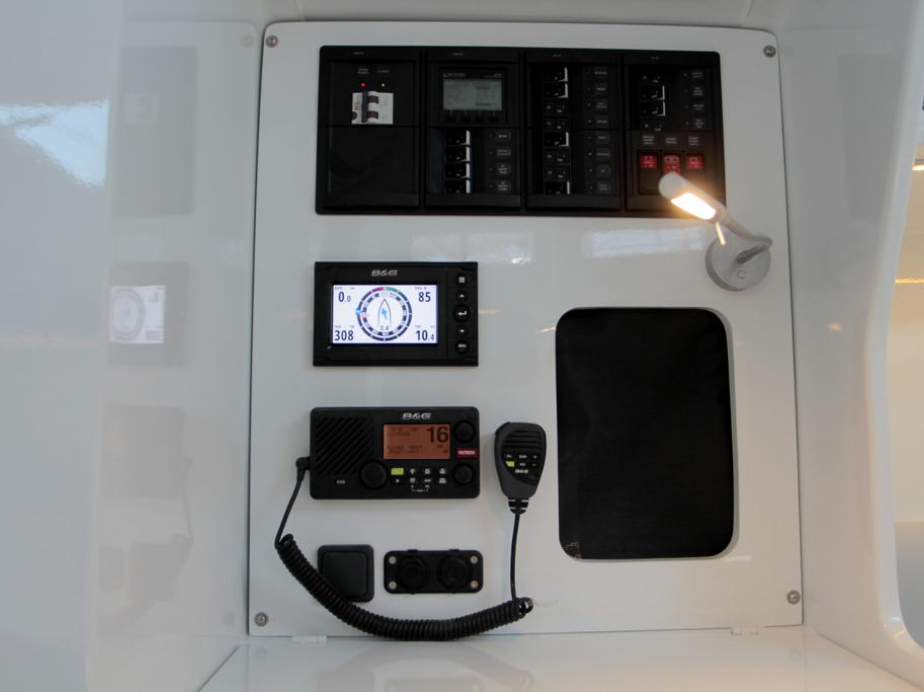

• Navigation station aft of saloon area to port with navigation instruments, AC/DC panel and chart table

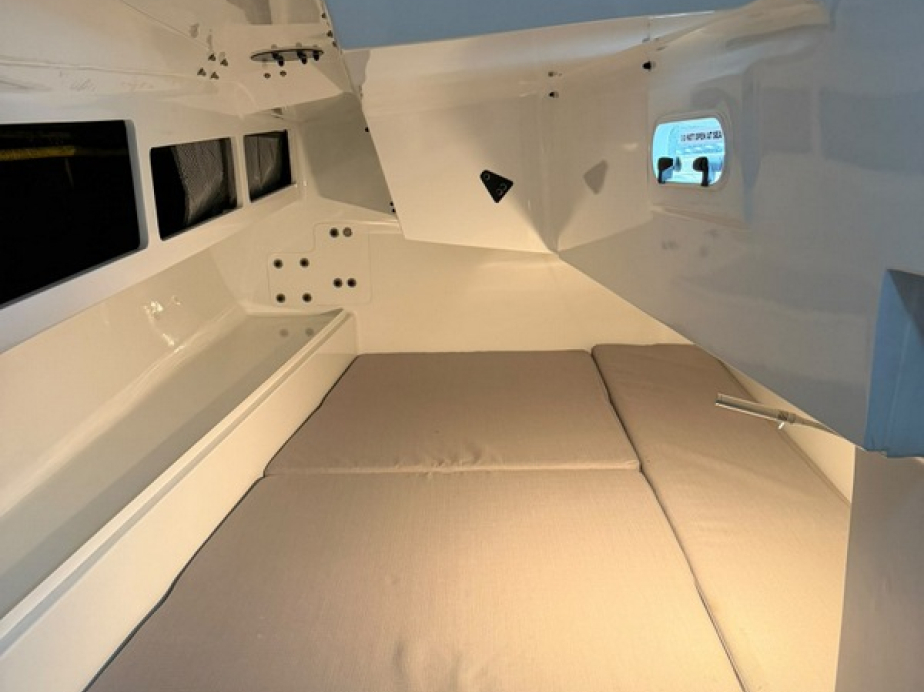

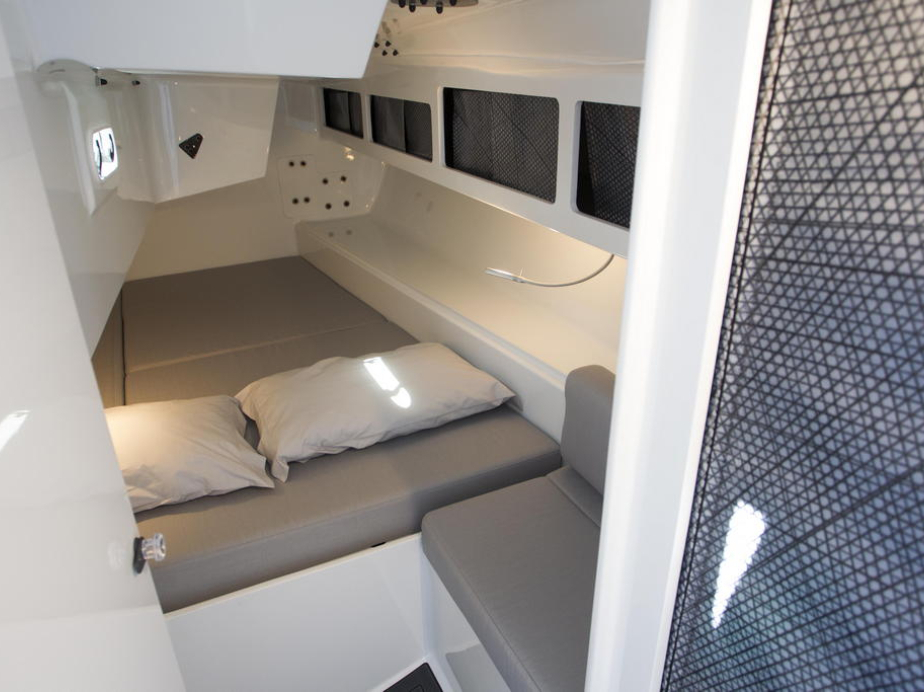

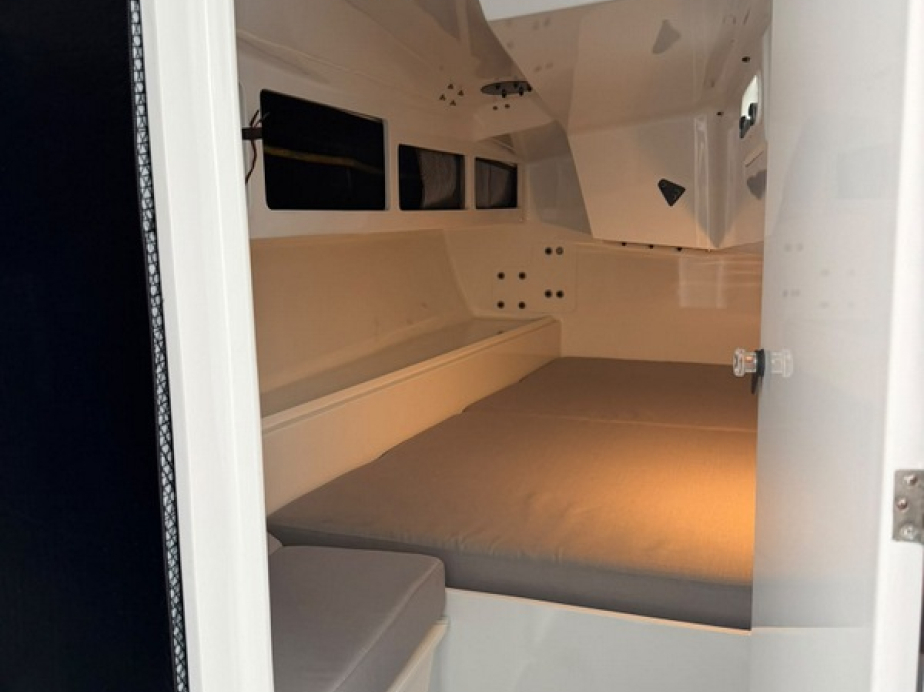

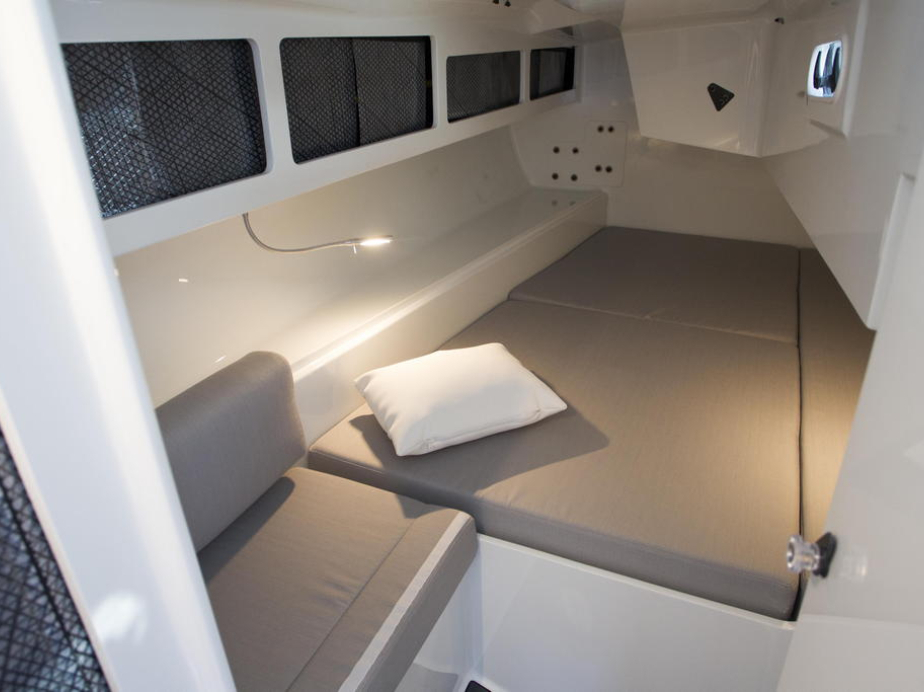

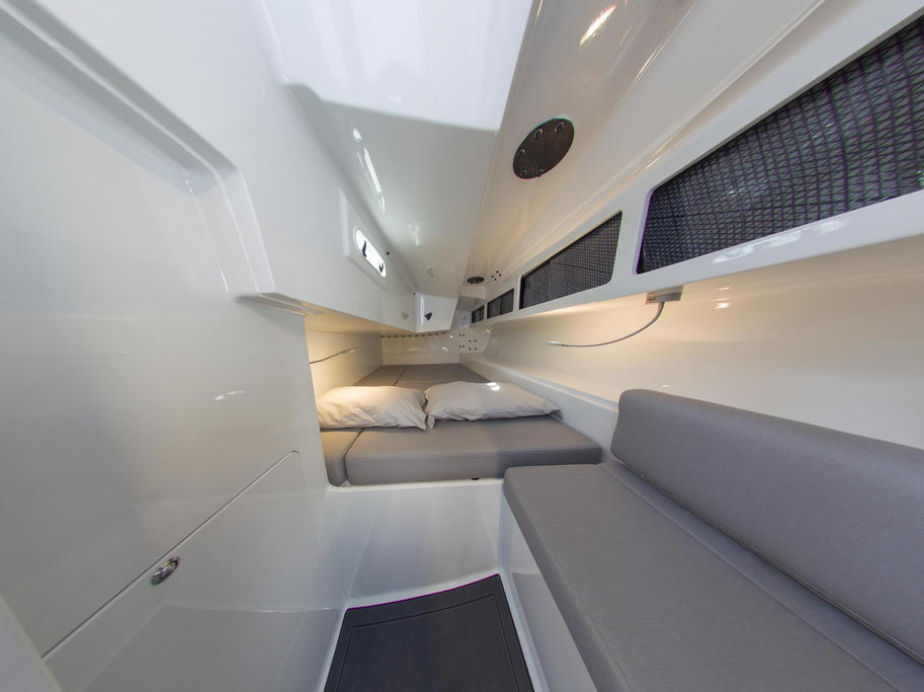

• Mirrored cabins aft to port and starboard with double berths and lockers

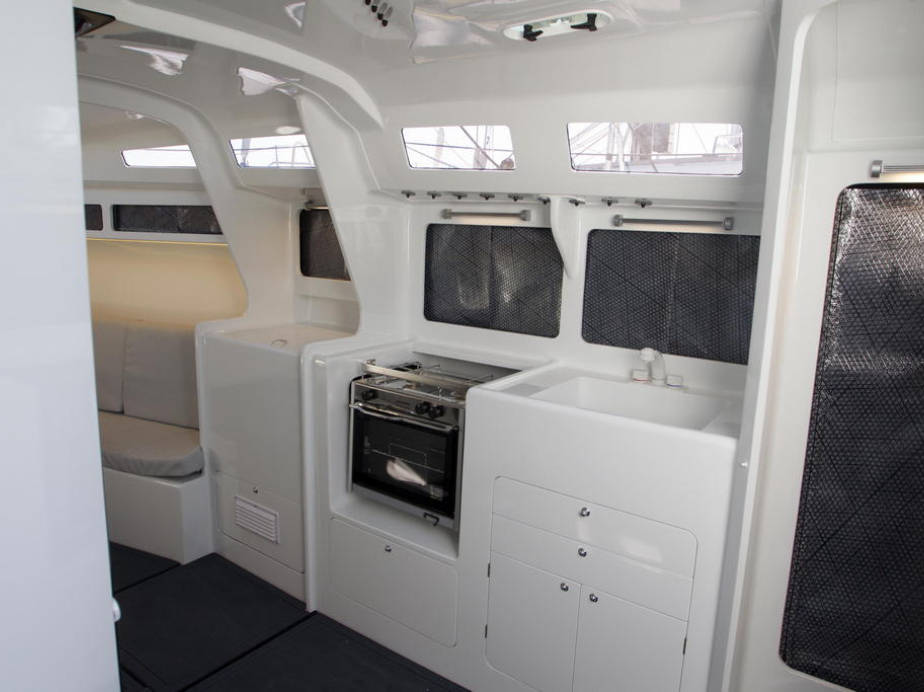

Galley
Amidships to starboard with gimballed gas stove, top-opening fridge and moulded inset sink

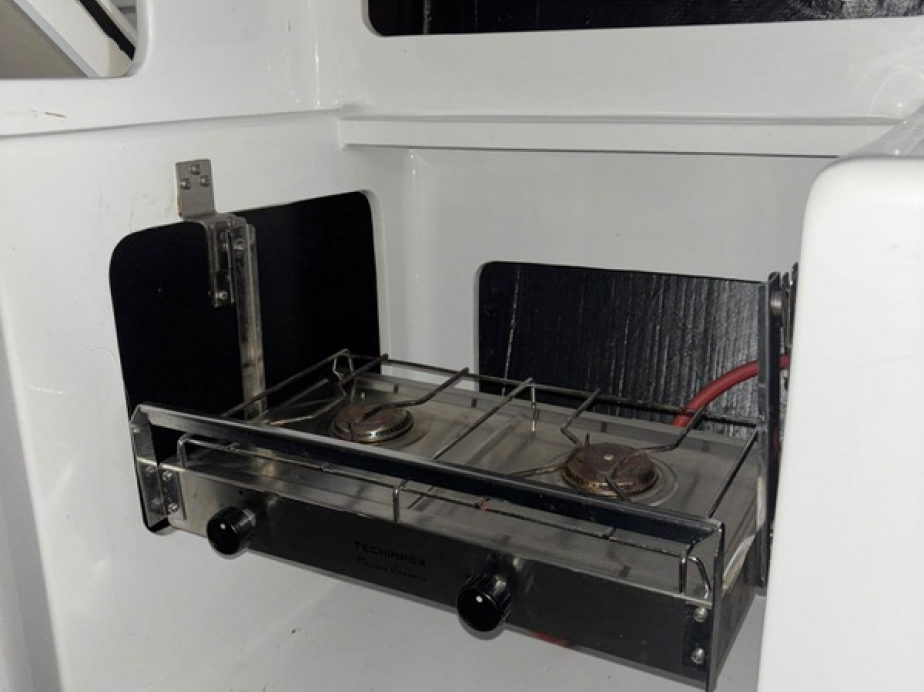

• Techimpex stainless steel gimballed stove with 2 burners (oven removed)

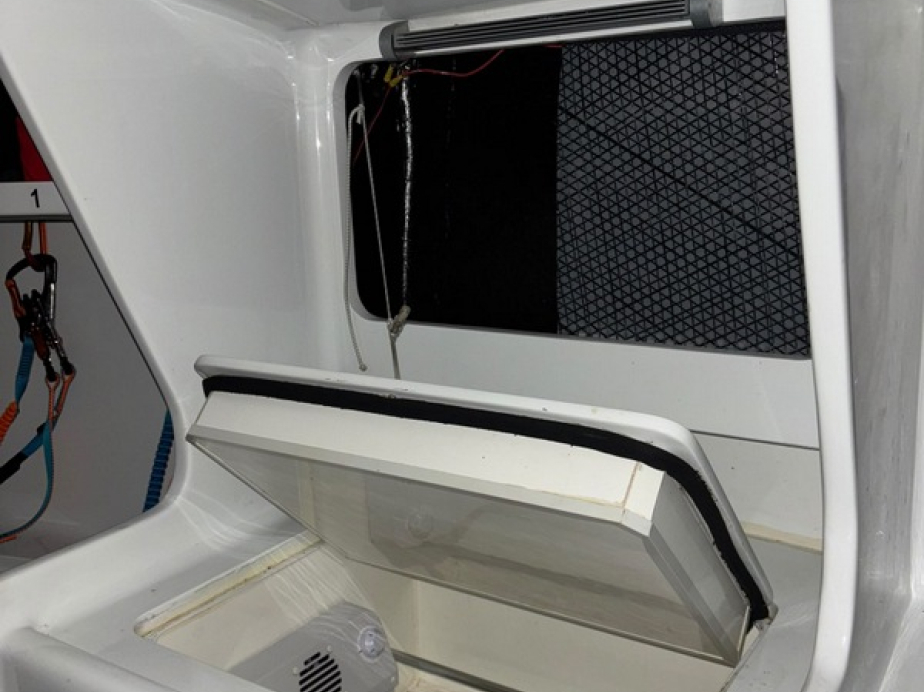

• Top-opening 120 litre refrigerator with Isotherm 12vDC compressor

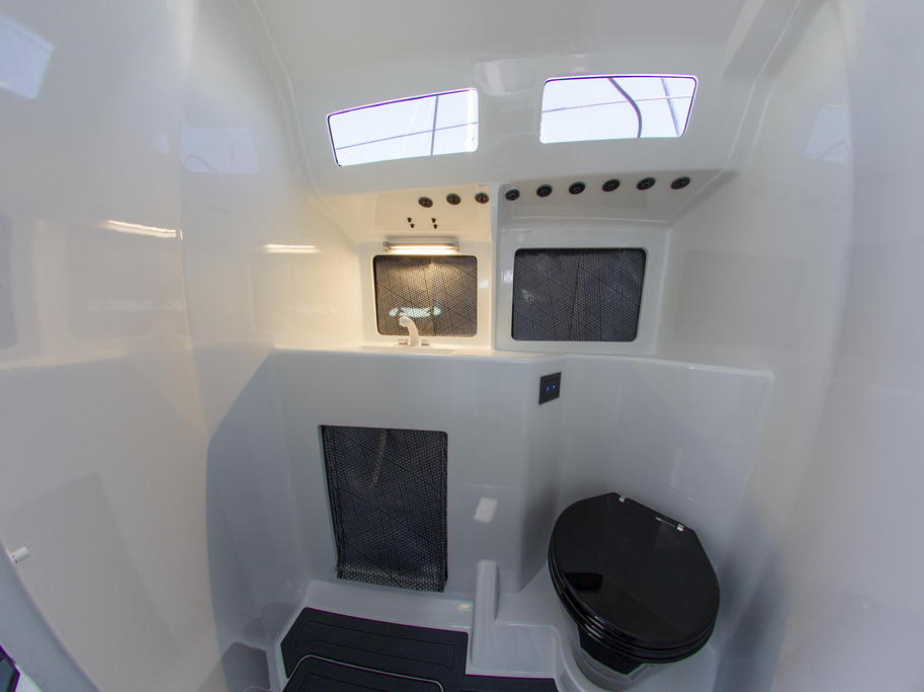

Heads
Amidships to port with electric heads, sink and shower

• Twin moulded composite sinks with Whale Elegance cold pressurised fresh water supply

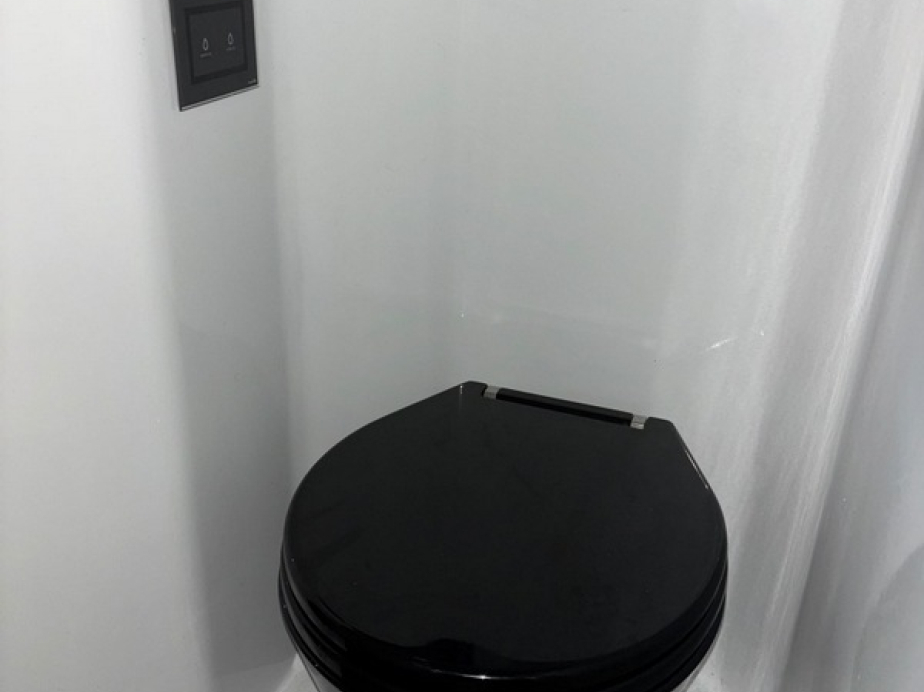

• 12vDC electric flush black race heads
• Sink with Whale Elegance cold pressurised fresh water supply

Plumbing

• Approx.100 litres fresh water capacity in 1x PVC flexible water tank
• Pressurised fresh water system via Whale 12vDC high pressure pump NEO 350
• Whale Gulper 12vDC electric bilge pumps in main bilge and aft locker bilges
• Orca 12vDC bilge pump in engine bilge space
• Whale manual bilge pump in cockpit
• Flush seacocks
• Dedicated gas stowage in aft locker with shut-off valves at bottle and at galley

Deck and Cockpit

• Titanium fittings for shroud mounting points.

• Chainplates, forestay and backstay mounting points vacuum-laminated with carbon fibre directly into the hull internal and external skins. (post-cured at 80°)

• SeaDek superlight , antislip , EVA covering for cockpit sole, cockpit seating and bathing platform in grey finish

• Twin composite helm pedestals with 850mm carbon fibre helm wheels and Vectran steering cables
• Emergency steering gear
• Composite pulpit, aluminium pushpit and guardwire stanchions

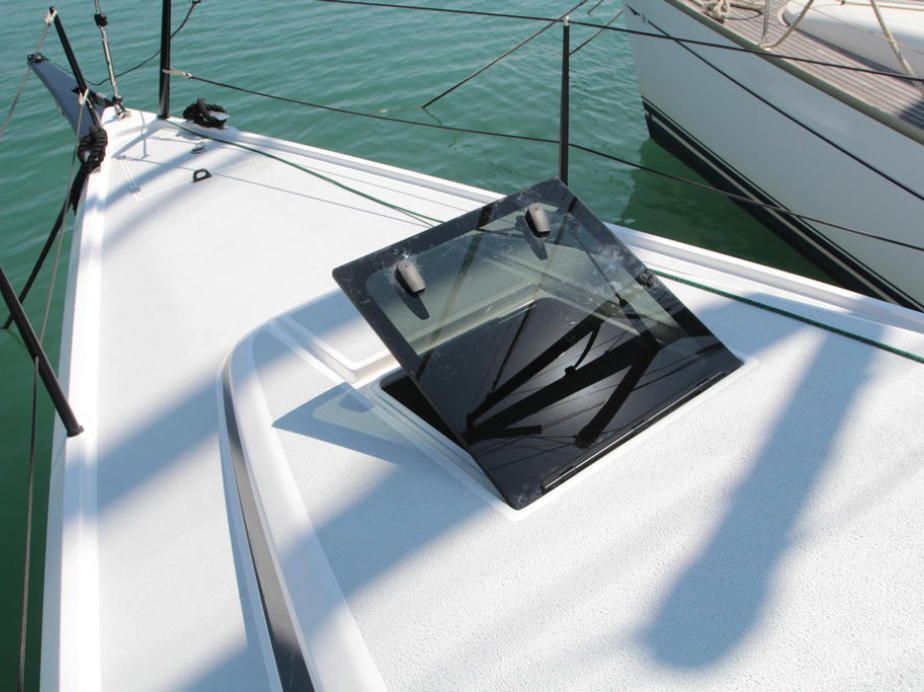

• Flush foredeck hatch

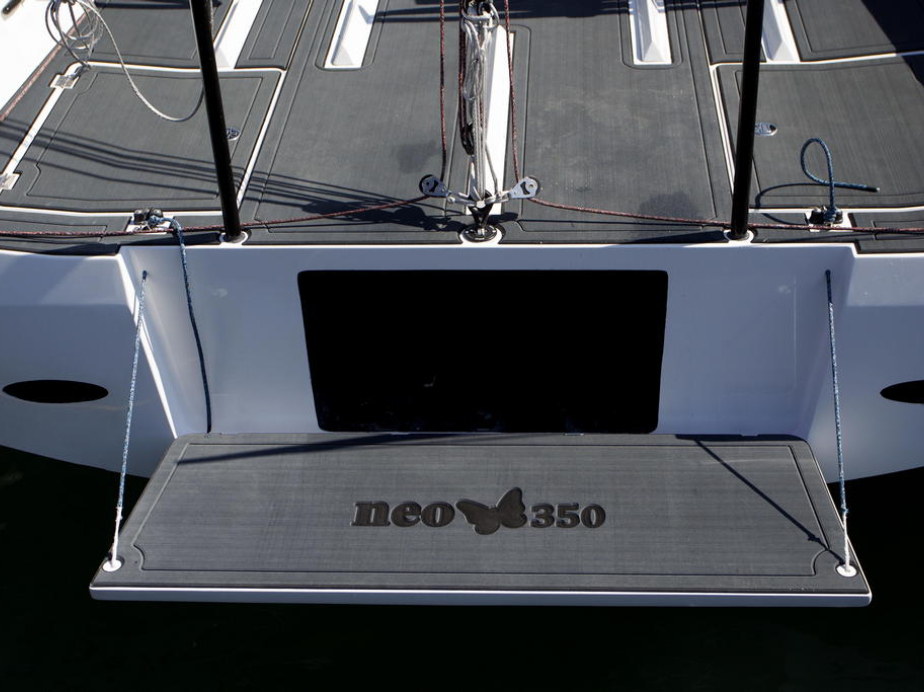

• Fold-down bathing platform with liferaft stowage
• 12vDC electric windlass
• 10kgs anchor with 3–5m of 8mm galvanised chain plus 20m of rope
• Aluminium pop-up cleats forward and aft
• Mooring lines and fenders

Winches

• 2x Harken Quattro Performa 2-speed self-tailing primary cockpit winches
• 2x Harken Quattro Performa 2-speed self-tailing mainsheet cockpit winches
• 2x Harken Quattro Performa 2-speed self-tailing companionway winches

Electrics

• 12vDC primary domestic system with 220vAC AC via shorepower
• Blue Sea VSM digital monitoring system for DC, AC and tank monitoring
• 1x Mastervolt 150Ah 12vDC 110Ah service battery
• 1x Mastervolt 60Ah 12vDC engine start battery
• Solonoid battery switches at AC/DC panel with battery parallel switch
• Mastervolt ChargeMaster Plus automatic battery charger
• 12vDC engine-mounted alternator
• 220vAC shore power connection with internal ring-main and 3x sockets internally
• 2x 12v sockets at chart table
• Circuit breakers with automatic fuses and indicator lamps for all individual circuits
• LED interior lighting

Engine

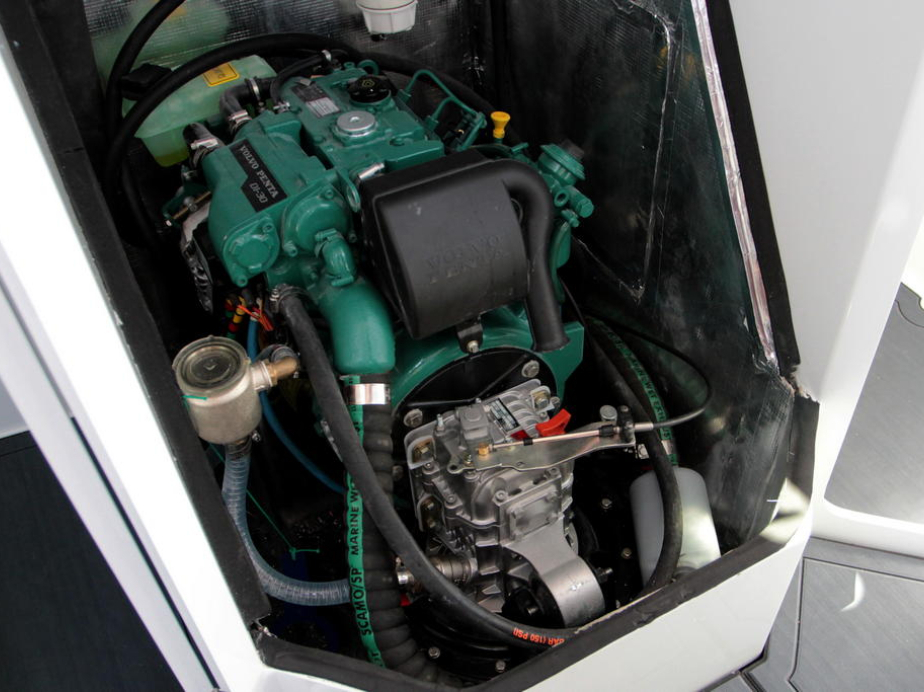

• Volvo Penta D1-30 3-cylinder naturally aspirated diesel engine 29hp
• 3,200rpm
• Fresh water engine cooling via raw water intake and heat exchanger
• Single lever gear/throttle control and EVC controls
• Volvo S-130 saildrive gearbox Maintenance & Performance:
• Engine hours ca 500 hrs 10/2026
• Gori 2-bladed folding propeller
• Approx. 85 litres fuel capacity in 1x PVC fuel tank
• Tank level monitoring via Blue Sea VSM display at AC/DC panel

Electronics and Navigational Gear

On Deck:

• B&G H5000 Performance processor
• B&G H5000 multi-display at port helm

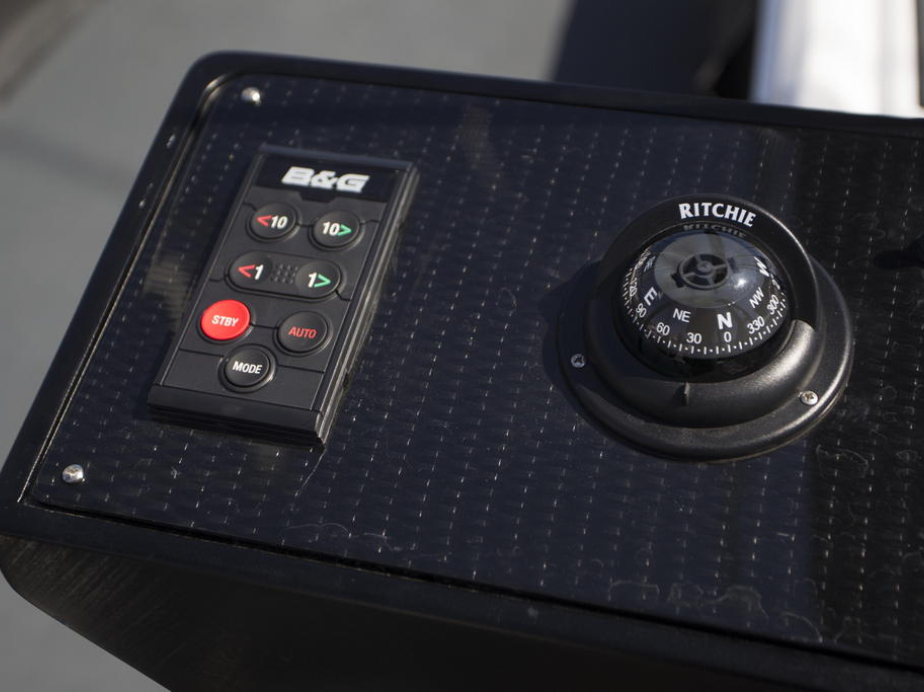

• B&G autopilot with keypad at starboard helm
• 4x B&G 20/20 displays at mast
• Ritchie steering compass at starboard helm

At Chart Table:

• B&G H5000 multi-display

Communications Equipment:

• B&G V50 VHF with DSC and AIS
