General

General

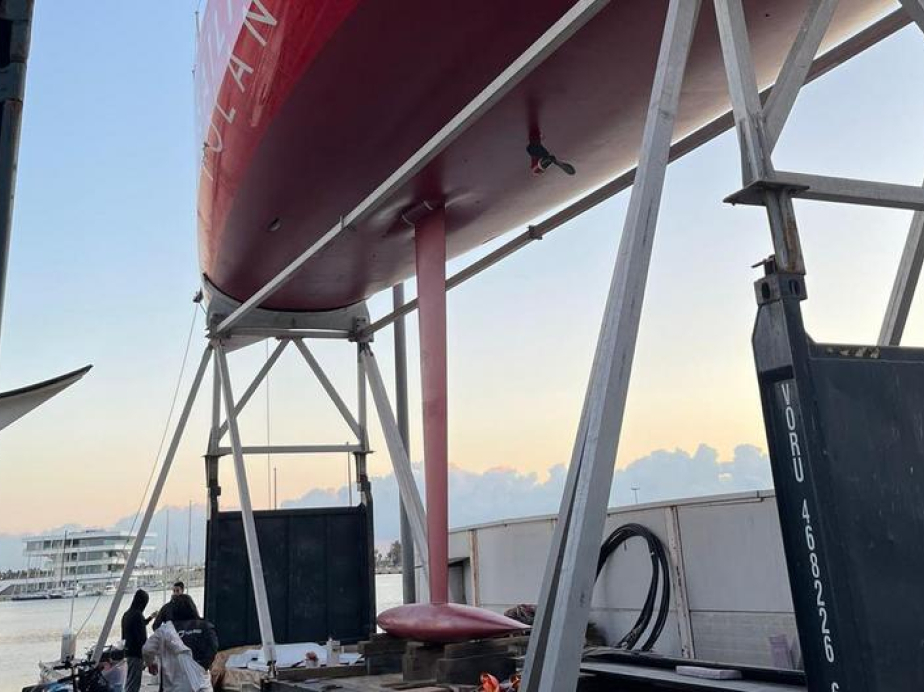

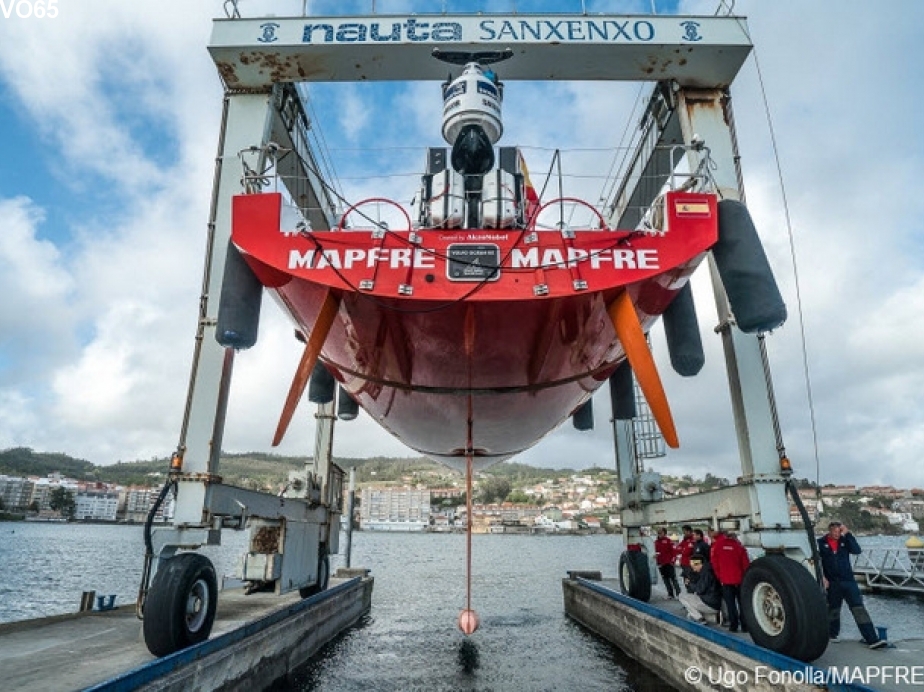

• Canting keel
• Two daggerboards

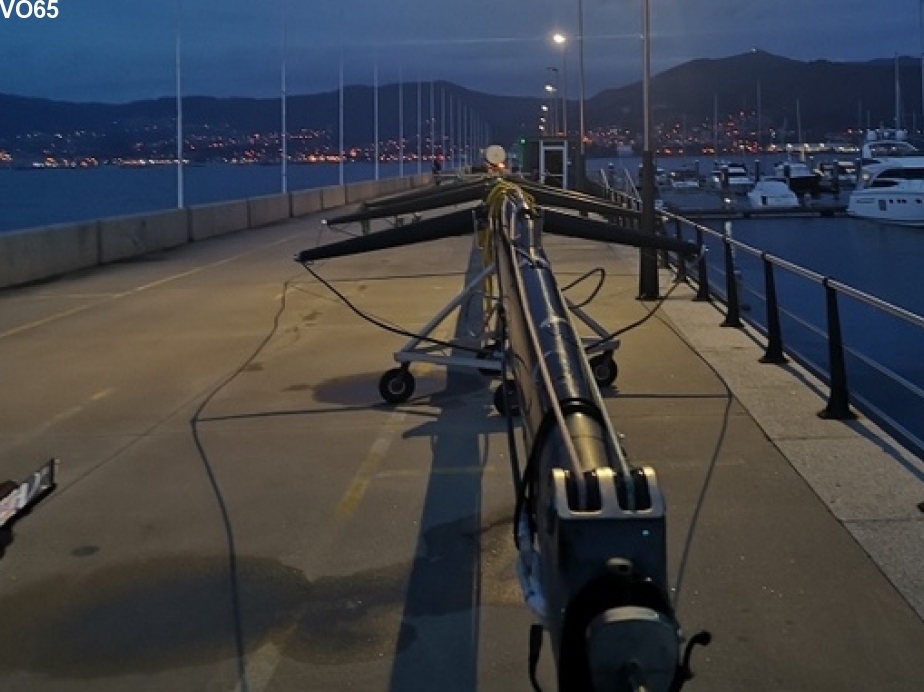

• Rig Height: 30.30m
• Mainsail Area: 163 m2
• Working Jib Area:133m2

Rigging

Net set of running rigging

Liny 10.XII.2019

• Trim Jib,orange-> 8.65m,13x 8-Trim Jib,green-> 8.65m,13x 8-Trim Jib,blue -> 8.65m,13 x 8 use,tapered
• Jib up-down,melange blue/send/black->18.46m,12x 1 use
• Traveller, melange send/black->16.32mx 3 use
• Board Up,melange blue/send->25.32m,11x 4 usex 1 new-Board Down,melange red/send/black->13.86m,11x 4 use
• Foreguy,melange send/black->23.68m,11. x 5 use
• Pool Back,white/black->24.92,11x 6 use
• Reef#1,melange red/send/black->21.70m,11x 2 use with bullet
• Reef#2,melange yellow/black->24.92mx 1
• Reef#3,melange green/send/black->29.50mx 1
• Jib sheet 2,orange->28.94m,14,taperedx 1 newx 5 use
• Jib sheet 3, send/green->26.16m,14x 3 usex 1 use, 30m
• MHO Sheet,send/black->60m,13 or 14x 2 usex 1 use, to repare
• Peel Sheet,send/green->60m,13or 14x 1 use
• FRO Sheet,send/blue->60m,13or14x 2 use
• J0 Sheet,send/blue/white spectra cover->60m,13 or 14x 2 use
• Main Sheet,PBO,brown/orange->30.05,14,tapered x 4,use x 1, use 2 regattas
• Runner,PBO,brown/black->38.84m,14,tapered5.15mspectra cover,rope,19.54mx8mmmessengerx1 newx 10 useAuc-Itj-New(2)Cpt-Mel-Hnk(2)Lis-Cpt 7000Nm(2)
• Outhaul,x 6,Cpt,Itj-New,Auc,New-Car
• Downfucker Port-x 4 Cpt-Hng Stbd-x 2

Halyard

• MHO Port, melange red/white/black->68.80mx 2
• MHO Stbd,melange green/white/black->68.80mx 2
• J1,melange yellow/white/black->61.64mx 1
• J2,melange orange/white/black->52.90mx 1
• J3,melange blue/white/black->43.48mx 1
• FRO,melnage black/white->64.20mx 1
• Main,melange grey/white/blackx 2x 1, red:grey->91.47m(obecny fal)

Furler:

• Stbd,melange green/white->55mx 1
• Port,melange red/sendx 2->55m
• J2 , orange->50mx 2
• J3,yellow->50mx 1

NEW SETS

• Jib Up/Down, melange green/yellow/blackx 5
• Jib Up/Down,melange blue/yellow/blackx 4
• Jib Up/Down, melange orange/swnd/blackx 3
• Reef #1,melange red/yellow/blackx 1-Reef #2,melange yellow/blackx 1-Reef #3,melange green/yellow/blackx 2
• J2 sheet,melange red/brown/blackx1
• J0 Sheet,melange blue/brown/x 1
• Runner, send/blackx 1

Halyard:

• Frac, melange black/white x 1
• J1,melange yellow/white/blackx 1
• J2,melange orange/white/blackx 1
• J3,melange blue/white/blackx 1
• Main 2:1,melange gray/white/blackx 1
• MHO Port, melange red/white/blackx 1

Furler:

• Yellowx 1
• Board Up,melange blue/send/blackx 2
• Downfucker Port,redx 1
• Pull back,melange black/silver/sendx 1
• Foreguy 6:1,melange yellow/grey/blackx 1
• Leashing: 1 Reef : 20.5cm2 Reef : 15.0cm3 Reef : 12.0cmOuthaul: 10.0cm

Complete new set of halyards and the spare ones.

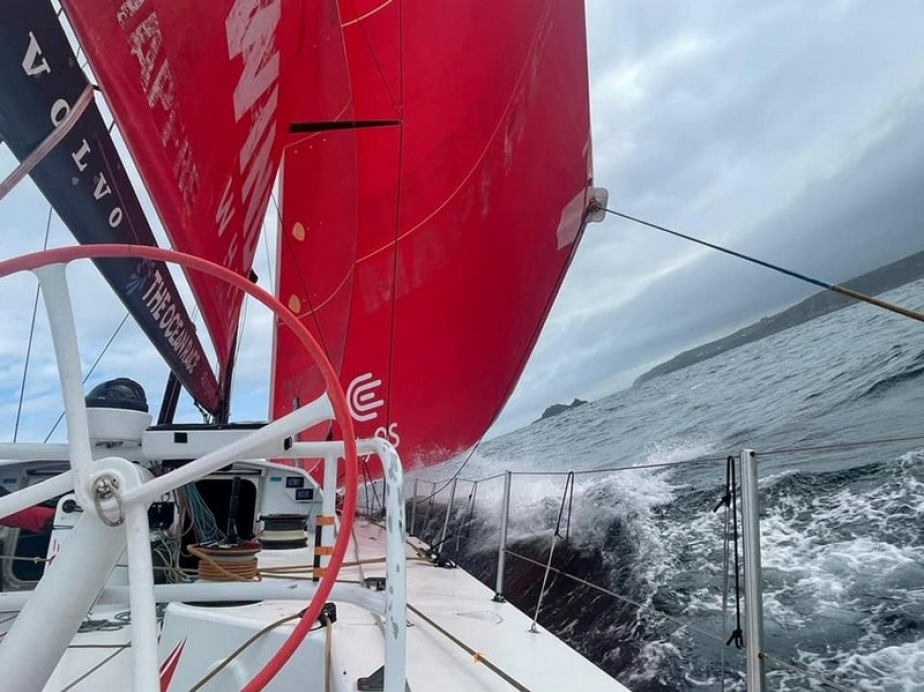

Sails

• Complete One Design Set
• One design A4 North Sails 2021
• FRO 14 005106468-06 -65kg
• A3 14 577-318648 - 90kg
• MH0 14 OUS106468-05 - 74kg
• MAIN R out of bag-≈110 kg
• J3P out of bag (P= pre race sail, for training)- ≈28 kg
• J2P out of bag - ≈60 kg
• FRO P-A out of bag - 65kg
• J1 out of bag - 80kg
• J0 (pre race maybe)-≈70 kg
• A3 (pre race 17) -90kg
• A3 14 - ≈90 kg
• FRO - O 14 - 65 kg
• MH0 -E 14 - 74kg
• MH0 R-1 0US106486-03 - 74kg
• J1 - R - ≈80kg
• FRO 0US106488-02 - 65 kg

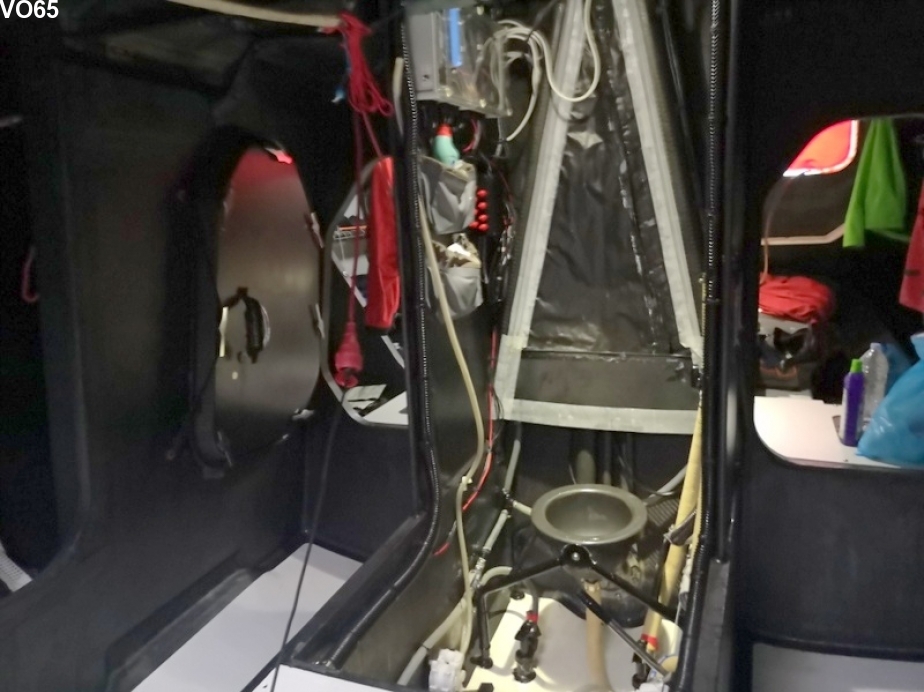

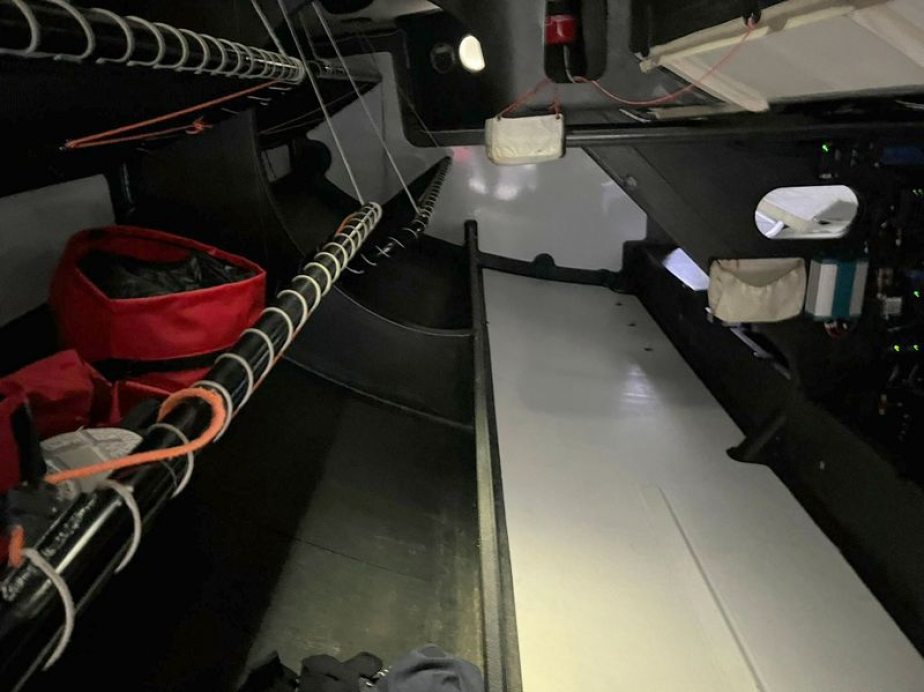

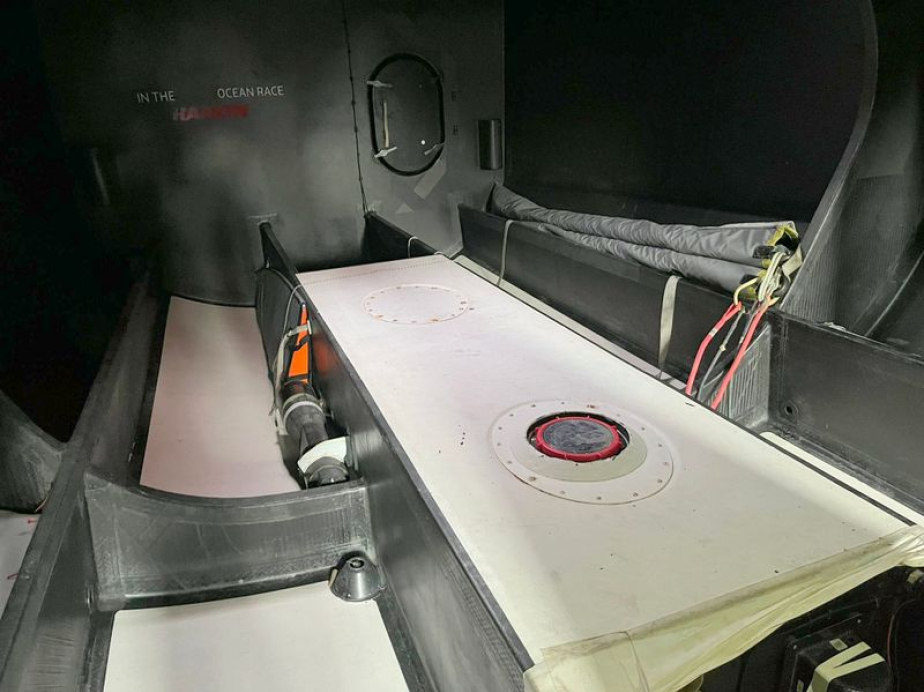

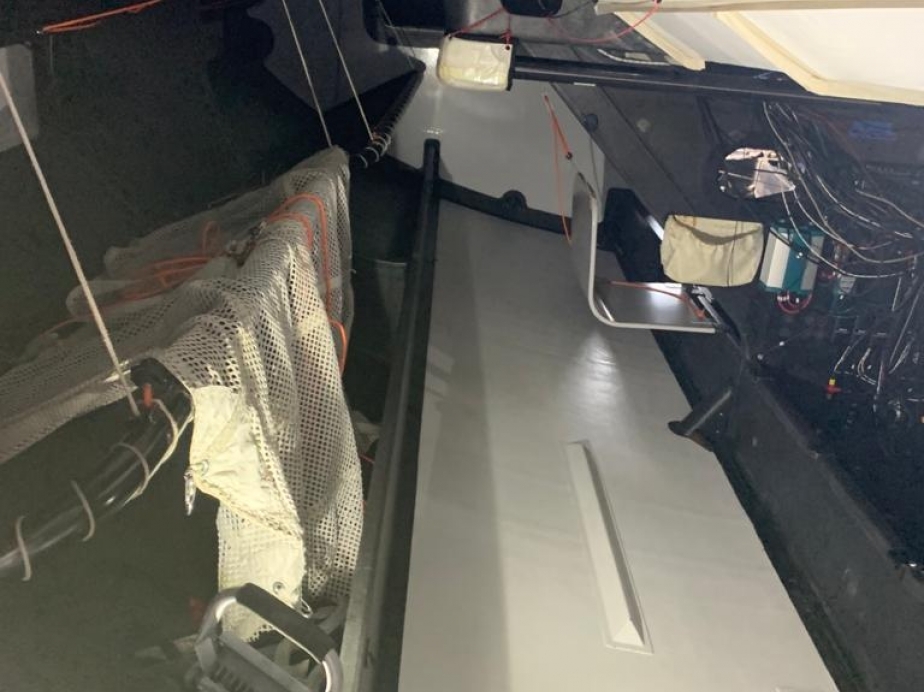

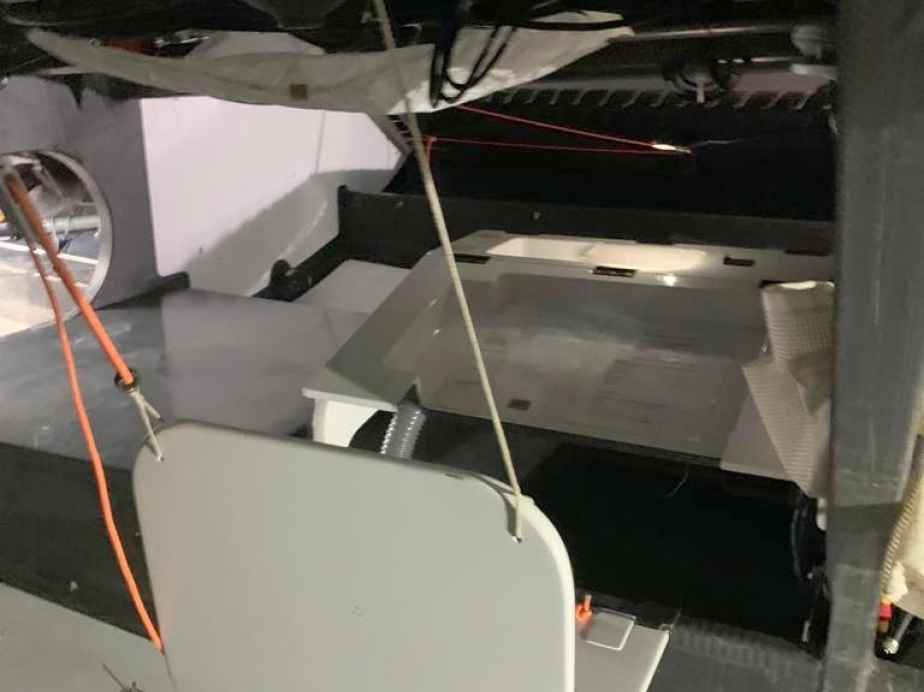

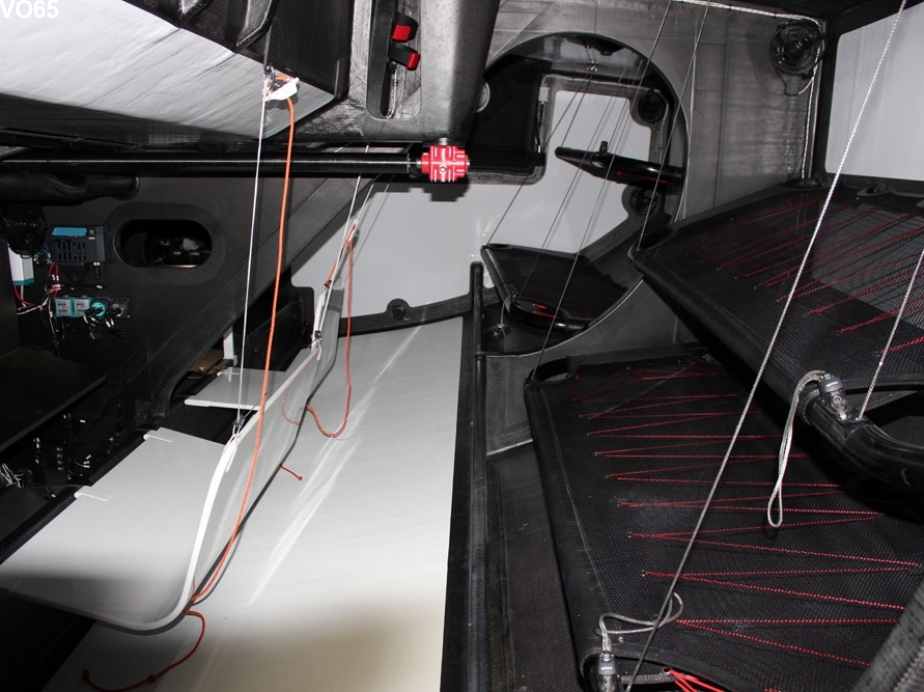

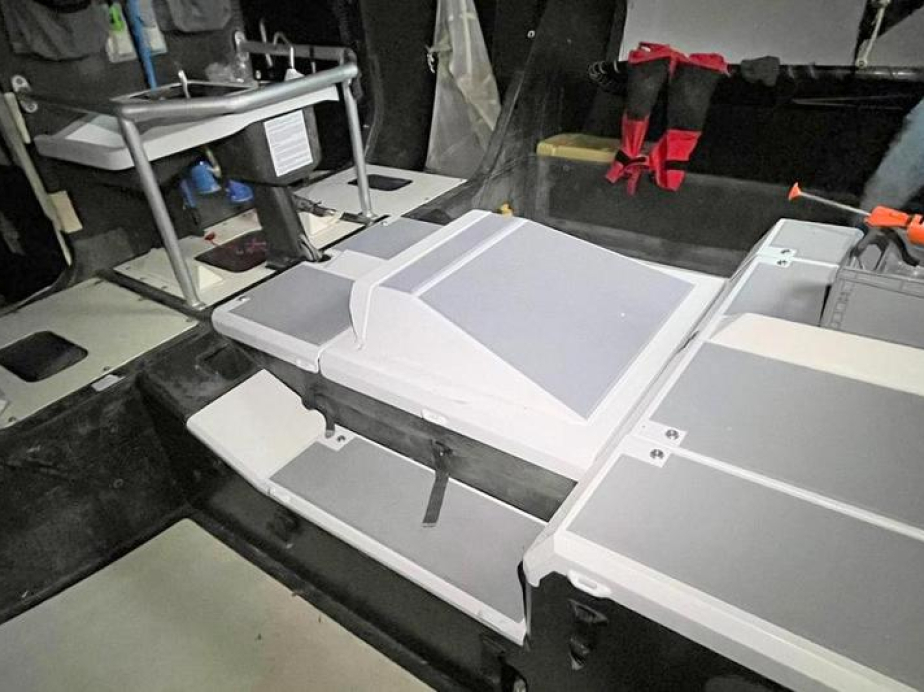

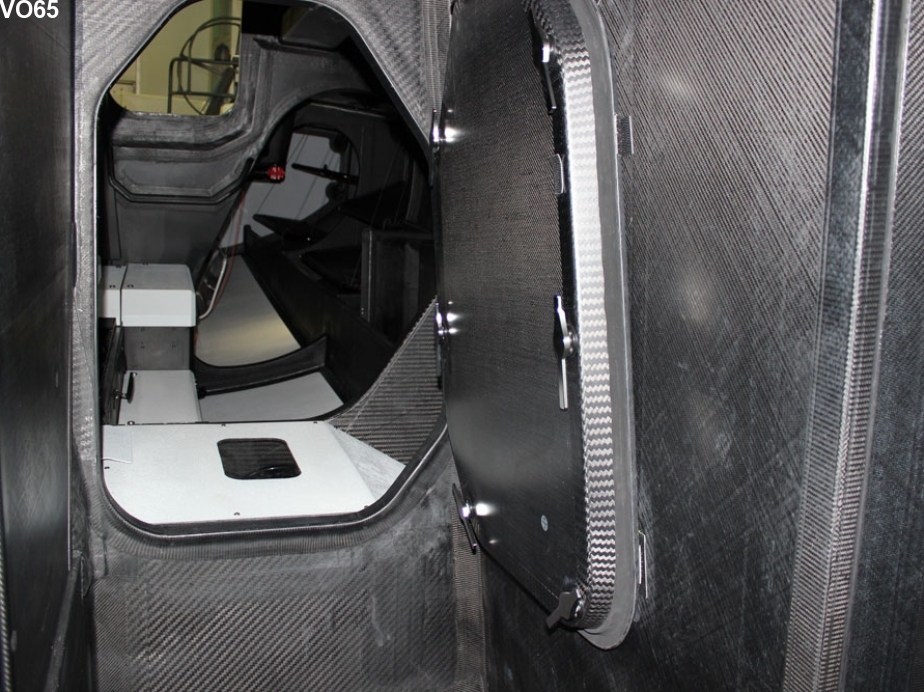

Accommodations

• Interior floors painted 2020

Deck and Cockpit

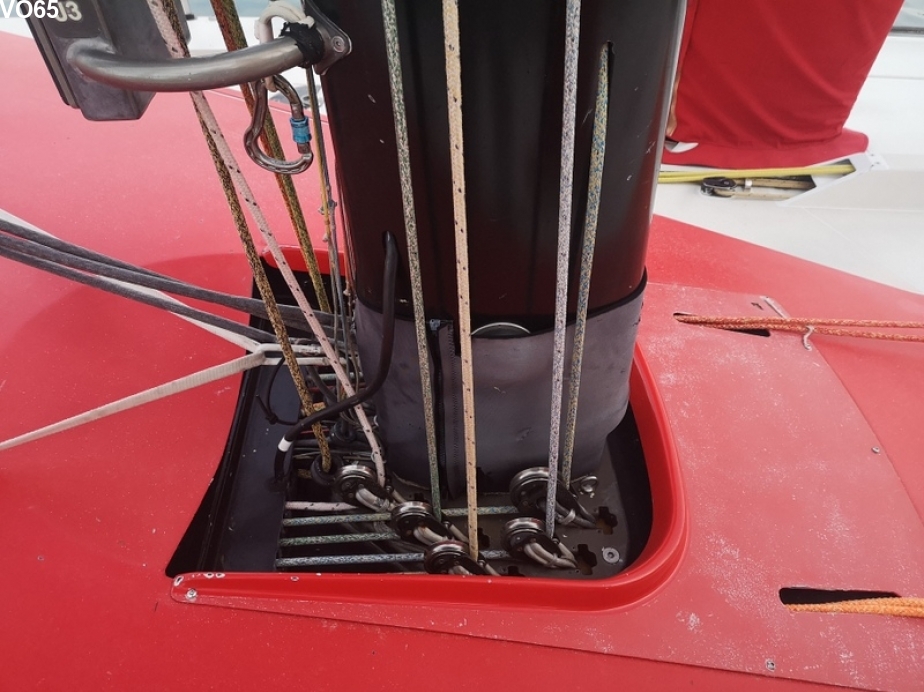

• Mast Control Rams
• J1 Tack Ram
• J2 Tack Ram
• J3 Tack Ram

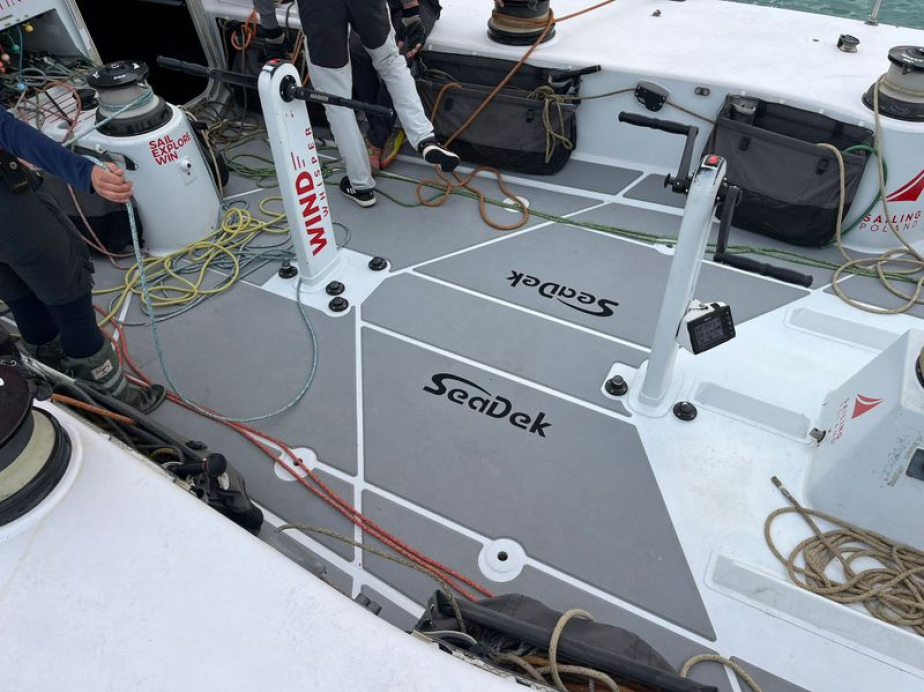

• Grinding Pedestal
• Winch Drive Shaft
• Winch Bevel Box
• Rotary Pump
• Primary Winch Support Structure
• Outboard Pit Winch Support Structure
• Runner Winch Support Structure
• Grinding Pedestal Support Structure
• Rotary Pump Support Structure
• Main Winch Support Structure
• Dead End for Mast Control Ram
• Cockpit painted 2020

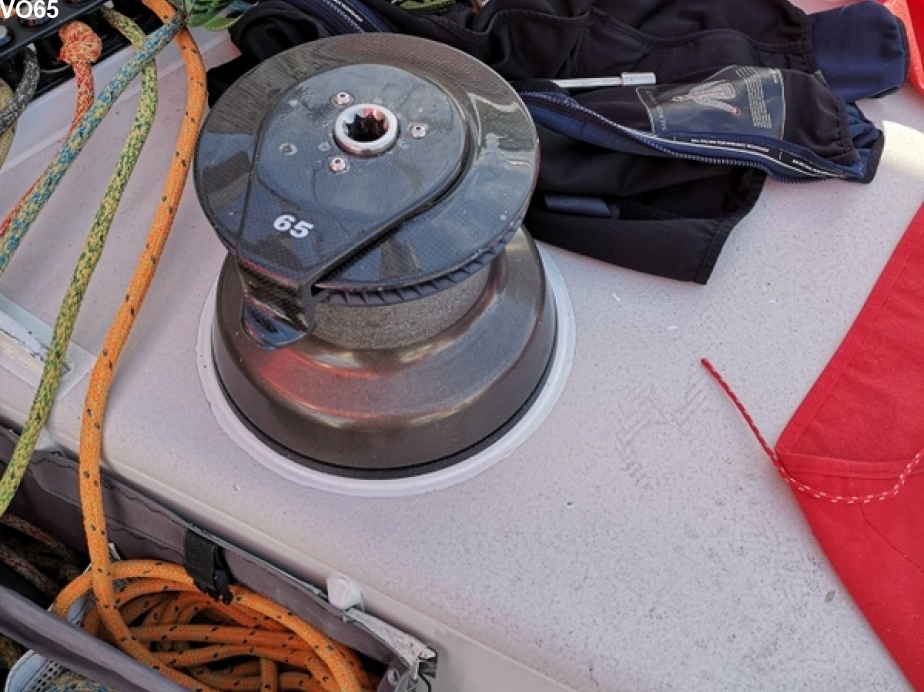

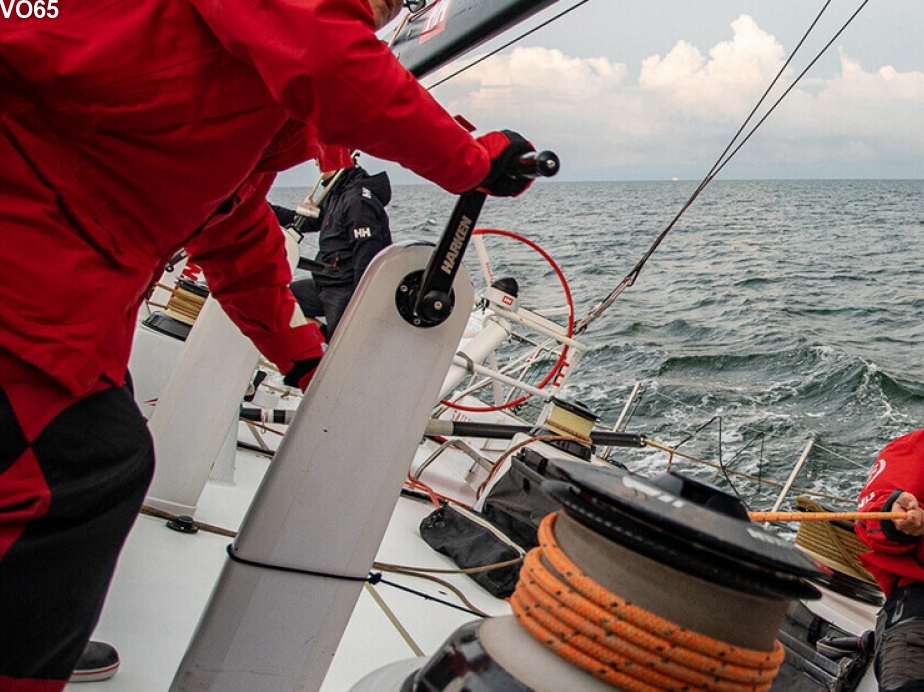

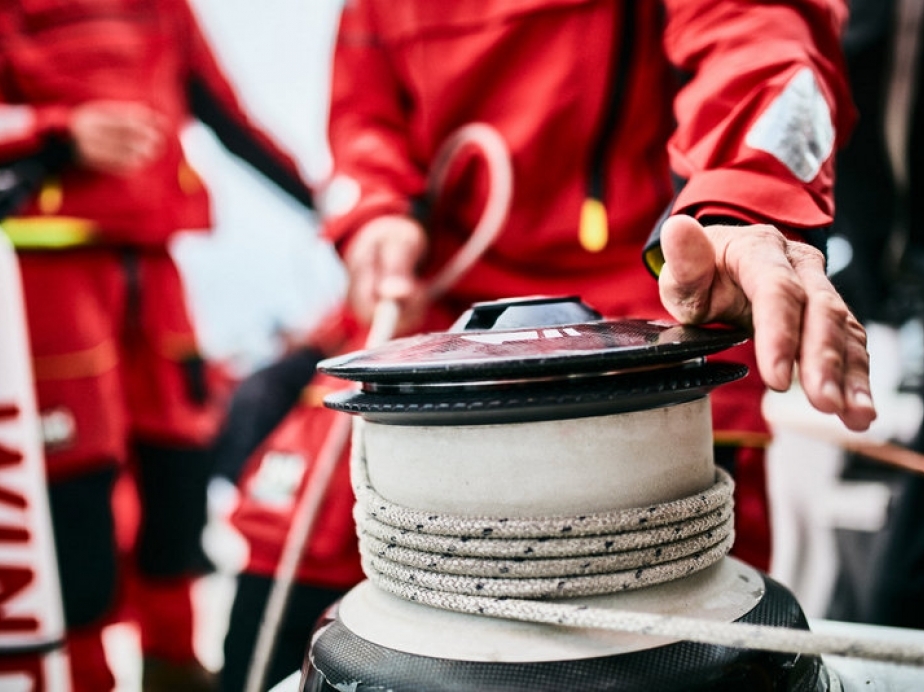

WINCHES

• Primaries HARKEN B1111.3 ST CAA 2x
• Mainsheet HARKEN B990.3 ST FD 1x
• Driven Pit HARKEN B990.3 ST FD 1x
• Runners HARKEN B990.3 ST FD 2x
• Pit HARKEN B65.2 STR 2x

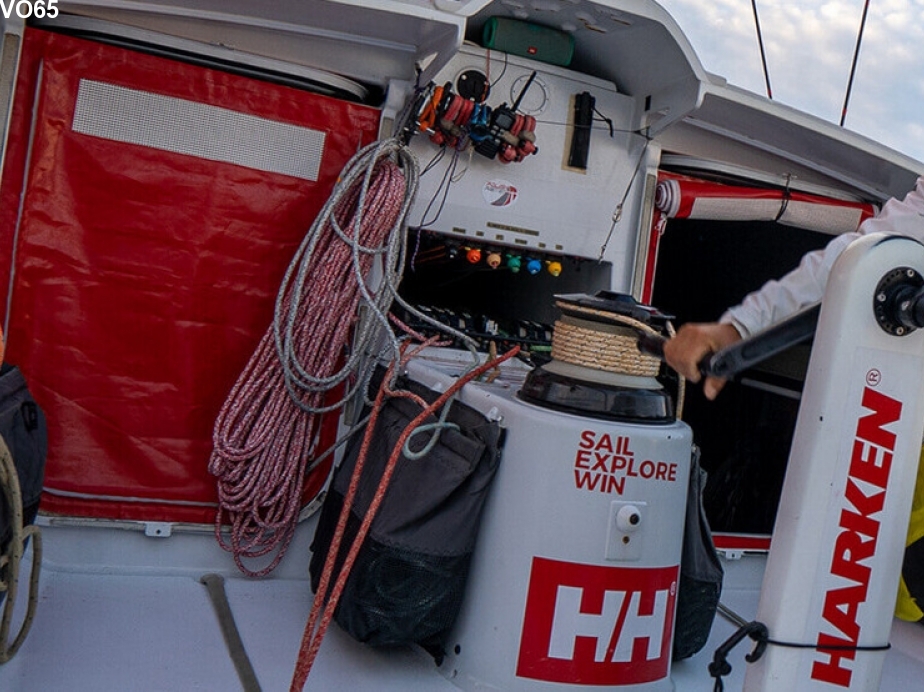

• Pedestals HARKEN MX 2 Spd Carbon 3x
• Pedestal Handles HARKEN F84265000 6x
• Buttons HARKEN 9x

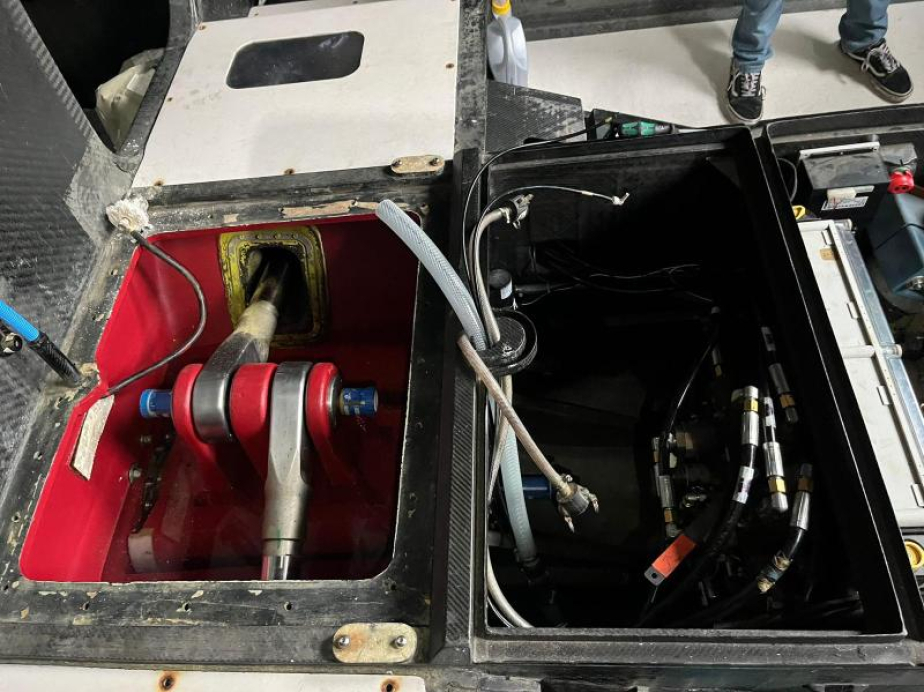

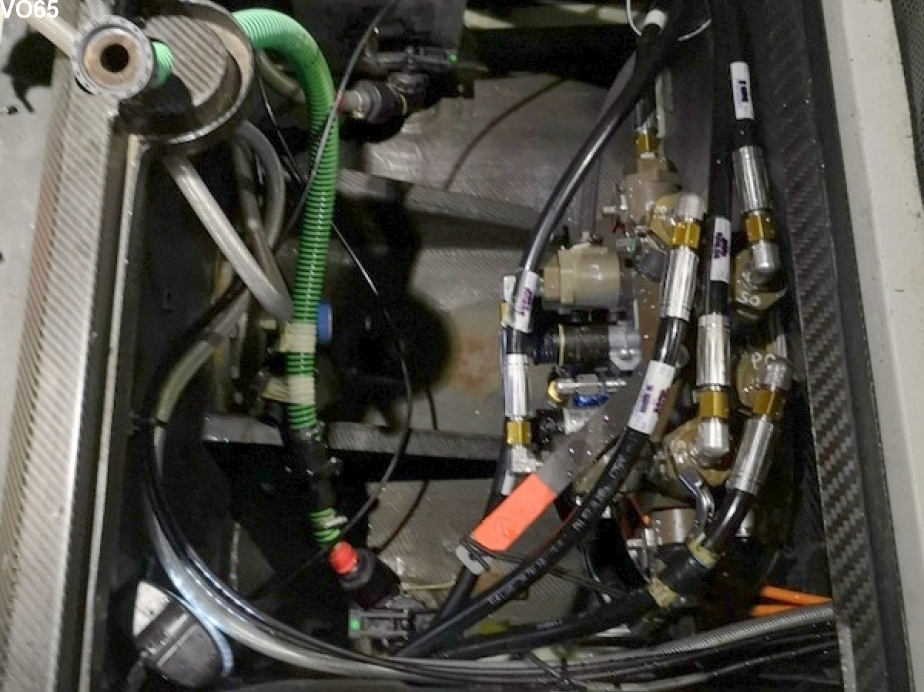

HYDRAULICS

• hydraulics serviced and certified April 2021

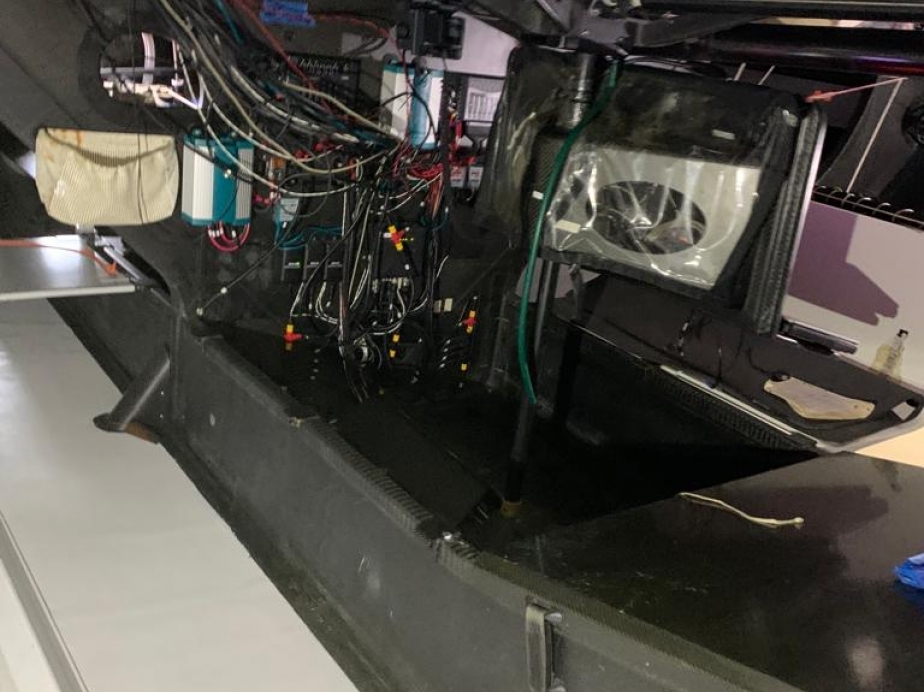

Electrics

• Mastervolt Battery charger

Safety

• complete set of lifesaving equipment for 20 persons (just renewed liferafts and certified lifejackets)
• 2 new inflatable danbuoys with masts and flag
• Emergency Rudder
• JACKLINE PADEYE ON BOW WICHARD
• COCKPIT PADEYES WICHARD
• TRACER PADEYES WICHARD

Electronics and Navigational Gear

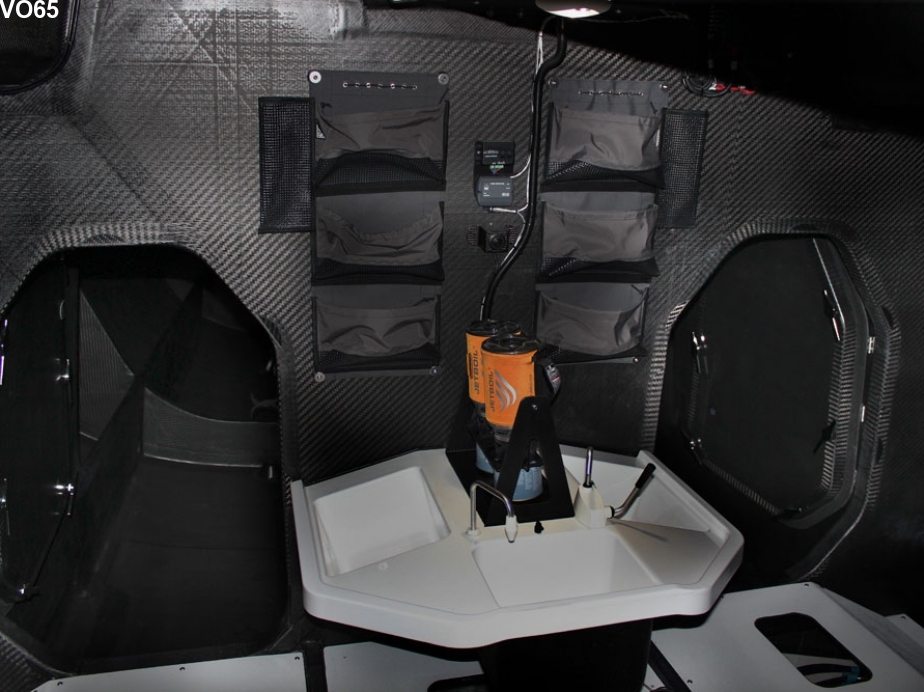

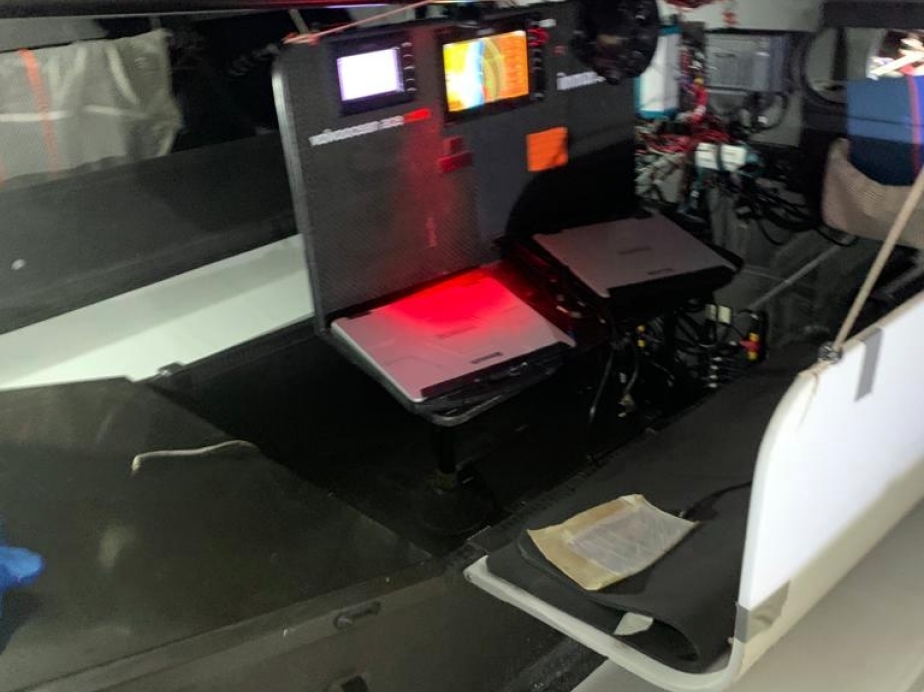

• Nav Station with Seat
• Media Desk with Seat
• Safety Equipment Locker
• Media Gear Locker

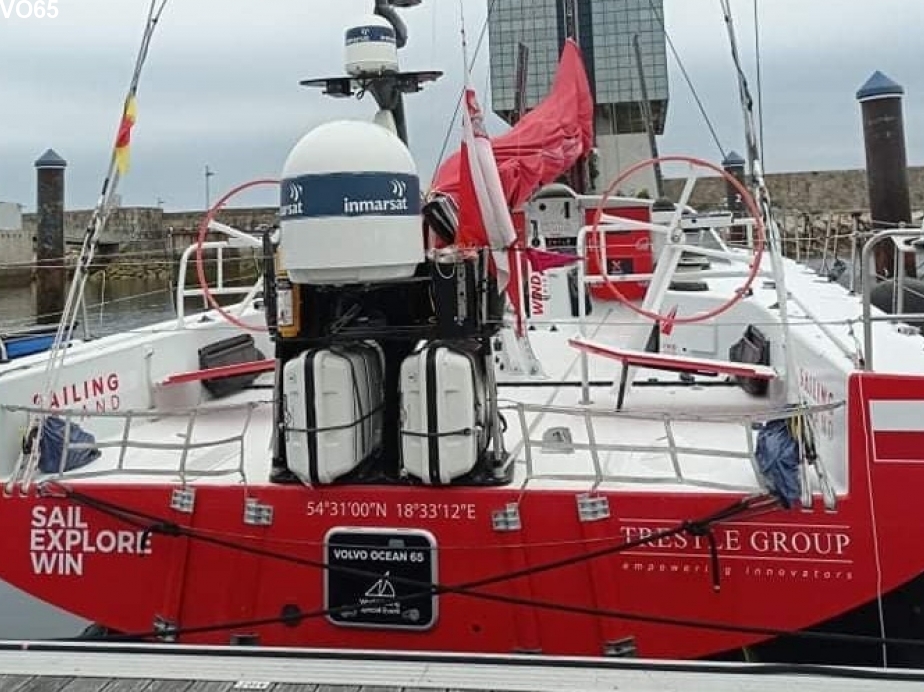

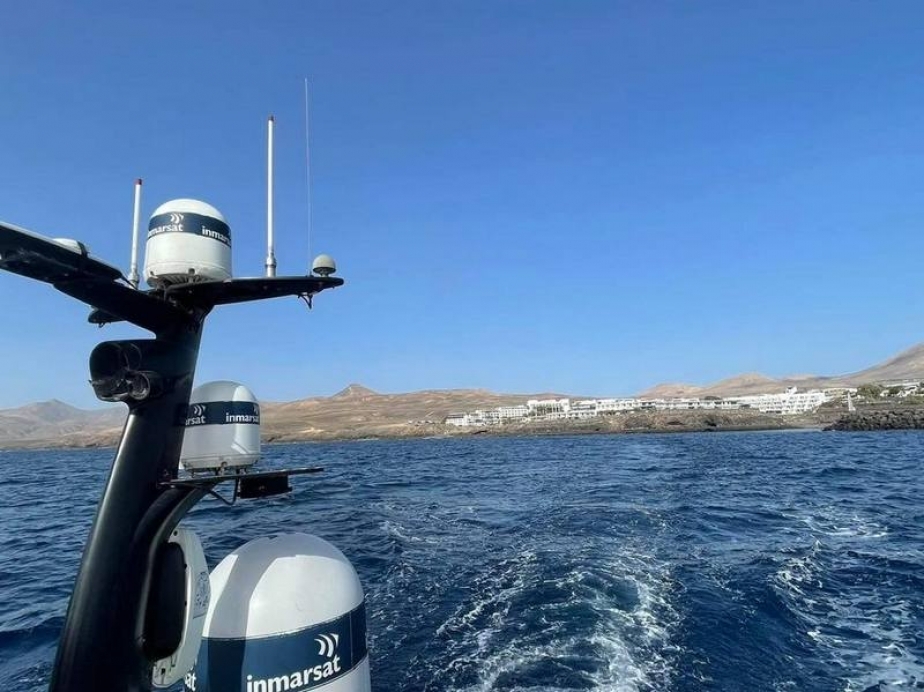

• Full set of satelite communication Sailor equipment as delivered for last VOR edition
• Complete operating electronics as per 2017 setup including 2 new 20/20 and H5000 mounted 2021.

Additional

WATER BALLAST

• Forward Ballast Tank Vent
• Forward Ballast Scoop
• Forward Gate Valve
• Aft Ballast Scoop
• Aft Gate Valve
• Aft Check Valve
• Ballast Pump

EXTRA

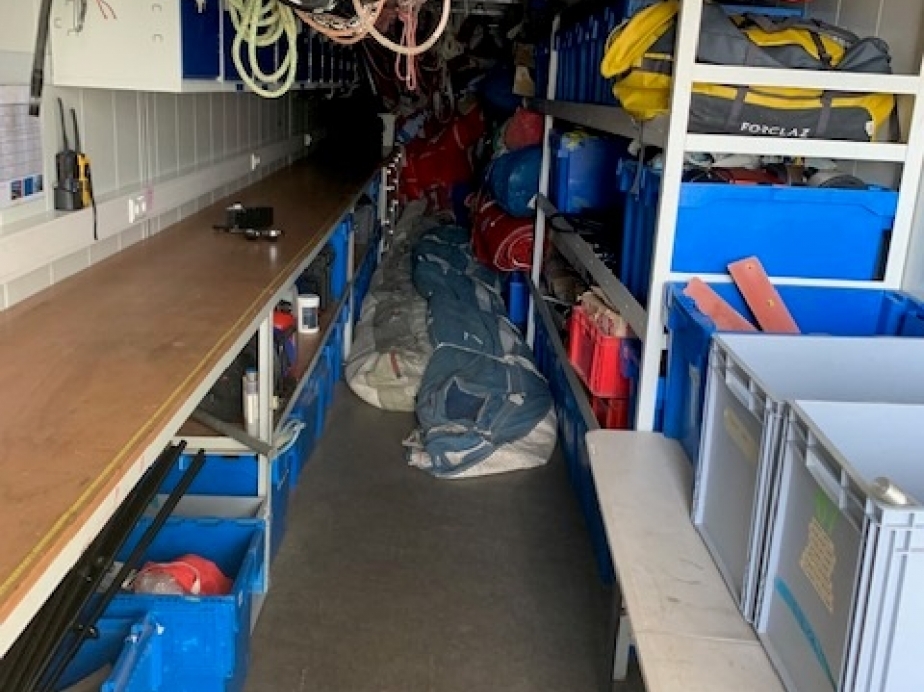

• 40 feet container with high-low craddle
• New antifouling 2021
